Fluid Section Overview
Buy Titan Epic 660HPX Fluid Section Replacement Parts Online
The Epic 660HPX Fluid Section is the pumping assembly responsible for drawing coating material into the sprayer, pressurizing it, and delivering it toward the spray gun through the designated fluid system.
In a reciprocating piston-type airless pump, the piston and associated valve components operate together to move coating material through the fluid section. Proper sealing and valve operation are essential for maintaining the intended pumping action.
Over time, fluid-handling components may experience wear from abrasive coatings, contamination, repeated operating cycles, or inadequate maintenance. Worn packings, damaged valve seats, leaking seals, or scratched piston surfaces may contribute to poor priming, fluid leakage, pressure loss, and irregular spray performance.
Identifying the correct fluid section repair part requires more than matching a component's appearance. Manufacturer part numbers, pump configuration, sealing materials, and equipment revisions must be checked before replacement.
At AllTitanParts, browse Titan Epic 660HPX Fluid Section Parts to locate listed replacement components. Use the applicable exploded diagram to identify the required part and confirm its fitment before purchasing.
Pump Operation
How the Titan Epic 660HPX Fluid Section Works
The fluid section uses the mechanical movement supplied by the sprayer's drive system to pump coating material. The following describes the general operation of a reciprocating airless pump; exact internal details depend on the Epic 660HPX assembly design.
Material Intake
Coating material enters the designated inlet path as the pump develops the conditions needed for intake.
Piston Movement
The pump piston moves through its operating cycle, changing pressure and fluid volume within the pumping chamber.
Valve Operation
The designated inlet and outlet valve components regulate the direction of coating material movement.
Pressurized Delivery
Coating material exits through the designated outlet path toward the connected filtration and spray delivery system.
Fluid Section Parts Identification

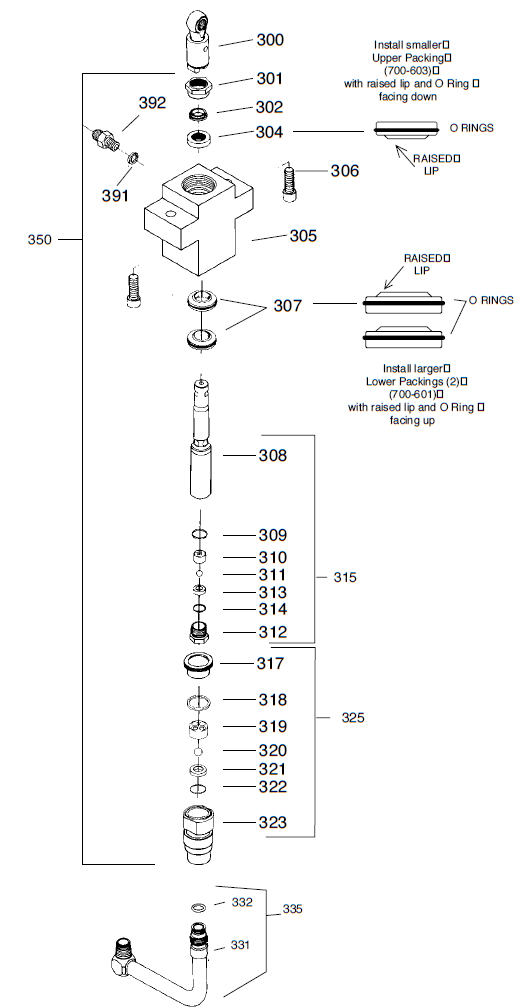

Titan Epic 660HPX Fluid Section Assembly Components
The following sections describe common piston-pump service areas. They are not a verified inventory of the Epic 660HPX Fluid Section diagram. Confirm the actual component breakdown, manufacturer part numbers, and individual serviceability using the applicable parts list.
Fluid Section Housing
The pump housing supports the designated internal pumping components and provides fluid passages and mounting interfaces. Inspect for cracks, damaged threads, and worn sealing surfaces.
Pump Piston
The piston moves through the pumping cycle and works with the packing arrangement to develop fluid pressure. Surface wear or scoring may affect sealing performance.
Upper Pump Packings
Where specified, upper packings seal around the moving piston or rod and help prevent coating leakage through the upper pump area.
Lower Pump Packings
Lower packing components support pressure retention within the designated pumping chamber. Confirm the approved packing material and installation sequence.
Packing Repair Kits
Where available, a packing repair kit may contain manufacturer-selected sealing components for a designated pump repair. Verify kit contents before ordering.
Inlet Valve Assembly
The inlet valve controls coating material entry into the pump. Debris or wear at its sealing surfaces may interfere with priming and pumping performance.
Outlet Valve Assembly
The outlet valve controls discharge through the designated fluid path. Damaged sealing components may affect pressure retention.
Inlet Valve Ball
Where the inlet uses a ball-type check valve, the ball works with its seat to regulate material flow. Inspect for wear or contamination.
Outlet Valve Ball
Where fitted, the outlet valve ball helps control fluid discharge. Use the specified ball size and material.
Valve Seats
Valve seats provide designated sealing surfaces for check valve components. Damage or embedded debris may interfere with proper sealing.
Valve Springs and Cages
Where included, springs and cages position or control designated valve components. Confirm the correct manufacturer configuration.
Pump Cylinder or Sleeve
Where the pump design includes a serviceable cylinder or sleeve, its internal surface provides the intended operating interface for piston and sealing components.
O-Rings and Fluid Seals
Manufacturer-specified seals help contain coating material at designated fluid section connections. Match material compatibility and dimensions.
Packing Retainers and Nuts
Where fitted, retainers and nuts support the specified packing arrangement. Follow the manufacturer's adjustment and assembly procedures.
Pump Connecting Hardware
Designated connecting components transfer mechanical movement from the drive system to the fluid section. Inspect for wear and damaged attachment points.
Complete Fluid Section Assembly
Where offered, a complete fluid section assembly may be appropriate when extensive wear or multiple component failures make individual repair impractical.
Pump Wear and Performance
Common Causes of Titan Epic 660HPX Fluid Section Wear
Fluid section performance depends on the condition of its moving parts, valves, sealing surfaces, and coating material.
- Abrasive coating materials: Suspended particles may accelerate wear on piston surfaces, packings, and valve components.
- Contaminated paint: Dried coating fragments and debris can interfere with inlet and outlet valve sealing.
- Worn pump packings: Sealing deterioration may cause leakage or reduced pressure retention.
- Damaged piston surfaces: Scoring or excessive wear may compromise the intended packing interface.
- Valve seat damage: Worn or contaminated seats may prevent valves from sealing correctly.
- Incorrect replacement components: Unsuitable packing materials, valve balls, or seals may cause premature failure.
- Improper cleaning: Coating residue left in the fluid section may harden and restrict movement.
- Mechanical drive problems: Abnormal drive operation may interfere with the fluid section's pumping cycle.
Fluid Section Troubleshooting
Titan Epic 660HPX Fluid Section Problems and Possible Repair Parts
The following symptoms can help identify areas requiring inspection. They do not establish a definitive diagnosis, and some symptoms may originate outside the fluid section.
| Observed Problem | Possible Causes | Components to Inspect |
|---|---|---|
| Sprayer will not prime | Inlet restriction, valve contamination, air entering suction path | Inlet valve, suction assembly, inlet seals |
| Sprayer loses pressure | Worn packings, valve leakage, fluid system leaks | Pump packings, inlet and outlet valves, connected fittings |
| Coating leaks around piston area | Worn upper packings, damaged sealing surfaces | Upper packing arrangement, piston surface, retainers |
| Irregular pump cycling | Valve problems, fluid restriction, drive irregularity | Check valves, fluid path, mechanical drive connection |
| Pump cycles but delivers little fluid | Valve leakage, worn packings, inlet restriction | Valve balls and seats, packings, suction components |
| Pressure drops while spraying | Fluid section wear, restricted filtration, supply limitation | Packings, valves, filter block, suction path |
| Pump makes unusual mechanical noise | Drive wear, piston damage, mechanical interference | Connecting hardware, piston, gearbox |
| Fluid leaks from pump connection | Damaged seal, worn threads, incorrect fitting | Specified O-rings, seals, fluid fittings |
Repair Diagnosis
Fluid Section Problems vs. Filter Block and Gear Box Problems
The Titan Epic 660HPX fluid section works with the mechanical drive, suction system, and filtration components. Similar symptoms may originate in different assemblies.
| Assembly | Primary Function | Possible Fault Indicators |
|---|---|---|
| Fluid Section | Draws in, pressurizes, and discharges coating material. | Poor priming, packing leakage, pressure loss, valve problems. |
| Filter Block | Provides the designated filtration and fluid connection arrangement. | Restricted flow, filter blockage, leakage at filter connections. |
| Gear Box | Transfers mechanical movement from the motor toward the pump. | Mechanical noise, loss of drive movement, abnormal vibration. |
| Suction Assembly | Supplies coating material to the pump inlet. | Air leaks, blocked intake, inadequate material supply. |
Fluid Section Repair Options
Replace Individual Epic 660HPX Fluid Section Parts or the Complete Pump Assembly?
Replace Pump Packings
A manufacturer-approved packing kit may be suitable when packing wear is confirmed and the associated piston and housing surfaces remain serviceable.
Replace Valve Components
Replace damaged valve balls, seats, or related components where the manufacturer lists them separately.
Replace the Pump Piston
A replacement piston may be appropriate when surface damage or wear is confirmed and individual service is supported.
Replace the Complete Fluid Section
A complete assembly may be appropriate when multiple components are damaged or repair of the existing assembly is impractical.
Parts Diagram Ordering Guide
How to Identify the Correct Titan Epic 660HPX Fluid Section Part Number
Confirm the Sprayer Model
Verify Titan Epic 660HPX and identify the installed fluid section configuration.
Review the Pump Diagram
Locate the required component in the applicable fluid section exploded illustration.
Match the Part Number
Compare the diagram reference with the manufacturer parts list and any documented supersession.
Verify Specifications
Confirm pump configuration, dimensions, seal materials, and applicable equipment revision.
Compatibility Checklist
Titan Epic 660HPX Fluid Section Parts Compatibility
Fluid section replacement parts must match the correct pump configuration. Before ordering, verify:
- Sprayer model: Titan Epic 660HPX.
- Fluid section assembly: Correct manufacturer assembly reference.
- Part number: Exact listed component or approved replacement.
- Piston specifications: Correct dimensions and surface requirements.
- Packing configuration: Correct upper and lower packing arrangement.
- Seal materials: Compatibility with the intended coating and cleaning materials.
- Valve specifications: Correct ball, seat, and related valve components.
- Pump housing: Matching fluid passages, threads, and mounting arrangement.
- Drive connection: Correct interface with the mechanical drive system.
- Assembly revision: Applicable manufacturer parts diagram and equipment configuration.
Do not assume Titan Epic 660HPX fluid section components fit Titan Epic 660EX, Epic 447HPX, or other Titan sprayers without documented manufacturer compatibility.
Preventive Maintenance
Titan Epic 660HPX Fluid Section Maintenance Tips
Clean After Spraying
Follow Titan's approved flushing and cleaning procedure to prevent coating residue from hardening in the pump.
Inspect Packing Leakage
Monitor designated packing areas for signs of coating leakage or deterioration.
Use Approved Lubrication
Use only manufacturer-recommended packing lubricant or maintenance fluid where specified.
Keep Coating Material Clean
Prepare coating materials according to their manufacturer's recommendations to reduce contamination.
Investigate Pressure Loss
Address unexpected pressure changes before continued operation to reduce the risk of further component damage.
Follow Service Procedures
Use the applicable Titan service manual for inspection intervals, assembly instructions, and replacement procedures.
Related Titan Epic 660HPX Assemblies
Shop Titan Epic 660HPX Fluid Section and Related Parts
Epic 660HPX Fluid Section Parts
Browse the designated pump fluid section category for listed replacement components.
Epic 660HPX Filter Block Parts
Explore filtration components and fluid connections associated with the sprayer's delivery system.
Epic 660HPX Gear Box Parts
Review the mechanical drive components that transfer movement toward the fluid section.
Titan Epic 660HPX Parts
Browse the main Epic 660HPX category for additional model-specific replacement assemblies.
Titan Epic 660HPX Fluid Section Repair Safety
The fluid section operates as part of a high-pressure coating delivery system. Pressurized fluid can penetrate skin and cause severe injury.
Before inspecting, cleaning, disassembling, or repairing the fluid section, switch off the sprayer, disconnect its power supply, and complete the manufacturer's pressure-relief procedure.
Never use your hand to check for fluid leaks. Do not operate the sprayer with damaged pump housings, leaking fittings, missing seals, or improperly assembled valve components.
Support the pump and connected mechanical components during removal. Follow the manufacturer instructions for packing installation, valve assembly, tightening specifications, and pressure testing.
Use only manufacturer-approved components suitable for the applicable fluid pressure and coating materials. If a high-pressure injection injury is suspected, seek immediate emergency medical treatment.
Titan Epic 660HPX Pump Replacement Parts
Order Titan Epic 660HPX Fluid Section Parts
Browse Titan Epic 660HPX Fluid Section Parts at AllTitanParts. Review the applicable exploded pump diagram, confirm the manufacturer part number, and identify the packing, valve, piston, seal, or other replacement component required for your repair.
Shop Epic 660HPX Fluid Section PartsFrequently Asked Questions
Titan Epic 660HPX Fluid Section Parts FAQ
What does the Titan Epic 660HPX Fluid Section do?
The fluid section draws coating material into the pump, pressurizes it, and delivers it through the sprayer's designated fluid system.
Where can I buy Titan Epic 660HPX Fluid Section Parts?
Browse the Titan Epic 660HPX Fluid Section Parts category at AllTitanParts.
What parts are included in the Epic 660HPX fluid section?
The exact components depend on the manufacturer diagram. Common piston-pump components include a piston, packings, inlet and outlet valves, balls, seats, seals, and connecting hardware.
Why will my Titan Epic 660HPX not prime?
Possible causes include a blocked inlet, contaminated inlet valve, air entering the suction path, or other fluid system problems.
Why does my Epic 660HPX lose spray pressure?
Worn pump packings, leaking check valves, restricted fluid flow, or other system faults may contribute to pressure loss.
Can I replace the pump packings?
Yes, where the manufacturer provides an approved packing kit or individually serviceable packing components for the installed fluid section.
What causes coating leakage around the pump piston?
Possible causes include worn upper packings, damaged piston surfaces, or deterioration of the designated sealing arrangement.
Can I replace the inlet and outlet valve balls?
Individual valve ball replacement may be possible when the manufacturer lists the correct ball separately. Verify the ball size, material, and associated valve seat.
How do I find the correct Epic 660HPX fluid section part number?
Use the applicable manufacturer exploded diagram and match the component reference to the parts list and product listing.
Can I buy a complete Titan Epic 660HPX fluid section?
A complete assembly may be available where listed for the applicable equipment configuration. Confirm its part number, included components, and availability.
Are Epic 660HPX and Epic 660EX fluid section parts interchangeable?
Do not assume interchangeability. Confirm the manufacturer part numbers and documented compatibility for the specific pump assemblies.
How can I maintain my Titan Epic 660HPX fluid section?
Follow the manufacturer's flushing and maintenance instructions, inspect for packing leakage, use approved maintenance fluids where specified, and investigate pressure problems promptly.
How can I get help identifying Titan Epic 660HPX Fluid Section Parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, fluid section diagram reference, and manufacturer part number.
