Titan Epic Series Replacement Parts
Titan Epic 660HPX Parts, Repair Kits and Assemblies
Shop Titan Epic 660HPX replacement parts at AllTitanParts. Find the parts you need to maintain, troubleshoot, and repair your Titan Epic 660HPX airless paint sprayer. Explore manufacturer-referenced pump components, fluid section parts, motor assemblies, gearbox components, inlet and outlet valves, filters, seals, suction components, frame hardware, and compatible accessories where listed. Use the appropriate Titan Epic 660HPX parts diagram to identify the correct replacement component before ordering.
Buy Titan Epic 660HPX Replacement Parts Online
The Titan Epic 660HPX is part of Titan's Epic airless sprayer family. Maintaining its pumping, drive, electrical, and fluid delivery systems requires correctly identified replacement parts and appropriate service procedures.
Normal equipment use exposes pump packings, valve components, seals, filters, and mechanical parts to wear. Abrasive coatings, contaminated material, insufficient cleaning, and damaged accessories can accelerate component deterioration and contribute to reduced spraying performance.
Whether you are replacing a worn piston packing, repairing an inlet valve, inspecting a gearbox, or restoring the fluid delivery system, the correct repair begins with identifying the affected assembly.
AllTitanParts helps you browse Titan Epic 660HPX parts by diagram, compare available replacement components, and locate manufacturer part numbers for your equipment. Verify model revisions and documented fitment before ordering.
Replacement Parts Categories
Explore Titan Epic 660HPX Parts by Assembly
The following categories describe major service areas commonly found in airless sprayer systems. Actual parts and assembly configurations must be confirmed against the applicable Titan Epic 660HPX parts diagram.
Fluid Section Assembly Parts
Browse applicable fluid section components such as pump housings, piston assemblies, packings, cylinders, valve components, and sealing hardware. These parts are central to coating intake and pressurization.

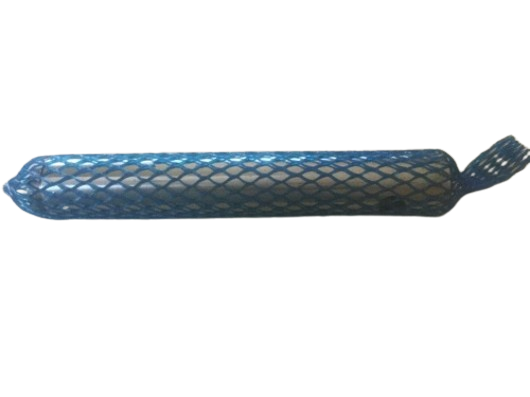

Piston and Packing Components
Identify manufacturer-specified piston rods, upper and lower packings, packing washers, and repair kits where listed. Worn packings may contribute to fluid leakage or reduced pumping efficiency.
Inlet and Outlet Valve Parts
Find applicable valve balls, seats, springs, retainers, and seals. Proper valve sealing supports material movement through the pumping chamber.

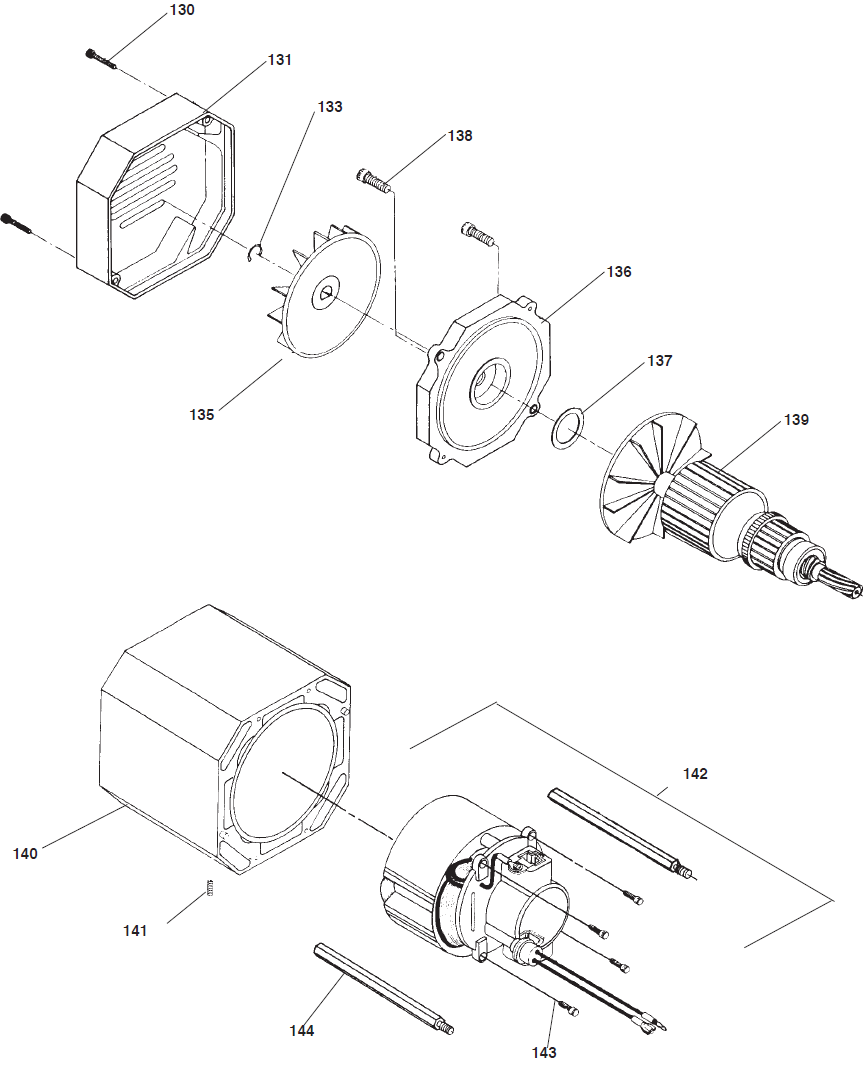

Motor Assembly Components
Review motor-related service parts listed for the appropriate equipment configuration. Electrical diagnosis and repairs should follow the manufacturer's instructions.

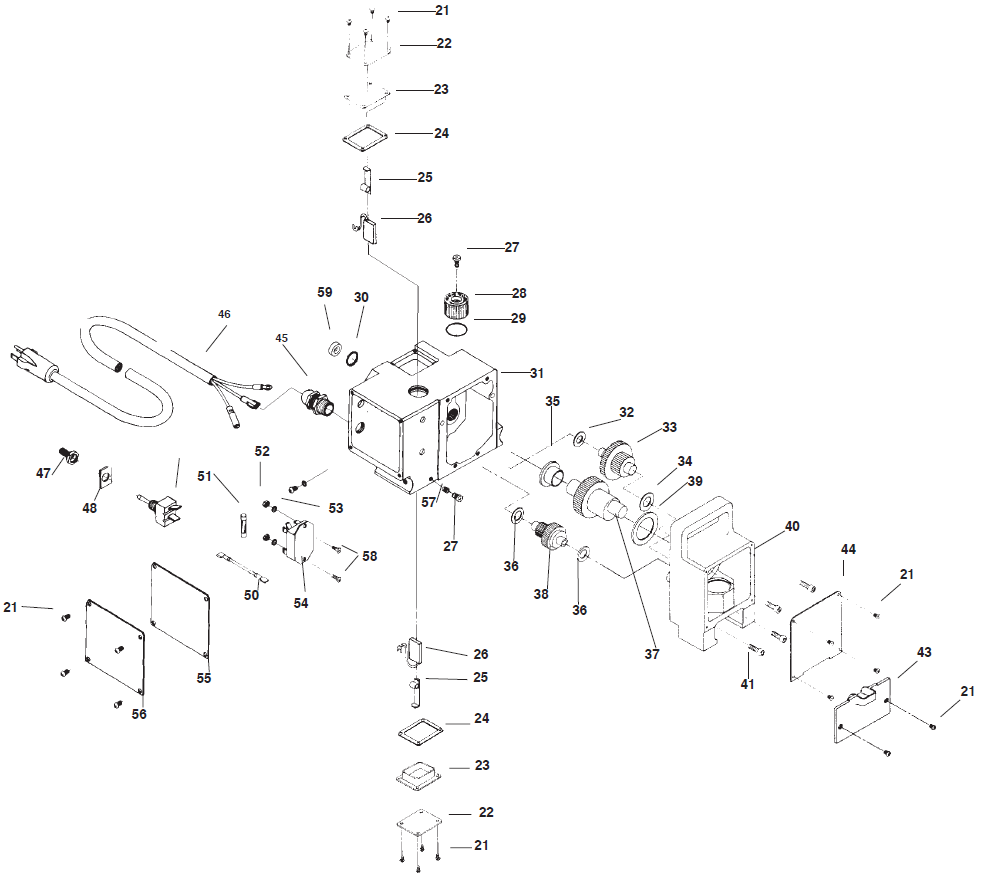

Gearbox and Drive Components
Explore applicable gears, shafts, bearings, drive linkages, housings, and related mechanical components. These parts transmit movement to the pump.
Filter Block and Filtration Parts
Locate designated filter elements, filter housings, seals, plugs, and fluid connections where specified. Filtration helps manage debris in the coating delivery system.

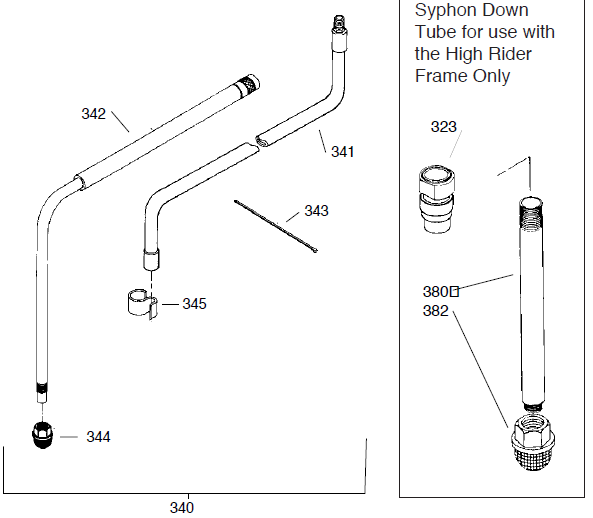

Syphon and Suction Assembly Parts
Identify applicable suction tubes, hoses, inlet strainers, clamps, and connectors. Restrictions or air leaks in the suction system can affect priming.

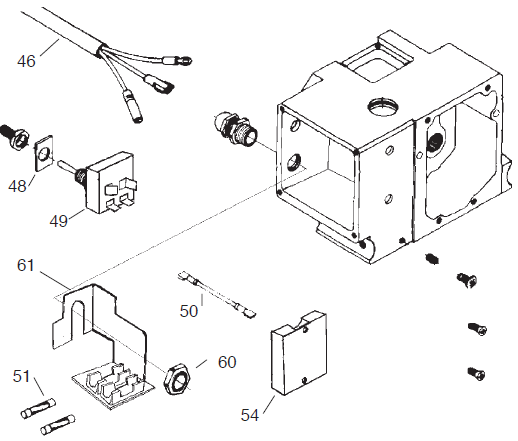

Pressure Control and Electrical Parts
Review manufacturer-listed switches, control components, wiring, and electrical service parts for the correct equipment revision.

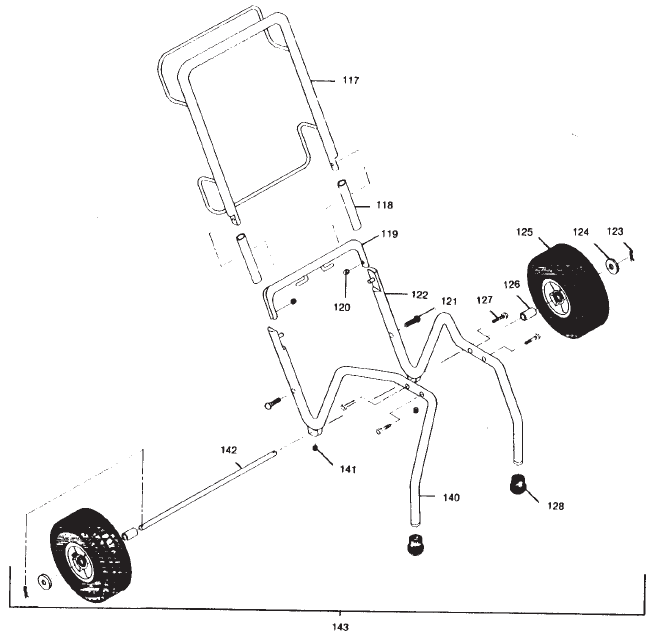

Frame and Mounting Hardware
Find applicable frame supports, brackets, handles, feet, bolts, screws, and washers. Verify the exact frame configuration and mounting dimensions.
Seals, O-Rings and Gaskets
Replace worn sealing components with parts matching the manufacturer's dimensions, material specifications, and assembly requirements.
Sprayer Accessories
Select compatible spray guns, airless spray tips, guards, hoses, filters, and extensions according to the sprayer's documented specifications.
Complete Replacement Assemblies
Where offered, complete assemblies can provide a repair option when multiple internal components are damaged or individual replacement is impractical.
Understanding the Titan Epic 660HPX Sprayer System
The Epic 660HPX uses connected mechanical and fluid delivery systems to move coating material through the sprayer. Understanding these systems helps narrow down the source of a malfunction.
Material Intake
The suction assembly supplies coating material to the pump inlet.
Mechanical Drive
The motor and drive system generate and transfer the required pump movement.
Fluid Pressurization
The pumping components and valves move material into the pressurized fluid system.
Spray Delivery
Approved hoses, guns, and spray tips deliver and apply the coating.
Troubleshooting Guide
Common Titan Epic 660HPX Problems and Repair Parts
Sprayer symptoms may originate in more than one assembly. Use the following guide to identify possible areas for inspection before ordering replacement parts.
| Problem | Possible Causes | Parts to Inspect |
|---|---|---|
| Sprayer will not prime | Blocked suction intake, air leak, inlet valve contamination | Suction assembly, inlet strainer, inlet valve |
| Low spraying pressure | Pump wear, restricted filtration, fluid leakage | Packings, valves, filters, seals |
| Fluid leaks from pump | Worn seals, packing deterioration, damaged fittings | Pump packing kit, seals, fittings |
| Motor will not start | Power or electrical fault | Power supply, switches, controls, motor |
| Motor runs but pump does not cycle | Mechanical drive or linkage fault | Gearbox, drive components, pump connection |
| Uneven spray pattern | Worn tip, restricted filter, unsuitable settings | Spray tip, gun filter, pump filter |
| Unexpected pump cycling | Internal leakage or pressure loss | Pump valves, packings, external connections |
| Unusual mechanical noise | Drive wear, loose hardware, mechanical damage | Gearbox, bearings, mounting components |
How to Find the Correct Titan Epic 660HPX Part Number
Ordering by manufacturer part number is generally more reliable than choosing a component based only on its appearance.
- Confirm the model: Check the equipment identification plate for Titan Epic 660HPX information.
- Identify the assembly: Determine whether the required part belongs to the pump, motor, gearbox, suction system, filtration system, or frame.
- Review the parts diagram: Locate the component using the manufacturer's exploded illustration and parts list.
- Match the part number: Compare the original reference with the product listing and any documented replacement number.
- Verify compatibility: Confirm the relevant model revision, electrical specification, dimensions, and assembly configuration.
- Review kit contents: Check whether the required component is supplied individually or as part of a larger repair kit.
Titan Epic 660HPX OEM Parts and Compatibility
When selecting Titan Epic 660HPX repair parts, confirm that the product listing identifies the correct manufacturer part number and intended equipment application. Genuine OEM status should be established from the specific product's sourcing and documentation rather than assumed for every item in the category.
Similar-looking components may have different thread sizes, sealing materials, dimensions, electrical ratings, or mounting configurations. These differences can affect performance and safety.
Before purchasing, verify:
- Exact Titan Epic 660HPX model identification.
- Applicable equipment serial number or revision.
- Manufacturer part number and documented supersessions.
- Correct fluid section and drive configuration.
- Electrical voltage and motor specifications where relevant.
- Pressure rating for hoses, guns, fittings, and other fluid components.
- Correct sealing material and component dimensions.
- Included hardware and repair kit contents.
Do not assume Epic 660HPX parts are interchangeable with Epic 660EX, Epic 447HPX, or other Titan sprayer models without manufacturer confirmation.
Maintenance and Equipment Care
How to Maintain Your Titan Epic 660HPX Sprayer
Flush the Fluid System
Follow the manufacturer's approved flushing procedure after spraying to reduce material buildup.
Inspect Pump Packings
Monitor the fluid section for leakage, packing wear, and irregular pumping behavior.
Maintain Filters
Clean or replace designated inlet, manifold, and gun filters according to the service instructions.
Check Hoses and Fittings
Inspect pressure-containing components for abrasion, leakage, damaged connections, and deterioration.
Monitor Motor and Drive
Investigate unusual noise, vibration, overheating, or inconsistent mechanical operation.
Store Equipment Correctly
Follow the manufacturer's storage and pump preservation procedures between jobs.
Browse Titan Epic Sprayer Replacement Parts
Use the model-specific parts category to locate the appropriate assembly breakdown. Links to related models are for navigation and do not establish interchangeability.
Titan Epic 660HPX Parts
Browse the Epic 660HPX model category and its listed replacement parts.
Titan Epic 660EX Parts
Explore the separate Epic 660EX model category.
AllTitanParts Store
Browse additional Titan airless sprayer parts and equipment categories.
Titan Epic 660HPX Repair Safety
Airless paint sprayers operate with high-pressure fluid capable of causing serious injection injuries. Before inspecting or replacing components, switch off the sprayer, disconnect the appropriate power source, and complete the manufacturer's pressure-relief procedure.
Never attempt to stop a pressurized leak with your hands. Do not operate the sprayer with damaged hoses, leaking connections, or compromised pressure-containing components.
Follow the applicable Titan service documentation. Electrical and mechanical repairs should be performed by qualified personnel. Suspected high-pressure fluid injection injuries require immediate emergency medical treatment.
Titan Epic 660HPX Replacement Parts
Find the Right Titan Epic 660HPX Part
Browse Titan Epic 660HPX parts by diagram at AllTitanParts. Identify the correct manufacturer part number and shop replacement components for your repair or maintenance project.
Shop Titan Epic 660HPX PartsFrequently Asked Questions
Titan Epic 660HPX Parts FAQ
Where can I buy Titan Epic 660HPX parts?
You can browse Titan Epic 660HPX replacement parts at AllTitanParts and use the applicable parts diagram to identify the required component.
How do I find the correct Titan Epic 660HPX part number?
Locate the component in the appropriate manufacturer's exploded parts diagram and match the reference to its listed part number.
What causes low pressure in a Titan Epic 660HPX?
Possible causes include worn pump packings, leaking valves, restricted filters, damaged seals, or pressure-control problems.
Why will my Titan Epic 660HPX not prime?
Inspect the suction system, inlet strainer, inlet valve, and possible air leaks according to the manufacturer's troubleshooting instructions.
Can I replace Titan Epic 660HPX pump packings?
Packing replacement may be possible using the manufacturer-specified packing kit or individual components for the installed fluid section.
Can I buy a complete Epic 660HPX fluid section?
A complete fluid section may be available where listed for the exact model and assembly configuration.
Are Titan Epic 660HPX and Epic 660EX parts interchangeable?
Interchangeability must be verified using manufacturer part numbers and documented compatibility information.
What should I check if the Epic 660HPX motor will not run?
Have qualified personnel inspect the power supply, electrical controls, protective devices, and motor according to the service manual.
Can I replace individual Epic 660HPX gearbox parts?
Individual gearbox components may be available when the manufacturer lists them separately in the applicable assembly diagram.
How often should I maintain my Titan Epic 660HPX?
Follow the manufacturer's maintenance schedule and adjust inspection frequency to operating conditions and coating use.
How can I confirm a genuine OEM Titan part?
Check the product's manufacturer identification, part number, and sourcing documentation. OEM status should be confirmed for the individual product.
How can I get help identifying Epic 660HPX parts?
Contact AllTitanParts at 713-931-0006 with your equipment model and the relevant parts diagram reference.
Need Help Finding Titan Epic 660HPX Parts?
Have your Titan Epic 660HPX model information and manufacturer part number ready when contacting AllTitanParts.
713-931-0006
