Titan EP2205 Fluid Section Assembly Parts
Shop Titan EP2205 Fluid Section Assembly parts for maintenance, rebuilding and repair of the pumping section on your EP2205 airless sprayer. Use the applicable exploded parts diagram to identify piston components, packings, inlet and outlet valve parts, seals, O-rings, housings, fittings and related pump components by exact callout and replacement part number.
Find Titan EP2205 Fluid Section Replacement Parts
The EP2205 fluid section contains the working pump components responsible for drawing coating into the sprayer and moving it through the pressurized fluid path. Piston components, packings, valves and seals must work together correctly for reliable priming, pressure development and material delivery.
Worn packings, contaminated valve components, damaged sealing surfaces or other internal wear can contribute to leakage, poor priming, reduced output or difficulty maintaining pressure. Use the EP2205 Fluid Section Assembly diagram to identify the required component and verify the exact callout, part number, description and quantity before ordering.
How to Find the Correct EP2205 Fluid Section Part
Confirm EP2205
Verify that the sprayer being serviced is the EP2205 before selecting internal pump or fluid-section components.
Open the Fluid Section Diagram
Use the applicable EP2205 Fluid Section Assembly exploded illustration to locate the component requiring service.
Match the Callout
Locate the piston, packing, valve, seal, housing, fitting or related pump component and record its numbered callout.
Verify Part & Quantity
Match the callout to the parts list and confirm the exact replacement part number, description and required quantity.
How the EP2205 Fluid Section Moves Coating
During pump operation, the fluid section uses piston movement together with inlet and outlet valve action to draw coating into the pump and move it toward the pressurized outlet. Packings and seals help control fluid around moving and stationary components so the pump can operate effectively.
Inlet Valve Components
Applicable inlet-valve components control material entry into the fluid section as the pump cycles.
Piston Components
The piston and related internal components create the pumping action required to move coating through the fluid section.
Packings & Seals
Packings, O-rings and related seals help control fluid around the applicable moving and stationary pump components.
Outlet Valve Components
Applicable outlet-valve components help control material leaving the pumping chamber as the fluid section cycles.
EP2205 Fluid Section Components to Inspect
Inspect diagram-listed piston parts and working surfaces for scoring, wear or other damage that may affect pumping performance.
Inspect applicable packing components when fluid leakage, reduced pressure or internal bypass is suspected.
Check the applicable inlet valve, ball, seat and related components when the sprayer is difficult to prime or cannot pick up material.
Inspect the applicable outlet valve and related sealing surfaces when pump output or pressure performance is inconsistent.
Inspect diagram-listed seals and O-rings for wear, cuts, flattening or other conditions that may compromise fluid sealing.
Inspect applicable housings, threads, fittings and connection points for leakage, physical damage or compromised sealing surfaces.
Inspect the Complete EP2205 Fluid Section Before Rebuilding
Internal pump wear can affect more than one component. When servicing the fluid section, inspect the piston, packings, valve components, balls, seats, seals and related working surfaces before deciding which replacement parts are required.
Inspect the Piston
Check applicable piston surfaces for scoring, wear or damage that can affect sealing and pump performance.
Inspect the Packings
Look for worn or damaged packing components when leakage, pressure loss or reduced pumping efficiency is present.
Inspect Valve Components
Check applicable inlet and outlet valve components for contamination, wear, damage or poor sealing.
Inspect Sealing Surfaces
Inspect related seats, housings, O-ring locations and sealing surfaces before installing replacement components.
Common EP2205 Fluid Section Symptoms
Pump symptoms can also originate in the suction system, PRIME/SPRAY valve, filter, pressure-control system or other fluid-path components. Diagnose the complete sprayer before replacing internal pump parts.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Sprayer Will Not Prime | Inspect material supply, suction components, inlet valve parts, PRIME/SPRAY valve and applicable pump components. | Determine whether the problem originates before or inside the fluid section before ordering parts. |
| Low or Unstable Pressure | Inspect packings, valve components, piston surfaces, suction system, filters and pressure-control components. | Isolate internal pump wear from external fluid-system or control problems before rebuilding the fluid section. |
| Fluid Leakage at the Pump | Inspect packings, seals, O-rings, fittings, housings and related sealing surfaces. | Identify the exact leakage point and inspect surrounding components before replacing parts. |
| Pump Cycles but Output Is Reduced | Inspect inlet and outlet valve components, packings, piston surfaces, suction path and downstream restrictions. | Determine whether material is bypassing internally or being restricted elsewhere in the fluid system. |
| Difficulty Maintaining Material Flow | Inspect the suction set, inlet valve, packings, outlet valve, filters and related fluid components. | Diagnose the complete material path before selecting fluid-section replacement parts. |
Fluid Section, Piston Pump or Suction Set?

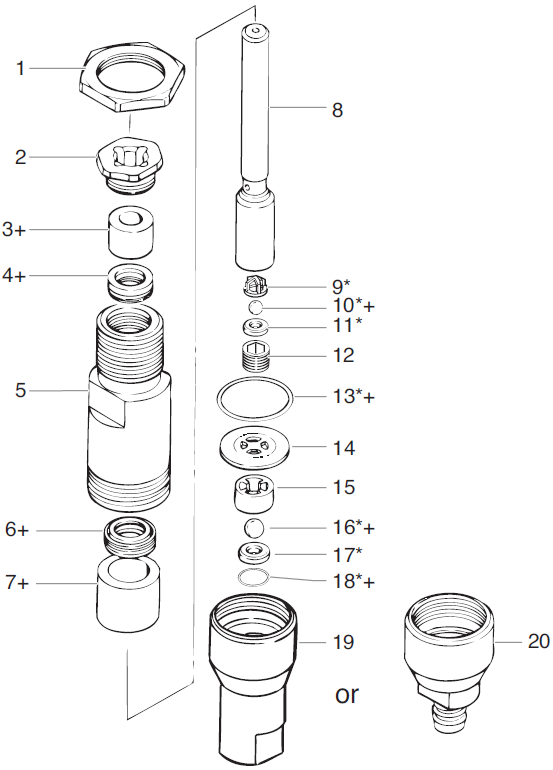

EP2205 Fluid Section Assembly
Use this section for piston components, packings, inlet and outlet valve parts, seals, O-rings, housings and internal pump components.
EP2205 Piston Pump
Use the piston-pump section when identifying the complete pump assembly and related pump replacement components.
View EP2205 Piston Pump Parts →EP2205 Suction Set Assembly
Use the suction-set section for intake hoses or tubes, strainers, fittings, connectors and related material-intake components.
View EP2205 Suction Set Parts →Verify EP2205 Fluid Section Part Compatibility
Do not select a piston component, packing, valve part, seal, O-ring, housing or fitting based only on appearance. Similar pump components used on other Titan EP and EPX sprayers can differ in dimensions, configuration, material or application.
Confirm the EP2205 model, applicable Fluid Section Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering.
Before Buying Titan EP2205 Fluid Section Parts
Verify the complete sprayer model before selecting internal pump replacement components.
Determine whether the issue involves priming, leakage, reduced output, unstable pressure or material-flow problems.
Check the piston, packings, valves, seals and mating surfaces together before planning the repair.
Locate the required component in the Fluid Section Assembly diagram and match its callout to the parts list.
Confirm the exact replacement part number, description and required quantity before ordering.
Shop Related Titan EP2205 Parts
Move between EP2205 assembly sections to locate the correct fluid-section, pump, suction, pressure-control, transducer, drive or supporting component for your repair.
Relieve Pressure Before Servicing the EP2205 Fluid Section
Shut down the sprayer and disconnect or isolate the applicable power source before service. Follow the manufacturer's complete pressure-relief procedure before removing the fluid section or loosening any fluid-system component. Never disassemble a pressurized pump or fluid connection. Follow the applicable EP2205 service instructions for pump removal, disassembly, inspection, reassembly and testing.
Shop Titan EP2205 Fluid Section Assembly Parts
Use the EP2205 Fluid Section Assembly exploded diagram to identify the piston component, packing, inlet or outlet valve part, seal, O-ring, housing or fitting you need, then verify the exact replacement part number before ordering.
Shop EP2205 Fluid Section PartsTitan EP2205 Fluid Section Assembly Parts FAQ
What does the Titan EP2205 Fluid Section Assembly do?
The fluid section contains working pump components that draw coating into the sprayer and move it through the pressurized fluid path. Applicable piston, packing, valve and sealing components work together during each pump cycle.
How do I find the correct EP2205 fluid-section part?
Use the EP2205 Fluid Section Assembly exploded diagram, locate the required component and match its numbered callout to the corresponding part number, description and quantity in the parts list.
What should I inspect if the EP2205 will not prime?
Inspect the material supply, suction system, pump inlet, inlet-valve components, PRIME/SPRAY valve and related fluid-section parts before deciding which component requires replacement.
Can worn EP2205 pump packings cause fluid leakage?
Worn or damaged packing components can contribute to leakage or reduced sealing performance. Inspect the packings together with the piston and related working surfaces before planning the repair.
What should I inspect if the EP2205 has low pressure?
Inspect the suction path, inlet and outlet valve components, piston, packings, filters, fluid connections, transducer and pressure-control system. Low pressure can originate from several areas of the sprayer.
Can I use EP2105 fluid-section parts on an EP2205?
Do not assume interchangeability between EP models. Similar-looking piston, packing, valve and sealing components can have different dimensions, configurations or part numbers. Verify the exact EP2205 part number before ordering.
What should I verify before ordering EP2205 Fluid Section parts?
Confirm the EP2205 model, correct Fluid Section Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2205 Fluid Section Part?
Have your EP2205 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct piston component, packing, valve part, seal, O-ring, housing or related pump replacement component.
Parts & Fitment Help: 713-931-0006
