Titan EP2205 PRIME/SPRAY Valve Assembly Parts
Shop Titan EP2205 PRIME/SPRAY Valve Assembly parts for maintenance, troubleshooting and repair of the sprayer's fluid-routing system. Use the applicable exploded parts diagram to identify valve components, seals, O-rings, handle and shaft parts, fittings, retainers and related hardware by exact callout and replacement part number.
Find Titan EP2205 PRIME/SPRAY Valve Replacement Parts
The EP2205 PRIME/SPRAY valve is part of the sprayer's fluid-control system. The valve allows the fluid path to be configured for priming and spraying functions as required during normal sprayer operation.
Wear, contamination, damaged sealing components or restricted valve movement can contribute to priming problems, pressure loss, leakage or improper fluid routing. Use the EP2205 PRIME/SPRAY Valve Assembly diagram to identify the required component and verify the exact callout, part number, description and quantity before ordering.
How to Find the Correct EP2205 PRIME/SPRAY Valve Part
Confirm EP2205
Verify that the sprayer being serviced is the EP2205 before selecting PRIME/SPRAY valve replacement components.
Open the Valve Diagram

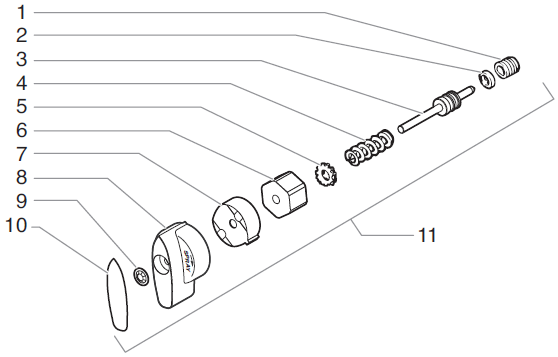

Use the applicable EP2205 PRIME/SPRAY Valve Assembly exploded illustration to locate the component requiring service.
Match the Callout
Locate the valve component, seal, handle, shaft, fitting, retainer or related hardware and record its numbered callout.
Verify Part & Quantity
Match the callout to the parts list and confirm the exact replacement part number, description and required quantity.
How the EP2205 PRIME/SPRAY Valve Supports Sprayer Operation
The PRIME/SPRAY valve provides an operator-controlled fluid-routing function. During setup and priming, the valve position supports the applicable return or prime path. When changed to the spray position, the fluid system is configured for pressure development and delivery toward the spray hose and gun.
PRIME Position
The prime position supports the applicable fluid-return path used while preparing the sprayer and establishing material flow.
SPRAY Position
The spray position configures the applicable fluid path so the sprayer can develop pressure for material delivery toward the hose and spray gun.
Internal Valve Components
Internal valve parts and sealing surfaces help control the intended fluid path according to the selected valve position.

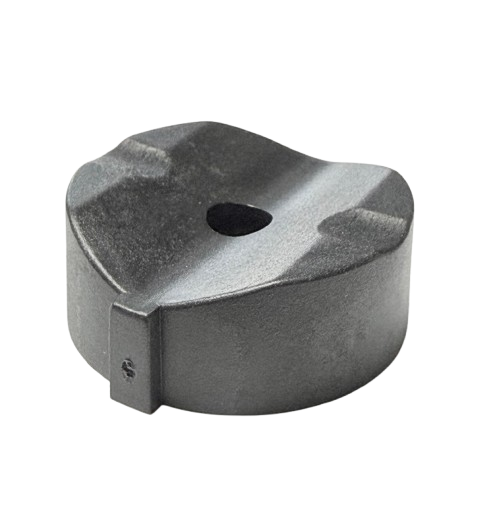

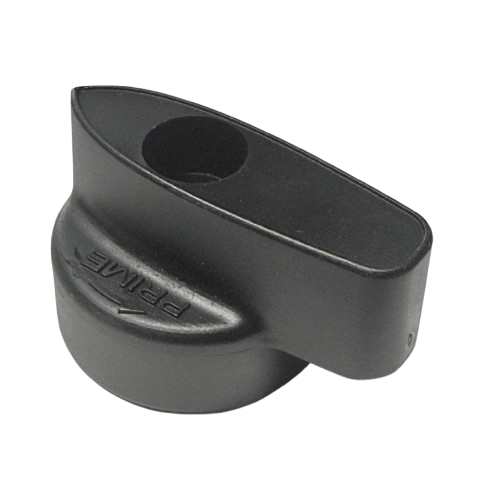

Handle & Shaft
The applicable handle, shaft and related hardware allow the operator to move the valve between its operating positions.
EP2205 PRIME/SPRAY Valve Components to Inspect
Inspect the applicable valve body, threads and connection points for physical damage, leakage or compromised sealing surfaces.
Inspect diagram-listed internal components for contamination, wear or damage when fluid routing or pressure behavior is abnormal.
Check applicable seals and O-rings for wear, cuts, flattening or other damage when leakage is present.
Inspect the handle, shaft and related operating components when the valve is difficult to turn or does not move normally.

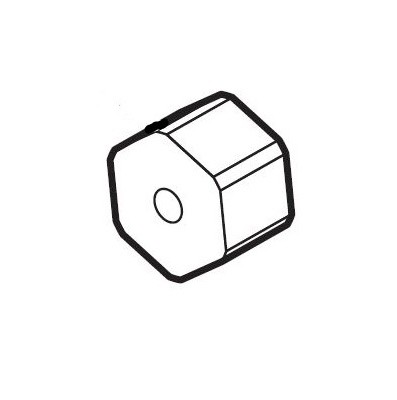

Inspect diagram-listed fittings and fluid connections for leakage, damaged threads or improper seating.

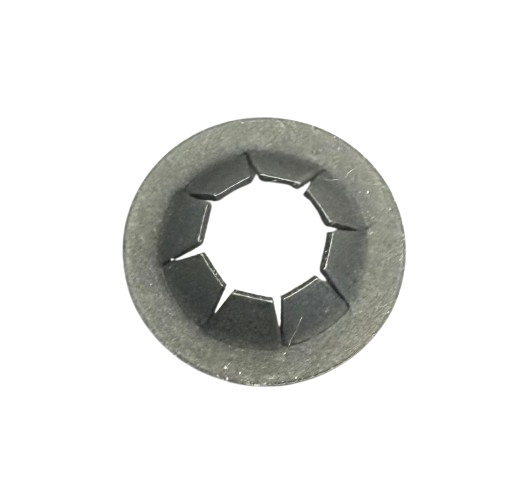

Verify that applicable retainers, fasteners and mounting hardware are present, secure and correctly positioned.
Diagnose the EP2205 Fluid System Before Replacing the Valve
A priming or pressure problem does not automatically indicate a failed PRIME/SPRAY valve. Material supply, suction components, the fluid section, filters, pressure-control components and other fluid-path parts can produce similar symptoms. Inspect the complete system before replacing valve components.
1. Check Material Intake
Verify adequate coating supply and inspect the suction set, strainer and intake connections for restrictions or unwanted air entry.
2. Check Valve Operation
After safely relieving pressure, inspect valve movement, handle condition and applicable sealing components.
3. Check Pump Performance
Inspect the fluid section if the sprayer still cannot prime or develop expected pressure with the valve correctly positioned.
4. Check the Fluid Path
Inspect filters, hoses, fittings and related fluid-system components when material flow or pressure remains abnormal.
Common EP2205 PRIME/SPRAY Valve Symptoms
Use these symptoms as diagnostic starting points. Verify material intake, pump condition, fluid-system restrictions and pressure-control operation before concluding that the PRIME/SPRAY valve requires replacement.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Sprayer Will Not Prime | Inspect material supply, suction set, inlet valve, PRIME/SPRAY valve position and applicable internal valve components. | Determine whether the problem originates in material intake, the valve or the fluid section before ordering parts. |
| Pressure Will Not Build in SPRAY | Inspect valve position, valve sealing components, fluid section, suction path, filters and pressure-control system. | Identify whether pressure is being lost through the valve or another part of the fluid system. |
| Material Continues Through Return Path | Inspect valve position, internal valve components, seals and applicable sealing surfaces. | Inspect for contamination, wear or damage that may prevent the valve from controlling the intended fluid path. |
| Fluid Leakage Around Valve | Inspect seals, O-rings, fittings, valve body and connection points after fully relieving system pressure. | Identify the exact leak source and replace only confirmed damaged or worn components. |
| Valve Is Difficult to Turn | Inspect the handle, shaft, retainers and applicable internal valve components for contamination, damage or restricted movement. | Do not force the valve. Relieve pressure and identify the source of restricted movement before replacing components. |
PRIME/SPRAY Valve, Fluid Section or Suction Set?
EP2205 PRIME/SPRAY Valve Assembly
Use this section for valve components, seals, O-rings, handles, shafts, fittings, retainers and related valve hardware.
EP2205 Fluid Section Assembly
Use the fluid-section section for piston components, packings, inlet and outlet valve parts, seals and internal pump components.
View EP2205 Fluid Section Parts →EP2205 Suction Set Assembly
Use the suction-set section for intake components, strainers, fittings, connections and related material-pickup parts.
View EP2205 Suction Set Parts →Verify EP2205 PRIME/SPRAY Valve Part Compatibility
Do not select a valve component, seal, O-ring, handle, shaft, fitting or retainer based only on appearance. Similar parts used on other Titan EP and EPX sprayers can differ in dimensions, configuration, connection or application.
Confirm the EP2205 model, applicable PRIME/SPRAY Valve Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering.
Before Buying Titan EP2205 PRIME/SPRAY Valve Parts
Verify the complete sprayer model before selecting valve replacement components.
Determine whether the problem involves priming, pressure development, leakage, fluid routing or valve movement.
Check the suction set, fluid section, filters and pressure-control system before assuming the PRIME/SPRAY valve has failed.
Locate the required component in the valve diagram and match its numbered callout to the parts list.
Confirm the exact replacement part number, description and required quantity before ordering.
Shop Related Titan EP2205 Parts
Move between EP2205 assembly sections to locate the correct valve, pump, suction, pressure-control, transducer, spray-gun, drive or supporting component for your repair.
Relieve Pressure Before Servicing the PRIME/SPRAY Valve
Shut down the EP2205 and disconnect or isolate the applicable power source before service. Follow the manufacturer's complete pressure-relief procedure before loosening the PRIME/SPRAY valve, fittings or any fluid-system component. Never attempt to remove, loosen or disassemble a pressurized valve. Follow the applicable EP2205 operating and service instructions during inspection, removal, cleaning and reassembly.
Shop Titan EP2205 PRIME/SPRAY Valve Assembly Parts
Use the EP2205 PRIME/SPRAY Valve Assembly exploded diagram to identify the valve component, seal, O-ring, handle, shaft, fitting, retainer or hardware you need, then verify the exact replacement part number before ordering.
Shop EP2205 PRIME/SPRAY Valve PartsTitan EP2205 PRIME/SPRAY Valve Assembly Parts FAQ
What does the Titan EP2205 PRIME/SPRAY valve do?
The PRIME/SPRAY valve provides a fluid-routing function used when preparing the sprayer for operation and when configuring the fluid system for pressure development and spraying.
How do I find the correct EP2205 PRIME/SPRAY valve part?
Use the EP2205 PRIME/SPRAY Valve Assembly exploded diagram, locate the required component and match its numbered callout to the corresponding part number, description and quantity.
Can a PRIME/SPRAY valve problem prevent the EP2205 from priming?
A valve that is incorrectly positioned or has a confirmed internal problem can affect fluid routing during priming. The suction set, inlet valve and fluid section should also be inspected because they can produce similar symptoms.
What should I inspect if the EP2205 will not build pressure in SPRAY?
Inspect the PRIME/SPRAY valve position and sealing components together with the suction system, fluid section, filters, transducer and pressure-control system.
Why is my EP2205 PRIME/SPRAY valve leaking?
After fully relieving system pressure, inspect the valve body, seals, O-rings, fittings and applicable sealing surfaces to identify the actual source of the leak.
Can I use an EP2105 PRIME/SPRAY valve part on an EP2205?
Do not assume interchangeability between EP models. Similar-looking valve components can differ in dimensions, configuration or part number. Verify the exact EP2205 replacement part before ordering.
What should I verify before ordering EP2205 PRIME/SPRAY valve parts?
Confirm the EP2205 model, correct PRIME/SPRAY Valve Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2205 PRIME/SPRAY Valve Part?
Have your EP2205 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct valve component, seal, O-ring, handle, shaft, fitting, retainer or related replacement part.
Parts & Fitment Help: 713-931-0006
