Titan EP2205 Main Assembly Parts
Shop Titan EP2205 Main Assembly parts for maintenance, troubleshooting and repair of your EP2205 airless sprayer. Use the applicable exploded parts diagram to identify structural, mounting, control, electrical, fluid-system and supporting components by exact diagram callout and replacement part number.
Find Titan EP2205 Main Assembly Replacement Parts

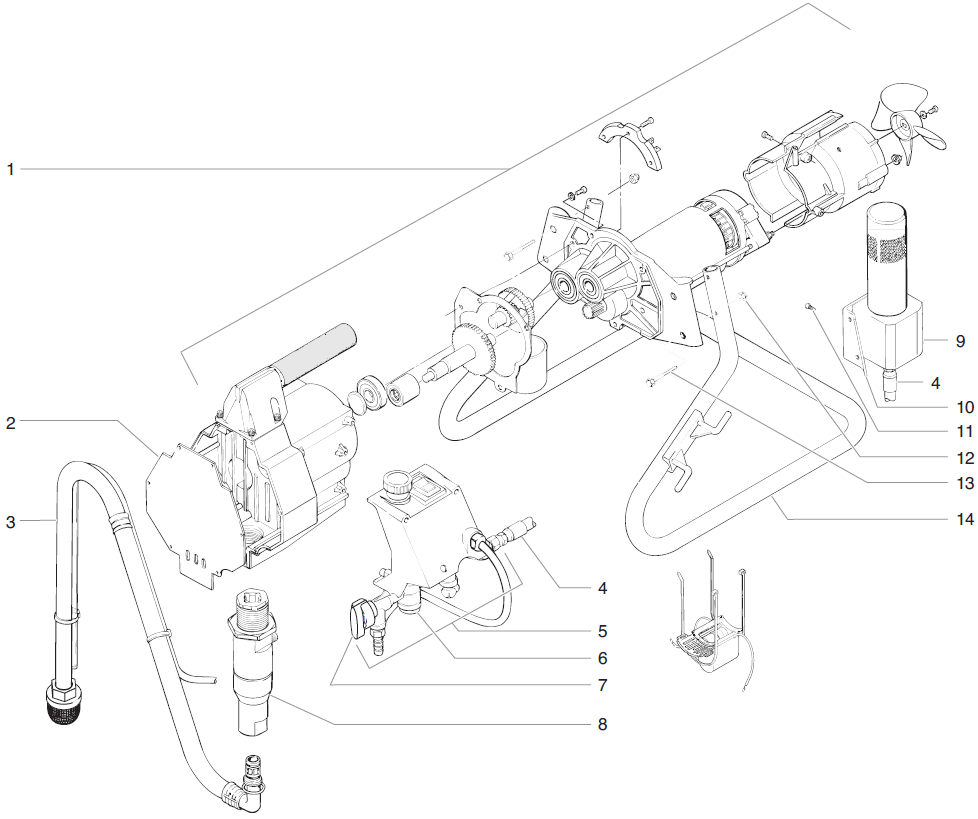

The EP2205 Main Assembly diagram provides a central reference for many of the components used to build and support the sprayer. Depending on the diagram callout, this area can include mounting parts, brackets, controls, electrical connections, fittings, fasteners and other components that integrate the machine's major systems.
Because many EP2205 components can look similar to parts used on other Titan and Spraytech sprayers, identify replacement parts from the correct EP2205 exploded diagram. Match the numbered callout to the parts list and verify the exact part number, description and quantity before ordering.
How to Find the Correct EP2205 Main Assembly Part
Confirm EP2205
Verify that the machine being repaired is the EP2205 before selecting replacement components.
Open the Main Diagram
Use the applicable EP2205 Main Assembly exploded illustration to locate the component requiring service.
Match the Callout
Locate the required component in the illustration and record its numbered diagram callout.
Verify Part & Quantity
Match the callout to the parts list and confirm the replacement part number, description and required quantity.
How the EP2205 Main Assembly Supports the Sprayer
The main assembly brings together components that support, connect or integrate major EP2205 systems. When diagnosing a damaged bracket, connection, control, fitting or mounting component, the Main Assembly diagram is an important starting point for identifying the correct replacement part.
Mounting Components
Applicable brackets, supports and mounting components help position and secure major sprayer parts.
Control Components
Diagram-listed control-related parts connect the operator interface with the applicable sprayer systems.
Fittings & Connections
Applicable fittings and connections help integrate components within the EP2205 fluid-delivery system.
Fasteners & Hardware
Screws, nuts, washers, retainers and related hardware secure applicable components in their intended locations.
EP2205 Main Assembly Components to Inspect
Inspect applicable screws, nuts, washers, retainers and mounting hardware for damage, looseness or missing components.
Inspect diagram-listed control components and their mounting points when operation is irregular or physical damage is visible.
After complete pressure relief, inspect applicable fittings and connections for leakage, damage or compromised threads.
Inspect accessible diagram-listed wiring and connections for visible damage, looseness or deterioration before replacing components.
Check structural brackets and supports for bending, cracking, looseness or damaged mounting points.
Inspect diagram-listed covers, guards and protective components for damage and correct installation.
Identify the Affected EP2205 System Before Ordering Parts
The Main Assembly diagram can contain parts associated with several machine systems. Before ordering, determine whether the repair involves structural hardware, the fluid path, controls, electrical connections or another EP2205 assembly. This helps avoid replacing a main-assembly part when the actual problem originates elsewhere.
Structural Repair
Check brackets, supports, fasteners and mounting points when the repair involves loose, bent or damaged machine components.
Fluid-System Repair
Trace leakage or material-flow problems to the correct fitting, filter, pump, valve or other fluid-system component before ordering.
Control-System Repair
Diagnose control and pressure-system symptoms before replacing visible main-assembly components.
Electrical Inspection
Isolate electrical power before inspecting accessible wiring, connectors or electrically related components.
Common EP2205 Main Assembly Repair Symptoms
Symptoms involving the EP2205 can originate in more than one assembly. Inspect the affected system and use the applicable exploded diagram before deciding which component requires replacement.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Loose or Damaged Component | Inspect mounting hardware, brackets, retainers and the applicable mounting points. | Identify the damaged component and its exact diagram callout before ordering. |
| Sprayer Will Not Operate Normally | Inspect the affected control, electrical, pressure, drive and fluid systems according to the applicable troubleshooting procedure. | Isolate the failed system before replacing main-assembly parts. |
| Fluid Leakage | After pressure relief, inspect fittings, connections, seals and nearby fluid-system components. | Locate the exact leakage point before selecting replacement components. |
| Excessive Movement or Vibration | Inspect brackets, fasteners, supports, drive components and applicable mounting points. | Determine whether the problem is structural or originates in a moving machine assembly. |
| Damaged Wiring or Connector | With electrical power isolated, inspect the applicable connector, wiring path and related component for visible damage. | Use the correct electrical or main-assembly diagram to identify the required replacement component. |
Main Assembly or Piston Pump?
EP2205 Main Assembly
Use this section for diagram-listed mounting components, controls, fittings, brackets, fasteners and supporting machine parts.
EP2205 Piston Pump
Use the Piston Pump section when the repair involves pump packings, piston components, valves, seals or related pump parts.
View EP2205 Piston Pump Parts →Spraytech Airless Sprayer Parts
Browse the main EP and EPX catalog when you need another sprayer model, assembly or replacement-parts diagram.
Browse Titan Spraytech Parts →Verify EP2205 Main Assembly Part Compatibility
Do not select brackets, controls, fittings, fasteners, electrical components or other replacement parts based only on appearance. Similar components used on other Titan EP and EPX sprayers can differ in dimensions, connections, mounting arrangements or application.
Confirm the EP2205 model, applicable Main Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering.
Before Buying Titan EP2205 Main Assembly Parts
Verify the complete machine model before selecting replacement parts.
Determine whether the repair involves the main assembly, pump, drive, fluid system, pressure control or another machine section.
Locate the required component in the applicable EP2205 Main Assembly exploded illustration.
Match the numbered callout to the corresponding parts-list entry.
Confirm the exact replacement part number and required quantity before ordering.
Shop Related Titan EP2205 Parts
Use the EP2205 assembly diagrams to narrow your repair to the correct machine section before selecting replacement components.
Prepare the EP2205 Safely Before Service
Shut down the sprayer and disconnect or isolate the applicable power source before service. Follow the manufacturer's complete pressure-relief procedure before loosening or removing any fluid-system component. Never service pressurized fluid connections, and do not work on electrical components while power is connected. Follow the applicable EP2205 operating and service instructions during diagnosis, removal and reassembly.
Shop Titan EP2205 Main Assembly Parts
Use the EP2205 Main Assembly exploded diagram to identify the bracket, fitting, control, fastener, mounting component or related part you need, then verify its exact replacement part number before ordering.
Shop EP2205 Main Assembly PartsTitan EP2205 Main Assembly Parts FAQ
What parts are shown in the Titan EP2205 Main Assembly?
The Main Assembly diagram is used to identify applicable structural, mounting, control, fluid-system, electrical and supporting components. Refer to the current diagram and parts list for the exact components assigned to each callout.
How do I find the correct EP2205 Main Assembly part?
Locate the required component in the EP2205 Main Assembly exploded diagram and match its numbered callout to the corresponding part number, description and quantity in the parts list.
Where do I find EP2205 piston pump parts?
Use the EP2205 Piston Pump section for pump-specific components such as applicable piston parts, packings, valves, seals and related repair components.
What should I inspect if an EP2205 component is loose?
Inspect the applicable fasteners, brackets, retainers, supports and mounting points. Determine whether the problem is loose hardware or a damaged structural component before ordering parts.
Are all EP2205 problems covered by the Main Assembly diagram?
No. The EP2205 uses separate assembly diagrams for applicable machine systems. If the problem involves the pump, drive, fluid section or another dedicated assembly, use the corresponding diagram for more precise parts identification.
Can I use EP2105 Main Assembly parts on an EP2205?
Do not assume interchangeability between EP models. Even similar components can have different part numbers, dimensions or applications. Verify the exact replacement part number for the EP2205 before ordering.
What should I verify before ordering EP2205 Main Assembly parts?
Confirm the EP2205 model, correct assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2205 Main Assembly Part?
Have your EP2205 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct mounting, control, fitting, bracket, fastener or related replacement component.
Parts & Fitment Help: 713-931-0006
