Titan EP2205 Pressure Control Assembly Parts
Shop Titan EP2205 Pressure Control Assembly parts for maintenance, troubleshooting and repair of the sprayer's pressure-control system. Use the applicable exploded parts diagram to identify pressure adjustment components, control parts, electrical connections, mounting hardware and related components by exact diagram callout and replacement part number.
Find Titan EP2205 Pressure Control Replacement Parts
The EP2205 pressure control system helps regulate sprayer operation in response to pressure demand. It works with the pressure-sensing system and other machine components so the sprayer can respond to the operator's pressure setting and changing conditions within the fluid system.
Pressure problems can originate in the control assembly, transducer, piston pump, suction system, filters, fluid path or electrical connections. Diagnose the complete system before replacing parts, then use the EP2205 Pressure Control Assembly diagram to verify the exact callout, part number, description and quantity required.
How to Find the Correct EP2205 Pressure Control Part
Confirm EP2205
Verify that the sprayer being serviced is the EP2205 before selecting pressure-control replacement components.
Open the Control Diagram
Use the applicable EP2205 Pressure Control Assembly exploded illustration to locate the component requiring service.
Match the Callout
Locate the pressure-control component, connection, knob, mounting part or related hardware and record its numbered callout.
Verify Part & Quantity
Match the callout to the parts list and confirm the exact replacement part number, description and required quantity.
How the EP2205 Pressure Control System Works
The pressure-control system allows the operator to select an appropriate operating pressure and works with the sprayer's pressure-sensing components to respond as fluid-system pressure changes. Reliable operation depends on the control components, transducer, electrical connections, pumping system and fluid path working together correctly.
Pressure Adjustment
The applicable adjustment components allow the operator to change the requested operating pressure for the spraying application.
Transducer Input
The pressure-sensing system provides information used by applicable control components as the sprayer responds to fluid-system pressure.
Control Operation
The control system coordinates applicable machine operation as pressure demand changes during priming and spraying.
Wiring & Hardware
Applicable connectors, wiring and mounting hardware support the pressure-control components and their connections to related systems.
EP2205 Pressure Control Components to Inspect
Inspect the diagram-listed adjustment components when pressure cannot be selected or adjusted normally.
Inspect applicable pressure-control parts when machine response is intermittent, unstable or inconsistent with the selected setting.
With power isolated, inspect applicable connectors and accessible wiring for looseness, contamination or visible damage.
Check the related pressure-sensing connection when diagnosing inaccurate, unstable or intermittent pressure-control behavior.
Verify that diagram-listed brackets, fasteners and retainers are secure and correctly positioned.
Inspect the pump, suction path, filters and fluid system when actual pressure performance does not match the control setting.
Diagnose the EP2205 Before Replacing Pressure Control Parts
Pressure-control symptoms can be caused by several systems. Before replacing a control component, verify that the sprayer can receive material, the piston pump can develop pressure, the fluid path is not restricted and the pressure-sensing connections are serviceable.
1. Check Material Intake
Confirm adequate material supply and inspect the suction system for restrictions or unwanted air entry.
2. Check Pump Performance
Determine whether the piston pump can prime, move material and develop pressure correctly.
3. Check Pressure Sensing
Inspect the transducer and applicable connections when pressure feedback appears unstable or inconsistent.
4. Check Pressure Control
Inspect the adjustment mechanism, control components, connectors and related hardware after other pressure-related causes are considered.
Common EP2205 Pressure Control Symptoms
Use these symptoms as diagnostic starting points. A pressure problem does not automatically indicate a failed control assembly, so inspect related fluid, pump, sensing and electrical systems before ordering parts.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Pressure Will Not Adjust Properly | Inspect the pressure-adjustment components, control system, transducer connection and related wiring. | Identify whether the problem is mechanical, electrical or pressure-sensing related before replacing parts. |
| Unstable or Fluctuating Pressure | Inspect material supply, suction components, piston pump, filters, transducer and pressure-control connections. | Isolate the cause of the pressure fluctuation before replacing the control assembly. |
| Sprayer Does Not Build Expected Pressure | Inspect the suction path, piston pump, fluid system, transducer and pressure-control components. | Determine whether the problem involves fluid delivery, pumping, sensing or control. |
| Intermittent Control Response | With electrical power isolated, inspect connectors, accessible wiring, pressure-control components and transducer connections. | Correct confirmed connection or component problems before replacing additional parts. |
| Damaged Pressure Adjustment Control | Inspect the applicable knob, adjustment mechanism, mounting components and related control parts. | Use the exploded diagram to identify the exact damaged component and its replacement part number. |
Pressure Control, Transducer or Piston Pump?
EP2205 Pressure Control Assembly
Use this section for pressure-adjustment components, control parts, electrical connections, mounting hardware and related components.
EP2205 Transducer Assembly
Use the transducer section for pressure-sensing components, fittings, seals, connectors and related parts.
View EP2205 Transducer Parts →EP2205 Piston Pump
Use the piston-pump section for piston components, packings, valves, seals and related pump repair components.
View EP2205 Piston Pump Parts →Verify EP2205 Pressure Control Part Compatibility
Do not select a pressure-control component, adjustment part, connector, bracket or related component based only on appearance. Similar parts used on other Titan EP and EPX sprayers can differ in electrical connection, mounting arrangement, configuration or application.
Confirm the EP2205 model, applicable Pressure Control Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering.
Before Buying Titan EP2205 Pressure Control Parts
Verify the complete sprayer model before selecting pressure-control replacement components.
Determine whether the issue involves pressure adjustment, unstable pressure, intermittent response or failure to build pressure.
Check the suction path, piston pump, fluid system and transducer before assuming the pressure control has failed.
Locate the required component in the pressure-control diagram and match its callout to the parts list.
Confirm the exact replacement part number, description and required quantity before ordering.
Shop Related Titan EP2205 Parts
Move between EP2205 assembly sections to locate the correct pressure control, transducer, pump, suction, drive, main-assembly or cart component.
Relieve Pressure and Disconnect Power Before Service
Shut down the EP2205 and disconnect or isolate the applicable power source before servicing pressure-control components. Follow the manufacturer's complete pressure-relief procedure before working on any connected fluid-system component. Never loosen pressurized fittings or service energized electrical components. Follow the applicable EP2205 operating and service instructions during diagnosis, removal and reassembly.
Shop Titan EP2205 Pressure Control Assembly Parts

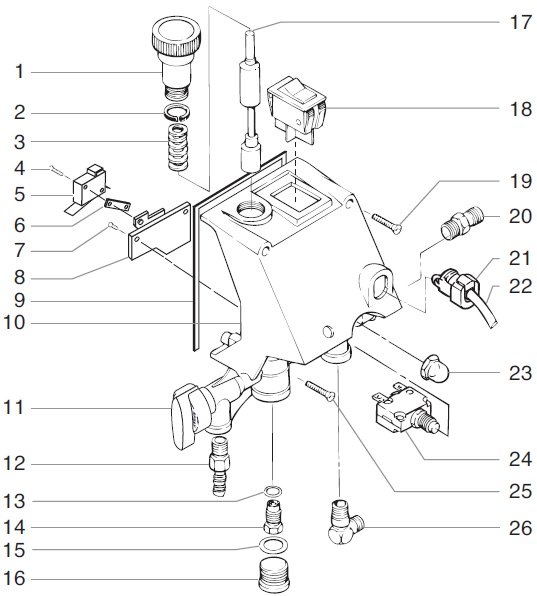

Use the EP2205 Pressure Control Assembly exploded diagram to identify the adjustment component, control part, connector, bracket, fastener or related component you need, then verify the exact replacement part number before ordering.
Shop EP2205 Pressure Control PartsTitan EP2205 Pressure Control Assembly Parts FAQ
What does the Titan EP2205 Pressure Control Assembly do?
The pressure-control system helps regulate sprayer operation according to the selected pressure setting and information from the applicable pressure-sensing system.
How do I find the correct EP2205 pressure-control part?
Use the EP2205 Pressure Control Assembly exploded diagram and match the numbered callout to the corresponding part number, description and quantity in the parts list.
Does unstable pressure always mean the pressure control is bad?
No. Unstable pressure can also result from the suction system, piston pump, filters, fluid path, transducer, electrical connections or other components. Diagnose the complete system first.
What should I inspect if EP2205 pressure will not adjust?
Inspect the applicable pressure-adjustment components, control parts, electrical connections and transducer system. Verify actual pump and fluid-system performance as part of the diagnosis.
What should I check if the EP2205 will not build pressure?
Check the material supply, suction path, piston pump, filters, valves, fluid connections, transducer and pressure-control system before deciding which component requires replacement.
Can I use EP2105 pressure-control parts on an EP2205?
Do not assume interchangeability between EP models. Similar-looking components can differ in electrical connection, configuration, mounting or part number. Verify the exact EP2205 replacement part number before ordering.
What should I verify before ordering EP2205 Pressure Control parts?
Confirm the EP2205 model, correct Pressure Control Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2205 Pressure Control Part?
Have your EP2205 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct pressure-control, adjustment, connector, mounting or related replacement component.
Parts & Fitment Help: 713-931-0006
