Titan EP2205 Suction Set Assembly Parts
Shop Titan EP2205 Suction Set Assembly parts for maintenance and repair of the material-intake system on your EP2205 airless sprayer. Use the applicable exploded parts diagram to identify suction hoses, tubes, strainers, fittings, connectors, clamps and related intake components by exact diagram callout and replacement part number.
Find Titan EP2205 Suction Set Replacement Parts
The EP2205 suction set forms the material-intake path between the coating supply and the sprayer's pumping system. Its components allow coating material to enter the pump while helping keep larger unwanted material from entering the fluid system through the intake path.
Air leaks, damaged suction components, loose connections, restrictions or a clogged intake strainer can contribute to priming and material-flow problems. Use the EP2205 Suction Set Assembly exploded diagram to locate the affected component and verify the exact callout, part number, description and quantity before ordering.
How to Find the Correct EP2205 Suction Set Part
Confirm EP2205
Verify that the sprayer being serviced is the EP2205 before selecting suction or material-intake components.
Open the Suction Diagram
Use the applicable EP2205 Suction Set Assembly exploded illustration to locate the component requiring service.
Match the Callout
Locate the hose, tube, strainer, fitting, connector or related part and record its numbered diagram callout.
Verify Part & Quantity
Match the callout to the parts list and confirm the exact replacement part number, description and required quantity.
How the EP2205 Suction Set Feeds the Piston Pump
The suction set provides the intake route used to move coating material from its supply container toward the piston pump. For reliable priming and fluid delivery, the intake path should remain correctly assembled, adequately submerged during operation, free of damaging restrictions and properly sealed at its connections.
Suction Tube or Hose
The applicable suction tube or hose provides the primary intake path between the coating supply and the pumping system.
Strainer Components
The applicable intake strainer helps prevent larger unwanted material from entering the sprayer through the suction path.
Fittings & Connections
Fittings and connectors join the suction components to the applicable pump inlet and help maintain the material-intake path.
Clamps & Retainers
Diagram-listed clamps, retainers and related hardware help secure applicable suction components and connections.
EP2205 Suction Set Components to Inspect
Inspect the intake path for cracking, cuts, deformation, collapse or other damage that can interfere with material pickup.
Inspect the strainer for dried coating, debris, damage or restriction that may reduce material flow into the pump.
Inspect the applicable connection to the piston pump for looseness, damaged threads, leakage or other conditions that can affect intake.
Check diagram-listed fittings and couplings for damage, looseness or compromised sealing surfaces.
Verify that applicable clamps, clips and retainers are present, correctly positioned and serviceable.
Inspect applicable joints and seals where unwanted air entry could interfere with priming or consistent material pickup.
Check the Complete Suction Path When the EP2205 Will Not Prime
Priming problems can result from several points along the material-intake path. Before replacing the piston pump or suction-set components, inspect the coating supply, intake strainer, suction hose or tube, connections, pump inlet and related fluid-routing components.
Check Material Supply
Confirm adequate coating is available and the intake is positioned correctly in the material supply.
Check the Strainer
Inspect the intake strainer for contamination or restriction that can reduce material entering the suction path.
Check for Air Entry
Inspect suction connections, fittings and the intake hose or tube for loose joints, cracks or other possible air-entry points.
Check the Pump Inlet
If the suction set is serviceable, continue diagnosis at the pump inlet and applicable inlet-valve components.
Common EP2205 Suction Set Symptoms
Suction-side problems can resemble piston-pump or valve problems. Inspect the complete intake path and related pump components before deciding which replacement part is required.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Sprayer Will Not Prime | Inspect coating supply, suction tube or hose, strainer, intake connections, pump inlet and applicable valve components. | Isolate the source of the priming problem before replacing the suction set or pump components. |
| Intermittent Material Pickup | Check for loose fittings, damaged suction components, inadequate material level or possible air entry. | Repair the confirmed leak, connection or damaged intake component. |
| Restricted Material Flow | Inspect the intake strainer, suction path and related fittings for dried material, debris, deformation or restriction. | Correct the restriction and inspect related components before returning the sprayer to service. |
| Visible Suction Hose or Tube Damage | Inspect the complete intake component and nearby fittings, clamps, retainers and connections. | Use the exploded diagram to identify the exact replacement component and associated hardware. |
| Air Entering the Intake System | Inspect suction connections, fittings, sealing points and the intake hose or tube for looseness, cracks or damage. | Correct confirmed air-entry points before diagnosing downstream pressure problems. |
Suction Set, Piston Pump or Main Assembly?
EP2205 Suction Set Assembly
Use this section for suction hoses or tubes, intake strainers, fittings, connectors, clamps, retainers and related intake parts.
EP2205 Piston Pump
Use the piston-pump section for piston components, packings, inlet and outlet valve parts, seals and related pump components.
View EP2205 Piston Pump Parts →EP2205 Main Assembly
Use the Main Assembly section for diagram-listed controls, fittings, mounting hardware and supporting machine components.
View EP2205 Main Assembly Parts →Verify EP2205 Suction Set Part Compatibility
Do not select a suction hose, tube, strainer, fitting, connector, clamp or related intake component based only on appearance. Similar components used on other Titan EP and EPX sprayers can differ in dimensions, connection type, configuration or application.
Confirm the EP2205 model, applicable Suction Set Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering.
Before Buying Titan EP2205 Suction Set Parts
Verify the complete sprayer model before selecting suction-system replacement components.
Determine whether the problem involves priming, restriction, air entry, damaged components or inadequate material pickup.
Check the intake strainer and suction path for dried coating, debris or other restrictions.
Locate the required component in the EP2205 suction-set diagram and match its callout to the parts list.
Confirm the exact replacement part number, description and required quantity before ordering.
Shop Related Titan EP2205 Parts
Move between EP2205 assembly sections to locate the correct suction, pump, drive, transducer, main-assembly or cart component for your repair.
Relieve Pressure Before Servicing the EP2205 Suction Set
Shut down the sprayer and disconnect or isolate the applicable power source before service. Follow the manufacturer's complete pressure-relief procedure before disconnecting the suction set, pump inlet or any related fluid-system component. Never loosen pressurized fluid connections. Follow the applicable EP2205 operating and service instructions during inspection, removal and reassembly.
Shop Titan EP2205 Suction Set Assembly Parts

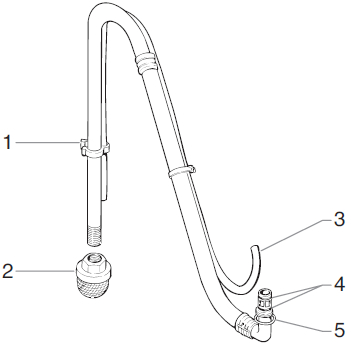

Use the EP2205 Suction Set Assembly exploded diagram to identify the suction hose, tube, strainer, fitting, connector, clamp or related intake component you need, then verify the exact replacement part number before ordering.
Shop EP2205 Suction Set PartsTitan EP2205 Suction Set Assembly Parts FAQ
What does the Titan EP2205 Suction Set Assembly do?
The suction set provides the material-intake path between the coating supply and the EP2205 piston pump. Its components allow coating to be drawn toward the pump during sprayer operation.
How do I find the correct EP2205 suction-set part?
Use the EP2205 Suction Set Assembly exploded diagram, locate the required component and match its numbered callout to the corresponding part number, description and quantity in the parts list.
What should I inspect if the EP2205 will not prime?
Inspect the material supply, suction tube or hose, intake strainer, fittings, connections, pump inlet and applicable inlet-valve components before determining which part requires service.
Can an air leak in the suction set cause priming problems?
Yes. A damaged intake component or improperly sealed suction-side connection can allow unwanted air into the intake path and interfere with consistent material pickup.
Can a restricted intake strainer reduce material flow?
Yes. Dried coating, debris or other restriction at the intake strainer can reduce material entering the suction system and contribute to priming or flow problems.
Can I use an EP2105 suction-set part on an EP2205?
Do not assume interchangeability between EP models. Similar-looking suction components can differ in dimensions, connections or part numbers. Verify the exact EP2205 replacement part number before ordering.
What should I verify before ordering EP2205 Suction Set parts?
Confirm the EP2205 model, correct Suction Set Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2205 Suction Set Part?
Have your EP2205 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct suction hose, tube, strainer, fitting, connector or related material-intake component.
