Titan EP2205 Drive Assembly Parts
Shop Titan EP2205 Drive Assembly parts for maintenance and repair of the mechanical drive system on your EP2205 airless sprayer. Use the applicable exploded parts diagram to identify gears, shafts, bearings, housings, retainers, fasteners and related drive components by exact diagram callout and replacement part number.
Find Titan EP2205 Drive Assembly Replacement Parts
The EP2205 drive assembly forms the mechanical connection between the sprayer's drive source and the pumping system. Its components transfer mechanical movement so the piston pump can cycle and move coating through the airless fluid system.
Worn gears, bearings, shafts, retainers or related drive components can contribute to abnormal noise, irregular pump movement or loss of mechanical drive. Use the EP2205 Drive Assembly exploded diagram to identify the affected component and verify its numbered callout, exact part number, description and quantity before ordering.
How to Find the Correct EP2205 Drive Assembly Part
Confirm EP2205
Verify that the sprayer being repaired is the EP2205 before selecting mechanical drive components.
Open the Drive Diagram

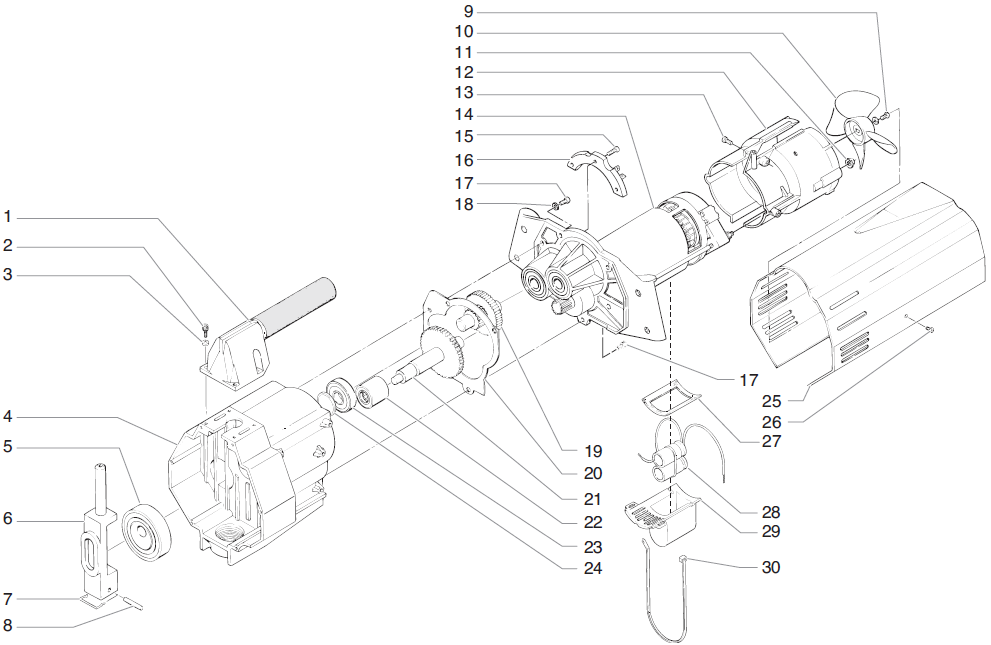

Use the applicable EP2205 Drive Assembly exploded illustration to locate the area requiring repair.
Match the Callout
Locate the required gear, bearing, shaft, housing or related part and record its numbered callout.
Verify Part & Quantity
Match the callout to the parts list and confirm the exact replacement part number, description and required quantity.
How the EP2205 Drive Assembly Transfers Mechanical Power
The drive assembly converts and transfers mechanical movement to the pumping system. Gears and related drive components transmit motion, shafts support rotating or reciprocating movement, bearings maintain alignment, and the housing supports and protects applicable internal components.
Drive Components
Applicable drive components transfer mechanical movement through the system toward the piston pump.
Gear Components
Diagram-listed gears work together to transmit and control the mechanical movement required by the pumping system.
Bearings & Supports
Bearings, bushings and related supports help maintain alignment and controlled movement of applicable drive components.
Housing & Hardware
The applicable drive housing, covers and mounting hardware support, position and protect mechanical drive components.
EP2205 Drive Assembly Components to Inspect
Inspect applicable gear teeth and mating surfaces for visible wear, chipping, damage or abnormal contact patterns.
Check diagram-listed shafts and mechanical drive components for wear, scoring, looseness, deformation or other damage.
Inspect applicable bearings and bushings when excessive play, roughness or abnormal mechanical noise is present.
Inspect the housing and mounting locations for cracks, damaged threads, distortion or other physical damage.
Verify that applicable screws, washers, clips, retainers and related hardware are correctly installed and serviceable.
Inspect the applicable mechanical connection between the drive assembly and piston pump when pump movement is irregular or absent.
Inspect Related Drive Parts Before Planning the Repair
Mechanical wear is not always isolated to a single component. If a gear, shaft or bearing is visibly damaged, inspect its mating components, supports, retainers and housing before reassembly. Identifying related wear can help prevent a damaged component from affecting newly installed replacement parts.
Gear Condition
Inspect mating gear surfaces together when tooth wear, chipping or unusual mechanical noise is found.
Bearing Condition
Check applicable bearings, bushings and their supporting surfaces when looseness or rough movement is present.
Housing Condition
Inspect housing surfaces and mounting points before installing new internal drive components.
Pump Connection
Check the mechanical connection to the piston pump when drive motion is present but pump movement is abnormal.
Common EP2205 Drive Assembly Symptoms
A pumping problem does not automatically mean the drive assembly has failed. Motor operation, piston-pump condition, pressure-control components and other machine systems should be considered during diagnosis before drive parts are replaced.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Drive Source Operates but Pump Does Not Cycle | Inspect the drive gears, mechanical connections, shafts and pump connection for damage or loss of motion transfer. | Isolate the failed drive component before ordering replacement parts. |
| Abnormal Mechanical Noise | Inspect gears, bearings, bushings, shafts and related mating components for wear or damage. | Inspect related components together rather than replacing only the first visibly worn part. |
| Excessive Play or Movement | Inspect bearings, bushings, shafts, retainers and mounting points for looseness or wear. | Determine which component is allowing excessive movement before planning the repair. |
| Irregular Pump Movement | Inspect drive components and the mechanical pump connection, then inspect the piston pump for internal resistance or damage. | Determine whether the symptom originates in the drive assembly or pump before replacing components. |
| Visible Gear or Housing Damage | Inspect the damaged component together with mating gears, bearings, shafts, mounting surfaces and retainers. | Use the exploded diagram to identify all confirmed damaged components and their exact callouts. |
Drive Assembly, Piston Pump or Main Assembly?
EP2205 Drive Assembly
Use this section for gears, bearings, shafts, drive housings, retainers, fasteners and related mechanical drive components.
EP2205 Piston Pump
Use the Piston Pump section when the repair involves piston components, packings, inlet or outlet valves, seals or pump parts.
View EP2205 Piston Pump Parts →EP2205 Main Assembly
Use the Main Assembly section for supporting machine components, mounting hardware, controls, fittings and related parts.
View EP2205 Main Assembly Parts →Verify EP2205 Drive Assembly Part Compatibility
Do not select a gear, bearing, shaft, bushing, housing or other drive component based only on appearance. Similar drive parts used on other Titan EP and EPX sprayers can differ in dimensions, gear configuration, mounting arrangement or application.
Confirm the EP2205 model, applicable Drive Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering.
Before Buying Titan EP2205 Drive Assembly Parts
Verify the complete sprayer model before selecting mechanical drive components.
Determine whether the problem involves noise, loss of drive, excessive play, irregular pump movement or visible damage.
Locate the required component in the applicable EP2205 Drive Assembly exploded illustration.
Check related gears, bearings, shafts and supports when mechanical wear or damage is found.
Match the diagram callout to the exact replacement part number, description and required quantity.
Shop Related Titan EP2205 Parts
Move between EP2205 assembly sections to locate the correct drive, piston-pump, main-assembly or cart component for your repair.
Prepare the EP2205 Safely Before Drive Service
Shut down the sprayer and disconnect or isolate the applicable power source before servicing the drive assembly. Follow the manufacturer's complete pressure-relief procedure before working on the machine. Make sure moving components have stopped completely before removing covers, housings or drive parts. Never service pressurized fluid components or energized electrical components. Follow the applicable EP2205 service instructions during diagnosis, disassembly and reassembly.
Shop Titan EP2205 Drive Assembly Parts
Use the EP2205 Drive Assembly exploded diagram to identify the gear, bearing, shaft, housing, retainer, fastener or related mechanical component you need, then verify the exact replacement part number before ordering.
Shop EP2205 Drive Assembly PartsTitan EP2205 Drive Assembly Parts FAQ
What does the Titan EP2205 Drive Assembly do?
The drive assembly transfers mechanical movement through the sprayer so the piston pump can cycle. Applicable gears, shafts, bearings, supports and related components work together to transmit and control this movement.
How do I find the correct EP2205 drive part?
Use the EP2205 Drive Assembly exploded diagram, locate the required component and match its numbered callout to the corresponding part number, description and quantity in the parts list.
What should I inspect if the EP2205 makes unusual mechanical noise?
Inspect applicable gears, bearings, bushings, shafts, retainers and mating drive components for visible wear, looseness or damage.
What should I check if the EP2205 pump does not cycle?
Diagnose the drive source, drive assembly, mechanical pump connection and piston pump. A pump that does not cycle can have a mechanical, electrical, control or pump-related cause.
Should mating gears and bearings be inspected during drive repair?
Yes. When one mechanical drive component is damaged, inspect related gears, bearings, shafts, supports and housing surfaces for additional wear before reassembly.
Can I use EP2105 drive parts in an EP2205?
Do not assume interchangeability between EP models. Similar-looking drive components can have different dimensions, configurations or part numbers. Verify the exact EP2205 replacement part number before ordering.
What should I verify before ordering EP2205 Drive Assembly parts?
Confirm the EP2205 model, correct Drive Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2205 Drive Assembly Part?
Have your EP2205 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct gear, bearing, shaft, housing, retainer or related drive replacement component.
Parts & Fitment Help: 713-931-0006
