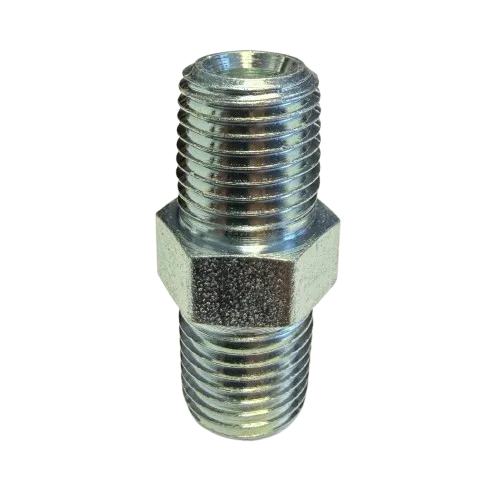

Titan 05045 Fitting, 1/4” x 1/4”
OEM Titan Hose Connection Fitting
Titan 05045 Fitting, 1/4" x 1/4" is an OEM straight hose-to-hose coupling with 1/4-inch NPS male threads on both ends, designed to connect compatible female-threaded hose connections in Titan and SprayTech sprayer systems.
Compatibility Table
A damaged or mismatched fitting can cause leakage, pressure loss, or unsafe separation. Verify thread type and connection profile against your parts diagram before ordering.
Titan Hose Connection and Fluid Fittings
Titan 05045 Fitting, 1/4" x 1/4" for Sprayer Hose Connections
Titan 05045 is a straight hose-to-hose coupling with 1/4-inch NPS male threads on both ends, used to join compatible female-threaded hose connections in Titan and SprayTech sprayer systems. Titan specifies a 5,000 PSI maximum working pressure for this fitting.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan / SprayTech straight hose-to-hose coupling fitting. Listed as "Nipple" in official Titan EP2300 manual parts diagrams. |
| Function | Provides two male 1/4-inch NPS connections so compatible hose ends can be joined in a continuous fluid path. Used when connecting approved hose sections or replacing a damaged connector. |
| Specification | 1/4-inch NPS male threads on both ends. Maximum working pressure 5,000 PSI (34.5 MPa). NPS threads are straight rather than tapered; sealing depends on mating fitting design. Do not substitute NPT threads without manufacturer approval. |
| Industrial Applications | Airless sprayer hose repair, HVLP system connections, fluid line extension, and professional sprayer maintenance. |
| Compatible Titan / SprayTech Models | SprayTech PowerCast, HVLP PowerCast, HVLP CS10000; Airless EP2105, EP2205, EP2300, EP2300 SE, EP2400, EPX2305; Titan Impact 440, 540, 440i, 1140IX; PowrLiner 3100; PowrBeast 4700/4700T. Additional models listed in third-party fitment guides include Impact 1040, 1100XC, 1200GXC, 1200HPG, 1640, 340, 400, 410, 740, 740i, 740ix, 840; Epic 447EX, 447HPX, 660HPX, 690HPG, 1200HPG; RentSpray 450, 600, 650; 640i, 660XC; Elite 3000; CAPSpray HVLP systems. Always verify against the parts diagram for your exact model and revision. |
| OEM Part Number | 05045 Fitting, 1/4" x 1/4" (also listed as Nipple, High Pressure Outlet). |
| Related Components | 0502135 Swivel Assembly; 490-005 Swivel Adapter; 490-007 Retaining Nut Adapter; 490-014 Hose-to-Hose Fitting (3/8" NPS, not interchangeable); 490-032 Swivel Union; 316-505 50-Foot Spray Hose; 0508239 High Pressure Fluid Gauge. These are separately identified components and are not included with the fitting. |
| Common Problems Solved | Damaged or stripped threads, visible leakage at connection points, corrosion, cracks or deformation from impact, and incorrect replacement fitting with wrong thread type or pressure rating. |
| Target Users / Markets | Painting contractors, equipment maintenance technicians, rental fleet operators, and repair shops servicing Titan and SprayTech sprayer systems. |
| OEM & Brand Information | Genuine Titan / SprayTech OEM component. Listed in official Titan EP2300 manual parts diagrams as item 05045, Nipple. |
| Commercial Benefits | Restores proper hose connection integrity; maintains consistent pressure and flow; prevents fluid loss; extends hose and component service life. |
Before servicing, turn off the equipment, disconnect power, and follow the manufacturer's complete pressure-relief procedure before disconnecting any hose or fitting. Never attempt to tighten a leaking connection while pressurized. Verify that the fitting and all connected components are rated for the intended operating pressure. Inspect mating threads and sealing surfaces before installation. Tighten according to manufacturer instructions without overtightening.
