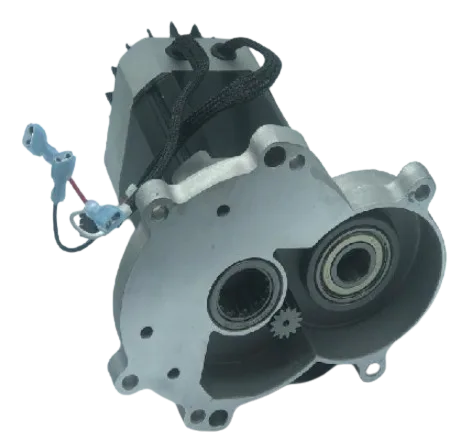

Titan 805-265A Motor Assembly
Restore dependable mechanical drive performance with the Titan 805-265A Motor Assembly, a replacement electric motor assembly specified for selected Titan Impact 740 and Impact 840 airless paint sprayers. Designed to drive the machine's gear reduction system, this component supports consistent pump operation when installed and serviced according to the correct Titan manual.
Primary Function: Converts electrical energy into mechanical rotation for the sprayer's drive system.
Repair Planning: Inspect the motor, drive gears, mounting hardware, electrical connections, and model-specific controller.
Important Fitment Note: Verify part number 805-265A against the exact machine's drive assembly diagram. Related gears, mounting screws, controller, capacitor, and baffle are shown as separate service items and should not be assumed to be included with the motor.
Restore Reliable Sprayer Performance with Titan 805-265A Motor Assembly
The Titan 805-265A Motor Assembly is an electric drive motor used in selected Titan Impact 740 and Impact 840 airless paint spraying machines. As the mechanical power source for the sprayer's drive system, it supplies rotational movement to the gear reduction mechanism that operates the fluid pump. Replacing a confirmed defective motor helps restore the machine's intended drive operation while allowing contractors and repair technicians to retain compatible surrounding components that remain serviceable.
How Does Titan 805-265A Motor Assembly Work?
The motor converts controlled electrical input into rotational mechanical power. This rotation is transferred through the sprayer's gear reduction system to operate the pump drive mechanism.
The first-stage gear and crankshaft/gear assembly are separately identified service components. Their condition can affect the load placed on the motor and the operation of the complete drive system.
Motor performance depends on the condition of the electrical controls, mechanical drive, and associated pump. Replacing the motor will not independently correct a defective controller, seized gear mechanism, or damaged fluid section.
Common Motor Problems & Diagnostic Considerations
Motor Does Not Start: Possible causes include a motor fault, interrupted power supply, damaged wiring, or defective motor controller. Diagnose the electrical circuit before replacing the motor.
Abnormal Motor Noise: Bearing deterioration, internal motor damage, or worn drive gears can produce unusual sounds. Inspect the motor and adjacent gear mechanism.
Motor Overheating: Excessive mechanical loading, electrical faults, ventilation restrictions, or internal motor damage may contribute to overheating.
Intermittent Operation: Investigate electrical connections, motor control circuitry, and motor condition before determining the failed component.
Motor Runs but Pump Does Not Operate: Inspect the first-stage gear, crankshaft/gear assembly, slider assembly, and pump drive connection. The motor may not be the source of the problem.
Inspection & Replacement Guidance
1. Prepare the equipment. Turn off and disconnect the machine from electrical power. Complete the pressure-relief procedure specified in the applicable Titan manual.
2. Confirm the replacement part. Verify motor assembly 805-265A against the exact machine's drive assembly parts diagram.
3. Inspect related drive components. Examine the motor mounting arrangement, first-stage gear, crankshaft/gear assembly, and adjacent components for visible damage or excessive wear.
4. Follow the manufacturer's service procedure. Motor removal, electrical connections, and installation should be performed by an authorized service center using the applicable Titan instructions.
5. Verify mechanical alignment. Ensure the motor is installed with the specified mounting hardware and that the drive system is assembled correctly.
6. Complete operational checks. Reinstall all required guards and covers, verify electrical safety, and test the machine according to the manufacturer's procedures before returning it to service.
Related Parts Commonly Inspected During Motor Replacement
Motor replacement provides an opportunity to evaluate the condition of adjacent drive and electrical components.
Related components are separate service items unless explicitly included in the seller's package description.
Order Titan 805-265A Motor Assembly
Prepare your Titan Impact sprayer for dependable service with the correct replacement motor assembly from AllTitanParts. Review the manufacturer drive diagram, confirm machine compatibility, and inspect related gears, mounting hardware, and electrical components before completing your repair order.
Frequently Asked Questions
Important information about motor compatibility, drive components, and replacement procedures.
What is Titan 805-265A Motor Assembly?
It is the replacement electric motor assembly identified in selected Titan Impact 740 and Impact 840 drive systems.
Which Titan sprayers use motor 805-265A?
Manufacturer documentation identifies Impact 740 and Impact 840 applications, including documented Impact 840 I/IA configurations. Confirm the exact machine revision before ordering.
What components are included with the motor assembly?
Titan identifies 805-265A as one complete motor assembly but does not separately itemize its internal contents in the referenced drive diagrams. Confirm the actual package contents before ordering.
Are the drive gears included?
The 805-240 first-stage gear and 805-239 crankshaft/gear assembly are listed separately in Titan drive diagrams. They should not be assumed to be included with motor 805-265A.
Does the motor assembly include the controller?
No controller is established as part of the motor package by the referenced diagrams. Titan lists motor controllers separately, with different controller references for the Impact 740 and Impact 840.
Will replacing the motor solve a sprayer that will not start?
Only when the motor is the diagnosed failed component. Power supply, wiring, controller, and other electrical faults can also prevent operation.
Can a worn drive gear damage the motor?
A damaged or binding gear mechanism can increase mechanical load and contribute to motor problems. Inspect the complete drive system during diagnosis.
Who should replace the motor?
Titan advises that electrical work should be performed by an authorized service center. Follow the correct service manual and safety procedures.
