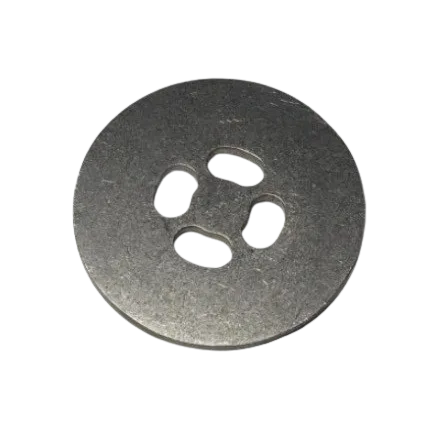

Titan 0295365 Inlet Ball Stop Plate
OEM SprayTech Inlet Valve Component
Titan 0295365 Inlet Ball Stop Plate is a genuine OEM component for the pump inlet valve assembly on the SprayTech Airless EP2205. It limits the travel of the inlet ball during the suction stroke, ensuring proper sealing and consistent fluid flow.
Compatibility
Inspect the inlet ball and seat for wear or pitting when replacing the stop plate. Clean the valve cavity thoroughly before reassembly. Replace the plate if any distortion is visible. Do not grind or bend the plate.
SprayTech Inlet Valve Service Component
Titan 0295365 Inlet Ball Stop Plate for SprayTech Airless EP2205
Titan 0295365 is an inlet ball stop plate designed for the pump inlet valve assembly on the SprayTech Airless EP2205 sprayer. It acts as a mechanical stop that limits the travel of the inlet ball during the suction stroke, ensuring the ball seats properly and allows fluid to enter the pump cylinder. Over time, the stop plate can become worn, cracked, or deformed due to repeated ball impact or chemical attack. A damaged stop plate can cause the inlet ball to travel too far, resulting in loss of prime, reduced pressure, or erratic pump operation. The EP2205 owner's manual describes this component as the "inlet ball stop plate" and details its installation over the ball guide during valve reassembly.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM inlet ball stop plate. Confirmed by eReplacementParts as compatible with the SprayTech EP2205. The official EP2205 manual names the "inlet ball stop plate" and describes its installation. Bedford Precision also lists it for the SW521 and SW623 (EP-style). |
| Function | Limits inlet ball travel during suction; maintains proper ball seating for sealing on the pressure stroke; reduces metal-to-metal impact wear on the valve body. |
| Compatible Models | SprayTech Airless EP2205 (confirmed by eReplacementParts and official manual); Wagner SprayTech SW521; Sherwin-Williams SW623 (EP-style). Always verify that your pump uses a ball-type inlet valve and that the plate matches the original in thickness and diameter. |
| OEM Part Number | 0295365 Inlet Ball Stop Plate. |
| Replacement Indicators | Cracked or broken plate from ball impact or overtightening; deformed or bent plate allowing excessive ball travel; worn surface with deep grooves or pitting; loss of prime or poor suction indicating valve issues. |
| Related Parts Commonly Serviced Together | Inlet ball (check for wear, flat spots, or pitting); inlet valve seat (inspect for nicks, corrosion, or uneven wear); retaining pin or screw (replace if threads damaged). |
| Why Genuine OEM | Precision thickness and diameter ensure correct ball travel and proper valve function. Grinding or bending a stop plate will alter ball travel distance and may cause valve failure. Replace with a new OEM plate. |
Service guidance: When replacing the inlet ball stop plate, inspect the inlet ball and seat for wear or pitting. Clean the valve cavity thoroughly before reassembly. The EP2205 manual instructs placing the inlet ball guide over the ball, then the inlet ball stop plate over the ball guide, followed by a new O-ring and torquing the inlet valve housing to specification. Replace the plate if any distortion is visible. Do not grind or bend the plate. Always relieve system pressure and disconnect power before servicing.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
