PowrTwin 8900XLT Hydraulic Motor Parts

Titan 235-018 Trip Retainer

Item No: 1

Part #: 235-018

Titan part 235-018 is a trip retainer designed to secure or position a mechanical trip...

Retail Price: $38.00

You save: $2.09 (5.50%)

Our Price: $35.91

QTY:

Titan 141-007 O-Ring Synthetic Rubber

Item No: 2

Part #: 141-007

Titan part 141-007 is a synthetic rubber O‑ring used as a fluid seal in sprayer pump...

$2.10

QTY:

Titan 325-005 Trip Spring

Item No: 3

Part #: 325-005

PowrTwin part 325-005 is a Trip Spring used to provide return force or actuation tension within a me...

$6.60

QTY:

Titan 569-016 Ball

Item No: 4

Part #: 569-016

Hydra / PowrLiner / PowrTex / PowrTwin part 569-016 is a ball designed to function as ...

$6.50

QTY:

Titan 441-908 Spool Valve with Sleeve

Item No: 5

Part #: 441-908

Titan 441-908 Spool Valve with Sleeve is designed for use on various Titan paint sprayers. It is rep...

Retail Price: $839.60

You save: $134.34 (16.00%)

Our Price: $705.26

QTY:

Titan 441-152 Synthetic Rubber O-Ring

Item No: 6

Part #: 441-152

PowrTwin part 441-152 is a Synthetic Rubber O-Ring used to create fluid-tight seals between mating c...

$6.70

QTY:

Titan 235-030 Cylinder Head Plug

Item No: 7

Part #: 235-030

Titan part 235-030 is a cylinder head plug designed to seal access ports or threaded opening...

Retail Price: $81.80

You save: $6.79 (8.30%)

Our Price: $75.01

QTY:

Titan 441-217 Synthetic Rubber O-Ring

Item No: 8

Part #: 441-217

PowrTwin part 441-217 is a Synthetic rubber O-Ring used to create fluid-tight seals between mating c...

$3.70

QTY:

Titan 858-811 Flex Lock Nut

Item No: 9

Part #: 858-811

PowrTwin part 858-811 is a Flex Lock Nut used to secure threaded fasteners while resisting loosening...

$4.80

QTY:

Titan 451-121 Elbow

Item No: 10

Part #: 451-121

PowrTwin part 451-121 is an Elbow used to redirect fluid flow at critical junctions within the pump ...

$24.10

QTY:

Titan 235-112 Cylinder Head (Red)

Item No: 11

Part #: 235-112

Titan part 235-112 is a cylinder head (red) designed to cap the fluid cylinder and house the...

Retail Price: $612.60

You save: $98.02 (16.00%)

Our Price: $514.58

QTY:

Titan 431-032 O-Ring

Item No: 12

Part #: 431-032

Titan part 431-032 is a replacement O‑ring used in fluid pump sections, valve assemb...

$7.30

QTY:

Titan 431-053 Sleeve Retainer

Item No: 13

Part #: 431-053

Titan part 431-053 is a sleeve retainer designed to secure a sleeve, bushing, or bearing wit...

$28.30

QTY:

Titan 431-054 Retainer Ring or Snap Ring

Item No: 14

Part #: 431-054

PowrBeast / PowrTwin / PowrLiner / PowrTex part 431-054 is a retainer ring or snap rin...

$6.70

QTY:

Titan 192-000 Hydraulic Elbow

Item No: 15

Part #: 192-000

PowrLiner / PowrTwin / PowrTex part 192-000 is a hydraulic elbow designed to change th...

Retail Price: $35.40

You save: $0.71 (2.01%)

Our Price: $34.69

QTY:

Titan 235-022 Piston Retainer Screw

Item No: 16

Part #: 235-022

Titan part 235-022 is a piston retainer screw used to secure the piston assembly withi...

Retail Price: $52.00

You save: $4.32 (8.31%)

Our Price: $47.68

QTY:

Titan 235-014 Piston

Item No: 17

Part #: 235-014

Titan part 235-014 is a piston used in the fluid section of compatible PowrLiner, Powr...

Retail Price: $110.40

You save: $11.48 (10.40%)

Our Price: $98.92

QTY:

Titan 235-027 Piston Seal or Seal, Piston

Item No: 18

Part #: 235-027

Titan part 235-027 is a piston seal designed to provide a dynamic seal between the pis...

$29.10

QTY:

Titan 235-026 O-Ring

Item No: 19

Part #: 235-026

Titan part 235-026 is a replacement O‑ring designed for fluid or air sealing applica...

$5.70

QTY:

Titan 236-021A Valve Rod Assembly

Item No: 20

Part #: 236-021A

Titan part 236-021A is a valve rod assembly used in the fluid section of Titan PowrLin...

Retail Price: $249.40

You save: $34.67 (13.90%)

Our Price: $214.73

QTY:

Titan 236-948A Long Piston Rod

Item No: 21

Part #: 236-948A

Titan part 236-948A is a long piston rod used in the pump section of compatible Titan ...

Retail Price: $383.00

You save: $55.92 (14.60%)

Our Price: $327.08

QTY:

Titan 235-001 Lock Ring

Item No: 22

Part #: 235-001

Titan part 235-001 is a lock ring used to secure components such as packings, seals, o...

Retail Price: $60.70

You save: $5.04 (8.30%)

Our Price: $55.66

QTY:

Titan 236-007 Cylinder Hydraulic

Item No: 23

Part #: 236-007

Titan part 236-007 is a hydraulic cylinder used in the drive system or lift mechanism ...

Retail Price: $475.20

You save: $69.38 (14.60%)

Our Price: $405.82

QTY:

Titan 235-028 Rod Seal

Item No: 24

Part #: 235-028

Titan part 235-028 is a rod seal designed to provide a dynamic seal around a reciproca...

Retail Price: $34.70

You save: $1.91 (5.50%)

Our Price: $32.79

QTY:

Titan 236-829 Motor Pump Block

Item No: 25

Part #: 236-829

Titan part 236-829 is a motor pump block – the central hydraulic or mechanical housi...

Retail Price: $978.90

You save: $156.62 (16.00%)

Our Price: $822.28

QTY:

Titan 236-029 Motor Tube

Item No: 26

Part #: 236-029

Part 236-029 is a replacement motor tube used in hydraulic systems on compatible PowrLiner, Powr...

Retail Price: $69.00

You save: $5.73 (8.30%)

Our Price: $63.27

QTY:

Titan 235-125 Tee Fitting

Item No: 27

Part #: 235-125

Titan part 235-125 is a tee fitting designed to split or combine fluid flow in hydraulic, co...

Retail Price: $134.60

You save: $14 (10.40%)

Our Price: $120.60

QTY:

Titan 431-019A O-Ring/Backup Ring Set

Item No: 28

Part #: 431-019A

Titan 431-019A O-Ring/Backup Ring Set is a reliable and easy to fit O-ring, it replaces Titan...

$10.50

QTY:

Titan/Speeflo 700-499 O-ring

Item No: 29

Part #: 700-499

Part number 700-499 is an O-ring used to create a leak-proof seal between components in compatib...

$3.20

QTY:

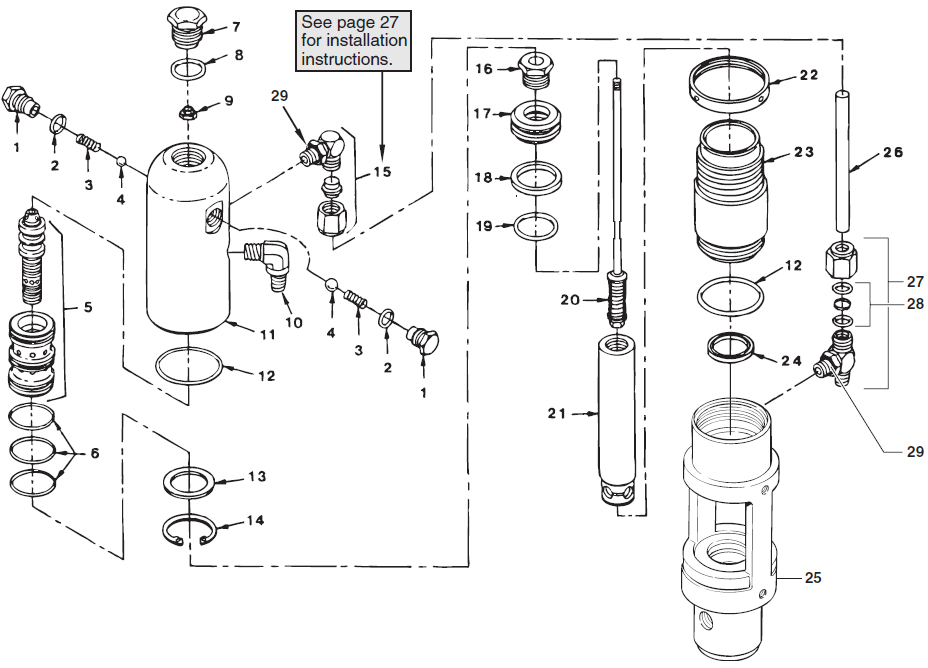

PowrTwin 8900XLT Hydraulic Motor Parts

The PowrTwin 8900XLT Hydraulic Motor Parts are designed to convert hydraulic pressure into mechanical motion, driving the pump system and ensuring smooth, consistent spraying performance. This assembly plays a critical role in maintaining stable cycling, pressure balance, and efficient operation under heavy-duty coating conditions.

Key components in this section include the spool valve with sleeve, piston, valve rod assembly, cylinder hydraulic, motor pump block, piston seal, O-rings, rod seal, trip retainer, spring, and various retaining rings and fittings. These parts work together to control hydraulic flow, regulate direction changes, and maintain internal sealing under high pressure.

The hydraulic motor also depends on precision sealing elements such as O-rings, backup rings, and valve seats to prevent internal leakage and maintain consistent pressure delivery. Over time, these wear components require inspection to ensure the system continues operating efficiently without loss of power or irregular cycling.

Regular maintenance of these components helps prevent pressure loss, erratic pump movement, overheating, and hydraulic leakage. Replacing worn seals, pistons, or valve assemblies early can significantly extend the life of the entire system.

FAQs

This is often caused by worn piston seals or internal leakage in the valve assembly, reducing effective pressure transfer.

Slow switching is usually due to a sticking spool valve, contaminated hydraulic fluid, or worn internal springs affecting valve movement.

Leaks commonly result from damaged O-rings, worn rod seals, or a cracked housing allowing pressure loss.

This is typically caused by air trapped in the hydraulic system, worn pistons, or inconsistent hydraulic flow.

Overheating is often linked to restricted hydraulic flow, dirty fluid, or excessive internal friction from worn components.

PowrTwin 8900XLT Hydraulic Motor Parts

PowrTwin 8900XLT Hydraulic Motor Parts

FAQs

1. Why does the hydraulic motor cycle but the pump output feels weak?

2. What causes delayed directional switching in the hydraulic motor?

3. Why is hydraulic fluid leaking around the motor housing?

4. What leads to knocking or pulsating movement during operation?

5. Why does the hydraulic motor overheat after extended use?
