PowrTwin 8900XLT Fluid Section Parts

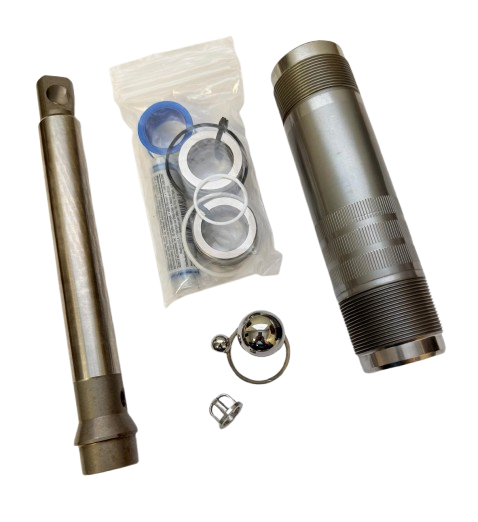

Titan 144-500 Major Fluid Section Service Kit

Item No: -

Part #: 144-500

PowrTwin part 144-500 is a major fluid section service kit containing all necessary seals, packings,...

Retail Price: $558.90

You save: $89.42 (16.00%)

Our Price: $469.48

QTY:

Titan 144-050 Fluid Section Minor Service Kit

Item No: --

Part #: 144-050

144-050 Fluid Section Minor Service Kit contains the essential wear components needed to perform rou...

Retail Price: $142.40

You save: $14.81 (10.40%)

Our Price: $127.59

QTY:

Titan 236-010A Foot Valve Assembly

Item No: ---

Part #: 236-010A

SprayTech part 236-010A is a foot valve assembly used in the fluid intake system of compatible spray...

Retail Price: $324.00

You save: $47.3 (14.60%)

Our Price: $276.70

QTY:

Titan 236-050 Outlet Valve Assembly

Item No: ----

Part #: 236-050

PowrBeast / PowrLiner / PowrTwin part 236-050 is an outlet valve assembly designed to ...

Retail Price: $147.10

You save: $15.3 (10.40%)

Our Price: $131.80

QTY:

Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70

QTY:

Titan 143-120 Connecting Pin

Item No: 2

Part #: 143-120

PowrLiner / PowrTex / PowrTwin part -120 is a connecting pin designed to link mechanic...

$17.10

QTY:

Titan 145-031 O-ring

Item No: 3

Part #: 145-031

PowrBeast / PowrLiner / PowrTex / PowrTwin part 145-031 is an O-ring designed to creat...

$24.90

QTY:

Titan 138-153A Repacking Kit

Item No: 4

Part #: 138-153A

Titan High-Output Fluid-Section Packing Set The Titan 138-153A Repacking Kit provides leather, ...

Retail Price: $104.50

You save: $10.87 (10.40%)

Our Price: $93.63

QTY:

Titan 142-004 Upper Packing Spring

Item No: 5

Part #: 142-004

Official Titan / Speeflo Fluid Section Component Titan 142-004 Upper Packing Spring is a genu...

Retail Price: $34.70

You save: $1.91 (5.50%)

Our Price: $32.79

QTY:

Titan 144-117 Displacement Rod

Item No: 6

Part #: 144-117

PowrTwin part 144-117 is a displacement rod used to convert rotational pump motion into linear recip...

Retail Price: $189.30

You save: $23.66 (12.50%)

Our Price: $165.64

QTY:

Titan 138-001 Spring Retainer

Item No: 7

Part #: 138-001

Official Titan / Speeflo Fluid Pump Hardware Titan 138-001 Spring Retainer is OEM fluid pump ...

Retail Price: $68.00

You save: $5.64 (8.29%)

Our Price: $62.36

QTY:

Titan 142-003 Lower Packing Spring

Item No: 8

Part #: 142-003

Official Titan / Speeflo Fluid Pump Spring Titan 142-003 Lower Packing Spring is an OEM sprin...

$25.00

QTY:

Titan 451-085 cage ball

Item No: 9

Part #: 451-085

The Titan 451-085 Cage Ball is a precision check-valve component used in the fluid section of sele...

Retail Price: $51.20

You save: $4.25 (8.30%)

Our Price: $46.95

QTY:

Titan 0509710 Outlet Valve Ball

Item No: 10

Part #: 0509710

Titan Fluid-Pump Outlet Check Valve Component The Titan 0509710 Outlet Valve Ball seals against...

$6.00

QTY:

Titan 236-012 Outlet Valve Seat

Item No: 11

Part #: 236-012

PowrLiner / PowrTex / PowrTwin part 236-012 is an outlet valve seat designed to prov...

Retail Price: $39.00

You save: $2.14 (5.49%)

Our Price: $36.86

QTY:

Titan 236-011 Seal

Item No: 12

Part #: 236-011

PowrTwin part 236-011 is a seal used to protect the sprayer's fluid section from leaks and pressure ...

$11.80

QTY:

Titan 236-031A Outlet Valve Housing

Item No: 13

Part #: 236-031A

PowrLiner / PowrTwin part 236-031A is an outlet valve housing designed to contain the ...

Retail Price: $76.80

You save: $6.37 (8.29%)

Our Price: $70.43

QTY:

Titan 144-832 Pump Cylinder

Item No: 14

Part #: 144-832

OEM Titan Pump Component Titan 144-832 Pump Cylinder is an OEM precision cylinder that ho...

Retail Price: $222.90

You save: $30.98 (13.90%)

Our Price: $191.92

QTY:

Titan 140-009 O-Ring

Item No: 15

Part #: 140-009

Official Titan / Speeflo Fluid Pump Seal Titan 140-009 O-Ring is an OEM sealing component for...

$2.90

QTY:

Titan 236-141 Foot Valve Cage

Item No: 16

Part #: 236-141

PowrBeast / PowrLiner / PowrTwin / PowrTex part 236-141 is a foot valve cage designed ...

Retail Price: $30.60

You save: $1.68 (5.49%)

Our Price: $28.92

QTY:

Titan 0509707 Foot Valve Ball (Replaces Titan 178-700 and Titan 0349477)

Item No: 17

Part #: 0509707

Titan Fluid-Pump Inlet Valve Component The Titan 0509707 Foot Valve Ball creates the inlet-valv...

Retail Price: $46.50

You save: $3.53 (7.59%)

Our Price: $42.97

QTY:

Titan 0509623 Inlet Valve Seat

Item No: 18

Part #: 0509623

PowrBeast / Advantage GPX / PowrLiner / SprayTech part 0509623 is an inlet valve seat ...

Retail Price: $67.50

You save: $5.6 (8.30%)

Our Price: $61.90

QTY:

Titan 236-126 Foot Valve

Item No: 20

Part #: 236-126

PowrTwin part 236-126 is a foot valve used to maintain prime and prevent backflow in the sprayer's f...

Retail Price: $146.30

You save: $15.22 (10.40%)

Our Price: $131.08

QTY:

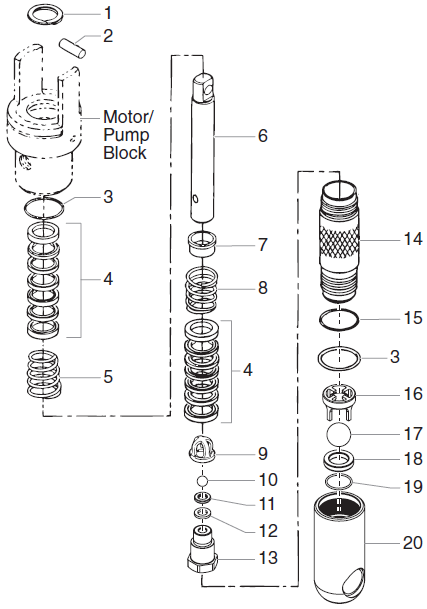

PowrTwin 8900XLT Fluid Section Parts

The PowrTwin 8900XLT Fluid Section Parts are the core pumping components responsible for drawing material from the siphon system, building pressure, and delivering a consistent spray output. This section is critical for maintaining smooth operation, stable pressure control, and efficient material flow in demanding coating applications.

The fluid section assembly typically includes key components such as the fluid section minor service kit, foot valve assembly, outlet valve assembly, pump cylinder, displacement rod, repacking kit, upper and lower packing springs, connecting pin, retaining ring, O-rings, ball seats, and related sealing and fastening hardware. These parts work together to create suction, compress material, and maintain a tight seal throughout the pumping cycle.

Inside the system, the foot valve controls intake flow, while the outlet valve regulates pressurized discharge. The packing system seals the displacement rod, preventing material leakage and maintaining pressure stability during continuous operation. Regular inspection of these wear components helps ensure consistent performance and reduces unexpected downtime.

Routine maintenance of the fluid section is essential because these components experience constant friction and pressure. Replacing worn packings, damaged valves, or scored rods at the right time helps maintain spray quality, prevents pressure loss, and extends the overall lifespan of the equipment.

FAQs

This is usually caused by worn packings or damaged valve seats allowing internal pressure leakage.

Loss of prime typically results from air entering through a worn foot valve, loose siphon connection, or debris preventing proper sealing.

This is commonly due to worn upper packings or a scored displacement rod that can no longer maintain a proper seal.

Low pressure can result from worn outlet valves, internal leakage in packings, or partially blocked intake components.

Jerky movement is often caused by worn internal seals, inconsistent hydraulic pressure, or debris interfering with valve movement.

PowrTwin 8900XLT Fluid Section Parts

PowrTwin 8900XLT Fluid Section Parts

FAQs

1. Why does the fluid section cycle rapidly even when the trigger is not pulled?

2. What causes loss of prime in the fluid section?

3. Why is material leaking from the top of the fluid section?

4. What causes low spray pressure even though the pump is running?

5. Why does the pump stroke become uneven or jerky?
