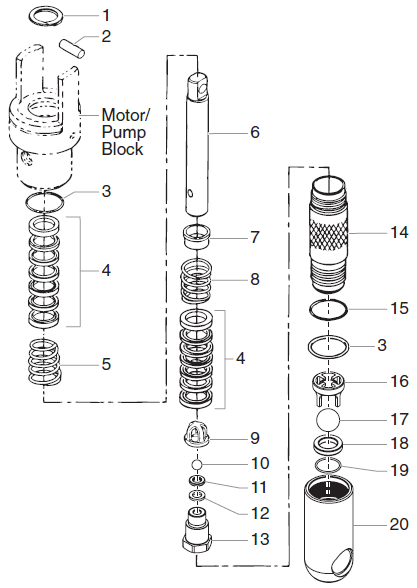

PowrTwin 6900XLT Fluid Section Parts

PowrTwin 6900XLT Fluid Section Parts

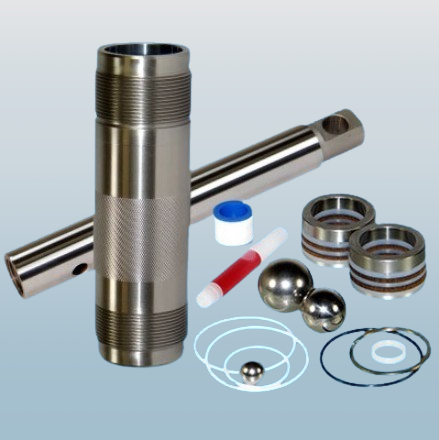

Titan 143-500 Fluid Section Service Kit Major
Titan 143-500 Fluid Section Service Kit Major

Item No: -

Part #: 143-500

  143-500 is a major fluid section service kit containing all wear parts needed to compl...

Retail Price: $558.90
You save: $89.42 (16.00%)
Our Price: $469.48
QTY:
Titan 144-050 Fluid Section Minor Service Kit
Titan 144-050 Fluid Section Minor Service Kit

Item No: --

Part #: 144-050

144-050 Fluid Section Minor Service Kit contains the essential wear components needed to perform rou...

Retail Price: $142.40
You save: $14.81 (10.40%)
Our Price: $127.59
QTY:
Titan 236-010A Foot Valve Assembly
Titan 236-010A Foot Valve Assembly

Item No: ---

Part #: 236-010A

SprayTech part 236-010A is a foot valve assembly used in the fluid intake system of compatible spray...

Retail Price: $324.00
You save: $47.3 (14.60%)
Our Price: $276.70
QTY:
Titan 236-050 Outlet Valve Assembly
Titan 236-050 Outlet Valve Assembly

Item No: ----

Part #: 236-050

  PowrBeast / PowrLiner / PowrTwin part 236-050 is an outlet valve assembly designed to ...

Retail Price: $147.10
You save: $15.3 (10.40%)
Our Price: $131.80
QTY:
Titan 143-019 Retaining Ring
Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

  PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70
QTY:
Titan 143-120 Connecting Pin
Titan 143-120 Connecting Pin

Item No: 2

Part #: 143-120

  PowrLiner / PowrTex / PowrTwin part -120 is a connecting pin designed to link mechanic...

$17.10
QTY:
Titan 145-031 O-ring
Titan 145-031 O-ring

Item No: 3

Part #: 145-031

  PowrBeast / PowrLiner / PowrTex / PowrTwin part 145-031 is an O-ring designed to creat...

$24.90
QTY:
Titan 138-153A Repacking Kit
Titan 138-153A Repacking Kit

Item No: 4

Part #: 138-153A

  PowrLiner / PowrTwin / PowrBeast part 138-153A is a repacking kit designed to rebuild ...

Retail Price: $104.50
You save: $10.87 (10.40%)
Our Price: $93.63
QTY:
Titan 142-004 Upper Packing Spring
Titan 142-004 Upper Packing Spring

Item No: 5

Part #: 142-004

  Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-004 is an upper packin...

Retail Price: $34.70
You save: $1.91 (5.50%)
Our Price: $32.79
QTY:
Titan 138-001 Spring Retainer
Titan 138-001 Spring Retainer

Item No: 7

Part #: 138-001

  PowrLiner / PowrTwin / PowrTex part 138-001 is a spring retainer designed to secure an...

Retail Price: $68.00
You save: $5.64 (8.29%)
Our Price: $62.36
QTY:
Titan 142-003 Lower Packing Spring
Titan 142-003 Lower Packing Spring

Item No: 8

Part #: 142-003

  Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-003 is a lower packing...

$25.00
QTY:
Titan 451-085 cage ball
Titan 451-085 cage ball

Item No: 9

Part #: 451-085

The Titan 451-085 Cage Ball is a precision check-valve component used in the fluid section of sele...

Retail Price: $51.20
You save: $4.25 (8.30%)
Our Price: $46.95
QTY:
Titan 236-012 Outlet Valve Seat
Titan 236-012 Outlet Valve Seat

Item No: 11

Part #: 236-012

    PowrLiner / PowrTex / PowrTwin part 236-012 is an outlet valve seat designed to prov...

Retail Price: $39.00
You save: $2.14 (5.49%)
Our Price: $36.86
QTY:
Titan 236-011 Seal
Titan 236-011 Seal

Item No: 12

Part #: 236-011

PowrTwin part 236-011 is a seal used to protect the sprayer's fluid section from leaks and pressure ...

$11.80
QTY:

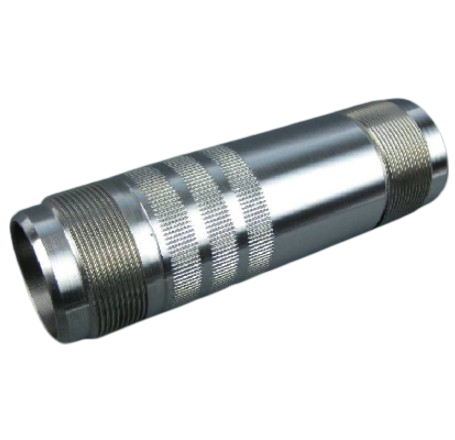

Titan 143-822 Cylinder
Titan 143-822 Cylinder

Item No: 14

Part #: 143-822

Part 143-822 is a replacement cylinder for compatible PowrTwin and PowrLiner equipment. This pre...

Retail Price: $189.30
You save: $23.66 (12.50%)
Our Price: $165.64
QTY:
Titan 140-009 O-Ring
Titan 140-009 O-Ring

Item No: 15

Part #: 140-009

  PowrTwin / PowrLiner / PowrTex part 140-009 is an O-ring designed to create a leak-pro...

$2.90
QTY:
Titan 236-141 Foot Valve Cage
Titan 236-141 Foot Valve Cage

Item No: 16

Part #: 236-141

  PowrBeast / PowrLiner / PowrTwin / PowrTex part 236-141 is a foot valve cage designed ...

Retail Price: $30.60
You save: $1.68 (5.49%)
Our Price: $28.92
QTY:
Titan 0509707 Foot Valve Ball (Replaces  Titan 178-700 and Titan 0349477)
Titan 0509707 Foot Valve Ball (Replaces  Titan 178-700 and Titan 0349477)

Item No: 17

Part #: 0509707

  PowrBeast / PowrLiner / SprayTech part 0509707 is a foot valve ball designed to create...

Retail Price: $46.50
You save: $3.53 (7.59%)
Our Price: $42.97
QTY:
Titan 236-126 Foot Valve
Titan 236-126 Foot Valve

Item No: 20

Part #: 236-126

PowrTwin part 236-126 is a foot valve used to maintain prime and prevent backflow in the sprayer's f...

Retail Price: $146.30
You save: $15.22 (10.40%)
Our Price: $131.08
QTY:

Order Online PowrTwin 6900XLT Fluid Section Parts

The PowrTwin 6900XLT Fluid Section Parts form the heart of the material pumping system, responsible for drawing coating material into the sprayer, building pressure, and delivering a consistent flow to the spray gun. This assembly is engineered for heavy-duty applications and is designed to handle demanding coatings while maintaining reliable pressure and smooth spraying performance. Key components include the Fluid Service Kit, Foot Valve Assembly, Outlet Valve Assembly, Cylinder, Repacking Kit, Connecting Pin, Retaining Ring, and various seals and packing components.

The fluid section works by creating suction through the foot valve and then pressurizing the material as it moves through the cylinder and outlet valve system. Components such as the Outlet Valve Seat, Foot Valve Cage, Stainless Ball, Upper Packing Spring, and Lower Packing Spring help maintain proper sealing and fluid control throughout the pumping cycle. Regular maintenance of these wear items helps ensure maximum efficiency and consistent spray quality.

Routine inspection of PowrTwin 6900XLT Fluid Section Parts can help prevent pressure loss, leakage, poor priming, and inconsistent spray patterns. Replacing worn packings, damaged valves, and worn seals before failure occurs can significantly extend equipment life and reduce costly downtime.

FAQs

Continuous cycling is often caused by worn packings, damaged valve seats, or internal leakage that prevents the system from holding pressure.

Loss of prime typically occurs when debris prevents the foot valve ball from sealing properly or when the valve seat becomes worn.

This issue is commonly caused by worn packings, damaged O-rings, or a scored piston rod that can no longer maintain a proper seal.

Reduced output is often linked to worn outlet valve components, damaged packings, or restrictions inside the cylinder and fluid passages.

Premature wear can result from abrasive coating materials, inadequate filtration, contaminated paint, or prolonged operation with worn sealing components.
