Titan EP2105 Piston Pump Parts & Repair Components
Shop Titan EP2105 Piston Pump parts for maintenance and repair of the pump assembly on your EP2105 airless sprayer. Use the applicable exploded parts diagram to identify the correct piston-pump components, valves, packings, seals, fittings, repair parts and related hardware before ordering.
Find Titan EP2105 Piston Pump Replacement Parts
The piston pump is a core part of the EP2105 fluid-delivery system. Its internal components work together to draw coating material into the pump, move it through the fluid section and supply pressurized material to the downstream airless spray system.
When the pump requires service, identify the affected component from the applicable EP2105 exploded parts illustration. Match the diagram callout with the corresponding parts-list entry and verify the exact part number, description and required quantity before purchasing a replacement part or repair component.
How to Find the Correct EP2105 Piston Pump Part
Confirm EP2105
Verify the complete sprayer model before selecting pump components or repair parts.

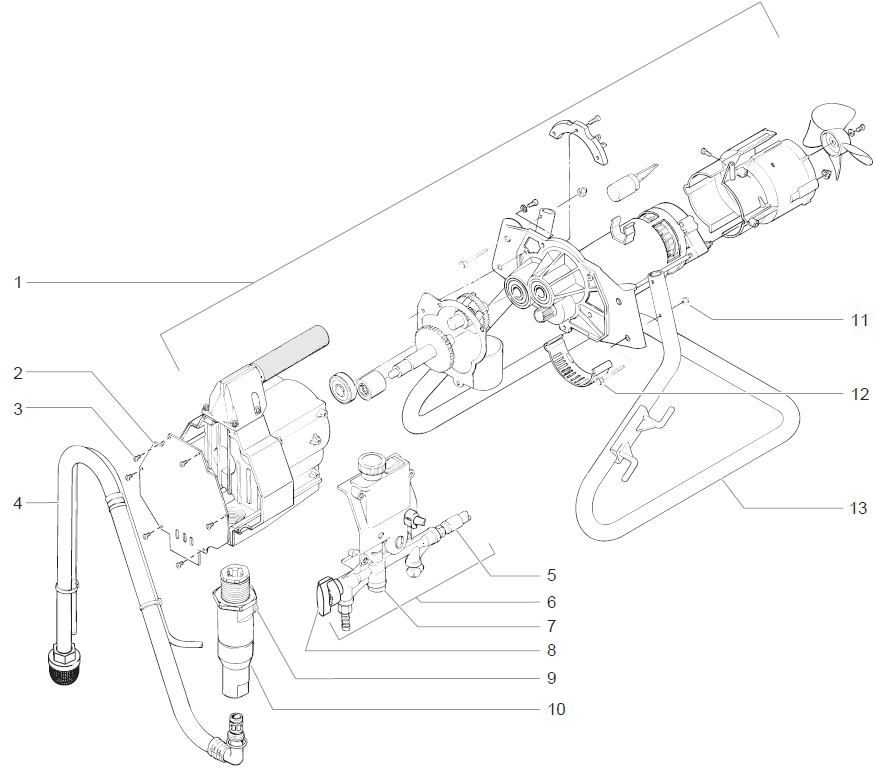

Open the Pump Diagram
Use the applicable EP2105 Piston Pump exploded illustration for your parts identification.
Match the Callout
Locate the required component and match its numbered callout to the corresponding parts-list entry.
Verify the Part Number
Confirm the exact listed part number, component description and required quantity before ordering.
How the EP2105 Piston Pump Supports Material Delivery
The piston-pump system uses coordinated inlet, pumping and outlet functions to move coating material through the sprayer. Proper operation depends on the condition of the pump's internal valves, sealing components, piston-related parts and associated fluid passages.
Inlet Components
Applicable inlet components help control material entry into the pump during the pumping cycle.
Piston Components
Piston-related components provide the reciprocating pumping action required to move coating material through the fluid section.
Packings & Seals
Applicable packings and seals help maintain fluid containment and support proper pump operation.
Outlet Components
Outlet-side components help direct pumped material toward the downstream fluid system.
EP2105 Piston Pump Components to Inspect
Inspect diagram-listed piston-related parts for wear, scoring, damage or other conditions that could affect pumping performance.
Worn fluid packings can contribute to leakage or reduced pumping performance and should be inspected according to service guidance.
Inspect applicable inlet-valve components for contamination, wear, damage or conditions that interfere with proper seating.
Check applicable outlet-valve parts and seating surfaces when diagnosing pressure or material-delivery problems.
Inspect diagram-listed seals and O-rings whenever leakage is found at a serviceable pump connection or joint.
Verify applicable fittings, retainers, fasteners and related hardware during disassembly and reassembly.
EP2105 Pump Repair Parts & Service Components
Depending on the applicable parts listing, pump service may involve replacing individual components or using a specified repair kit. Always compare the kit or replacement part number with the EP2105 parts documentation before purchase.
Packing Service
Inspect pump packings and associated sealing components when leakage or reduced pumping efficiency is present.
Valve Service
Inspect applicable valve components and seating areas when the pump has difficulty priming or maintaining expected fluid delivery.
Pump Rebuild Planning
Review all diagram-listed service components before disassembly so required replacement parts can be identified in advance.
Common EP2105 Piston Pump Symptoms
Pump symptoms can have more than one possible cause. Inspect the complete fluid path and follow the applicable service procedure before deciding which component requires replacement.
| Symptom | Inspection Direction | Parts Direction |
|---|---|---|
| Pump Will Not Prime | Inspect the material supply, suction path, inlet components, applicable valves and fluid section. | Diagnose the cause before ordering pump parts. |
| Low or Unstable Pressure | Inspect applicable valves, packings, piston components, filter system and downstream fluid components. | Match confirmed worn components to the EP2105 parts diagram. |
| Fluid Leakage at Pump | After safely relieving pressure, inspect packings, seals, connections and mating surfaces around the leak. | Identify the exact sealing or pump component requiring service. |
| Pump Cycles but Output Is Reduced | Inspect pump valves, sealing components, fluid passages and associated material-intake components. | Replace only components confirmed worn or damaged. |
| Difficulty Maintaining Material Flow | Inspect the pump together with the suction system, filters and other relevant fluid-system components. | Determine whether the problem originates in the pump or elsewhere in the fluid path. |
Pump Part, Fluid Section or Another EP2105 Assembly?
EP2105 Piston Pump
Use this section for components specifically identified within the EP2105 Piston Pump parts diagram.

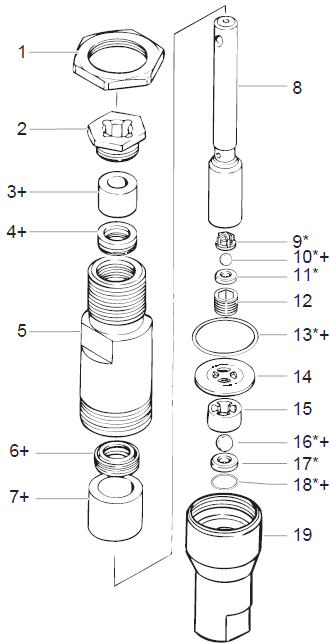

Fluid Section
If your parts documentation separates the fluid section from the piston-pump assembly, use the appropriate fluid-section diagram for components listed there.
EP & EPX Parts Catalog
Return to the main Spraytech parts category when the required component belongs to another sprayer assembly.
Browse EP & EPX Sprayer Parts →Verify EP2105 Piston Pump Part Compatibility
Similar-looking pump components are not necessarily interchangeable between EP, EPX or other Titan and Spraytech sprayer models. Pump components can differ in dimensions, design, application or assembly location.
Confirm the EP2105 model, applicable piston-pump diagram, numbered callout, part description, required quantity and exact part number before ordering.
Before Buying Titan EP2105 Piston Pump Parts
Verify the complete sprayer model before choosing pump components.
Determine which pump component actually requires service before ordering.
Locate the component on the applicable EP2105 exploded pump view.
Match the numbered callout to the corresponding parts-list entry.
Confirm the exact part number, description and quantity before purchasing.
Shop Titan Spraytech EP & EPX Sprayer Parts
Use the main EP and EPX parts catalog when your repair extends beyond the EP2105 piston pump or when you need to identify parts for another Spraytech model.
Relieve Pressure Before Servicing the EP2105 Pump
Airless spray equipment can retain hazardous fluid pressure after shutdown. Turn off the sprayer, disconnect or isolate the applicable power source and complete the manufacturer's pressure-relief procedure before loosening, removing or servicing pump or fluid-system components. Follow the applicable operating and service instructions during disassembly, inspection and reassembly.
Shop Titan EP2105 Piston Pump Parts
Use the EP2105 piston-pump exploded diagram to locate the component you need, match its callout to the parts list and verify the exact replacement part number before ordering.
Shop EP2105 Piston Pump PartsTitan EP2105 Piston Pump Parts FAQ
How do I find the correct Titan EP2105 piston pump part?
Confirm your EP2105 model, locate the required component in the applicable piston-pump exploded diagram and match its numbered callout to the corresponding part number in the parts list.
What parts should I inspect when an EP2105 pump will not prime?
Inspect the material supply and suction path along with applicable inlet components, valves and fluid-section parts. Follow the applicable troubleshooting procedure before replacing components.
Can worn EP2105 pump packings cause fluid leakage?
Worn sealing components can be one cause of pump leakage. Safely relieve pressure and inspect the applicable packings, seals and mating surfaces to identify the actual source.
What should I inspect if the EP2105 has low pressure?
Inspect applicable pump valves, packings, piston components and other fluid-system parts according to the manufacturer's troubleshooting procedure.
Are EP2105 pump repair kits available?
Where a repair kit is listed for the applicable assembly, verify its part number and included components against the EP2105 parts documentation before ordering.
Can I use EPX pump parts in a Titan EP2105?
Do not assume that EP and EPX pump components are interchangeable. Verify the exact part number and documented model application for every replacement component.
What should I verify before ordering EP2105 pump parts?
Confirm the EP2105 model, applicable piston-pump diagram, numbered callout, component description, required quantity and exact replacement part number.
Need Help Finding a Titan EP2105 Pump Part?
Have your EP2105 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct replacement component.
Parts & Fitment Help: 713-931-0006
