Titan EP2105 Fluid Section Assembly Parts
Shop Titan EP2105 Fluid Section Assembly parts for maintenance and repair of the material-pumping section of your EP2105 airless sprayer. Use the applicable exploded parts diagram to identify piston components, packings, valves, seals, housings, fittings and related fluid-section replacement parts by exact diagram callout and part number.
Find Titan EP2105 Fluid Section Replacement Parts
The EP2105 fluid section contains the pumping components that handle coating material as it moves through the sprayer. During operation, reciprocating pump components work with the inlet and outlet valve systems to draw material into the pump and move it toward the high-pressure outlet.
Packings, seals, valve components and other wear items within the fluid section should be inspected when the sprayer develops priming, leakage, pressure or material-delivery problems. Use the EP2105 Fluid Section Assembly exploded diagram to identify the required component, then verify its callout, exact part number, description and quantity before ordering.
How to Find the Correct EP2105 Fluid Section Part
Confirm EP2105
Verify the complete EP2105 model before selecting fluid-section replacement components.
Open the Fluid Section Diagram

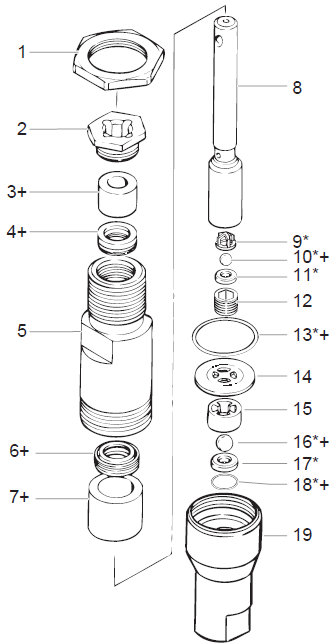

Use the applicable EP2105 Fluid Section Assembly exploded illustration for parts identification.
Match the Callout
Locate the required pump component and record its numbered callout from the exploded illustration.
Verify Part & Quantity
Match the callout to the parts list and confirm the exact replacement part number, description and quantity.
How the EP2105 Fluid Section Pumps Coating Material
The fluid section uses reciprocating mechanical movement together with inlet and outlet valve action to move coating material through the pump. Packings and seals help control the material path around moving components, while the valve system manages material movement into and out of the pumping chamber.
Inlet Valve Components
Applicable inlet-valve components help control material entering the fluid section during the pumping cycle.
Piston Components
The piston-side components move within the fluid section to create the pumping action required for material delivery.
Packings & Seals
Applicable packings and seals help control fluid around moving pump components and maintain the intended material path.
Outlet Valve Components
Applicable outlet-side valve components help control material leaving the pumping chamber toward the sprayer outlet system.
EP2105 Fluid Section Components to Inspect
Inspect applicable piston-side components for wear, scoring, damage or other conditions that may affect pumping performance.
Inspect diagram-listed packing components when fluid leakage, reduced pressure or wear within the pump is suspected.
Inspect the applicable inlet valve, ball, seat and related components when the sprayer has difficulty drawing material.
Inspect applicable outlet-side valve components when pressure or material-delivery problems point to the pump.
Check diagram-listed seals and O-rings for wear, cuts, flattening or other damage during fluid-section service.
Inspect applicable housing surfaces, threaded connections, fittings and related hardware for damage or leakage.
Inspect Related Wear Components Before Reassembly
When the EP2105 fluid section is opened for service, inspect related wear components before reassembly. Replacing only the most visibly damaged item may not correct the original symptom if another valve, sealing or moving component is also worn.
Packing Service
Inspect mating pump surfaces and related seals when servicing worn or leaking packings.
Valve Service
Inspect the applicable ball, seat and related valve components when servicing inlet or outlet valve problems.
Pump Rebuild Planning
Compare the diagram-listed individual parts and applicable service kits before determining the appropriate repair approach.
Common EP2105 Fluid Section Symptoms
Pumping problems can originate in the fluid section, suction set, pressure-control system or other parts of the sprayer. Diagnose the complete affected system before deciding which fluid-section components require replacement.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Pump Will Not Prime | Inspect the material supply, suction set, inlet valve components and applicable fluid-section parts. | Determine whether the problem originates in the intake path or fluid section before replacing parts. |
| Low or Unstable Pressure | Inspect packings, piston components, inlet and outlet valves, suction components and related pressure-system parts. | Identify worn or damaged components using the appropriate assembly diagram. |
| Fluid Leakage at Pump | After pressure relief, inspect packings, seals, O-rings, fittings and applicable mating surfaces. | Identify the actual leakage point before selecting replacement parts. |
| Pump Cycles but Output Is Reduced | Inspect valve components, packings, piston components and the suction path for wear or restriction. | Diagnose both the fluid section and material-intake system. |
| Difficulty Maintaining Material Flow | Inspect the suction set, inlet valve, piston-side components, outlet valve and downstream fluid path. | Isolate the restriction or worn component before ordering parts. |
Fluid Section, Piston Pump or Suction Set?
EP2105 Fluid Section Assembly
Use this section for piston components, packings, valves, seals, housings and related parts identified in the Fluid Section diagram.
EP2105 Piston Pump
Use the Piston Pump section when you need parts associated with the broader pump assembly rather than only the internal fluid section.
View EP2105 Piston Pump Parts →EP2105 Suction Set Assembly
Use the Suction Set section when priming or material-pickup problems are traced to the intake hose, tube, strainer or related fittings.
View EP2105 Suction Set Parts →Verify EP2105 Fluid Section Part Compatibility
Do not select packings, valve components, piston parts or seals based only on appearance. Similar-looking pump components used on other Titan EP or EPX sprayers can differ in dimensions, material, configuration or application.
Confirm the EP2105 model, applicable Fluid Section Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering.
Before Buying Titan EP2105 Fluid Section Parts
Verify the complete sprayer model before selecting pump parts.
Determine whether the symptom originates in the fluid section, suction system or another part of the sprayer.
Locate the required component in the EP2105 Fluid Section exploded illustration.
Match the numbered callout to the corresponding parts-list entry.
Inspect associated packings, seals and valve components before completing the repair.
Shop Related Titan EP2105 Parts
Move between EP2105 assembly sections to locate the correct fluid-section, pump, suction, drive, pressure-control or structural component.
Relieve Pressure Before Servicing the EP2105 Fluid Section
Shut down the sprayer and disconnect or isolate the applicable power source before service. Perform the manufacturer's complete pressure-relief procedure before loosening, removing or servicing any fluid-system component. Never loosen pressurized fittings or pump components. Follow the applicable EP2105 service instructions for fluid-section disassembly, inspection, replacement and reassembly.
Shop Titan EP2105 Fluid Section Assembly Parts
Use the EP2105 Fluid Section Assembly exploded diagram to identify the piston, packing, valve, seal or related pump component you need, then verify the exact replacement part number before ordering.
Shop EP2105 Fluid Section PartsTitan EP2105 Fluid Section Assembly Parts FAQ
What does the Titan EP2105 Fluid Section Assembly do?
The fluid section contains the pumping components that draw coating material into the pump and move it toward the sprayer's high-pressure outlet system.
How do I find the correct EP2105 fluid section part?
Use the EP2105 Fluid Section Assembly exploded diagram, locate the required component and match its numbered callout to the corresponding part number and quantity in the parts list.
What should I inspect if the EP2105 will not prime?
Inspect the material supply, suction set and applicable inlet-valve components. Follow the troubleshooting procedure to determine whether the problem is in the intake system or fluid section.
Can worn packings cause fluid leakage or reduced pressure?
Worn packing components can contribute to leakage or reduced pump performance. Inspect the packings together with related piston, sealing and valve components before completing the repair.
Should I inspect the inlet and outlet valves during pump service?
Yes. When pump performance is reduced, inspect applicable inlet and outlet valve components for wear, contamination, damage or conditions that could interfere with valve operation.
Can I use fluid-section parts from another EP or EPX sprayer?
Do not assume interchangeability. Verify the exact replacement part number and documented model application because internal pump components can differ between sprayer models.
What should I verify before ordering EP2105 fluid section parts?
Confirm the EP2105 model, correct Fluid Section Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.
Need Help Finding an EP2105 Fluid Section Part?
Have your EP2105 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct packing, valve, seal, piston or related pump component.
Parts & Fitment Help: 713-931-0006
