Titan EPX2255 Piston Pump Parts
Shop Titan EPX2255 Piston Pump Parts for maintenance, troubleshooting and repair of the sprayer's material-pumping system. Use the applicable EPX2255 exploded parts diagram to identify pump components, packings, valves, piston parts, seals, O-rings, fittings and related replacement components by exact callout, description and replacement part number.
Find Titan EPX2255 Piston Pump Replacement Parts
The piston pump is a central part of the EPX2255 fluid-delivery system. During operation, the pump draws coating material from the supply, develops fluid pressure and moves material toward the hose and spray gun. Proper performance depends on coordinated operation of the piston, packings, valves, seals and related pump components.
Pump wear can appear as difficult priming, reduced pressure, pressure fluctuation, fluid leakage or inconsistent material delivery. Instead of selecting parts by appearance, identify the affected component from the applicable EPX2255 piston pump diagram and verify its exact replacement part number before ordering.
How to Find the Correct EPX2255 Piston Pump Part
Confirm EPX2255
Verify that the sprayer being serviced is the Titan EPX2255 and confirm the applicable machine configuration.
Open the Pump Diagram

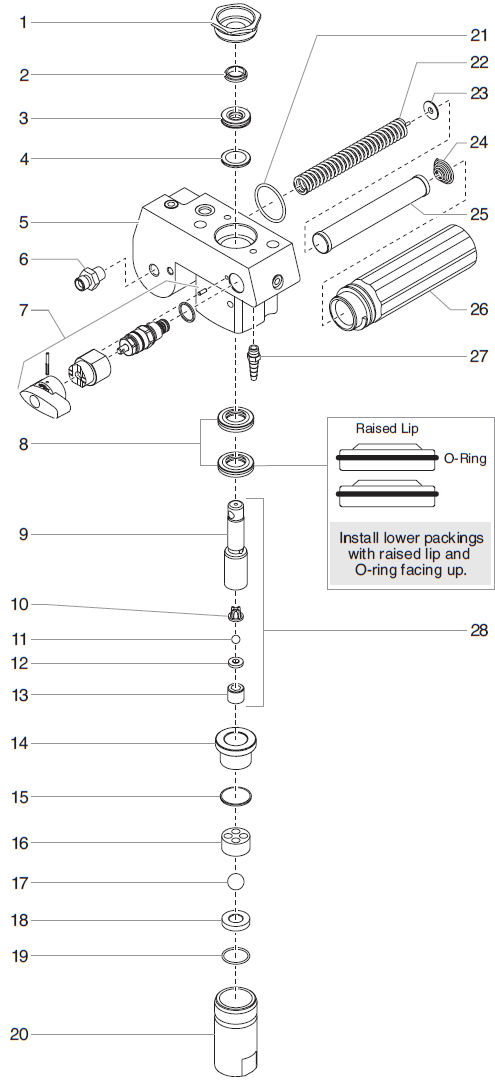

Use the applicable EPX2255 Piston Pump exploded illustration to locate the component requiring inspection or replacement.
Match the Callout
Match the numbered callout to the corresponding pump component description and replacement part number.
Verify Part & Quantity
Confirm the exact replacement part number, description and required quantity before placing your order.
How the Titan EPX2255 Piston Pump Moves Coating Material
The pump uses reciprocating piston movement and controlled valve action to draw material into the fluid section and move it into the pressurized side of the spray system. Internal sealing components help maintain the pressure needed for consistent material delivery.
Inlet Valve Components
Applicable inlet valve components help control coating material entering the pump during the pumping cycle.
Piston Components
Piston movement creates the pumping action required to transfer coating material through the fluid section.
Packings, Seals & O-Rings
Sealing components help control internal fluid movement and support pressure development as the piston cycles.
Outlet Valve Components
Applicable outlet valve components help control fluid movement as pressurized material leaves the pumping chamber.
EPX2255 Piston Pump Components to Inspect
Inspect applicable packing components for wear, deterioration, leakage or damage that can reduce sealing performance.
Inspect the piston and related diagram-listed components for wear, scoring or physical damage that can affect pump performance.
Check inlet valve components for contamination, wear or damage when the pump has difficulty drawing coating material.
Inspect applicable outlet valve components when pressure generation or material delivery becomes inconsistent.
Inspect sealing components for cuts, deformation, deterioration or other conditions that can allow leakage.
Check diagram-listed fittings, retainers and hardware for damage, leakage, looseness or missing components.
Diagnose EPX2255 Pump Problems Before Replacing Parts
A priming or pressure problem does not automatically mean the complete piston pump needs replacement. Start with the operating symptom, inspect the material supply and fluid path, and then isolate the affected pump components using the correct exploded parts diagram.
1. Check Material Supply
Confirm adequate coating material and inspect the suction path for restriction, damage or unwanted air entry.
2. Inspect the Inlet Side
Inspect applicable inlet valve components when the sprayer has difficulty priming or drawing material.
3. Check Packings & Valves
Inspect packing, piston, sealing and valve components when the pump cannot maintain expected fluid pressure.
4. Verify the Drive System
If pump movement is abnormal, inspect the mechanical drive and motor system before assuming the problem is internal to the pump.
Common Titan EPX2255 Piston Pump Symptoms
Similar symptoms can originate from different areas of the sprayer. Inspect the suction system, piston pump, pressure-related components and mechanical drive before selecting replacement parts.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Sprayer Will Not Prime | Suction components, inlet valve, seals and material supply. | Verify the material path first, then inspect the inlet side of the pump for contamination, leakage, wear or damage. |
| Low Spray Pressure | Packings, piston components, inlet and outlet valves, seals and related fluid-system components. | Inspect for internal wear or bypass after ruling out external restrictions, leaks and other pressure-system causes. |
| Pressure Fluctuates | Suction system, valve components, packings, seals and piston components. | Check for air entry, valve contamination and internal pump wear before selecting the required repair component. |
| Fluid Leaks Around Pump | Packings, O-rings, seals, fittings and mating surfaces. | Locate the exact leak point and identify the corresponding sealing or pump component from the exploded diagram. |
| Pump Does Not Cycle Correctly | Piston pump, fluid section, drive components and motor system. | Determine whether the problem is hydraulic, fluid-related or mechanical before ordering pump parts. |
Piston Pump or Another EPX2255 Repair Area?
EPX2255 Piston Pump
Start here for pump packings, piston components, valves, seals, O-rings, fittings and related pump repair components.
Pump Internal Components
Use the applicable fluid-section breakdown when the repair involves internal sealing, valve or piston-related components.
Suction System
Inspect the suction system when the EPX2255 has difficulty drawing coating material or repeatedly loses prime.
Drive & Motor Components
Inspect the drive system when the pump does not cycle normally even though the fluid section is serviceable.
Verify EPX2255 Piston Pump Part Compatibility
Do not select a packing, valve, piston component, seal, O-ring, fitting or other pump part based only on appearance. Similar pump components can differ in dimensions, materials, sealing arrangement, configuration and intended application.
Confirm the Titan EPX2255 model, applicable machine configuration, correct piston pump or fluid-section diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with EPX2155, EPX2355, EPX2455, EPX2555 or another EPX-series pump unless the applicable parts information confirms compatibility.
Before Buying Titan EPX2255 Piston Pump Parts
Verify the exact Titan sprayer model and applicable configuration.
Determine whether the problem involves priming, pressure, leakage, material flow or abnormal pump movement.
Check mating packings, valves, piston parts and seals so related wear is not overlooked.
Use the applicable EPX2255 exploded diagram to locate the required replacement component.
Confirm the exact replacement part number, description and required quantity before ordering.
Find EPX2255 Piston Pump & Related Sprayer Parts
Use the EPX2255 piston pump diagram for pump-related repairs. If troubleshooting identifies another system, browse the related Titan SprayTech EP and EPX model sections to locate the applicable assembly and replacement parts.
Relieve Pressure Before EPX2255 Piston Pump Service
Shut down the sprayer, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before inspecting, removing or servicing the piston pump. Never loosen a pressurized hose, fitting, valve, filter or pump component. Follow the applicable Titan service instructions for pump removal, disassembly, inspection, replacement, lubrication where specified, reassembly and testing.
Shop Titan EPX2255 Piston Pump Parts
Use the applicable Titan EPX2255 piston pump exploded diagram to identify the packing, piston component, valve part, seal, O-ring, fitting or related pump component you need. Match the callout to the exact replacement part number and required quantity before ordering.
Shop EPX2255 Piston Pump PartsTitan EPX2255 Piston Pump FAQ
What does the Titan EPX2255 piston pump do?
The piston pump draws coating material into the fluid system and moves it through the sprayer under pressure. Its internal piston, valve and sealing components must work together for reliable material delivery.
How do I identify the correct EPX2255 piston pump part?
Confirm the EPX2255 model and applicable configuration, then use the correct exploded pump diagram to match the numbered callout with its exact description, replacement part number and required quantity.
What should I inspect if my EPX2255 will not prime?
Inspect the coating supply, suction path and applicable inlet valve components first. Also check for unwanted air entry, restrictions, contamination, worn seals or damaged pump components.
Can worn EPX2255 pump packings cause pressure loss?
Worn or damaged packing components can reduce sealing performance and may contribute to leakage or reduced pump performance. Inspect the complete pump system before determining the required repair.
Should I inspect the inlet and outlet valves during pump repair?
When troubleshooting priming or pressure problems, inspect applicable valve components along with the piston, packings and seals so related contamination or wear is not overlooked.
Are EPX2255 pump parts interchangeable with other EPX models?
Do not assume interchangeability. Similar pump parts can differ by model and configuration. Verify the exact replacement part number in the applicable Titan parts information before ordering.
What should I verify before ordering EPX2255 piston pump parts?
Confirm the EPX2255 model, applicable configuration, correct pump diagram, numbered callout, component description, exact replacement part number and required quantity.
