Titan EPX2255 Stand Assembly Parts
Shop Titan EPX2255 Stand Assembly Parts for maintenance, restoration and repair of the sprayer's stationary support structure. Use the applicable EPX2255 exploded parts diagram to identify stand frame components, supports, brackets, feet, mounting points, fasteners and related hardware by exact callout, description and replacement part number.
Find Titan EPX2255 Stand Assembly Replacement Parts
The stand assembly provides a stable structural base for the applicable EPX2255 sprayer configuration. It supports the machine and provides mounting locations for applicable sprayer components while helping keep the unit correctly positioned during storage, setup, maintenance and operation.
Bent frame sections, damaged supports, loose mounting hardware or worn contact points can reduce stability and place unnecessary stress on connected components. Inspect the complete stand structure and its attachment points before selecting replacement parts.
How to Find the Correct EPX2255 Stand Assembly Part
Confirm EPX2255
Verify that the machine being serviced is the Titan EPX2255 and confirm that the applicable stand configuration matches the parts diagram being used.
Open the Stand Diagram
Use the applicable EPX2255 Stand Assembly exploded illustration to locate the frame, bracket, support or hardware requiring service.
Match the Callout
Match the numbered diagram callout with the corresponding component description and replacement part number.
Verify Part & Quantity
Confirm the exact replacement part number, description and required quantity before ordering.
How the EPX2255 Stand Supports the Sprayer
The stand assembly serves as the structural foundation for the applicable EPX2255 configuration. The frame, supports, brackets and mounting hardware work together to maintain a stable base and correctly position the attached sprayer components.
Stand Frame
The main frame provides structural support for the applicable EPX2255 stand-mounted configuration.
Supports & Feet
Applicable support and contact components help keep the sprayer stable on the work surface.
Mounting Brackets
Brackets and mounting points secure applicable machine components to the stand structure.
Fasteners & Hardware
Applicable bolts, screws, washers, nuts and retainers help keep stand and mounted components securely assembled.
EPX2255 Stand Assembly Components to Inspect
Inspect frame sections for bending, cracks, impact damage, deformation or other structural conditions that can affect stability.
Check applicable supports for damage, looseness or deformation that can allow the sprayer to sit unevenly.
Inspect applicable feet and contact components for wear, damage, looseness or missing pieces.
Check brackets for bending, cracks, enlarged mounting holes or damage that can affect attached components.
Inspect attachment locations for deformation, wear or damage before installing replacement hardware or components.
Verify applicable screws, bolts, nuts, washers and retainers are present, undamaged and correctly securing the assembly.
Inspect EPX2255 Stand Problems Before Ordering Parts
When the sprayer feels unstable, sits unevenly or has loose mounted components, inspect the complete stand structure rather than replacing the first visibly loose fastener. Structural damage can affect multiple mounting points and connected components.
1. Inspect the Frame
Check the stand frame for bending, cracks, impact damage or deformation before evaluating smaller components.
2. Check Supports & Feet
Inspect the applicable support and contact points when the machine rocks, tilts or does not sit securely.
3. Inspect Mounting Points
Check brackets, attachment holes and mounting locations for looseness, wear or structural damage.
4. Verify Hardware
Confirm applicable fasteners, washers, nuts and retainers are present and correctly securing the stand and attached components.
Common EPX2255 Stand Assembly Symptoms
Use these symptoms as inspection starting points. Verify the condition of the complete stand and mounting system before selecting replacement components.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Sprayer Rocks or Feels Unstable | Frame, supports, feet, mounting points and hardware. | Identify damaged, worn, missing or loose support components and verify the frame itself is not deformed. |
| Stand Sits Unevenly | Stand frame, supports, feet and contact points. | Check for bent structural components, damaged supports or missing contact components. |
| Mounted Component Is Loose | Brackets, mounting points, bolts, screws, washers and retainers. | Inspect both the mounting hardware and structural attachment points before replacing the fastener alone. |
| Stand Frame Is Bent or Damaged | Frame structure, mounting points and connected brackets. | Compare the damaged area with the exploded diagram to identify the applicable structural replacement component. |
| Hardware Repeatedly Loosens | Fasteners, brackets, mounting holes and surrounding structure. | Inspect for damaged threads, worn mounting locations, deformation or vibration-related movement before replacing hardware. |
Stand Assembly or Another EPX2255 Repair Area?
EPX2255 Stand Assembly
Start here for stand frame components, supports, feet, brackets, mounting points, fasteners and related structural hardware.
EPX2255 Main Assembly
Use the Main Assembly section for general machine fittings, brackets, controls, connections and related hardware.
View EPX2255 Main Assembly PartsEPX2255 Piston Pump
Browse packings, valves, piston components, seals and related piston pump repair parts.
View EPX2255 Piston Pump PartsEPX2255 Gear Box Assembly
Browse gears, shafts, bearings, bushings, housings and related mechanical drive components.
View EPX2255 Gear Box PartsVerify EPX2255 Stand Assembly Part Compatibility
Do not select a stand frame, support, foot, bracket, fastener or related structural component based only on appearance. Similar components can differ in dimensions, mounting-hole locations, attachment arrangement and intended sprayer configuration.
Confirm the Titan EPX2255 model, applicable stand configuration, correct Stand Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with cart configurations or EPX2155, EPX2355, EPX2455, EPX2555 and other EPX-series machines unless the applicable parts information confirms compatibility.
Before Buying Titan EPX2255 Stand Assembly Parts
Verify the exact Titan sprayer model before selecting stand components.
Make sure the machine uses the applicable stand assembly rather than selecting parts from a different frame or cart configuration.
Check the frame, supports, brackets and mounting points so related damage is identified before ordering.
Use the applicable EPX2255 Stand Assembly diagram to locate the required component.
Confirm the exact replacement part number, description and required quantity before ordering.
Find EPX2255 Stand & Related Sprayer Parts
Use the EPX2255 Stand Assembly diagram for structural support and mounting repairs. If diagnosis identifies the pump, motor, gear box, suction system or general machine assembly, move to the corresponding model-specific parts section.
Support the EPX2255 Before Stand Assembly Service
Shut down the sprayer, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before servicing the stand assembly. Support the machine securely before removing structural supports, brackets or mounting hardware. Never loosen pressurized fluid components. Follow the applicable Titan service instructions for disassembly, component replacement, reassembly and operational inspection.
Shop Titan EPX2255 Stand Assembly Parts

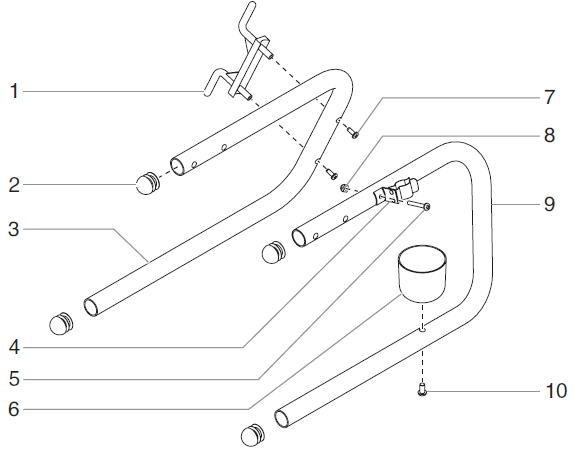

Use the applicable EPX2255 Stand Assembly exploded diagram to identify the frame component, support, foot, bracket, mounting part, fastener or related hardware you need. Match the diagram callout to the exact replacement part number and required quantity before ordering.
Shop EPX2255 Stand Assembly PartsTitan EPX2255 Stand Assembly FAQ
What is the Titan EPX2255 Stand Assembly?
The stand assembly provides the structural base for the applicable EPX2255 stand-mounted configuration and supports the sprayer and its mounted components.
How do I identify the correct EPX2255 stand part?
Confirm the EPX2255 model and stand configuration, then use the applicable Stand Assembly diagram to match the numbered callout with its description, replacement part number and required quantity.
What should I inspect if my EPX2255 stand feels unstable?
Inspect the stand frame, supports, feet, mounting brackets, attachment points and fasteners for bending, damage, looseness, wear or missing components.
What should I check if the EPX2255 sits unevenly?
Check the frame structure and applicable support or contact points for deformation, damage, wear or missing components.
Should damaged mounting points be inspected before replacing hardware?
Yes. A loose component may result from damaged mounting holes, brackets or surrounding structure rather than the fastener alone.
Are EPX2255 stand parts interchangeable with cart assemblies?
Do not assume interchangeability. Stand and cart configurations can use different frame components, mounting arrangements and hardware. Verify the exact replacement part number for the configuration being serviced.
What should I verify before ordering EPX2255 Stand Assembly parts?
Confirm the EPX2255 model, applicable stand configuration, correct Stand Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.
Need Help Finding an EPX2255 Stand Assembly Part?
Have your Titan EPX2255 model information, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct frame, support, foot, bracket, fastener or related stand component.
Parts & Fitment Help: 713-931-0006
