Titan EPX2255 Fluid Section Assembly Parts
Shop Titan EPX2255 Fluid Section Assembly Parts for maintenance, troubleshooting and repair of the sprayer's material-pumping section. Use the applicable EPX2255 exploded parts diagram to identify packings, piston components, inlet and outlet valve components, seals, O-rings, fittings and related pump parts by exact callout, description and replacement part number.
Find Titan EPX2255 Fluid Section Replacement Parts
The fluid section contains the pump components directly involved in drawing coating material into the pump, displacing it through the pump cycle and directing pressurized material toward the outlet side of the airless spray system.
Wear in packings, valves, seals or piston-related components can contribute to poor priming, pressure loss, leakage, irregular pump cycling or reduced spraying performance. Correct diagnosis is important because similar symptoms can also originate in the suction system, pressure-control system, filter system or other connected components.
How to Find the Correct EPX2255 Fluid Section Part
Confirm EPX2255
Verify that the machine being serviced is the Titan EPX2255 and confirm the applicable sprayer configuration.
Open the Fluid Section Diagram

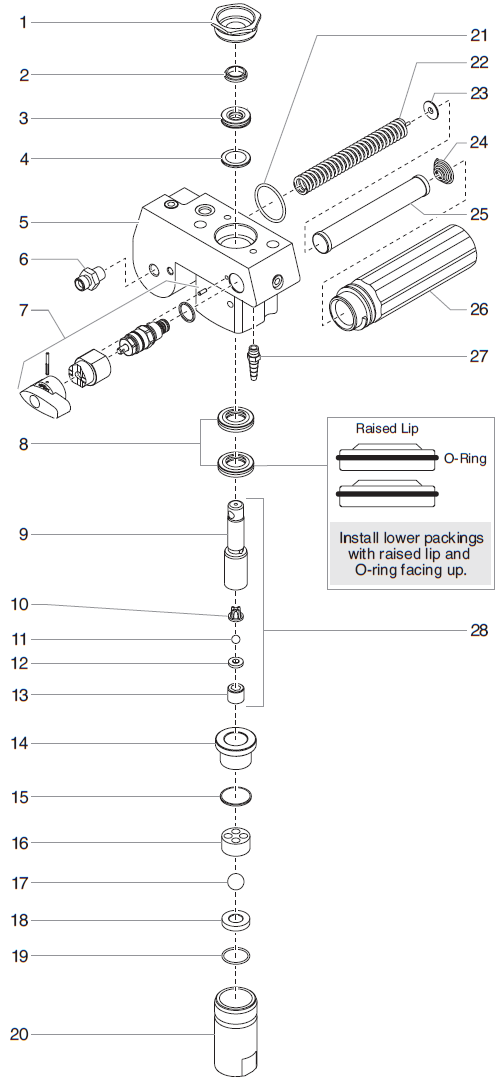

Use the applicable EPX2255 Fluid Section Assembly exploded illustration to locate the pump component requiring service.
Match the Callout
Match the numbered diagram callout to the corresponding component description and replacement part number.
Verify Part & Quantity
Confirm the exact replacement part number, component description and required quantity before ordering.
How the EPX2255 Fluid Section Pumps Coating Material
The fluid section works through repeated pump strokes. Valve components control material movement through the pump while the piston and packing system creates the pumping action and sealing needed to move coating material through the sprayer.
Inlet Valve Area
Applicable inlet valve components help control material entering the fluid section during the pump cycle.
Piston Components
Piston-related components move through the fluid section to help displace coating material through the pump.
Packings & Seals
Applicable packings, seals and O-rings help control leakage and maintain sealing within the pumping system.
Outlet Valve Area
Applicable outlet valve components help control material flow as it moves from the pumping chamber toward the downstream fluid system.
EPX2255 Fluid Section Components to Inspect
Inspect applicable packings when the pump shows leakage, reduced pressure capability or other signs of sealing wear.
Check piston-related components for wear, scoring, damage or conditions that can interfere with normal pump movement and sealing.
Inspect applicable inlet valve parts when the sprayer has difficulty drawing material into the pump or maintaining prime.
Check applicable outlet valve parts when pressure generation or material movement through the pump becomes irregular.
Inspect sealing components for cuts, flattening, deterioration, leakage or other conditions requiring replacement.
Inspect applicable fluid connections for damage, leakage, looseness or sealing problems before replacing related components.
Diagnose EPX2255 Fluid Section Problems Before Ordering Parts
Poor priming, low pressure and leakage do not automatically identify one failed component. Follow the material path through the suction system, fluid section and downstream fluid components to determine where normal operation is being lost.
1. Identify the Symptom
Determine whether the problem involves priming, pressure, leakage, irregular cycling or reduced material delivery.
2. Check Material Supply
Inspect the applicable suction components and material supply before assuming the problem is inside the fluid section.
3. Inspect the Fluid Section
Check applicable packings, piston components, valve parts, seals and connections for wear, contamination, leakage or damage.
4. Match the Diagram
Use the EPX2255 Fluid Section Assembly diagram to identify the exact replacement component after the failed area has been located.
Common EPX2255 Fluid Section Symptoms
Use the following symptoms as diagnostic starting points. Always verify the actual source of the problem before selecting replacement parts.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Sprayer Will Not Prime | Material supply, suction components, inlet valve area, seals and fluid connections. | Trace the material path into the pump and identify air leaks, restrictions, contamination or valve-related problems. |
| Low or Unstable Pressure | Packings, piston components, inlet and outlet valve areas, seals and connected fluid-system components. | Inspect for internal leakage, wear, contamination or sealing problems before replacing components. |
| Fluid Leaks Around the Pump | Packings, seals, O-rings, fittings and related fluid-section connections. | Locate the exact leak source, relieve system pressure and inspect the affected sealing or connection components. |
| Pump Cycles Irregularly | Inlet valve, outlet valve, piston components, packings and material supply. | Check for contamination, valve sealing problems, worn pump components or inconsistent material supply. |
| Pump Runs but Performance Is Reduced | Packings, valves, piston components, suction system and downstream fluid path. | Diagnose the complete material path rather than replacing internal pump components solely from the symptom. |
Fluid Section or Another EPX2255 Repair Area?
EPX2255 Fluid Section Assembly
Start here for packings, piston components, valves, seals, O-rings, fittings and related internal pump components.
EPX2255 Piston Pump
Use the piston pump section when identifying components associated with the broader EPX2255 pumping assembly.
View EPX2255 Piston Pump PartsEPX2255 Suction Set 0551104
Use the suction section when troubleshooting material intake, strainer, suction fitting, connector or related supply problems.
View EPX2255 Suction Set PartsEPX2255 Gear Box Assembly
Use the gear box section when diagnosis identifies a mechanical drive problem rather than an internal fluid-section problem.
View EPX2255 Gear Box PartsVerify EPX2255 Fluid Section Part Compatibility
Do not select a packing, piston component, valve part, seal, O-ring, fitting or other fluid-section component based only on appearance. Internal pump parts can differ in dimensions, material, sealing arrangement and intended pump application.
Confirm the Titan EPX2255 model, applicable configuration, correct Fluid Section Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with EPX2155, EPX2355, EPX2455, EPX2555 or another EPX-series fluid section unless the applicable parts information confirms compatibility.
Before Buying Titan EPX2255 Fluid Section Parts
Verify the exact Titan sprayer model and applicable configuration.
Identify whether the problem involves priming, pressure, leakage, cycling or material delivery.
Check valves, packings, piston components, seals and connected suction components for related wear or damage.
Use the applicable EPX2255 Fluid Section diagram to identify the required component.
Confirm the exact replacement part number, description and required quantity before ordering.
Find EPX2255 Fluid Section & Related Sprayer Parts
Use the EPX2255 Fluid Section Assembly diagram for internal pumping components. For problems involving material intake, mechanical drive, motor operation or general machine components, use the corresponding EPX2255 assembly section.
Relieve Pressure Before EPX2255 Fluid Section Service
Shut down the sprayer, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before inspecting, removing or servicing fluid-section components. Never loosen a fitting, valve, hose, pump component or other fluid part while the system is pressurized. Follow the applicable Titan service instructions for disassembly, inspection, component replacement, reassembly and operational testing.
Shop Titan EPX2255 Fluid Section Assembly Parts
Use the applicable EPX2255 Fluid Section Assembly exploded diagram to identify the packing, piston component, valve part, seal, O-ring, fitting or related pump component you need. Match the diagram callout to the exact replacement part number and required quantity before ordering.
Shop EPX2255 Fluid Section PartsTitan EPX2255 Fluid Section Assembly FAQ
What is the Titan EPX2255 Fluid Section Assembly?
The fluid section is the pumping area containing components that help draw coating material into the pump, create pumping action, maintain internal sealing and move material toward the outlet side of the sprayer.
What types of EPX2255 parts are found in the fluid section?
Depending on the applicable diagram, the fluid section can include packings, piston-related components, inlet and outlet valve components, seals, O-rings, fittings and related pump parts.
How do I identify the correct EPX2255 Fluid Section part?
Confirm the EPX2255 model and applicable configuration, then use the correct Fluid Section Assembly diagram to match the numbered callout with its description, replacement part number and required quantity.
What should I inspect if my EPX2255 will not prime?
Inspect the material supply, suction components, inlet valve area, fluid connections and applicable sealing components. A priming problem does not always originate inside the fluid section.
Can worn fluid-section parts cause low pressure?
Worn packings, valve components, piston-related parts or seals can contribute to pressure problems. Other connected systems can produce similar symptoms, so diagnosis should confirm the source before parts are replaced.
Are EPX2255 Fluid Section parts interchangeable with other EPX models?
Do not assume interchangeability. Internal pump components can differ by model and configuration. Verify the applicable diagram and exact replacement part number before ordering.
What should I verify before ordering EPX2255 Fluid Section parts?
Confirm the EPX2255 model, applicable configuration, correct Fluid Section Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.
Need Help Finding an EPX2255 Fluid Section Part?
Have your Titan EPX2255 model information, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct packing, piston component, valve part, seal, O-ring, fitting or related pump component.
Parts & Fitment Help: 713-931-0006
