Titan EPX2255 Suction Set Assembly Parts (P/N 0551104)
Shop Titan EPX2255 Suction Set Assembly Parts (P/N 0551104) for maintenance and repair of the sprayer's material-intake system. Use the applicable EPX2255 exploded parts diagram to identify suction components, strainers, hoses, fittings, connectors, seals and related replacement parts by exact callout, description and part number.
Find EPX2255 Suction Set 0551104 Replacement Parts
The suction set forms the material-intake path between the coating supply and the sprayer's pumping system. Its job is to provide a dependable path for coating material to reach the pump while applicable straining components help prevent larger debris from entering the fluid system.
Damage, restrictions, loose connections or unwanted air entry within the suction system can contribute to difficult priming, loss of prime, irregular material delivery and reduced sprayer performance. Inspect the complete intake path before assuming that the piston pump itself requires repair.
How to Find the Correct EPX2255 Suction Set Part
Confirm EPX2255
Verify that the sprayer being serviced is the Titan EPX2255 and confirm the applicable machine configuration.
Verify P/N 0551104
Confirm that the applicable parts information identifies the suction set assembly as P/N 0551104 for the machine being serviced.
Match the Callout

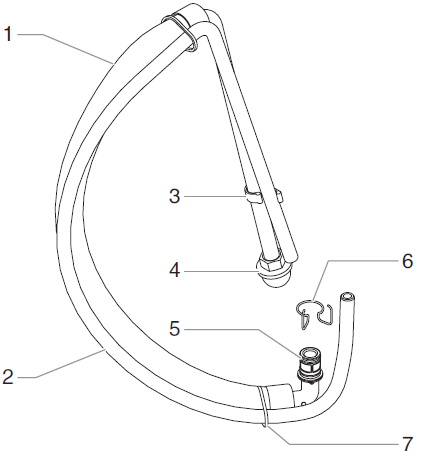

Use the exploded diagram to match the numbered callout with the component description and replacement part number.
Verify Part & Quantity
Confirm the exact replacement part number, description and required quantity before placing your order.
How the EPX2255 Suction Set Supports Material Flow
As the piston pump operates, coating material must travel from the container through the suction system and into the pump. The intake path needs to remain open, properly connected and adequately sealed. A restriction or air leak on the suction side can affect priming even when the pump itself is serviceable.
Suction Components
The suction-side components provide the path through which coating material is drawn from the supply toward the pump.
Strainer

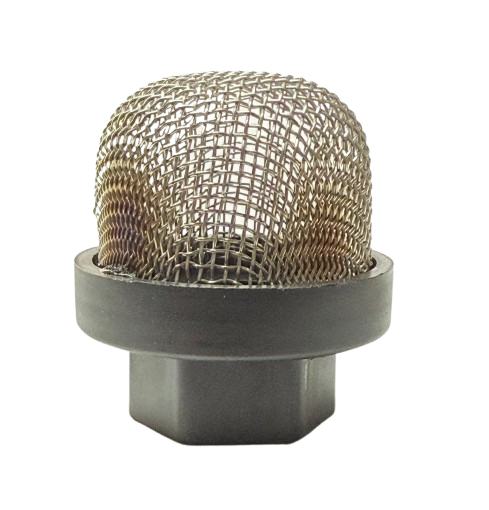

The applicable intake strainer helps prevent larger debris from entering the suction path and pump system.
Hose & Tube Components
Applicable suction hose or tube components carry coating material toward the pump inlet.
Fittings & Seals
Fittings, connectors and applicable sealing components help maintain a secure intake path and limit unwanted air entry.
EPX2255 Suction Set Components to Inspect
Inspect applicable intake lines for cracks, cuts, kinks, collapse, deterioration or other conditions that can restrict material flow or allow air entry.
Check the strainer for dried coating material, debris, damage or blockage that can restrict material entering the suction system.
Inspect diagram-listed fittings for damage, looseness, contamination or poor connection at mating components.
Check applicable connectors for secure engagement, physical damage and conditions that can affect the integrity of the intake path.
Inspect applicable sealing components for cuts, deformation, deterioration or other damage that can permit unwanted air entry.
Verify diagram-listed clamps, retainers, fasteners and related hardware are present and correctly securing suction components.
Diagnose EPX2255 Priming Problems Before Replacing Pump Parts
Difficult priming is not always caused by the piston pump. A blocked strainer, restricted intake line, loose fitting or suction-side air leak can prevent the pump from receiving a steady supply of coating material. Inspect the intake system from the material container toward the pump.
1. Check Material Supply
Confirm adequate coating material and proper placement of the intake components in the material supply.
2. Inspect the Strainer
Check for dried material, debris or physical damage that can restrict coating material entering the suction system.
3. Check for Air Entry
Inspect suction lines, fittings, connectors and seals for loose or damaged areas that may allow air into the intake path.
4. Inspect the Pump Inlet
If the suction path is serviceable, continue diagnosis at the pump inlet and applicable inlet valve components.
Common EPX2255 Suction Set Symptoms
Suction-side problems often resemble pump problems. Use these symptoms as inspection starting points and verify the actual cause before replacing components.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Sprayer Will Not Prime | Material supply, strainer, suction line, fittings, seals and pump inlet. | Clear intake restrictions and correct suction-side leaks before moving to internal pump diagnosis. |
| Sprayer Loses Prime | Suction hose or tube, connectors, fittings and sealing points. | Inspect for loose connections, cracks or damaged seals that can allow unwanted air into the intake system. |
| Material Flow Is Restricted | Strainer and complete suction path. | Look for dried coating, debris, kinks, collapse or damaged components restricting material flow. |
| Air Appears in Material Flow | Suction connections, hose or tube, seals and fittings. | Locate and correct suction-side air leaks before diagnosing pressure-related pump components. |
| Visible Leak at Suction Connection | Fitting, connector, seal and mating surfaces. | Identify the exact connection and use the exploded diagram to determine the correct replacement component. |
Suction Set or Another EPX2255 Repair Area?
EPX2255 Suction Set 0551104
Start here for suction lines, strainers, fittings, connectors, seals and related material-intake components.
EPX2255 Piston Pump
Move to the piston pump section when the suction path is serviceable but the sprayer still has pump-related priming or pressure problems.
View EPX2255 Piston Pump PartsEPX2255 Main Assembly
Browse general machine fittings, brackets, controls, connections, hardware and related replacement components.
View EPX2255 Main Assembly PartsEPX2255 Motor Assembly
Browse the motor section when diagnosis identifies an electrical, motor or motor-to-drive problem.
View EPX2255 Motor Assembly PartsVerify EPX2255 Suction Set 0551104 Part Compatibility
Do not select a suction hose, tube, strainer, fitting, connector, seal or related intake component based only on appearance. Similar parts can differ in dimensions, connection style, sealing arrangement and intended machine configuration.
Confirm the Titan EPX2255 model, P/N 0551104 where applicable, correct Suction Set Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with EPX2155, EPX2355, EPX2455, EPX2555 or another EPX-series sprayer unless the applicable parts information confirms compatibility.
Before Buying EPX2255 Suction Set Parts
Verify the exact Titan sprayer model and applicable configuration.
Confirm the applicable suction set assembly identification before selecting replacement components.
Check the strainer, suction line, fittings, connectors and seals so related problems are not overlooked.
Use the applicable EPX2255 exploded diagram to locate the required replacement component.
Confirm the exact replacement part number, description and required quantity before ordering.
Find EPX2255 Suction Set & Related Sprayer Parts
Use the EPX2255 Suction Set Assembly diagram for material-intake repairs. If diagnosis identifies the pump, motor or general machine assembly, move to the corresponding EPX2255 parts section before selecting replacement components.
Relieve Pressure Before EPX2255 Suction System Service
Shut down the sprayer, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before inspecting, removing or servicing suction components. Never loosen a pressurized hose, fitting, valve, filter or pump component. Follow the applicable Titan service instructions for inspection, component replacement, reassembly, priming and operational testing.
Shop Titan EPX2255 Suction Set Assembly Parts
Use the applicable EPX2255 Suction Set Assembly P/N 0551104 exploded diagram to identify the suction component, strainer, fitting, connector, seal or related intake part you need. Match the diagram callout to the exact replacement part number and required quantity before ordering.
Shop EPX2255 Suction Set PartsTitan EPX2255 Suction Set Assembly FAQ
What does the Titan EPX2255 Suction Set Assembly do?
The suction set provides the material-intake path between the coating supply and the pump, allowing the sprayer to draw coating material into the fluid system.
What is the part number for this EPX2255 suction set?
This page is organized for the Titan EPX2255 Suction Set Assembly identified as P/N 0551104. Verify the applicable machine and parts diagram before ordering individual replacement components.
What should I inspect if my EPX2255 will not prime?
Check the coating supply, intake strainer, suction line, fittings, connectors and seals for restrictions, loose connections or unwanted air entry before moving to internal pump diagnosis.
Can a clogged suction strainer affect EPX2255 performance?
A restricted strainer can reduce material flow into the suction system and may contribute to difficult priming or irregular material delivery.
Can an air leak in the suction system cause loss of prime?
Yes. A loose connection, damaged suction line or deteriorated sealing component can allow unwanted air into the intake path and interfere with reliable priming.
Are EPX2255 suction parts interchangeable with other EPX models?
Do not assume interchangeability. Even when an assembly number appears in more than one application, verify the exact component callout and replacement part number for the machine being serviced.
What should I verify before ordering EPX2255 suction set parts?
Confirm the EPX2255 model, P/N 0551104 where applicable, correct suction set diagram, numbered callout, component description, exact replacement part number and required quantity.
Need Help Finding an EPX2255 Suction Set Part?
Have your Titan EPX2255 model information, P/N 0551104 where applicable, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct suction, strainer, fitting, connector, seal or related intake component.
Parts & Fitment Help: 713-931-0006
