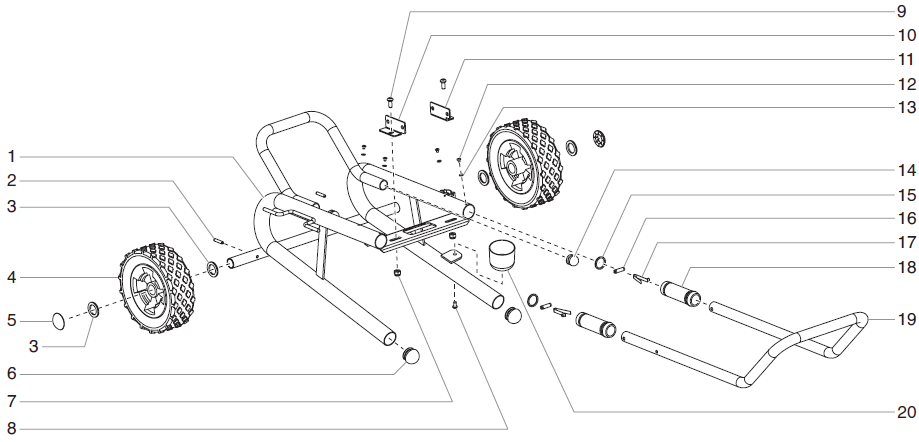

Titan EPX2255 Low Boy Cart Assembly Parts (P/N 0551547)
Shop Titan EPX2255 Low Boy Cart Assembly Parts (P/N 0551547) for maintenance, restoration and repair of the sprayer's low-profile cart system. Use the applicable EPX2255 exploded parts diagram to identify cart frame components, wheels, axle parts, brackets, retainers, supports, fasteners and related mounting hardware by exact callout, description and replacement part number.
Find EPX2255 Low Boy Cart 0551547 Replacement Parts
The Low Boy Cart Assembly provides the structural base and mobility for the applicable Titan EPX2255 low-profile configuration. The cart supports the sprayer while its wheel, axle, frame and mounting components allow the machine to be positioned and transported around the work area.
Bent frame sections, damaged wheels, worn axle components, loose brackets, missing retainers or damaged mounting hardware can affect stability and mobility. Inspect the complete cart structure and related attachment points before selecting individual replacement parts.
How to Find the Correct EPX2255 Low Boy Cart Part
Confirm EPX2255
Verify that the machine being serviced is the Titan EPX2255 and confirm that it uses the applicable Low Boy cart configuration.
Verify P/N 0551547
Confirm the applicable parts information identifies the Low Boy Cart Assembly as P/N 0551547 for the machine being serviced.
Match the Callout
Match the numbered callout on the exploded cart diagram with the corresponding component description and replacement part number.
Verify Part & Quantity
Confirm the exact replacement part number, description and required quantity before placing your order.
How the EPX2255 Low Boy Cart Supports the Sprayer
The Low Boy cart combines structural support with jobsite mobility in a low-profile configuration. Its frame supports applicable sprayer components, while the wheel and axle system allows the machine to be moved and repositioned. Brackets, supports and mounting hardware help keep the assembly securely connected.
Low Boy Frame
The frame provides the primary structural base for the applicable EPX2255 Low Boy configuration.
Wheels & Axle
Applicable wheels, axle components and retainers allow the cart to roll while keeping the wheel system correctly positioned.
Brackets & Supports
Applicable brackets and support components help position and secure sprayer components to the cart structure.
Fasteners & Hardware
Applicable bolts, screws, washers, nuts and retainers help keep the cart and mounted components securely assembled.
EPX2255 Low Boy Cart Components to Inspect
Inspect the Low Boy frame for bending, cracks, deformation, impact damage or damaged mounting points that can affect stability.
Check applicable wheels for excessive wear, damage, looseness, binding or conditions that prevent smooth cart movement.
Inspect the axle and related attachment components for bending, wear, damage or excessive movement.
Verify applicable wheel retainers and related hardware are present, correctly positioned and free from damage.
Inspect brackets, supports and attachment points for bending, looseness, cracks, wear or other structural damage.
Verify applicable screws, bolts, nuts, washers and other fasteners are present and correctly securing the cart assembly.
Diagnose EPX2255 Low Boy Cart Problems Before Ordering
A cart problem can involve more than one component. A damaged wheel can affect axle loading, while a bent frame can alter wheel alignment and mounting positions. Inspect the complete cart system before deciding which parts require replacement.
1. Inspect the Frame
Check the Low Boy frame for bending, cracks, impact damage, deformation and damaged mounting points.
2. Check the Wheels
Inspect each applicable wheel for damage, wear, looseness, binding or irregular movement.
3. Inspect Axle & Retainers
Check the axle, wheel attachment areas and applicable retainers for wear, bending, looseness or missing components.
4. Check Mounting Hardware
Inspect brackets, supports and mounting hardware for looseness, damage or missing fasteners.
Common EPX2255 Low Boy Cart Symptoms
Use these symptoms as inspection starting points. Compare the affected area with the applicable EPX2255 Low Boy Cart Assembly diagram before selecting replacement components.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Cart Does Not Roll Smoothly | Wheels, axle, retainers and wheel mounting areas. | Inspect for wheel damage, binding, axle deformation, worn components or incorrect wheel positioning. |
| Wheel Wobbles or Feels Loose | Wheel, axle, retainer and related mounting hardware. | Identify worn, damaged, loose or missing components before replacing the wheel alone. |
| Low Boy Cart Feels Unstable | Frame, wheels, axle system, supports, brackets and hardware. | Check the complete structure for deformation, looseness, damaged mounting points or uneven wheel support. |
| Bracket or Mounted Component Is Loose | Brackets, mounting points, fasteners and surrounding frame. | Inspect both the hardware and structural attachment points before replacing the fastener alone. |
| Cart Frame Is Bent or Damaged | Frame structure, axle alignment, brackets and mounting points. | Identify the affected structural component on the exploded diagram and inspect connected parts for secondary damage. |
Low Boy Cart or Another EPX2255 Repair Area?
EPX2255 Low Boy Cart 0551547
Start here for Low Boy frame components, wheels, axle parts, brackets, supports, retainers, fasteners and mounting hardware.
EPX2255 Upright Cart 0551113
Use the separate Upright Cart section when servicing the applicable upright EPX2255 cart configuration.
View EPX2255 Upright Cart PartsEPX2255 Stand Assembly
Use the Stand Assembly section when servicing the applicable stationary frame and support configuration.
View EPX2255 Stand Assembly PartsEPX2255 Main Assembly
Browse fittings, brackets, controls, connections, fasteners and general machine components.
View EPX2255 Main Assembly PartsVerify EPX2255 Low Boy Cart 0551547 Part Compatibility
Do not select a cart frame, wheel, axle, bracket, support, retainer or mounting component based only on appearance. Similar cart parts can differ in dimensions, mounting-hole locations, axle fit, wheel attachment and intended machine configuration.
Confirm the Titan EPX2255 model, P/N 0551547 where applicable, correct Low Boy Cart Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with the EPX2255 Upright Cart, Stand Assembly, EPX2155 or other EPX-series cart configurations unless the applicable parts information confirms compatibility.
Before Buying EPX2255 Low Boy Cart Parts
Verify the exact Titan sprayer model before selecting cart components.
Confirm the applicable Low Boy Cart Assembly identification before selecting replacement parts.
Check the frame, wheels, axle, retainers, brackets, supports and hardware so related damage is not overlooked.
Use the applicable EPX2255 Low Boy Cart diagram to identify the required replacement component.
Confirm the exact replacement part number, description and required quantity before ordering.
Find EPX2255 Low Boy Cart & Related Sprayer Parts
Use the EPX2255 Low Boy Cart Assembly P/N 0551547 diagram for cart, mobility and structural repairs. If diagnosis identifies the pump, suction system, motor, gear box or another machine assembly, use the corresponding EPX2255 parts section.
Secure the EPX2255 Before Low Boy Cart Service
Shut down the sprayer, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before servicing the cart. Support the machine securely before removing wheels, axle components, brackets, structural supports or mounting hardware. Never loosen pressurized fluid components. Follow the applicable Titan service instructions for disassembly, component replacement, reassembly and operational inspection.
Shop Titan EPX2255 Low Boy Cart Assembly Parts
Use the applicable EPX2255 Low Boy Cart Assembly P/N 0551547 exploded diagram to identify the cart frame component, wheel, axle part, bracket, support, retainer, fastener or mounting hardware you need. Match the diagram callout to the exact replacement part number and required quantity before ordering.
Shop EPX2255 Low Boy Cart PartsTitan EPX2255 Low Boy Cart Assembly FAQ
What is the Titan EPX2255 Low Boy Cart Assembly?
The Low Boy Cart Assembly provides structural support and mobility for the applicable EPX2255 low-profile cart configuration. It includes the cart-related components used to support and move the sprayer.
What part number identifies this EPX2255 Low Boy Cart Assembly?
This parts section is organized for the Titan EPX2255 Low Boy Cart Assembly identified as P/N 0551547. Verify the applicable parts diagram and machine configuration before ordering individual components.
How do I identify the correct EPX2255 Low Boy cart part?
Confirm the EPX2255 model and P/N 0551547 where applicable, then match the numbered callout on the correct Low Boy Cart Assembly diagram with the component description, replacement part number and quantity.
What should I inspect if an EPX2255 Low Boy wheel wobbles?
Inspect the wheel, axle, applicable retainer and related mounting components for wear, damage, looseness or missing hardware.
What should I check if the Low Boy cart does not roll smoothly?
Check the wheels, axle system, retainers and frame alignment for damage, binding, excessive wear or deformation.
Are EPX2255 Low Boy parts interchangeable with Upright Cart parts?
Do not assume interchangeability. Low Boy and Upright Cart configurations can use different frame components, mounting arrangements, wheel parts and hardware. Verify the exact replacement part number for the configuration being serviced.
What should I verify before ordering EPX2255 Low Boy Cart parts?
Confirm the EPX2255 model, P/N 0551547 where applicable, correct Low Boy Cart Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.
Need Help Finding an EPX2255 Low Boy Cart Part?
Have your Titan EPX2255 model information, P/N 0551547 where applicable, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct wheel, axle component, frame part, bracket, support, retainer or mounting hardware.
Parts & Fitment Help: 713-931-0006
