Titan EPX2255 Gear Box Assembly Parts
Shop Titan EPX2255 Gear Box Assembly Parts for maintenance, troubleshooting and repair of the sprayer's mechanical drive system. Use the applicable EPX2255 exploded parts diagram to identify gears, shafts, bearings, bushings, housings, retainers, fasteners and related drive components by exact callout, description and replacement part number.
Find Titan EPX2255 Gear Box Replacement Parts
The EPX2255 gear box is part of the mechanical drive path between the motor and the pumping system. Its components help transfer motor output into the mechanical movement required to operate the piston pump.
Wear, damage, excessive play, binding or looseness within the drive system can contribute to unusual noise, vibration, irregular pump movement or a condition where the motor operates but the pump does not cycle correctly. Inspect the complete mechanical drive path before selecting replacement parts.
How to Find the Correct EPX2255 Gear Box Part
Confirm EPX2255
Verify that the machine being serviced is the Titan EPX2255 and confirm the applicable sprayer configuration.
Open the Gear Box Diagram

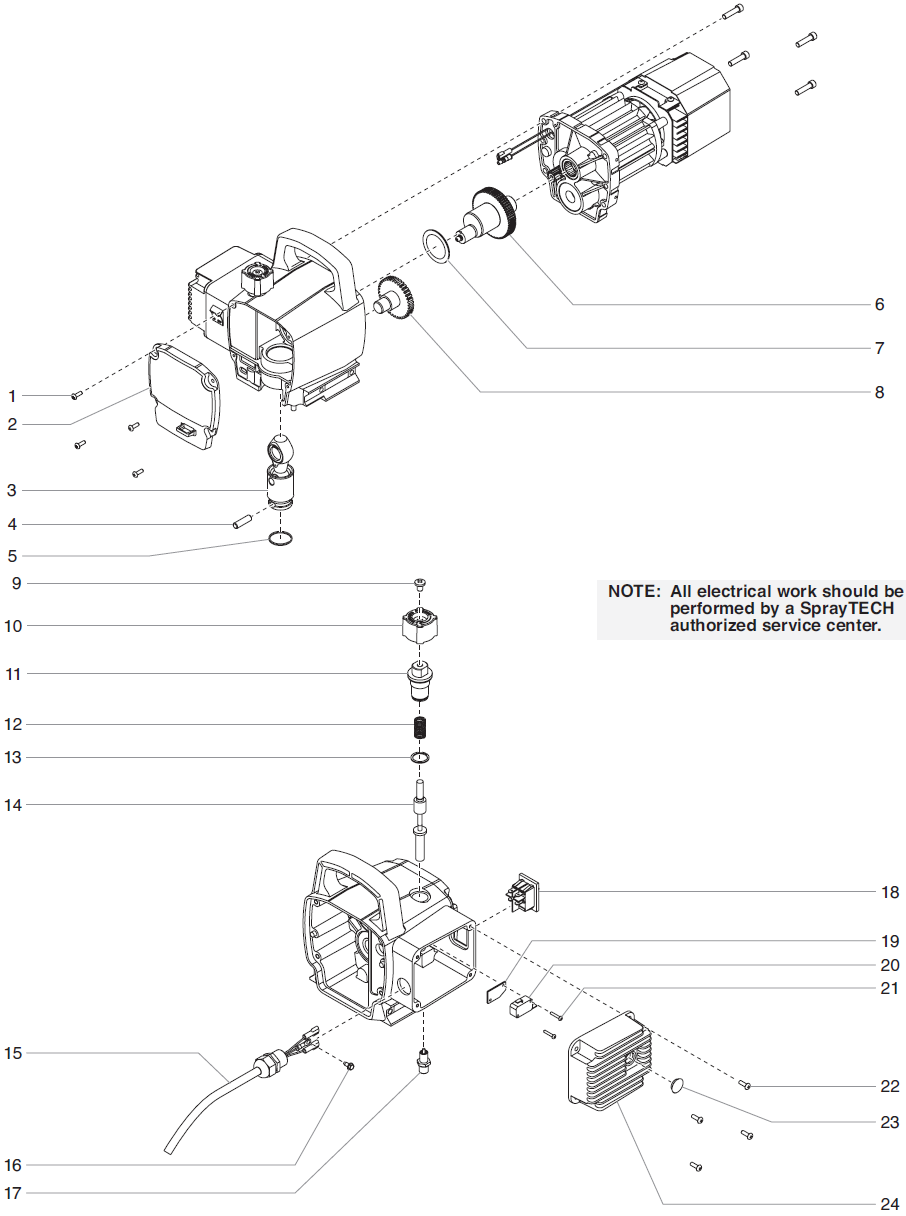

Use the applicable EPX2255 Gear Box Assembly exploded illustration to locate the drive component requiring service.
Match the Callout
Match the numbered diagram callout to the corresponding component description and replacement part number.
Verify Part & Quantity
Confirm the exact part number, component description and required quantity before ordering.
How the EPX2255 Gear Box Transfers Motor Power
During operation, the motor produces rotary motion. The mechanical drive system transfers and converts that motion so the piston pump can cycle. Gear box components must remain correctly supported, aligned and engaged for efficient transfer of motor output to the pump.
Motor Drive
Motor output enters the mechanical drive system and provides the energy required to operate the pumping mechanism.
Gears & Shafts
Applicable gears and shafts transmit mechanical motion through the gear box toward the pumping system.
Bearings & Bushings
Applicable bearings and bushings support moving components and help maintain their intended position during operation.
Housing & Hardware
Gear box housings, retainers and fasteners support and secure applicable mechanical drive components.
EPX2255 Gear Box Components to Inspect
Inspect applicable gears for damaged teeth, abnormal wear or other conditions that can interfere with smooth power transfer.
Check applicable shafts for visible wear, damage, excessive movement or conditions affecting proper alignment.
Inspect bearings for rough movement, excessive play, noise or deterioration that can affect rotating drive components.
Check applicable bushings for wear, looseness or damage that can affect component support and positioning.
Inspect housing areas and mounting points for cracks, deformation, impact damage or other conditions affecting component alignment.
Verify applicable retainers, screws, bolts, washers and related hardware are present and correctly securing the drive assembly.
Diagnose EPX2255 Drive Problems Before Ordering Parts
Abnormal mechanical operation can involve the motor, gear box, connected drive components or piston pump. Identify where normal motion stops or becomes irregular before selecting replacement gear box components.
1. Verify Motor Operation
Determine whether the motor is operating before moving deeper into mechanical drive diagnosis.
2. Inspect Drive Movement
Check for abnormal movement, looseness, binding or excessive play in accessible mechanical drive components.
3. Locate Noise or Vibration
Determine whether unusual noise or vibration originates from the motor, gear box, mounting points or pump system.
4. Check Pump Resistance
Consider the connected piston pump when excessive resistance, binding or irregular movement is present in the drive system.
Common EPX2255 Gear Box and Drive Symptoms
Use these symptoms as inspection starting points. Similar symptoms can originate from different mechanical systems, so verify the actual failed component before ordering.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| Motor Runs but Pump Does Not Cycle | Motor-to-drive connection, gears, shafts, related drive components and piston pump. | Trace mechanical motion from the motor through the gear box toward the pump to locate the interruption. |
| Unusual Gear or Mechanical Noise | Gears, bearings, bushings, shafts, mounting points and connected pump components. | Locate the source of the noise and inspect the associated components for wear, damage or looseness. |
| Excessive Vibration | Gear box mounting, bearings, shafts, fasteners and pump movement. | Inspect for loose hardware, worn supports, damaged drive components or abnormal pump resistance. |
| Irregular Pump Movement | Gears, shafts, bearings, bushings and connected piston pump components. | Determine whether irregular movement originates in the gear box or the pump before replacing parts. |
| Drive Feels Tight or Binding | Bearings, bushings, shafts, gears and piston pump movement. | Locate the source of resistance before operating the sprayer further or selecting replacement components. |
Gear Box or Another EPX2255 Repair Area?
EPX2255 Gear Box Assembly
Start here for gears, shafts, bearings, bushings, housings, retainers and related mechanical drive components.
EPX2255 Motor Assembly
Use the motor section when diagnosis identifies an electrical, motor, mounting or motor-output problem.
View EPX2255 Motor Assembly PartsEPX2255 Piston Pump
Use the piston pump section for packings, valves, piston components, seals and related pump repair parts.
View EPX2255 Piston Pump PartsEPX2255 Main Assembly
Browse general machine fittings, brackets, controls, connections, fasteners and related replacement components.
View EPX2255 Main Assembly PartsVerify EPX2255 Gear Box Part Compatibility
Do not select a gear, shaft, bearing, bushing, housing, retainer or related drive component based only on appearance. Similar mechanical components can differ in dimensions, tooth configuration, mounting arrangement, shaft fit and intended machine application.
Confirm the Titan EPX2255 model, applicable machine configuration, correct Gear Box Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering. Do not assume interchangeability with EPX2155, EPX2355, EPX2455, EPX2555 or another EPX-series sprayer unless the applicable parts information confirms compatibility.
Before Buying Titan EPX2255 Gear Box Parts
Verify the exact Titan sprayer model and applicable machine configuration.
Determine whether the problem involves noise, vibration, binding, excessive play or interrupted pump movement.
Check the motor connection, gear box and piston pump so related mechanical problems are not overlooked.
Use the applicable EPX2255 Gear Box diagram to identify the required component.
Confirm the replacement part number, description and required quantity before ordering.
Find EPX2255 Gear Box & Related Sprayer Parts
Use the EPX2255 Gear Box Assembly diagram for mechanical drive repairs. If diagnosis identifies the motor, piston pump, suction system or general machine assembly, move to the corresponding model-specific parts section before selecting replacement components.
Shut Down the EPX2255 Before Gear Box Service
Shut down the sprayer, disconnect or isolate the applicable electrical supply and follow the manufacturer's complete pressure-relief procedure before inspecting, removing or servicing gear box or drive components. Never service moving drive components while the sprayer is energized, and never loosen pressurized fluid components. Follow the applicable Titan service instructions for disassembly, inspection, replacement, reassembly and operational testing.
Shop Titan EPX2255 Gear Box Assembly Parts
Use the applicable EPX2255 Gear Box Assembly exploded diagram to identify the gear, shaft, bearing, bushing, housing, retainer, fastener or related drive component you need. Match the diagram callout to the exact replacement part number and required quantity before ordering.
Shop EPX2255 Gear Box PartsTitan EPX2255 Gear Box Assembly FAQ
What does the Titan EPX2255 Gear Box Assembly do?
The gear box is part of the mechanical drive system that transfers motor output toward the piston pump so the pumping mechanism can cycle.
How do I identify the correct EPX2255 gear box part?
Confirm the EPX2255 model and applicable configuration, then use the correct Gear Box Assembly diagram to match the numbered callout with its description, replacement part number and required quantity.
What should I inspect if the EPX2255 motor runs but the pump does not?
Inspect the mechanical path from the motor through the gear box toward the piston pump. Check applicable gears, shafts, supports and connected components for wear, damage or interrupted movement.
Can worn gear box parts cause unusual noise or vibration?
Worn, loose or damaged mechanical drive components can contribute to abnormal noise or vibration. Inspect the complete drive system to identify the actual source.
Should I inspect the piston pump during gear box diagnosis?
Yes. Excessive pump resistance or binding can affect the mechanical drive system, so the connected piston pump should be considered during diagnosis.
Are EPX2255 gear box parts interchangeable with other EPX models?
Do not assume interchangeability. Similar gears, shafts, bearings and other drive components can differ by model and configuration. Verify the exact replacement part number before ordering.
What should I verify before ordering EPX2255 Gear Box parts?
Confirm the EPX2255 model, applicable configuration, correct Gear Box Assembly diagram, numbered callout, component description, exact replacement part number and required quantity.
Need Help Finding an EPX2255 Gear Box Part?
Have your Titan EPX2255 model information, machine configuration, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct gear, shaft, bearing, bushing, housing, retainer or related mechanical drive component.
Parts & Fitment Help: 713-931-0006
