Shop Titan EPX2505 Piston Pump Parts and Repair Components
Keep your Titan EPX2505 airless paint sprayer operating reliably with genuine Titan EPX2505 Piston Pump Parts from AllTitanParts. Explore OEM replacement components for the main assembly, drive assembly, fluid section, filter system, suction set, PRIME/SPRAY valve and cart assemblies.
Whether you need a replacement piston rod, gearbox, filter, pressure control component or bypass valve, our model-specific parts categories help you locate the correct item using illustrated assembly diagrams and manufacturer part numbers.
EPX2505 Replacement Parts Directory
Buy Genuine Titan EPX2505 Airless Sprayer Parts
The Titan EPX2505 Piston Pump uses a motor-driven pumping system to move coating material through its fluid section and deliver it to the spray gun. The drive mechanism, pump packings, inlet and outlet valves, filtration components and pressure controls all contribute to proper sprayer operation.
As equipment ages, normal wear can affect pressure consistency, priming, material flow and overall performance. Replacing the correct worn component can help restore reliable operation without unnecessarily replacing unrelated assemblies.
AllTitanParts organizes the EPX2505 into separate parts categories so you can identify components using the appropriate factory diagram. This page is a replacement-parts directory, not a listing for one complete piston pump.
Shop by Assembly
Explore All 8 Titan EPX2505 Piston Pump Assemblies
01 | MAIN ASSEMBLY

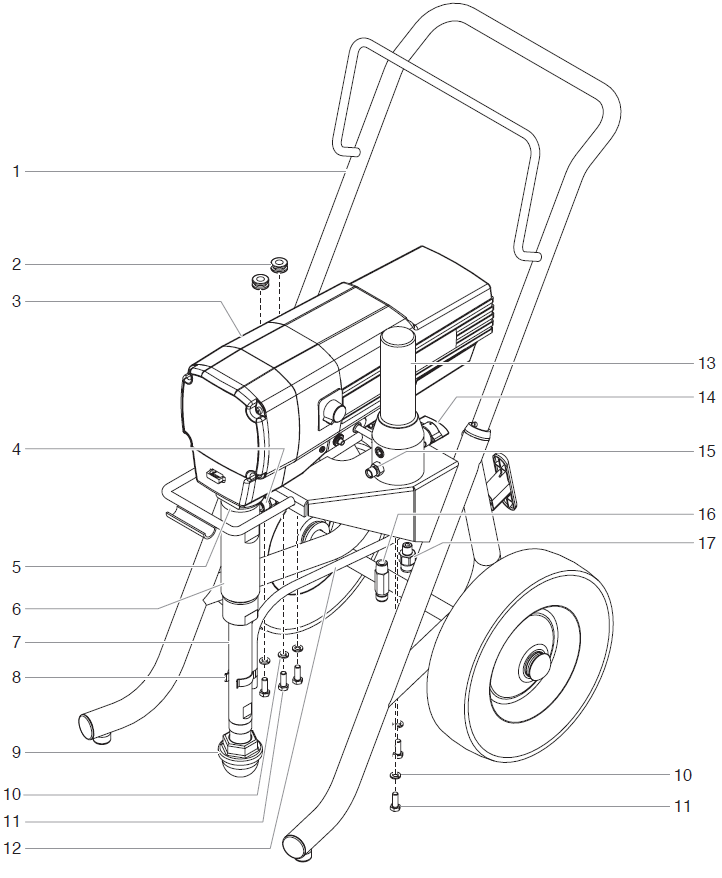

Titan EPX2505 Main Assembly Parts
Find fluid-routing components, fittings, down tubes, gaskets, bypass valve assemblies and hoses. These components help connect the pump and fluid-delivery system.
Featured: 0508343 Fitting, 0507798 Down Tube, 0507690 Bypass Valve Assembly.
02 | DRIVE ASSEMBLY

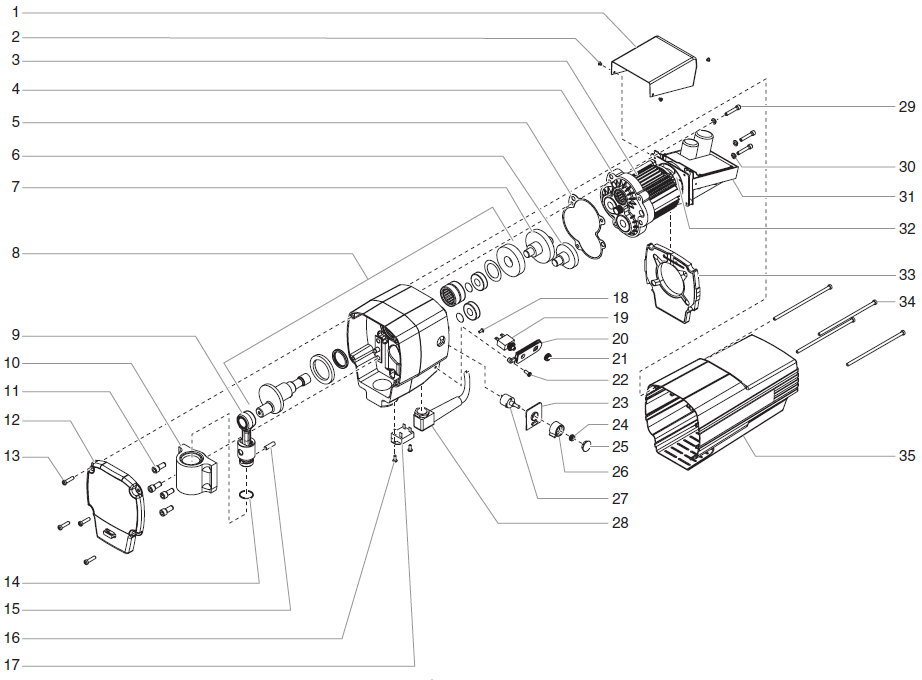

Titan EPX2505 Drive Assembly Parts
Shop gearbox, slider, pressure control and electrical service components. The drive system transfers motor power into the reciprocating motion required for pumping.
Featured: 0507220 Gearbox, 0507218 Slider, 0507769 Slider Housing.
03 | FLUID SECTION

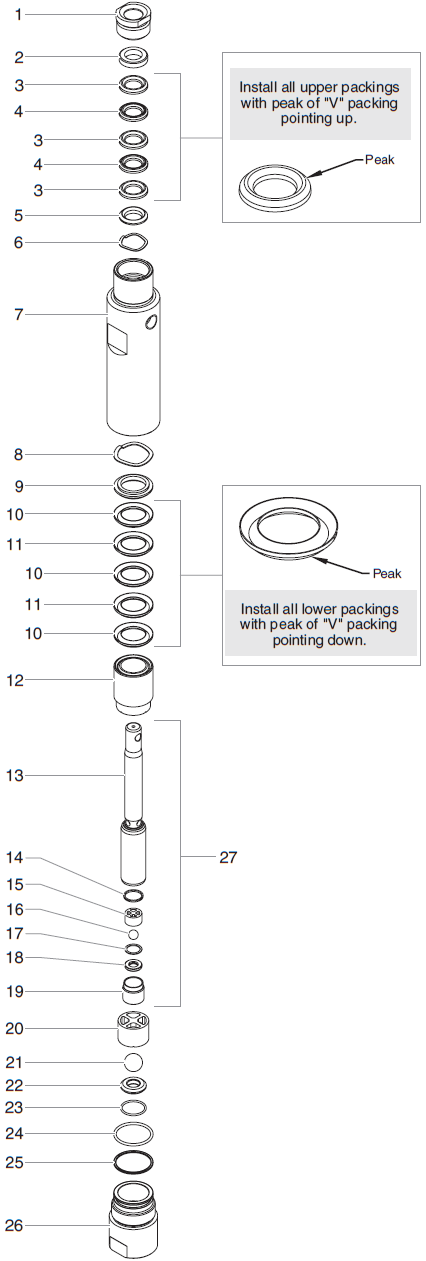

Titan EPX2505 Fluid Section Parts
Browse replacement piston rods, cylinder-related components, packings and valve parts. These components help create and maintain the pressure needed for spraying.
Assembly P/N: 0507163. Featured: 0507732 Piston Rod, 0507229 Piston Rod Assembly.
04 | UPRIGHT CART

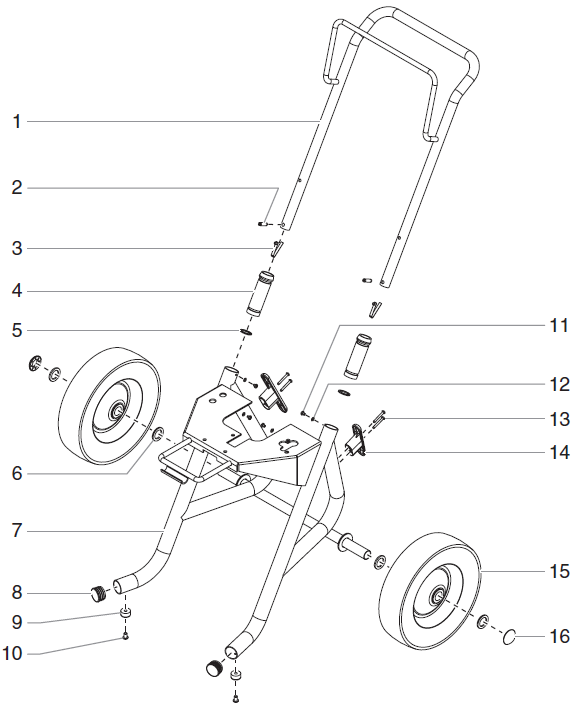

Titan EPX2505 Upright Cart Parts
Find the upright-cart category through the EPX2505 model directory. Inspect wheels, handle connections, mounting hardware and structural supports when servicing cart mobility and stability.
05 | FILTER ASSEMBLY

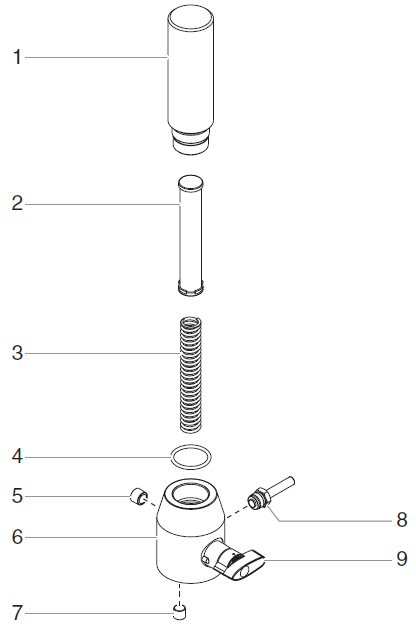

Titan EPX2505 Filter Assembly Parts
Explore filter housings, elements, supports, O-rings and related filtration components. A properly maintained filter helps reduce debris entering downstream spray equipment.
06 | LOW BOY SUCTION SET
Titan EPX2505 Suction Set Parts
Shop siphon tubes and return hoses for the low-boy configuration. These parts support material intake, priming and fluid return during appropriate operating modes.
Featured: 800-903 Return Hose and 0507965A Siphon Tube.
07 | LOW BOY CART

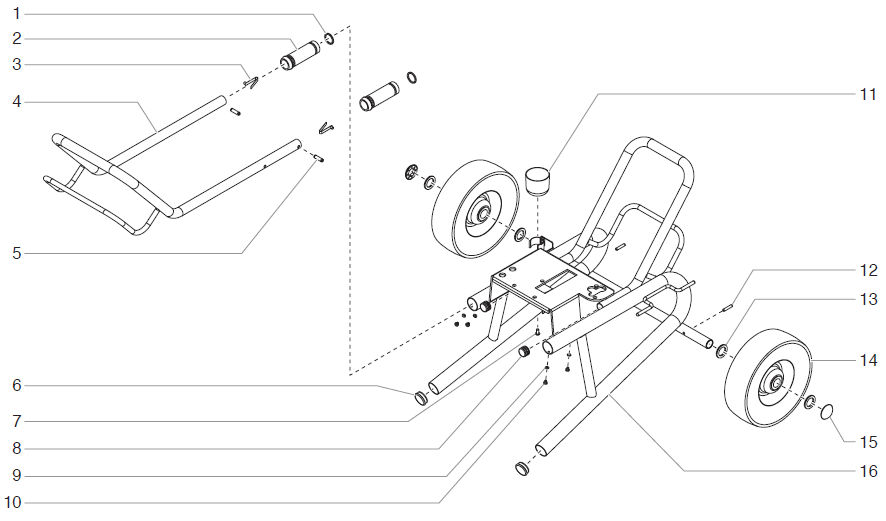

Titan EPX2505 Low Boy Cart Parts
Find the low-boy cart category through the model directory. Inspect cart wheels, retention components and frame hardware to maintain safe equipment positioning and transport.
08 | PRIME/SPRAY VALVE

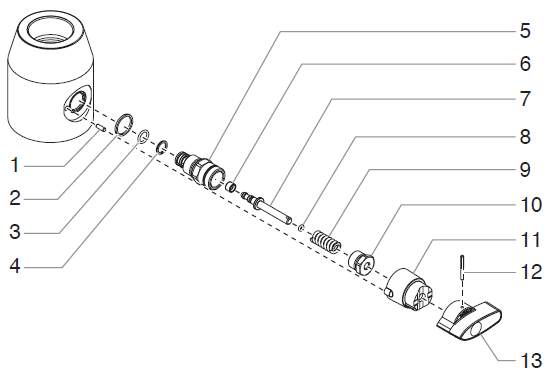

Titan EPX2505 PRIME/SPRAY Valve Parts
Browse the valve category for components used to control priming and spraying flow paths. Inspect the valve when the sprayer has trouble priming or building pressure.
Assembly P/N: 0507690.
