Titan EP2400 Piston Pump Parts
Shop Titan EP2400 Piston Pump Parts for maintenance, troubleshooting and repair of the EP2400 airless sprayer pumping system. Use the applicable exploded parts diagrams to identify piston components, packings, inlet and outlet valve parts, seals, O-rings, housings, fittings and related pump components by exact callout and replacement part number.
Find Titan EP2400 Piston Pump Replacement Parts
The EP2400 piston pump is responsible for drawing coating material into the sprayer and moving it through the fluid system under pressure. Internal piston, packing, valve and sealing components must work together correctly for dependable priming, pressure development and material delivery.
Pump wear can appear as poor priming, reduced output, unstable pressure, visible leakage or difficulty maintaining material flow. Before ordering parts, inspect the complete pump system and use the EP2400 exploded diagram to match the affected component with its exact replacement part number and required quantity.
How to Find the Correct EP2400 Piston Pump Part
Confirm EP2400
Verify that the sprayer being serviced is the Titan EP2400 before selecting piston pump replacement components.
Open the Pump Diagram

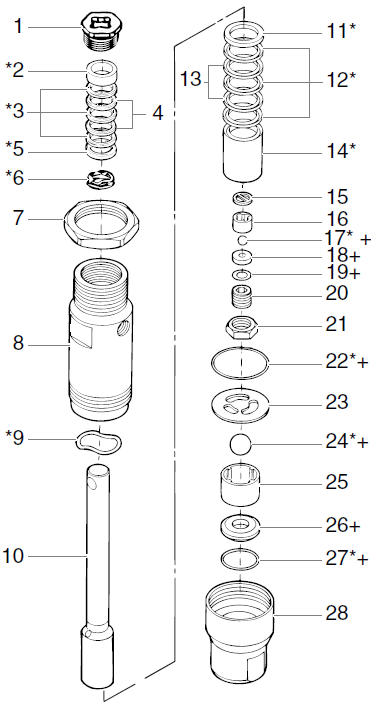

Use the applicable EP2400 piston pump or fluid-section exploded illustration to locate the component requiring service.
Match the Callout
Match the numbered diagram callout with the corresponding component entry in the EP2400 parts list.
Verify Part & Quantity
Confirm the exact replacement part number, description and required quantity before ordering.
How the Titan EP2400 Piston Pump Moves Material
The piston pump uses reciprocating mechanical movement and coordinated valve operation to draw coating into the fluid section, seal the pumping chamber and move material toward the outlet. Pump performance depends on the condition of the piston, packings, valve components, seals and related fluid passages.
Inlet Valve System
The inlet side allows coating material to enter the pump during the appropriate portion of the pumping cycle.
Piston Components
The piston and related components create the reciprocating movement required to transfer material through the pump.
Packings & Seals
Packings and sealing components help control internal and external leakage while maintaining the pumping action.
Outlet Valve System
The outlet side controls material leaving the pumping chamber and entering the downstream fluid system.
EP2400 Piston Pump Components to Inspect
Inspect applicable piston surfaces and related moving components for wear, scoring or damage that can affect pump performance.
Check upper and lower packing areas shown in the applicable diagram when leakage or loss of pumping efficiency is present.
Inspect the applicable inlet ball, seat and related components when the EP2400 has difficulty drawing material or priming.
Check applicable outlet valve components for contamination, wear or damage when pressure and material delivery are inconsistent.
Inspect diagram-listed seals and O-rings for cuts, flattening, deterioration or other evidence of sealing failure.
Inspect applicable pump housing areas, fluid connections, fittings and mating surfaces for wear, leakage or physical damage.
Diagnose EP2400 Pump Problems Before Replacing Parts
A pressure or material-flow problem does not always mean the piston pump itself has failed. Check the material supply, suction system, pump components and downstream fluid system in sequence to isolate the actual source of the symptom.
1. Verify Material Supply
Confirm adequate coating supply and inspect the intake path for restrictions or conditions that allow air to enter the system.
2. Check Inlet Operation
Inspect applicable inlet valve components when the pump does not prime or consistently draw coating.
3. Inspect Piston & Packings
Check the piston and packing areas for leakage, wear or damage when pump output or pressure is reduced.
4. Check Outlet & Fluid Path
Inspect the outlet valve and downstream fluid components when the pump cycles but delivery remains irregular.
Common Titan EP2400 Piston Pump Problems
Use these symptoms as inspection starting points. Verify the complete fluid system before ordering pump components because similar symptoms can have more than one cause.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| EP2400 Will Not Prime | Material supply, suction system, inlet valve and dump valve operation. | Trace the intake and priming path before replacing internal pump components. |
| Low or Unstable Pressure | Packings, inlet and outlet valves, piston components, dump valve and pressure-control system. | Determine whether pressure loss originates inside the pump or in another part of the fluid-control system. |
| Fluid Leakage at Pump | Packings, seals, O-rings, fittings and mating surfaces. | Relieve pressure, locate the exact leak source and inspect surrounding components for related wear. |
| Pump Cycles but Output Is Reduced | Inlet and outlet valve components, packings, piston, suction path and downstream restrictions. | Inspect the complete material path for worn valve components, internal bypass or flow restrictions. |
| Difficulty Maintaining Material Flow | Material supply, suction connections, pump valves, packings, filters and downstream fluid components. | Identify whether the problem is caused by air entry, restriction or internal pump wear before selecting parts. |
Start with the Correct EP2400 Repair Area
EP2400 Piston Pump
Start here for piston components, packings, pump valves, seals, O-rings, housings, fittings and related piston pump repair parts.
Inspect the Intake System
If the pump will not prime, inspect the material supply, suction components, connections and inlet valve before assuming the complete piston pump requires repair.
Inspect Pump & Pressure Systems
When pressure is low or unstable, inspect pump sealing and valve components along with the dump valve and pressure-control system.
Verify Titan EP2400 Piston Pump Part Compatibility
Do not select a piston, packing, valve component, seal, O-ring, fitting or other pump part based only on appearance. Similar components used on other Titan EP, EPSE and EPX sprayers can differ in dimensions, configuration or application.
Confirm the EP2400 model, correct piston pump or fluid-section diagram, numbered callout, component description, required quantity and exact replacement part number before ordering. Do not assume compatibility with EP2300 or another EP-series sprayer unless the applicable parts information confirms the same replacement part number.
Before Buying Titan EP2400 Piston Pump Parts
Verify the exact sprayer model before selecting pump replacement components.
Determine whether the problem involves priming, pressure, leakage, output or material flow.
Check mating valve components, packings, seals and adjacent parts together when internal pump wear is present.
Locate the required component in the applicable exploded diagram and match its numbered callout to the parts list.
Confirm the exact replacement part number, description and required quantity before ordering.
Find Titan EP2400 Piston Pump & Related Parts
Start with the EP2400 piston pump diagram for pump-related repairs. If diagnosis points to another sprayer system, use the appropriate EP2400 assembly diagram to locate the required component and verify its exact replacement part number.
Relieve Pressure Before EP2400 Piston Pump Service
Shut down the sprayer, disconnect or isolate the applicable power source and follow the manufacturer's complete pressure-relief procedure before servicing the piston pump. Never loosen a pump component, hose, valve, filter, fitting or other fluid-system part while the system is pressurized. Follow the applicable EP2400 service instructions during pump removal, disassembly, cleaning, inspection, component replacement, reassembly and operational testing.
Shop Titan EP2400 Piston Pump Parts
Use the applicable EP2400 exploded parts diagram to identify the piston, packing, inlet valve, outlet valve, seal, O-ring, fitting or related pump component you need, then verify the exact replacement part number and quantity before ordering.
Shop EP2400 Piston Pump PartsTitan EP2400 Piston Pump Parts FAQ
What does the Titan EP2400 piston pump do?
The piston pump draws coating into the sprayer and moves it through the fluid system. The piston, packings and valve components work together to produce the pumping action required for material delivery.
How do I find the correct EP2400 piston pump part?
Confirm the EP2400 model, open the applicable piston pump or fluid-section diagram, locate the component and match its numbered callout to the exact replacement part number and quantity.
What should I inspect if my Titan EP2400 will not prime?
Inspect the material supply, suction path, connections, inlet valve and applicable dump valve components. Confirm the cause before replacing piston pump parts.
What can cause low or unstable EP2400 pressure?
Worn packings, contaminated or worn pump valves, piston wear, suction problems and faults elsewhere in the fluid or pressure-control system can contribute to low or unstable pressure.
What should I inspect when the EP2400 piston pump leaks?
After completely relieving system pressure, inspect the applicable packings, seals, O-rings, fittings and mating surfaces to identify the exact source of leakage.
Are Titan EP2300 and EP2400 piston pump parts interchangeable?
Do not assume interchangeability based on appearance or model similarity. Compare the applicable diagrams and exact replacement part numbers before using a component from another EP-series sprayer.
What should I verify before ordering EP2400 piston pump parts?
Confirm the EP2400 model, correct exploded diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding a Titan EP2400 Pump Part?
Have your EP2400 model information, serial number when available, existing part number and exploded-diagram callout ready to help identify the correct piston, packing, valve component, seal, O-ring, fitting or related piston pump replacement part.
