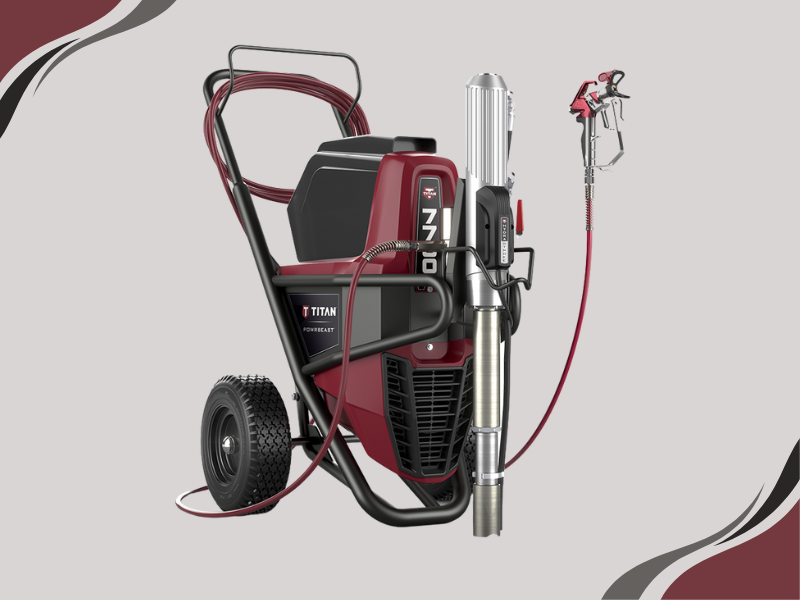

The PowrBeast 7700 is listed with an RX-Pro gun, a 517 TR1 tip and a 1/4" x 50' airless hose. Its accessories diagram adds a 3300 PSI hose (0291006), a 3300 PSI whip hose (316-506), gun extensions in 10", 20" and 30" lengths, a pole extension, and a high pressure fluid gauge (0508239). Every component you add must be rated for the system's 3300 psi.
What ships with the 7700
Titan lists the PowrBeast 7700 with an RX-Pro gun, a 517 TR1 reversible tip and a 1/4" x 50' airless hose. The gun is on the site as 0538020, RX-Pro airless spray gun with 517 TR1 tip. Everything below is what you add to that set: more or different hose, a longer reach, a gauge.
The accessories diagram is shared by the gas and 230V 7700, and it lists 13 parts. Open the 7700 accessories page to see the callouts.
Hose
Three hose parts are on the accessories page, and they do different jobs. Lengths below are exactly as they appear in the part names.
Hose on the 7700 accessories diagram
A whip hose is the short section that lets you move the gun without dragging the full-size hose. We make no claim here about the longest hose a 7700 can feed, because we have no manufacturer figure for it. If your job needs more than one length, call (713) 931-0006 before you buy.
Extensions
Four reach accessories are listed for the 7700. Three are gun extensions, sold packaged, and one is a pole extension with a swivel and guard.
Reach extensions on the 7700 accessories page
| Part | Description |
|---|---|
| 2418850 | Gun Extension 10" Packaged |
| 2418851 | Gun Extension 20" Packaged |
| 2418852 | Gun Extension 30" Packaged |
| 2437218 | Pole Extension 3' with Swivel and Guard |
Lengths are as shown in the part names.
An extension adds length between your hand and the tip, which helps on ceilings and high walls. It also adds one more fitting under pressure, so it falls under the rating rule below. Keep the tip guard fitted, and never point the gun at any part of the body.
Gauge and extras
- 0508239 High Pressure Fluid Gauge, for reading fluid pressure on the line.
- 0508071 Paint Mate, listed on the same page. Ask our parts team what it does for your setup before you add it.
- 314-482 Liquid Shield, 1 quart, and 314-480 Piston Lube, 8 oz, the consumables listed beside the hose.
- 05045 Fitting, 1/4" x 1/4", the small adapter on the page.
The pressure rating rule
The PowrBeast 7700 is listed with a maximum operating pressure of 3300 psi (22.8 MPa). Never run any component above the lowest working-pressure rating in the system. That means hose, whip hose, gun, extension, tip guard and every fitting. One lower-rated part makes the whole line only as strong as that part.
- Read the pressure rating on each hose or fitting before you connect it. The 0291006 and 316-506 names state 3300 PSI. For anything else, confirm the rating.
- Use airless-rated hose, with the conductive or grounded construction the manufacturer specifies.
- Replace damaged or kinked hose rather than taping or patching it.
- Follow the pressure relief procedure in your model's manual before you connect, disconnect or change any hose or extension.
Ordering
Open the accessories diagram
Go to the 7700 accessories page and find the item you want by its callout or name.
Check the rating
Compare the hose or extension to the 3300 psi rule above before it goes in your cart.
Check the rest of the unit
For switches, belts or the top shroud, use Main Assembly I. The full list of PowrBeast diagrams is on the PowrBeast parts page.
Call when unsure
Phone (713) 931-0006 with your model and serial number. Manuals are on our manuals page.
Accessories listed for the 7700:
−12%
−15%
The Short Version
The 7700 is listed with a gun, a 517 TR1 tip and a 1/4" x 50' hose. The accessories page adds a 3300 PSI hose, a whip hose, three gun extensions, a pole extension and a gauge. Whatever you add, it has to be rated for the system's 3300 psi.
Not sure which hose or extension fits your set?
Call (713) 931-0006 with your model and serial number and our parts team will confirm the part before you order.
