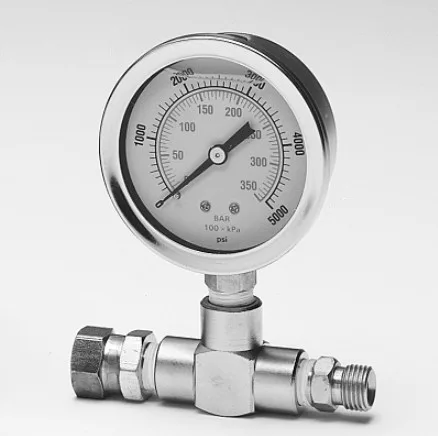

Titan 0508239 High Pressure Fluid Gauge
OEM Titan Pressure Gauge
Titan 0508239 High Pressure Fluid Gauge is a genuine OEM pressure gauge used to monitor and set sprayer output pressure, specified in Titan service manuals for calibrating the pressure control knob on compatible Impact and Elite airless sprayers.
Compatibility Overview
Replace if the gauge gives inaccurate readings, the needle is stuck or erratic, the lens is cracked or fogged, or if fluid leaks from the gauge body or connection.
Titan Pressure Gauge Replacement
Titan 0508239 High Pressure Fluid Gauge for Sprayer Calibration
Titan 0508239 is a genuine OEM high pressure fluid gauge engineered to monitor and set sprayer output pressure on compatible Titan airless sprayers. Official Titan service documentation explicitly specifies this gauge for pressure calibration procedures: it is connected to the sprayer outlet and used to verify that maximum pressure falls within the correct range (193–207 bar / 2800–3000 PSI) before securing the pressure control knob. The gauge is also listed in the Impact 400 parts list as "Fluid Gauge, High Pressure" and serves as a diagnostic tool for identifying pressure-related sprayer issues.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan OEM high pressure fluid gauge for compatible airless sprayers. Used to monitor output pressure and calibrate the pressure control knob during service procedures. |
| Function | Provides a real-time pressure reading at the sprayer outlet. Official Titan service manuals specify connecting this gauge to the outlet, running the sprayer at maximum pressure, and verifying the reading falls within 193–207 bar (2800–3000 PSI) when calibrating the pressure control knob. |
| Compatible Impact Models | Impact 340, 400, 540, 640, 740, 840, 1040, 1640. |
| Compatible Elite / Other Models | Elite 3000, 3500, 4500; RentSpray 600 Impact; MultiFinish 440; PowrBeast 4700, 7700, 9700. |
| OEM Part Number | 0508239 High Pressure Fluid Gauge (also listed as 508239). |
| Replacement Indicators | Inaccurate or erratic pressure readings; needle stuck at zero or a fixed value; fluid leaking from the gauge body or connection; cracked or fogged lens obscuring the dial; gauge no longer responds to pressure changes. |
| Related Parts Commonly Serviced Together | Pressure control knob, pressure transducer, high-pressure hose, and spray gun. |
| Common Problems Solved | Restores accurate pressure monitoring, enables proper calibration of the pressure control system, helps diagnose pump wear or tip clogs, and ensures consistent spray performance. |
| Why Genuine OEM | Exact pressure range, connection thread, and accuracy specifications ensure reliable calibration and monitoring. A low quality or incorrect gauge may give inaccurate readings, leading to improper pressure settings and poor spray results. |
To use the 0508239 for pressure calibration, connect it to the sprayer outlet, attach a high-pressure hose and gun, and run the sprayer at maximum pressure using water as the test medium. The gauge should read between 193 and 207 bar (2800–3000 PSI). If the reading falls outside this range, adjust the pressure control knob according to the service manual procedure. Always relieve system pressure before installing or removing the gauge.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
