Titan PowrTwin 5500 Syphon Hose Assembly Parts
Shop Titan PowrTwin 5500 Syphon Hose Assembly parts for servicing the material-intake side of your PowrTwin 5500 airless sprayer. Use the applicable exploded parts diagram to identify the correct Titan OEM syphon hose, intake components, fittings, clamps, connections and related replacement parts for your repair.
PowrTwin 5500 Syphon Hose & Intake Parts
The syphon hose assembly forms part of the PowrTwin 5500 material-supply path. It allows coating material to travel from the supply container toward the fluid pump for pressurization and delivery through the airless spray system. A secure, unrestricted intake path is important for dependable priming and material delivery.
When servicing this assembly, use the applicable PowrTwin 5500 parts diagram to identify the exact component required. Match the numbered illustration callout to the corresponding parts-list entry, then confirm the Titan OEM part number, description and quantity before ordering.
Find the Correct PowrTwin 5500 Syphon Hose Part
Confirm the Model
Verify that the sprayer being serviced is the applicable Titan PowrTwin 5500 model and configuration.
Locate the Diagram

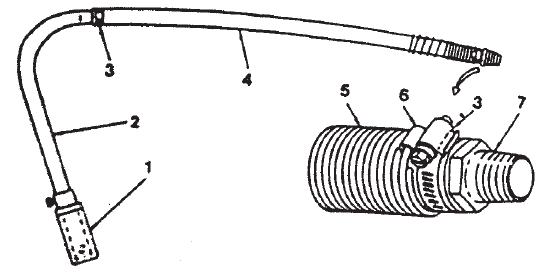

Open the applicable PowrTwin 5500 Syphon Hose Assembly exploded parts view.
Match the Callout
Match the numbered callout beside the required part with its corresponding parts-list entry.
Verify the Part Number
Confirm the exact Titan OEM part number and required quantity before purchasing.
What the PowrTwin 5500 Syphon Hose Assembly Does
The syphon hose assembly provides the intake path between the coating supply and the fluid pump. During operation, the pump draws material through this intake path before pressurizing it for delivery through the sprayer. Air leaks, restrictions, loose fittings or damaged intake components can interfere with reliable material pickup.
Syphon Hose
Provides the primary intake path for drawing coating material from the supply container toward the fluid pump.
Fittings & Couplings
Connect the intake hose securely to the associated fluid-system components and help maintain an effective suction path.
Intake Components
Applicable intake-side components help support material pickup and protect the fluid path from unwanted debris.
Consistent Material Supply
A properly sealed and unrestricted intake assembly supports reliable material pickup during priming and spraying.
Syphon Hose Assembly Components to Inspect
Inspect for cracking, splitting, abrasion, collapse, hardening or other damage that could compromise material pickup.
Check fittings and connections for looseness, damaged threads, contamination or conditions that could allow air into the intake path.
Verify that diagram-listed clamps and retaining components secure the hose correctly.
Where fitted, inspect the intake screen or strainer for accumulated debris, damage or flow restriction.
Inspect applicable seals and mating surfaces at intake connections when air leakage or poor priming is suspected.
Check the connection between the syphon assembly and fluid pump when material pickup is inconsistent.
Common PowrTwin 5500 Syphon Hose Symptoms
Poor material pickup does not automatically mean the syphon hose itself has failed. Inspect the complete intake path and related fluid-system components before ordering replacement parts.
| Symptom | What to Inspect | Parts Direction |
|---|---|---|
| Sprayer Will Not Prime | Inspect the syphon hose, intake connections, supply level, applicable screen or strainer, bleed circuit and fluid pump. | Identify the actual source of the priming problem before replacing components. |
| Intermittent Material Pickup | Check for loose intake connections, damaged hose, restrictions and conditions that could allow air into the suction path. | Replace the confirmed damaged or leaking component. |
| Restricted Material Flow | Inspect the hose and applicable intake screen for obstruction, dried coating, debris or physical restriction. | Match any required replacement component to the parts diagram. |
| Visible Hose Damage | Inspect for cracks, cuts, abrasion, collapse, hardening or deteriorated connection areas. | Verify the correct OEM replacement hose before ordering. |
| Air Entering the Fluid System | Inspect the intake hose, fittings, connections and applicable sealing points for a loss of suction integrity. | Repair the confirmed intake-side leak or damaged component. |
Syphon Hose, Fluid Pump or Bleed System?
Syphon Hose Assembly
Use this section for parts specifically identified within the PowrTwin 5500 Syphon Hose Assembly diagram.
Fluid Pump
Use the fluid-pump section when the required component belongs to the pump rather than the intake hose assembly.
View Fluid Pump Parts →Bleed Valve Assembly
Check the bleed-valve section when diagnosis points to the priming or return circuit rather than the material-intake assembly.
View Bleed Valve Parts →Verify PowrTwin 5500 Syphon Hose Compatibility
Do not assume that a syphon hose or intake component from another PowrTwin model is interchangeable with the PowrTwin 5500. Hose configuration, fittings, connection points, intake components and associated hardware can vary between models or production configurations.
Confirm the PowrTwin 5500 model, applicable Syphon Hose Assembly diagram, numbered callout, part description, quantity and exact Titan OEM part number before ordering.
Before Buying PowrTwin 5500 Syphon Hose Parts
Verify that your sprayer is the applicable Titan PowrTwin 5500.
Determine whether the hose, fitting, screen or another component requires service.
Locate the required component on the applicable exploded parts view.
Match the illustration number to its corresponding parts-list entry.
Confirm the exact Titan OEM part number and required quantity.
Shop Related Titan PowrTwin 5500 Parts
Move between the PowrTwin 5500 intake, fluid-pump, bleed, hydraulic and chassis sections to identify the correct assembly and replacement parts for your repair.
Service the PowrTwin 5500 Intake System Safely
Shut down the sprayer, isolate the applicable power source and follow the manufacturer's complete pressure-relief procedure before inspecting, disconnecting or replacing fluid-system components. Follow the applicable Titan operating and service instructions during inspection, cleaning, replacement and reassembly.
Shop Titan PowrTwin 5500 Syphon Hose Parts
Locate the required intake component in the PowrTwin 5500 parts diagram, verify the Titan OEM part number and order the correct syphon hose, fitting or related replacement part for your sprayer.
Shop PowrTwin 5500 Syphon Hose PartsTitan PowrTwin 5500 Syphon Hose Assembly FAQ
What does the PowrTwin 5500 syphon hose assembly do?
It provides the material-intake path between the coating supply and the fluid pump so material can be drawn into the sprayer for pressurization and spraying.
How do I identify the correct PowrTwin 5500 syphon hose part?
Use the applicable exploded parts diagram, locate the required component's callout and match it to the corresponding Titan OEM part number in the parts listing.
Can a damaged syphon hose cause priming problems?
A damaged hose or compromised intake connection can interfere with material pickup. The complete intake path, bleed circuit and fluid pump should be inspected when diagnosing priming problems.
What should I inspect if the sprayer is drawing air?
Inspect the syphon hose, intake fittings, connections and applicable sealing points for damage, looseness or conditions that could allow air into the suction path.
Should I inspect the intake screen when material flow is restricted?
Yes. Where an intake screen or strainer is used, inspect it along with the hose and intake path for dried coating, debris, damage or other restrictions.
Will a PowrTwin 4500 syphon hose fit a PowrTwin 5500?
Do not assume interchangeability between PowrTwin models. Verify the exact Titan OEM part number and documented model application before ordering.
What should I verify before ordering a replacement part?
Confirm the PowrTwin 5500 model, applicable Syphon Hose Assembly diagram, numbered callout, part description, required quantity and exact Titan OEM part number.
Need Help Finding a PowrTwin 5500 Syphon Hose Part?
Have your PowrTwin 5500 model information, serial number, existing part number and diagram callout available. These details can help identify the correct Titan OEM replacement component.
Parts & Fitment Help: 713-931-0006
