Titan PowrTwin 5500 Bleed Line Assembly With Valve Parts
Shop Titan PowrTwin 5500 Bleed Line Assembly With Valve replacement parts for servicing the bleed and return circuit on your PowrTwin 5500 airless sprayer. Use the applicable Titan exploded parts diagram to identify the correct bleed line, valve-related components, fittings, connections, hardware and associated OEM service parts.
Find the Correct PowrTwin 5500 Bleed Line Parts
The bleed line assembly and associated valve components form part of the PowrTwin 5500 fluid-handling system. During applicable operating, priming and pressure-control procedures, these components provide a controlled fluid path through the sprayer's bleed or return circuit.

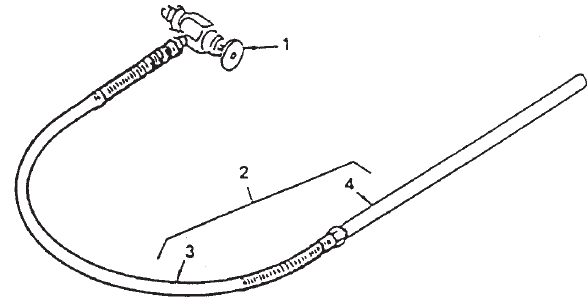

When servicing this assembly, use the applicable PowrTwin 5500 exploded diagram to identify the required component. Match the numbered callout with the corresponding parts-list entry, then confirm the exact Titan OEM part number, description and required quantity before ordering.
How to Find Your PowrTwin 5500 Bleed Line Part
Confirm the Model
Verify that the sprayer being serviced is the correct Titan PowrTwin 5500 model and configuration.
Open the Assembly Diagram
Locate the Bleed Line Assembly With Valve exploded view applicable to the machine being repaired.
Match the Callout
Match the numbered diagram callout to the corresponding component listed in the Titan parts information.
Verify the Part Number
Confirm the exact Titan OEM part number, description and quantity before purchasing the replacement component.
What the PowrTwin 5500 Bleed Line Assembly Does
The bleed line assembly works with the applicable valve and fluid-system components to provide a controlled path for material during the operating procedures specified for the PowrTwin 5500. Proper operation depends on correctly functioning valve components, secure fittings and an unobstructed, serviceable bleed line.
Bleed Line
Provides the specified fluid path between the associated bleed or valve components and the return side of the system.
Valve Components
Valve-related components control the applicable fluid path according to the sprayer's operating position and procedure.
Fittings & Hardware
Correct fittings and hardware maintain secure connections throughout the assembly.
Leak-Free Operation
Serviceable lines, fittings and sealing surfaces help maintain proper fluid containment throughout the circuit.
Bleed Line Assembly Components to Inspect
Inspect the line for cracking, abrasion, deterioration, blockage, deformation or fluid leakage.
Inspect the applicable valve and related parts if fluid flow cannot be controlled correctly.
Check fittings for damage, leakage, contamination or improper connection.
Inspect diagram-listed seals or sealing surfaces where leakage is present.
Verify that the line and valve components are correctly supported and secured with the specified hardware.
Inspect connected fluid-system components when the source of a flow or leakage problem is not isolated to the bleed assembly.
Common Bleed Line & Valve Inspection Areas
Bleed and return problems should be diagnosed before replacing parts. Inspect the assembly and connected fluid-system components according to the applicable Titan operating and service procedures.
| Condition | What to Inspect | Parts Direction |
|---|---|---|
| Fluid Leaking From the Bleed Line | Inspect the line, fittings, connections and applicable sealing surfaces to identify the actual leak source. | Match the damaged component to the applicable exploded diagram. |
| Restricted Bleed Flow | Inspect the line and related flow path for obstruction, contamination, damage or deformation. | Identify the affected component before ordering a replacement. |
| Valve Does Not Operate Correctly | Inspect the applicable valve components and connected fluid path according to the service procedure. | Use the diagram callout to identify the correct service part. |
| Leak at a Connection | Inspect the affected fitting, mating surface and applicable sealing component. | Verify the exact fitting or related component in the parts list. |
| Sprayer Has Priming Problems | Inspect the bleed circuit along with the suction system, fluid pump and other components involved in priming. | Diagnose the affected assembly before replacing parts. |
Bleed Line, Fluid Pump or Hydraulic System?
Bleed Line Assembly With Valve
Use this section for components specifically identified within the PowrTwin 5500 Bleed Line Assembly With Valve diagram.
Fluid Pump
Use the fluid-pump section when the required component belongs to the material-pumping assembly rather than the bleed circuit.
View Fluid Pump Parts →Hydraulic System
Use the hydraulic-system section when the required component belongs to the hydraulic drive circuit.
View Hydraulic System Parts →Verify PowrTwin 5500 Bleed Line Part Compatibility
Do not assume that bleed-line or valve components from another PowrTwin model are interchangeable with PowrTwin 5500 parts. Line configuration, fittings, valve components and related hardware can differ between models and production configurations.
Confirm the PowrTwin 5500 model, applicable Bleed Line Assembly With Valve diagram, numbered callout, part description, quantity and exact Titan OEM part number before ordering.
Before Buying PowrTwin 5500 Bleed Line Parts
Verify that your sprayer is the applicable Titan PowrTwin 5500.
Determine whether the line, valve, fitting or another component requires service.
Locate the required component in the applicable exploded view.
Match the illustration number to the corresponding parts-list entry.
Confirm the exact Titan OEM part number and required quantity.
Shop PowrTwin 5500 Fluid & Related Parts
Move between the PowrTwin 5500 bleed-line, fluid-pump, hydraulic and major-component sections to locate the correct assembly for your repair.
Service the Bleed Line Assembly Safely
Shut down the sprayer, isolate the applicable power source and perform the manufacturer's complete pressure-relief procedure before inspecting, loosening or removing any bleed-line, valve, fitting or fluid-system component.
Airless equipment can retain hazardous pressure after shutdown. Never disconnect a pressurized line or fitting. Follow the applicable Titan operating and service instructions during inspection, replacement and reassembly.
Shop PowrTwin 5500 Bleed Line Assembly Parts
Find the bleed-line or valve component required for your repair, match it to the PowrTwin 5500 exploded diagram and verify the exact Titan OEM part number before ordering.
Shop Bleed Line Assembly PartsPowrTwin 5500 Bleed Line Assembly FAQ
What does the PowrTwin 5500 bleed line assembly do?
The assembly provides part of the controlled fluid path used by the sprayer's bleed or return circuit during applicable operating procedures.
How do I find the correct PowrTwin 5500 bleed line part?
Use the applicable exploded diagram, locate the numbered callout beside the required component and match it with the corresponding Titan OEM part number in the parts list.
What should I inspect if the bleed line leaks?
After safely relieving system pressure, inspect the line, fittings, connections and applicable sealing surfaces to determine the actual source of the leak.
Can a damaged PowrTwin 5500 bleed line be reused?
A line that is leaking, cracked, badly abraded or otherwise damaged should not be returned to service. Identify the specified replacement from the applicable Titan parts information.
Can the bleed assembly affect priming?
Problems within the bleed or return circuit can be relevant when diagnosing priming behavior, but the suction system, fluid pump and other components should also be inspected according to Titan procedures.
Will PowrTwin 4500 bleed-line parts fit the PowrTwin 5500?
Do not assume interchangeability. Confirm the exact Titan OEM part number and documented application before using components from another PowrTwin model.
What should I verify before ordering a replacement part?
Confirm the PowrTwin 5500 model, applicable assembly diagram, diagram callout, part description, required quantity and exact Titan OEM part number.
Need Help Finding a PowrTwin 5500 Bleed Line Part?
Have your PowrTwin 5500 model information, serial number, diagram callout and existing part number ready. These details can help identify the correct Titan OEM replacement component.
Parts & Fitment Help: 713-931-0006
