Titan PowrTwin 12000GHD Hydraulic System

The PowrTwin 12000GHD Hydraulic System contains the critical hydraulic components responsible for transferring power throughout the sprayer and maintaining consistent operating pressure during demanding coating applications. This assembly includes hydraulic hoses, fittings, valves, filters, seals, connectors, and fluid management components that work together to ensure smooth and efficient system performance. Proper hydraulic operation is essential for maintaining steady material flow, reliable pressure control, and overall equipment productivity.

Designed for heavy-duty spraying environments, these OEM replacement parts help restore hydraulic efficiency while protecting key components from excessive wear and contamination. Components such as the pressure control knob, hydraulic filter, bypass valve, hydraulic pressure hose, hydraulic return hose, elbows, hydraulic motor, and tube connectors play an important role in maintaining clean fluid circulation and dependable power transfer. Regular inspection and replacement of worn hydraulic parts can help prevent leaks, pressure loss, and costly downtime.

Hydraulic system maintenance should also include monitoring fluid condition and checking the hydraulic filter at recommended service intervals. Clean hydraulic fluid and properly functioning filtration components help protect pumps, motors, and valves from premature wear while extending the service life of the sprayer.

FAQs

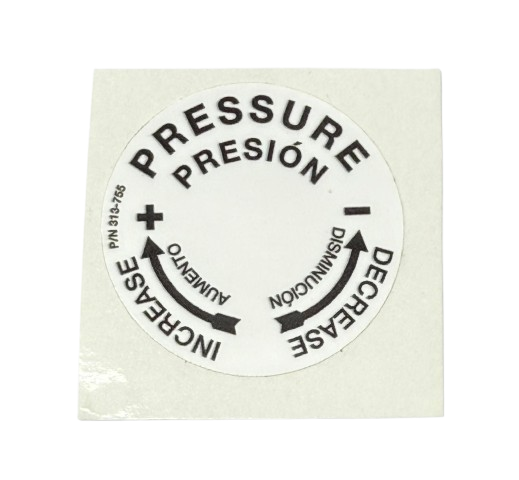

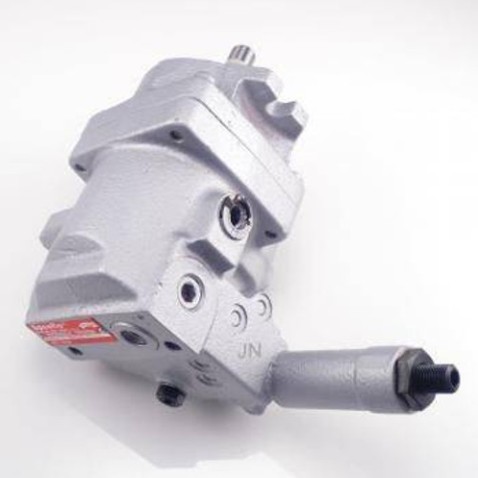

The hydraulic system transfers power to the sprayer's pumping components, allowing the unit to generate and maintain the pressure required for airless spraying applications. The hydraulic motor converts fluid energy into mechanical motion while the pressure control knob allows operators to adjust and regulate system output pressure.

Common symptoms include hydraulic fluid leaks around tank gaskets or O-rings, pressure fluctuations, reduced spraying performance, unusual operating noises, overheating, or slow equipment response. Checking the hydraulic fluid dipstick for proper fluid level and condition is a good first step when diagnosing any of these issues.

The hydraulic filter removes contaminants from the hydraulic fluid, helping protect the hydraulic motor, bypass valve, and other precision components from wear and damage while maintaining system efficiency.

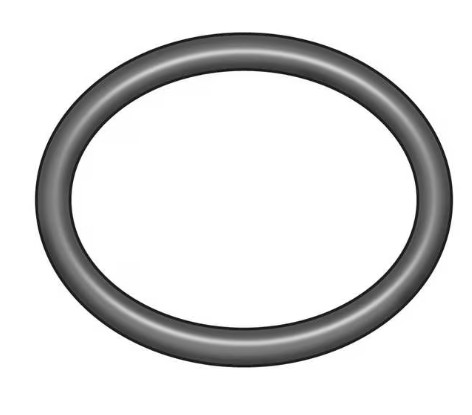

Hydraulic fluid should be checked regularly for proper level and cleanliness using the hydraulic fluid dipstick. Contaminated or degraded fluid can reduce performance and accelerate wear on hydraulic components. The tank plug with O-ring and tank gasket should also be checked for leaks during each fluid inspection.

Yes. A worn or leaking hydraulic pressure hose or return hose can reduce system pressure, create fluid loss, and negatively impact overall sprayer operation and productivity. Inspecting the hose clamps and tube connectors for tightness and wear helps prevent hose-related pressure issues.

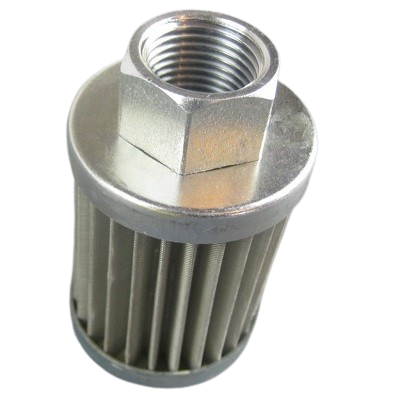

Frequently serviced items include the hydraulic filter, pressure hose, bypass valve, elbow fittings, seal washers, O-rings, tube assemblies, and the 100-mesh inlet screen. The ball valve and pulley should also be inspected and replaced as needed during comprehensive hydraulic system service.

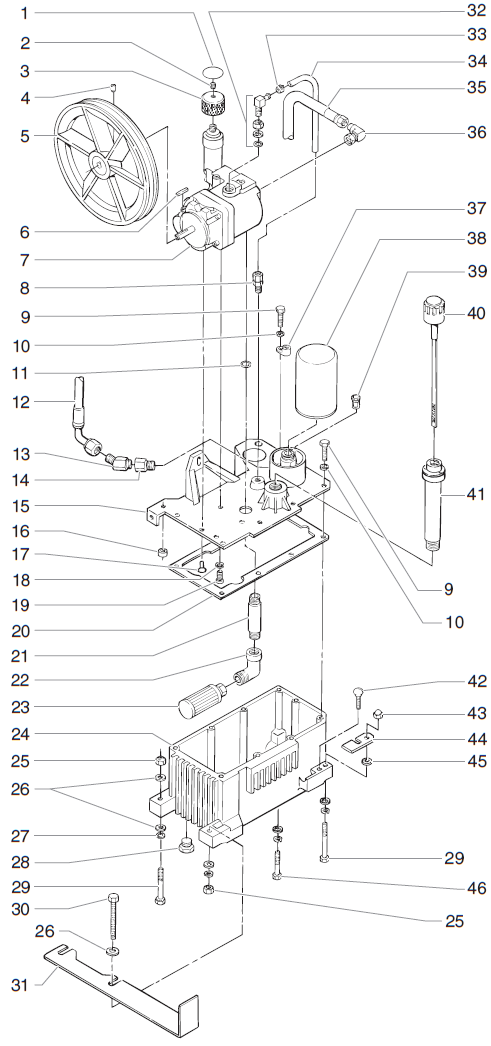

PowrTwin 12000GHD Hydraulic System

PowrTwin 12000GHD Hydraulic System Parts

FAQs

1. What does the hydraulic system do on the PowrTwin 12000GHD?

2. What are common signs of hydraulic system problems?

3. Why is the hydraulic filter important?

4. How often should hydraulic fluid be inspected?

5. Can a damaged hydraulic hose affect sprayer performance?

6. Which hydraulic components are commonly replaced during maintenance?
