The PowrTwin 12000GHD Main Assembly is the central backbone of the sprayer that routes pressurized coating material from the pump through the filtration and valve system and out to the spray hose. It includes essential components such as the filter assembly/manifold, bleed valve assembly, hex nipple adapter, fluid adapter, 90-degree elbow, hose tie clamps, mounting screws, and the cart assembly, all of which work together to support stable fluid flow, pressure control, and a durable mounting platform under demanding spraying conditions.

This main assembly is built for heavy-duty industrial spraying, where reliable fluid routing and continuous high-pressure operation are required. Key components like the filter/manifold, bleed valve, and threaded adapters help maintain clean material flow, relieve system pressure during priming, and seal connections against leaks. When these parts wear out or clog, symptoms such as restricted flow, pressure drop, leaking fittings, or difficulty priming the pump typically appear, indicating the need for inspection or replacement.

Regular maintenance of the main assembly parts is essential to keep the sprayer operating efficiently on the job. Replacing worn fittings, a clogged filter element, or a faulty bleed valve restores proper flow and pressure, helping reduce downtime and extend the life of the overall system in demanding job site conditions.

FAQs

It routes pressurized coating material from the pump through the filter assembly/manifold and bleed valve assembly to the spray hose, while the cart assembly provides a stable, mobile mounting platform for the entire system.

Key parts include the filter assembly/manifold, bleed valve assembly, hex nipple adapter, fluid adapter, 90-degree elbow, hose tie clamps, and the cart assembly. These components collectively manage fluid routing, pressure control, and structural support.

Common issues include restricted or reduced flow through the filter assembly, pressure loss, leaks around the hex nipple adapter or 90-degree elbow, or difficulty bleeding and priming through the bleed valve assembly.

Yes, most repairs involve replacing individual components such as the filter element, bleed valve, fittings, hose tie clamps, or mounting screws rather than the entire assembly.

It depends on usage, but heavy-duty spraying typically requires periodic inspection of the filter assembly/manifold, bleed valve, and all adapter fittings after extended operating hours to catch wear before it causes downtime or performance issues.

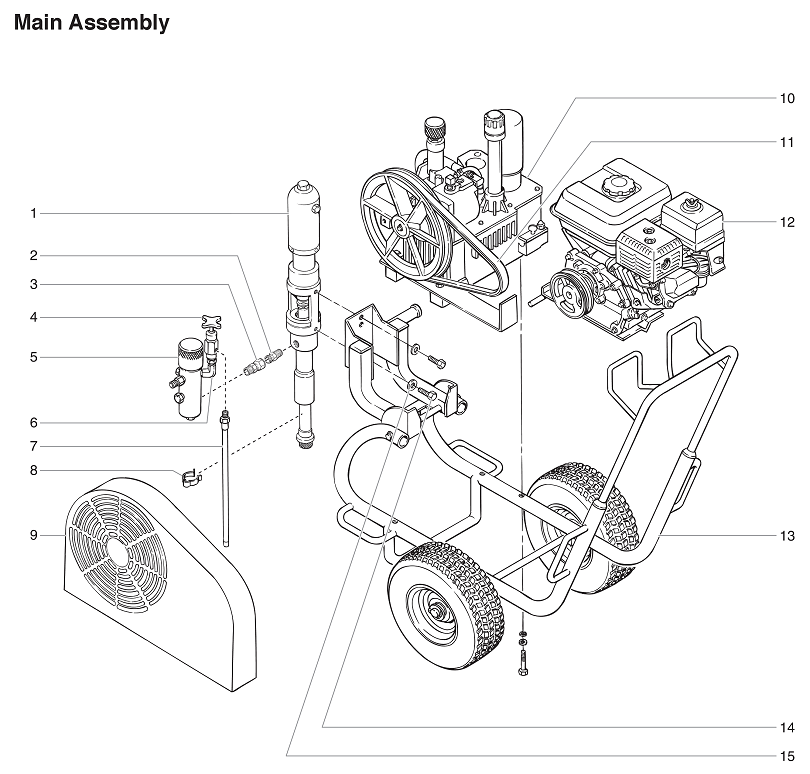

PowrTwin 12000GHD Main Assembly

Shop OEM PowrTwin 12000GHD Main Assembly Parts

FAQs

1. What does the PowrTwin 12000GHD main assembly do?

2. Which parts are most important in the main assembly?

3. What are signs of main assembly wear?

4. Can the main assembly be repaired?

5. How often should main assembly parts be serviced?
