The PowrTwin 12000GHD Cart Assembly is the structural frame system that supports and enables mobility for the entire sprayer unit. It includes the main welded frame, wheels, axle components, handle assembly, swing cart mechanism, spacers, pins, washers, and mounting hardware that hold all major systems such as the hydraulic pump, motor, and fluid section securely in place during operation and transport.

This assembly is designed for heavy-duty industrial use, providing stability on rough job sites while allowing easy movement between work areas. Key components like the grip handle, cart handle, spring, axle swing arm, locking pins, and wheels ensure smooth maneuverability and safe positioning of the sprayer during both operation and transport. Worn or damaged cart parts can lead to instability, vibration, or difficulty moving the unit, so regular inspection is important.

The swing cart mechanism also allows the motor/pump assembly to shift between working and transport positions, improving usability in tight job environments and simplifying loading and unloading. Maintaining the integrity of locking pins, hinges, and frame joints helps ensure safe operation and extends the lifespan of the equipment.

FAQs

It provides structural support and mobility, allowing the sprayer to be moved and positioned safely during use and transport.

It typically includes the frame, wheels, axle, handle, swing arm, locking pins, spacers, washers, and mounting hardware.

It allows the motor/pump unit to switch between working and transport positions for easier handling and bucket loading.

Loose wheels, bent frame parts, difficulty moving the unit, or worn locking pins are common indicators.

They secure the sprayer in position and prevent unintended movement during operation or transport.

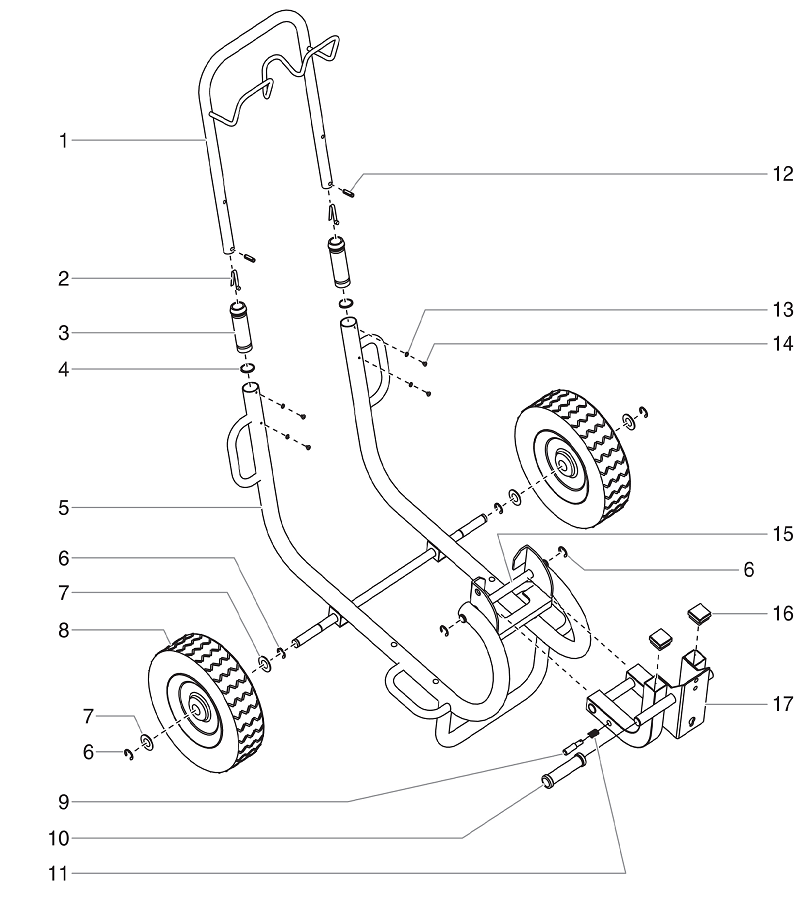

PowrTwin 12000GHD Cart Assembly

PowrTwin 12000GHD Cart Assembly Parts

FAQs

1. What is the purpose of the cart assembly?

2. What components are included in the cart assembly?

3. What is the swing cart mechanism used for?

4. What are signs of cart assembly wear?

5. Why are locking pins important?
