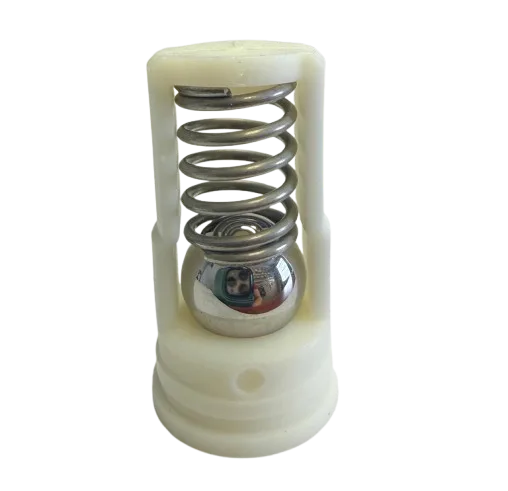

Titan 449-609A Hydraulic By-Pass
OEM Titan Hydraulic Component
Titan 449-609A Hydraulic By-Pass is an OEM packaged hydraulic bypass assembly that regulates pressure and protects the hydraulic system from overpressure on compatible PowrTwin and PowrLiner sprayers.
Compatibility Table
Replacing a worn or malfunctioning bypass assembly restores proper hydraulic pressure regulation and protects the system from overpressure damage.
Titan Hydraulic System Replacement Component
Titan 449-609A Hydraulic By-Pass for PowrTwin and PowrLiner Sprayers
Titan 449-609A is an OEM hydraulic bypass assembly (packaged) that plays a critical role in regulating pressure and protecting the hydraulic system from overpressure conditions on compatible Titan sprayers. This component is listed in official Titan service manuals and parts diagrams as a hydraulic by-pass, confirming its function within the hydraulic circuit. Verified compatibility data confirms this assembly is used across an extensive range of models, including the PowrTwin 3500 through 12000 series and the PowrLiner 4000 through 8955 lineup. In hydraulic airless sprayers, the bypass assembly acts as a safety and regulation device, diverting fluid when pressure exceeds safe operating limits. This prevents damage to the hydraulic pump, motor, and other expensive components. Over time, bypass assemblies can wear, become clogged with debris, or fail to regulate pressure properly, leading to symptoms such as erratic spray pressure, loss of pressure control, or hydraulic system overheating. The 449-609A is manufactured to original specifications for proper fit and function. Always verify fitment against your specific model's parts diagram before ordering, as hydraulic configurations can vary between model years and revisions.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan hydraulic bypass assembly for regulating pressure and protecting the hydraulic system from overpressure on compatible sprayer models. |
| Function | Regulates hydraulic pressure; diverts fluid when pressure exceeds safe limits; protects hydraulic pump, motor, and internal components from damage. |
| Compatible Titan Machines | PowrTwin 12000, 12000GH, 12000GHD, 3500 50th Anniversary, 4500, 4900GH, 5500, 6900 Plus DI, 6900GH, 6900XLT, 8900GH; PowrLiner 4000, 4900, 4955, 5000, 6000, 6955, 8900, 8900XLTSP, 8955; PowrTex 6900SF-12000SV. |
| OEM Part Number | 449-609A Hydraulic By-Pass (alternate: 0449-609A). |
| Common Problems Solved | Erratic spray pressure, loss of pressure control, hydraulic system overheating, bypass failure causing overpressure, and clogged or worn bypass components. |
| Target Users / Markets | Painting contractors, rental fleets, maintenance crews, and repair shops running compatible Titan PowrTwin, PowrLiner, or PowrTex sprayers. |
| Commercial Benefits | Restores proper hydraulic pressure regulation, protects expensive hydraulic components from damage, and ensures reliable sprayer operation. |
When servicing the 449-609A Hydraulic By-Pass, relieve all hydraulic system pressure before disconnecting any components. Inspect the bypass assembly for debris, wear, or damage. Check related hydraulic components for contamination that may have caused the bypass to fail. Always verify fitment against your specific model's parts diagram before ordering.
