PowrTwin 12000GH

 High-Performance PowrTwin 12000GH Sprayer Parts

The PowrTwin 12000GH is a heavy-duty, high-output hydraulic airless sprayer engineered for professional contractors, industrial projects, and large-scale commercial jobs. Designed to handle demanding coatings from low-viscosity primers to heavy-bodied elastomerics, epoxies, drywall compounds, and roof coatings, the PowrTwin 12000GH brings power, versatility, and reliability to every jobsite.

Thanks to its hydraulic piston pump, convertible power options (gas or electric), and rugged, mobile cart design, this unit is built to deliver maximum material throughput, accommodate multiple spray guns, and keep operations running smoothly even under the toughest conditions. The system is also supported by a full lineup of replaceable assemblies from fluid sections and filter assemblies to hydraulic systems and gas convertokit components, making maintenance, repairs, or part replacement straightforward and cost-effective via AllTitanParts.

Key Features

• Heavy-duty Severe Service 500™ fluid pump — The heart of the PowrTwin 12000GH is a double-ball piston pump with thick, hard–chrome–plated rods and cylinders, delivering outstanding abrasion resistance, reduced friction, extended packing life, and long-term durability even with abrasive coatings.

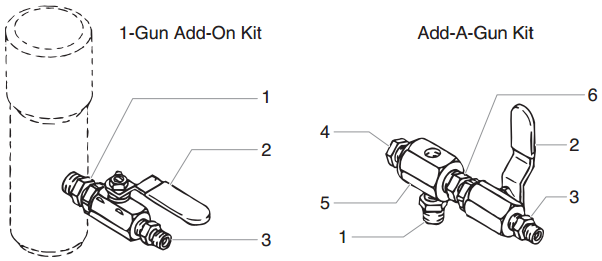

• High flow and multi-gun capability — With a maximum material delivery rate of 3.15 gallons per minute (≈ 11.9 L/min), the PowrTwin 12000GH can power up to 6 spray guns simultaneously, enabling large crews to work concurrently and maximize coverage.
• Adjustable high-pressure range — The unit supports operating pressures up to 3600 PSI (≈ 248 bar), ensuring consistent performance across a wide range of coatings —from thin primers to thick elastomerics and mastics.

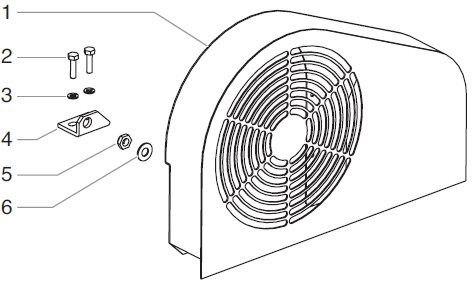

• Gas / Electric Convertokit flexibility — PowrTwin 12000GH offers convertible operation: run on a reliable gas engine (e.g., Honda®) for remote or outdoor jobs, or switch to a DC/electric motor when electricity is available. Conversion is tool-free and made safe by a protective belt guard.

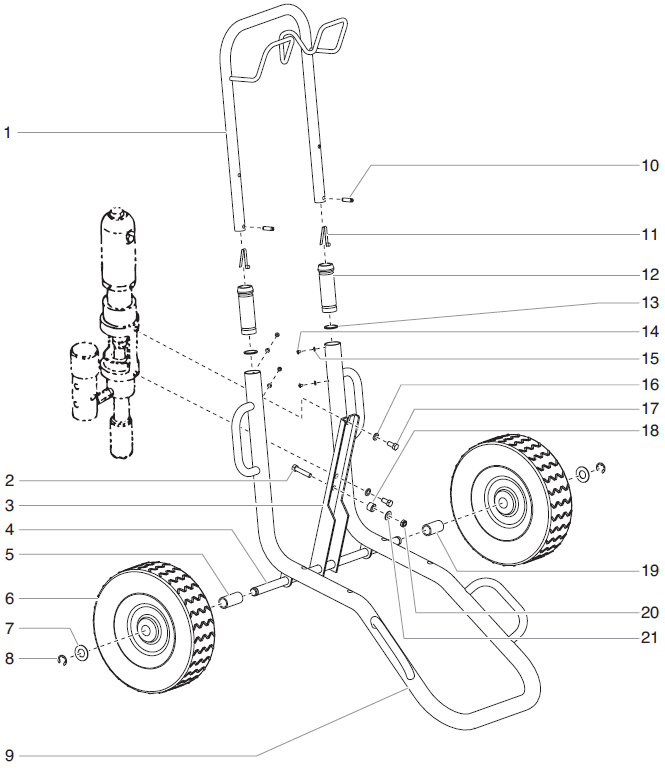

• Jobsite-ready portability and durability — Constructed with a sturdy wrap-around frame, robust cart with wheels, telescoping handle, lift handles, and pail-hook for convenience. The design supports easy transport, stability on uneven terrain, and rugged use in harsh environments.
• Efficient siphon system & filter assembly — Comes standard with a large-capacity inline paint filter and submersed foot valve/siphon hose setup, enabling efficient suction and handling of high-viscosity coatings, including elastomerics, mastics, block fillers, and roof coatings.
• Ease of maintenance — Features like a quick-remove filter (removable in three turns), vented hydraulic oil fill with dipstick for clean servicing, and accessible bleed hose and valve assembly make routine maintenance, cleaning, or parts replacement easier.



Applications

PowrTwin 12000GH is ideally suited for:

• Large-scale commercial or industrial painting projects (e.g., warehouses, factories, large buildings)
• Projects requiring heavy coatings: epoxies, elastomeric sealants, mastics, waterproof coatings, block fillers, roof coatings, drywall compounds, and other high-viscosity materials
• Multi-gun spray operations: ideal for crews working simultaneously on different surfaces or sections
• Jobs requiring both indoor and outdoor work: thanks to convertible gas/electric power
• Heavy-duty maintenance, corrosion control, and protective coating applications in industrial or infrastructure settings (bridges, foundations, containment areas)

FAQ’s

1: What should I inspect or replace if the PowrTwin 12000GH output pressure drops or the spray becomes weak?

If pressure drops or spray output weakens, the issue often lies in the fluid section, worn packings, piston rod/cylinder wear, or a failing fluid pump. Because PowrTwin 12000GH uses the Severe Service 500 fluid pump, worn or damaged pump components (rod, cylinder, packings) should be replaced. Regular inspection and timely replacement of these fluid-wetted parts restores consistent pressure and performance.

2: How do I know when to service or replace the filter assembly on my PowrTwin 12000GH?

If you notice inconsistent spray patterns, sputtering, or clogs, especially when using heavier coatings, the inline filter (or mesh filter element) is likely dirty or clogged. Replacing the filter element (or entire Filter Assembly) ensures clean material flow. Because the filter is quick-remove (typically removable in three turns), maintenance is straightforward and minimizes downtime.

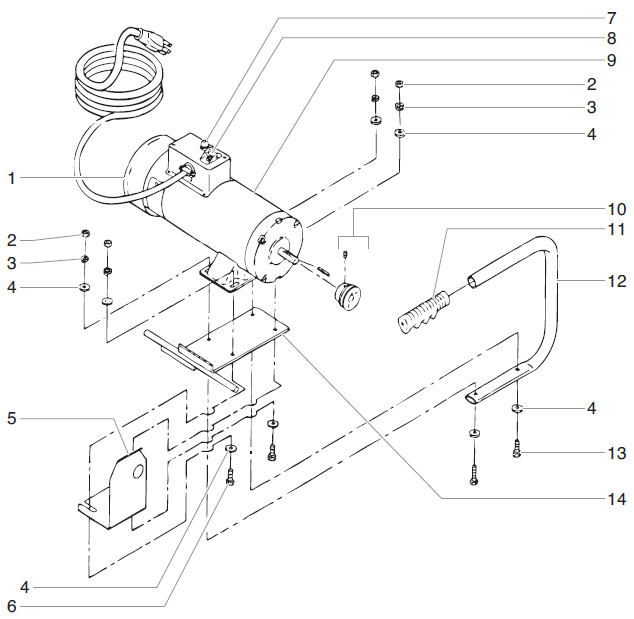

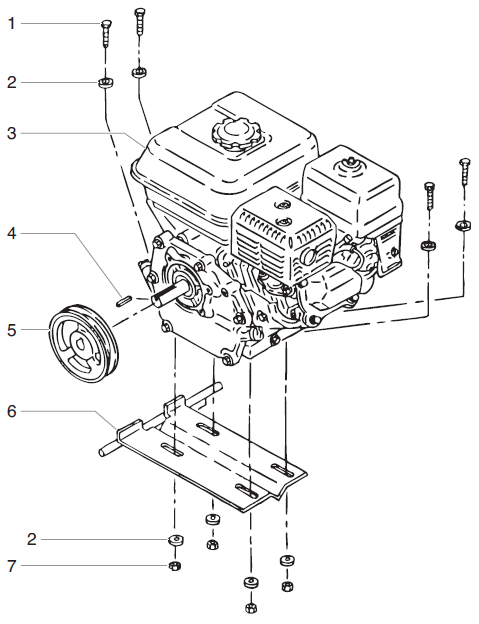

3: Can I switch between the gas engine and electric motor on PowrTwin 12000GH, and what parts are involved?

 Yes. The PowrTwin 12000GH supports a convertible power configuration via its Gas Convertokit and DC-Electric Convertokit assemblies. If you need to swap power sources, ensure that the correct convertokit components (motor, drive coupling, belt guard, etc.) are in place. AllTitanParts offers these sub-category parts individually, so you can replace or maintain the convertokit assembly without replacing the entire unit.

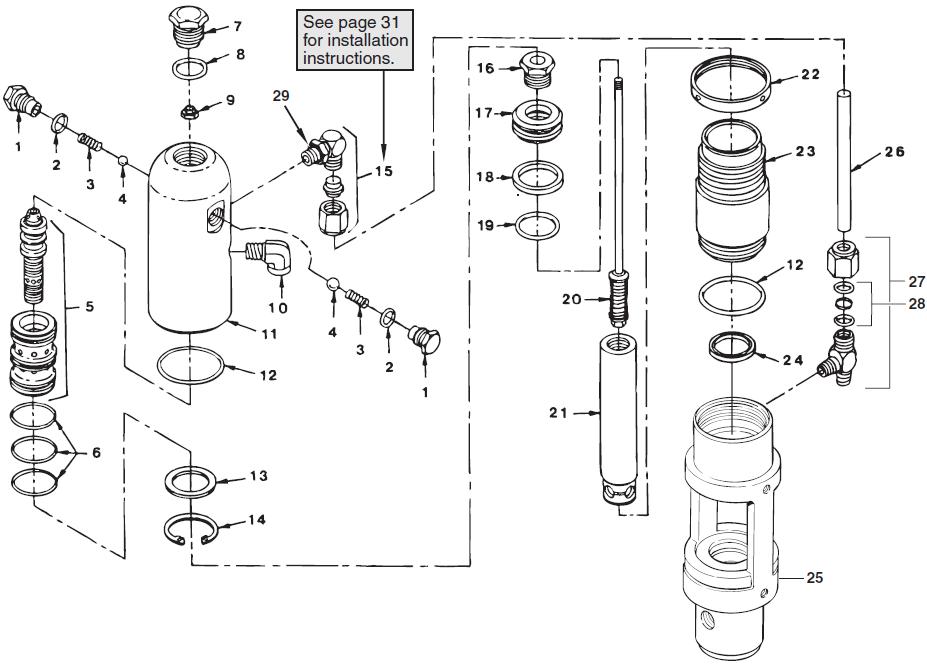

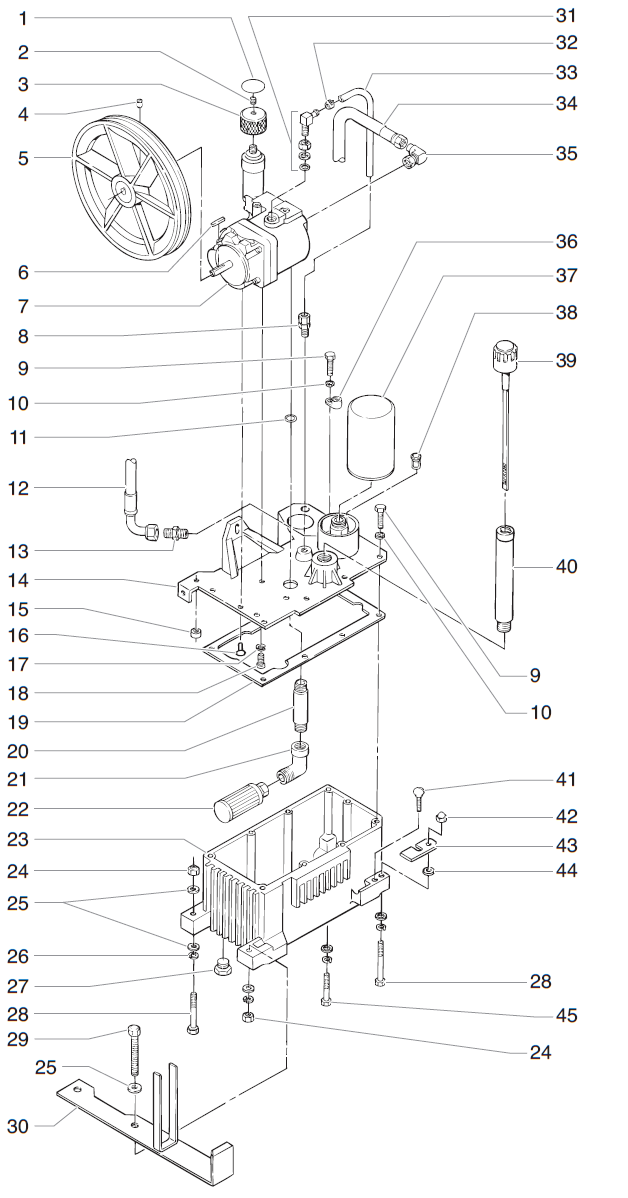

4: What maintenance is required for the hydraulic system, and what parts are commonly replaced?

Regular hydraulic system maintenance includes checking and maintaining hydraulic fluid levels (via the vented fill cap and dipstick), using only the recommended hydraulic fluid, and ensuring hydraulic hoses, seals, and the hydraulic motor are in good condition.

 If you observe leaks, reduced hydraulic pressure, or erratic pump performance, you should inspect and replace worn Hydraulic System parts (seals, hoses), as well as the Hydraulic Motor if needed; both are available via AllTitanParts.

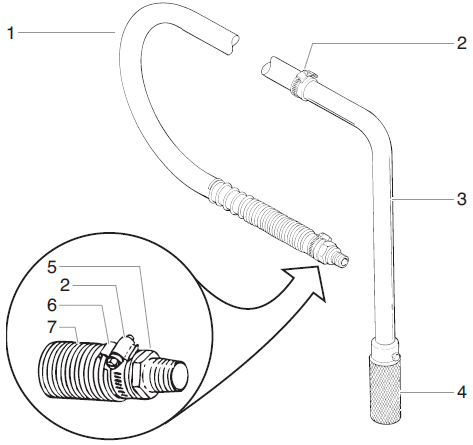

5: My sprayer struggled to siphon thick coatings . What sub-category parts should I check or replace?

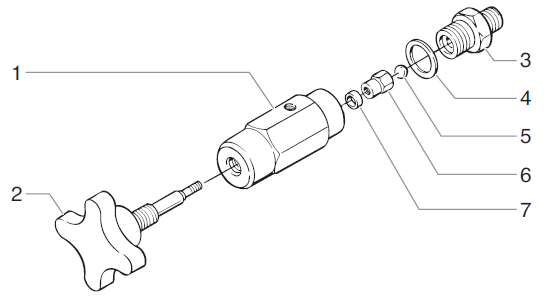

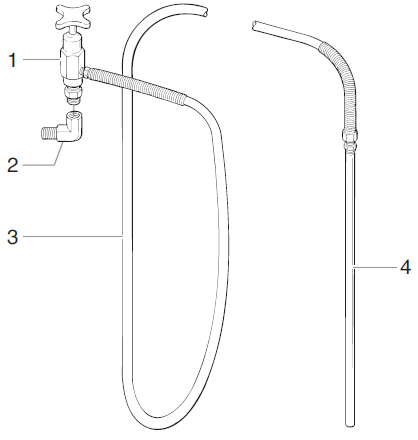

If siphoning or material pickup is inconsistent, especially with heavy or high-viscosity coatings, the likely culprit is the Siphon Hose Assembly, Foot Valve, or bleed hose/valve assembly. These parts ensure proper suction and fluid intake. Replacing a worn or clogged siphon hose assembly or checking/renewing the bleed hose and valve can restore proper fluid feed and prevent starvation of the pump during spray.
