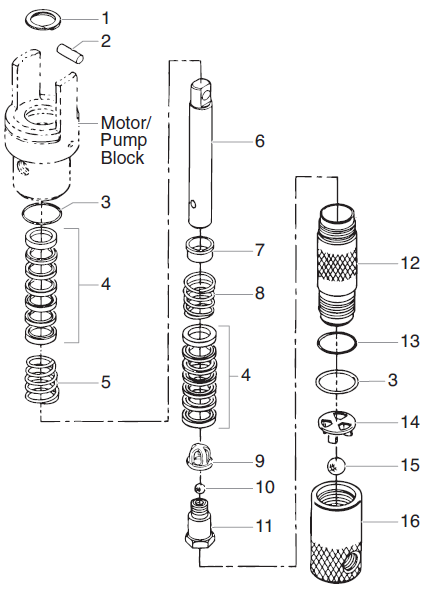

PowrTwin 12000GH Fluid Section

Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70

QTY:

Titan 143-120 Connecting Pin

Item No: 2

Part #: 143-120

PowrLiner / PowrTex / PowrTwin part -120 is a connecting pin designed to link mechanic...

$17.10

QTY:

Titan 145-031 O-ring

Item No: 3

Part #: 145-031

PowrBeast / PowrLiner / PowrTex / PowrTwin part 145-031 is an O-ring designed to creat...

$24.90

QTY:

Titan 138-153A Repacking Kit

Item No: 4

Part #: 138-153A

PowrLiner / PowrTwin / PowrBeast part 138-153A is a repacking kit designed to rebuild ...

Retail Price: $104.50

You save: $10.87 (10.40%)

Our Price: $93.63

QTY:

Titan 142-004 Upper Packing Spring

Item No: 5

Part #: 142-004

Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-004 is an upper packin...

Retail Price: $34.70

You save: $1.91 (5.50%)

Our Price: $32.79

QTY:

Titan 144-117 Displacement Rod

Item No: 6

Part #: 144-117

PowrTwin part 144-117 is a displacement rod used to convert rotational pump motion into linear recip...

Retail Price: $189.30

You save: $23.66 (12.50%)

Our Price: $165.64

QTY:

Titan 138-001 Spring Retainer

Item No: 7

Part #: 138-001

PowrLiner / PowrTwin / PowrTex part 138-001 is a spring retainer designed to secure an...

Retail Price: $68.00

You save: $5.64 (8.29%)

Our Price: $62.36

QTY:

Titan 142-003 Lower Packing Spring

Item No: 8

Part #: 142-003

Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-003 is a lower packing...

$25.00

QTY:

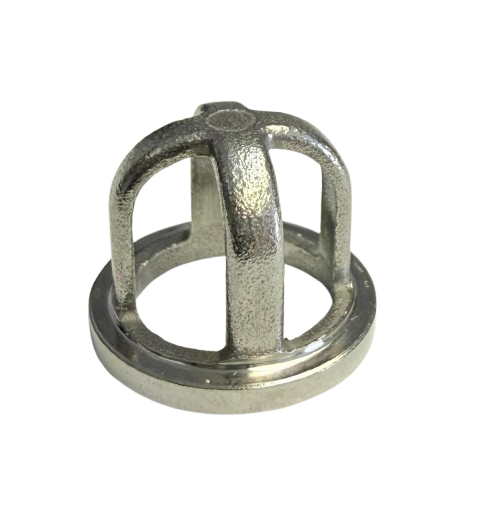

Titan 451-085 cage ball

Item No: 9

Part #: 451-085

The Titan 451-085 Cage Ball is a precision check-valve component used in the fluid section of sele...

Retail Price: $51.20

You save: $4.25 (8.30%)

Our Price: $46.95

QTY:

Titan 0509710 Outlet Valve Ball

Item No: 10

Part #: 0509710

Titan part 0509710 is an outlet valve ball designed to work with the valve seat to cre...

$6.00

QTY:

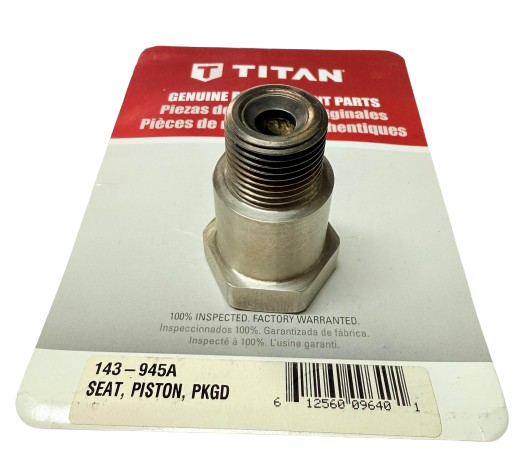

Titan 143-945A Piston seat Assembly

Item No: 11

Part #: 143-945A

Titan 143-945A Piston seat Assembly, pkgd *Replaces Part # 143-945* Fits: PowrCoat 730

Retail Price: $214.60

You save: $29.83 (13.90%)

Our Price: $184.77

QTY:

Titan 144-832 Pump Cylinder

Item No: 12

Part #: 144-832

PowrBeast / PowrLiner / PowrTwin / PowrTex part 144-832 is a pump cylinder designed to...

Retail Price: $222.90

You save: $30.98 (13.90%)

Our Price: $191.92

QTY:

Titan 140-009 O-Ring

Item No: 13

Part #: 140-009

PowrTwin / PowrLiner / PowrTex part 140-009 is an O-ring designed to create a leak-pro...

$2.90

QTY:

Titan 144-032 Ball Cage SS

Item No: 14

Part #: 144-032

PowrTwin part 144-032 is a stainless steel ball cage used to retain and guide the check ball within ...

Retail Price: $74.30

You save: $6.17 (8.30%)

Our Price: $68.13

QTY:

Titan 0509707 Foot Valve Ball (Replaces Titan 178-700 and Titan 0349477)

Item No: 15

Part #: 0509707

PowrBeast / PowrLiner / SprayTech part 0509707 is a foot valve ball designed to create...

Retail Price: $46.50

You save: $3.53 (7.59%)

Our Price: $42.97

QTY:

Titan 144-013 Foot Valve

Item No: 16

Part #: 144-013

SprayTech part 144-013 is a foot valve used in the fluid intake system of compatible sprayers. This ...

Retail Price: $532.60

You save: $85.22 (16.00%)

Our Price: $447.38

QTY:

Shop OEM PowrTwin 12000GHD Fluid Section Parts

The PowrTwin 12000GHD Fluid Section is the core pumping assembly responsible for drawing material, building pressure, and delivering coating fluid through the spray system. It includes essential parts named as keyword components such as the displacement rod, pump cylinder, foot valve assembly, spring retainer, cage ball, outlet valve, packings, valve seats, O-rings, and fluid seals, all of which work together to ensure smooth and consistent material flow under high-pressure conditions.

This fluid section assembly is designed for heavy-duty industrial spraying, where continuous pressure and large-volume coating applications are required. Key wear components like fluid packings, valve assemblies, and sealing O-rings help maintain pressure stability and prevent leakage during operation. When these parts wear out, symptoms such as pressure drop, uneven spray patterns, or loss of prime typically appear, indicating the need for servicing or rebuild kits.

Regular maintenance of the fluid section parts is essential to keep the system operating efficiently. Service kits are commonly used to replace multiple fluid section components (packings, valves, and seals) at once, restoring factory-level performance and reducing downtime in demanding job site conditions.

FAQs

It pressurizes and delivers coating material through the spray system using the fluid section pump assembly and valve system.

Key parts include the pump cylinder, displacement rod, foot valve, outlet valve, O-rings, and packings.

Common issues include pressure loss, leaking around seals, inconsistent spray pattern, or difficulty maintaining prime.

Yes, most repairs are done using a fluid section service kit, which replaces worn packings, valves, and seals.

It depends on usage, but heavy-duty use typically requires periodic servicing after extended operating hours.
