Titan Impact 840 Main Assembly Parts
Shop genuine OEM Titan Impact 840 Main Assembly Parts using the applicable factory exploded parts diagram. This section helps contractors, technicians, maintenance departments, and equipment owners identify replacement components located within the sprayer's primary machine assembly. Match the numbered diagram callout with the exact Titan OEM part number and confirm the required quantity before ordering.
Find the Correct Impact 840 Main Assembly Part
The Impact 840 Main Assembly category is the starting point for components shown on the sprayer's primary machine exploded view. Depending on the location of the required component, this can include structural, mounting, control-related, electrical, connecting, fastening, and other machine components identified on the applicable Titan parts diagram.

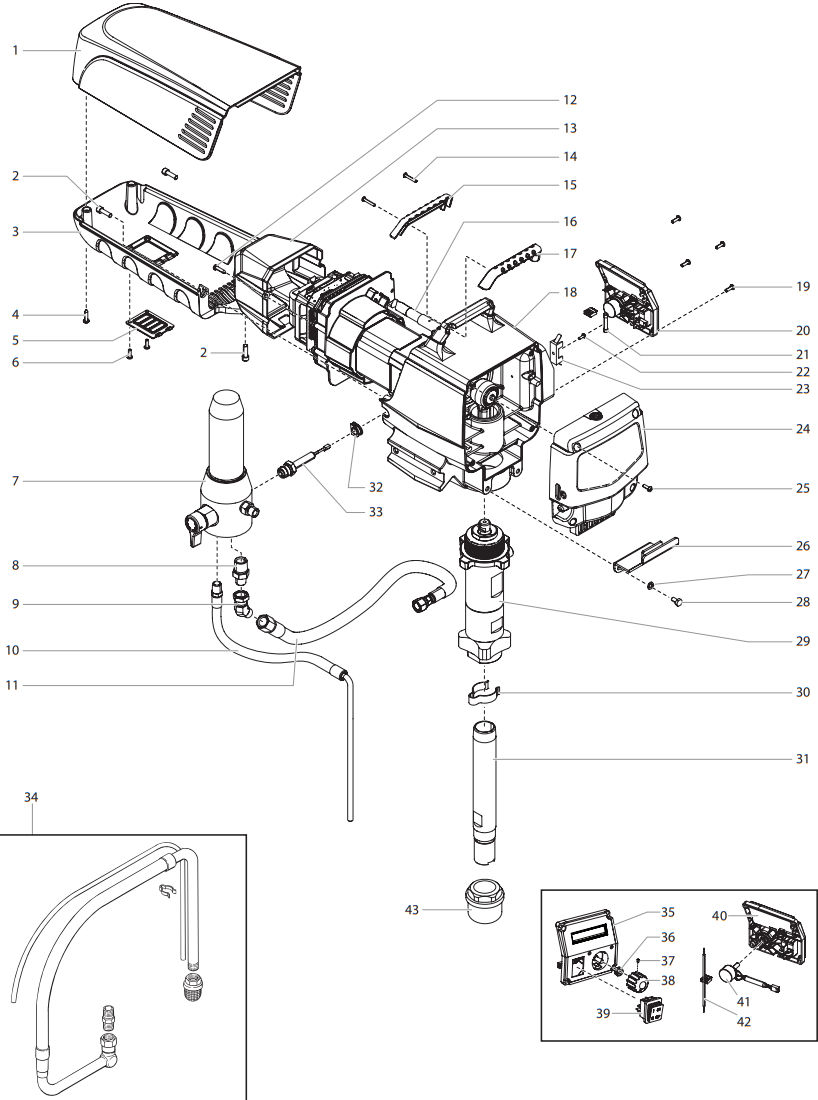

For accurate ordering, locate the component on the exploded drawing, record its numbered callout, and match that reference with the corresponding Titan OEM part number. Do not select a replacement solely by appearance because similar-looking components may serve different models, revisions, or assemblies.
What Is the Impact 840 Main Assembly?
The Main Assembly drawing organizes components associated with the primary Impact 840 machine rather than one specialized subsystem. It provides a visual parts reference that helps identify the location and relationship of components installed around the central sprayer assembly.
Components dedicated to pumping, mechanical drive, fluid filtration, material intake, or the cart configuration may have their own separate exploded diagrams. Using the correct assembly page first can significantly reduce the chance of ordering a part from the wrong section.
Impact 840 Main Assembly Areas to Inspect
Find Your Impact 840 Main Assembly Parts Faster
Verify that your sprayer is a Titan Impact 840 before using this parts breakdown.
Confirm that the required component appears on the Main Assembly drawing rather than another subsystem.
Find the component on the exploded view and record its numbered diagram reference.
Match the callout with the correct Titan part number and confirm the required quantity.
Not Sure Whether the Part Is in the Main Assembly?
Use the component's location and function to narrow the search. Mechanical power-transfer components generally belong in the Drive Assembly, pumping components in the Fluid Section, pressurized filtration components in the Filter Assembly, frame and wheel components in the appropriate Cart Assembly, and material-intake components in the Siphon Assembly.
Main Assembly Inspection Guide
| Condition | Inspect | Next Step |
|---|---|---|
| Loose machine component | Mounting points, brackets and hardware | Identify damaged or missing components from the exploded diagram |
| Visible physical damage | Affected component and surrounding attachment areas | Inspect related components before ordering replacements |
| Fluid leakage | Connections and nearby fluid-path components | Determine whether the leak belongs to the Main, Fluid Section, or Filter Assembly |
| Abnormal mechanical operation | Main machine and mechanical drive areas | Continue diagnosis through the Drive Assembly when appropriate |
| Electrical or control issue | Applicable control and electrical components | Follow Titan troubleshooting and electrical service procedures |
Main Assembly Part or Another Impact 840 System?
Primary machine components shown on the central Impact 840 exploded assembly drawing.
Mechanical and related components that transfer motor output toward the pumping mechanism.
Pump components responsible for drawing, moving, sealing, and pressurizing coating material.
Separate diagrams cover frame and mobility components or material-intake and return components.
Impact 840 Service Guidance
When one part is damaged, inspect adjacent mounting points, mating surfaces, hardware, and connections before completing the repair.
Remove coating buildup and debris where appropriate so leaks, looseness, wear, and damaged components are easier to identify.
Use the applicable Titan operating, parts, and service documentation for removal, installation, adjustment, and testing.
Find the Correct Titan Impact 840 Parts Section
| Parts Section | Use It For |
|---|---|
| Main Assembly | Primary machine components and related hardware |
| Drive Assembly | Mechanical power-transfer and related drive components |
| Fluid Section | Pump, packing, valve, piston, and sealing components |
| Filter Assembly | Pressurized filtration and associated fluid-path components |
| Upright Cart | Upright frame, wheel, support, and mounting components |
| Low Rider Cart | Low-profile frame, wheel, support, and mounting components |
| Low Rider Siphon | Material-intake, strainer, fitting, and return-system components |
| Accessories | Applicable guns, hoses, tips, guards, extensions, and related spray equipment |
Impact 840 Service Safety
Shut down the sprayer, disconnect electrical power, and perform the complete pressure-relief procedure before inspection or service. Never loosen pressurized fluid components or work around energized or moving machine parts. Follow the applicable Titan operating and service instructions for disassembly, electrical work, replacement, reassembly, and operational testing.
Buying the Correct Impact 840 Main Assembly Part
Before adding a component to your order, verify the sprayer model, the correct assembly diagram, numbered callout, Titan OEM part number, and quantity required by the drawing.
If the component cannot be confidently identified from the Main Assembly diagram, compare its physical location and function with the Drive, Fluid Section, Filter, Cart, Siphon, and Accessories sections before purchasing.
Explore Related Titan Impact 840 Parts
Shop Titan Impact 840 Main Assembly Parts
Use the exploded parts diagram to identify the exact component you need, verify the Titan OEM part number, and order the correct replacement for your Impact 840.
View Impact 840 Main Assembly PartsTitan Impact 840 Main Assembly Parts FAQ
What is the Titan Impact 840 Main Assembly?
The Main Assembly is the primary exploded parts section used to identify components located around the central Impact 840 machine assembly.
How do I find the correct Impact 840 replacement part?
Locate the component on the applicable exploded diagram, record its numbered callout, and match that reference with the exact Titan OEM part number.
Is the Main Assembly the same as the Drive Assembly?
No. The Drive Assembly is a separate parts section for mechanical power-transfer and related drive components.
Are Impact 840 pump parts listed in the Main Assembly?
Pump-specific internal components should generally be identified through the separate Impact 840 Fluid Section Assembly diagram.
Where should I look for filter components?
Use the dedicated Impact 840 Filter Assembly section for filter, housing, sealing, valve, fitting, and related pressurized fluid-path components.
Can I identify an Impact 840 part by appearance?
Appearance alone is not a reliable identification method. Confirm the model, assembly diagram, numbered callout, and exact Titan part number before ordering.
Should nearby components be inspected during a repair?
Yes. When a component is damaged or worn, inspect related mounting points, mating components, fasteners, connections, and surrounding parts before completing the repair.
Where can I find other Titan Impact 840 parts?
Use the Impact 840 model category to access the Drive Assembly, Fluid Section, Filter Assembly, Upright and Low Rider cart sections, Siphon Assembly, Accessories, and other applicable parts diagrams.
