Titan 805-269A Filter Head Assembly

Name: Titan 805-269A Filter Head Assembly
Brand: Titan
SKU: 805-269A
Price: 501.06 USD
Availability: InStock

$501.06

$596.50

Save 16%

Available to Order

Part #: 805-269A

Titan Fluid Filtration & Pump Service Components

Keep your airless sprayer's fluid filtration system ready for demanding work with the Titan 805-269A Filter Head Assembly. Documented in Titan Impact 740, 840, 1040, and 1140 service manuals, this assembly supports filtration and the associated bypass valve arrangement. Titan's exploded diagrams identify 14 service components, including the filter body, filter element, springs, seals, housing, valve hardware, and fitting. Confirm your exact model and assembly configuration before ordering.

Brand Titan

Part Number 805-269A

Product Type Filter Head Assembly

Documented Parts 14 Components

Primary Function: Supports fluid filtration and the bypass valve arrangement.
Documented Models: Titan Impact 740, 840, 1040, and 1140 series, subject to the applicable parts diagram.
Service Planning: Inspect the filter element, seals, housing, springs, bypass valve, and fittings.

Fitment & Contents Note: Confirm part 805-269A in your exact machine diagram. The manufacturer's 14-item exploded view identifies service components but does not independently confirm every component included in the retail package. Filter body part numbers vary by manual.

Quantity

Buy Now

Genuine OEM Part Fast Shipping Easy Returns

Titan Professional Fluid Filtration & Service Assemblies

Restore Reliable Fluid Filtration with Titan 805-269A

Maintain the fluid filtration system of your professional airless sprayer with the Titan 805-269A Filter Head Assembly. Identified in Titan Impact 740, 840, 1040, and 1140 service documentation, this assembly combines the filter housing arrangement with filtration and bypass valve components. Its documented service structure includes 14 numbered components, allowing technicians to identify worn seals, springs, filter hardware, valve components, and fittings during maintenance.

BrandTitan

Part Number805-269A

Product TypeFilter Head Assembly

Diagram Components14 Listed Items

Titan 805-269A Technical & Ordering Details

Product Overview	Replacement filter head assembly identified in Titan Impact airless sprayer service documentation.
Brand & Part Number	Titan 805-269A
Product Type	Filter head and associated fluid filtration assembly.
Primary Function	Supports the filter element, fluid passages, sealing components, and bypass valve arrangement in the designated sprayer filtration system.
Documented Compatible Machines	Titan Impact 740 Titan Impact 840 Titan Impact 1040 Titan Impact 1140 The manufacturer's filter assembly diagrams identify 805-269A for these model families. Check the exact machine and service-manual revision.
Configuration Differences	Some documented assemblies specify filter body 800-905; others specify 800-705. These references must be checked against the applicable service manual rather than assumed interchangeable.
Compatible Parts & Assemblies	Filter housing 805-508, filter assembly 730-067, O-ring 800-906, bypass valve assembly 800-925, gasket 700-537, and additional components detailed in the assembly parts table below.
Industrial Applications	Fluid filtration maintenance on compatible airless spraying equipment used in commercial painting, industrial maintenance, construction finishing, and facility coating operations.
Commercial Use	Service and replacement for professional painting contractors, equipment rental fleets, maintenance departments, and airless sprayer repair facilities.
Related Parts Commonly Serviced Together	Filter element, filter spring, O-ring, gasket, bypass valve components, plug, adapter, and connected fluid fittings.
Common Problems Addressed	Damaged filter housing, defective sealing surfaces, stripped threads, cracked components, and confirmed faults in the associated filtration or bypass valve arrangement.
Coating Systems	Professional electric airless paint spraying systems. Coating compatibility and pressure limits depend on the complete sprayer and specified filter configuration.
OEM & Brand	Titan OEM replacement assembly identified in manufacturer parts documentation.
Commercial Benefits	Supports restoration of the intended filtration arrangement, simplifies identification of service components, and helps technicians plan repairs using documented part numbers.
Ordering Guidance	Verify 805-269A in the machine-specific diagram. Confirm the actual supplied assembly contents and any separately required components before purchasing.

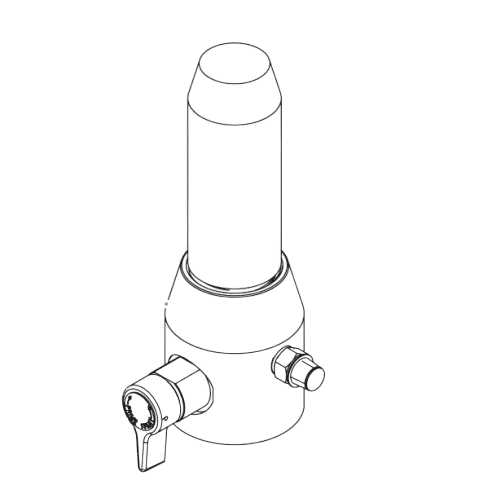

Manufacturer Exploded Diagram Reference
