Titan Impact 840 Airless Sprayer Parts
Shop genuine OEM Titan Impact 840 Airless Sprayer Parts by factory assembly and exploded diagram. Find pump, drive, filter, electrical, upright-cart, low-rider, siphon and accessory components for professional maintenance and repair. Select the applicable assembly, locate the numbered diagram callout and verify the complete Titan OEM part number before purchasing.
Find the Correct Parts for Your Titan Impact 840
The Titan Impact 840 is a professional electric airless sprayer platform designed for higher-output architectural coating work. Titan rates the standard Impact 840 at up to 1.0 GPM, 3,300 PSI maximum operating pressure and a 0.032-inch maximum tip size.
This parts category organizes replacement components by the machine systems technicians actually service: main assembly, mechanical drive, fluid section, filter, upright cart, low-rider cart, siphon system and accessories. Using the factory exploded diagram before ordering provides a more reliable identification method than selecting a component by appearance alone.
Titan Impact 840 Specifications
| Manufacturer | Titan |
| Model | Impact 840 |
| Equipment Type | Professional Electric Airless Sprayer |
| Maximum Delivery | 1.0 GPM / approximately 3.75 LPM |
| Maximum Operating Pressure | 3,300 PSI / 22.8 MPa |
| Maximum Tip Size | 0.032 in. |
| Motor | 2.3 HP Brushless DC |
| Maximum Hose Length | 300 ft. |
| Primary Parts Identification | Factory exploded diagram + Titan OEM part number |
Choose Your Titan Impact 840 Parts Assembly
Select the system you need to repair, open its exploded diagram, locate the numbered component and match the callout to the corresponding Titan OEM part number.
Which Impact 840 Parts Diagram Should You Use?
| Repair Area | Open This Diagram | Typical Components |
|---|---|---|
| Core / Electrical | Main Assembly | Controller, power components, covers, filter head, controls and mounting hardware |

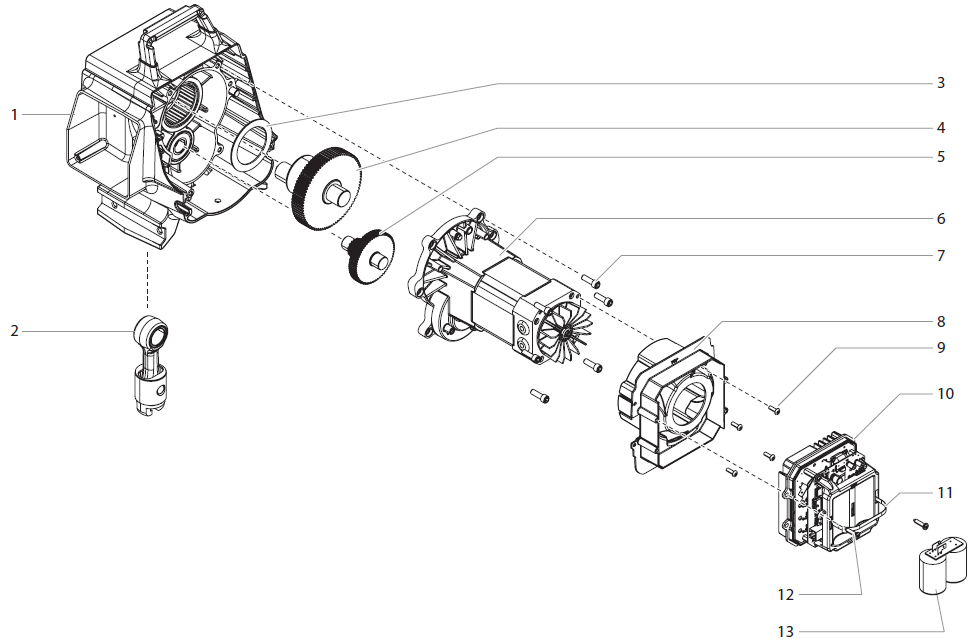

| Mechanical Drive | Drive Assembly | Housing, slider, gears, crankshaft and thrust components |
| Pump / Pressure | Fluid Section 805-236A | Piston, packings, seals, valves, retainers and service tools |
| Fluid Filtration | Filter Assembly 805-269A | Filter, filter housing, seals and fittings |

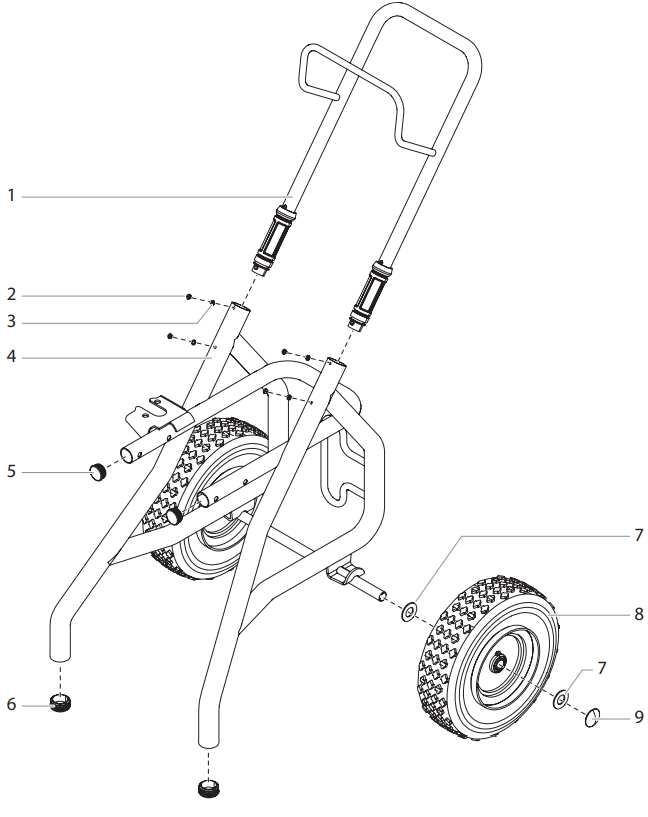

| Upright Cart | Upright Cart 0552537A | Frame, wheels, handle and mounting hardware |

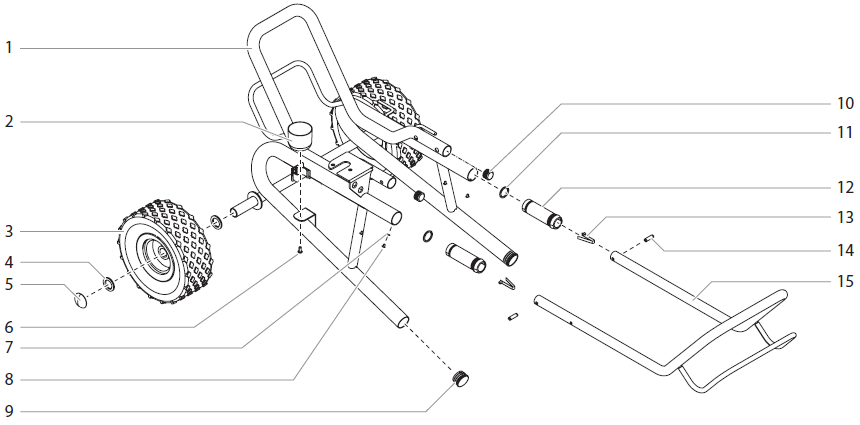

| Low Rider Structure | Low Rider Cart 805-289A | Low-rider frame, wheels and structural hardware |

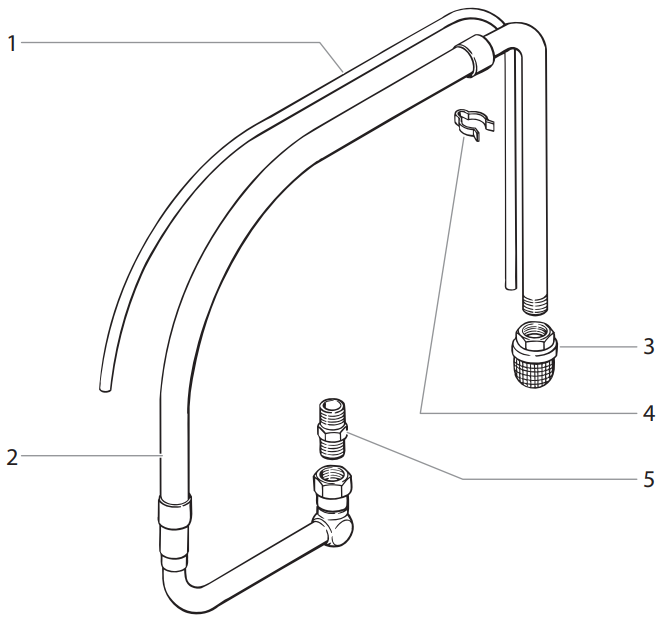

| Material Intake | Siphon Assembly 805-296 | Siphon and related coating-intake components |
Shop Impact 840 Parts by OEM Number
The Impact 840 catalog contains individual service components and complete assemblies for repairing the machine rather than replacing an entire sprayer. Current main-assembly listings include genuine Titan components such as the 805-433A Motor Shroud, 805-431 Belly Pan, 805-269A Filter Head Assembly, 805-404A Power Cord Assembly, 805-237A Control Panel Assembly and 805-236A Fluid Section Assembly.
Using the complete OEM number is particularly important when purchasing electrical, fluid-system and configuration-sensitive components. Compare the number associated with the exploded-view callout to the listing before checkout.
Titan Impact 840 Fluid Section Parts
The fluid section converts mechanical drive movement into coating flow and pressure. Packing wear, valve contamination, damaged seals and related pump conditions can contribute to poor priming, leakage, reduced output or unstable operating pressure.

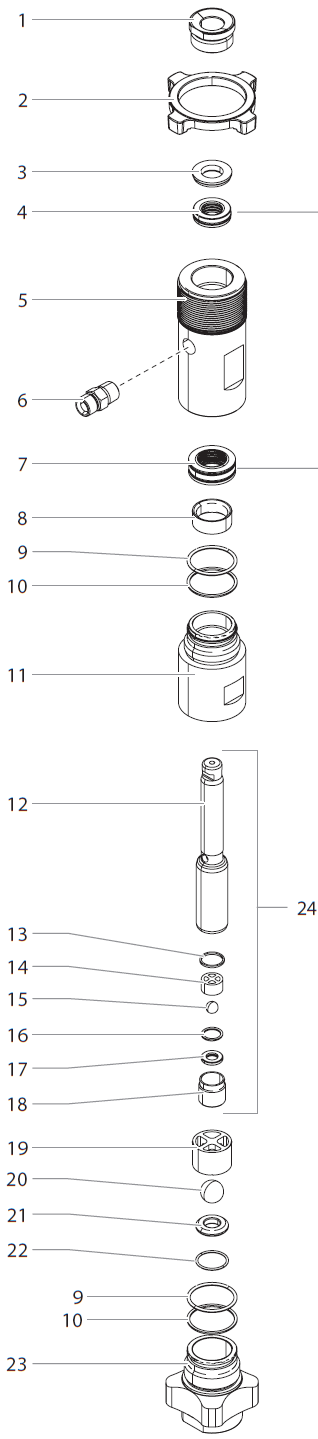

Use the 805-236A Fluid Section Assembly diagram to identify the exact pump-service component required. The current catalog includes the Titan 805-1010 Repacking Kit, 805-505 Seal Retainer and other genuine OEM fluid-section components.
SHOP IMPACT 840 FLUID SECTION PARTS →Impact 840 Main Assembly Parts

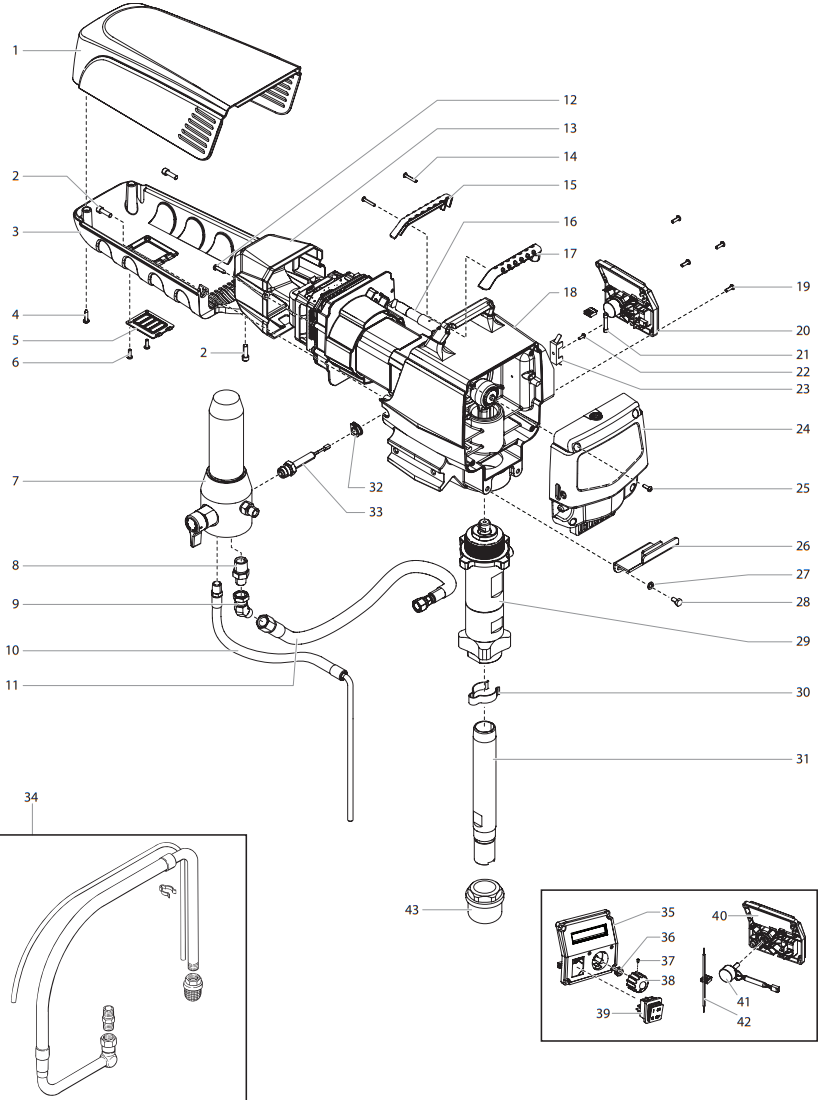

The main assembly contains many of the machine's core electrical, control, protective and fluid-system mounting components. Use this diagram when servicing controls, covers, electrical protection, power connections or components mounted around the primary machine housing.
Current catalog examples include the 0551972 Surge Protector, 805-433A Motor Shroud, 805-462 Electronic Motor Controller Cover, 805-404A Power Cord Assembly, 800-929 15A Fuse and 800-437 Transducer Assembly.
VIEW MAIN ASSEMBLY PARTS →Impact 840 Filter Assembly Parts
The high-pressure filter system helps capture debris before coating travels farther through the hose and spray system. Inspect filter components whenever contamination, restriction or material-flow problems are suspected.

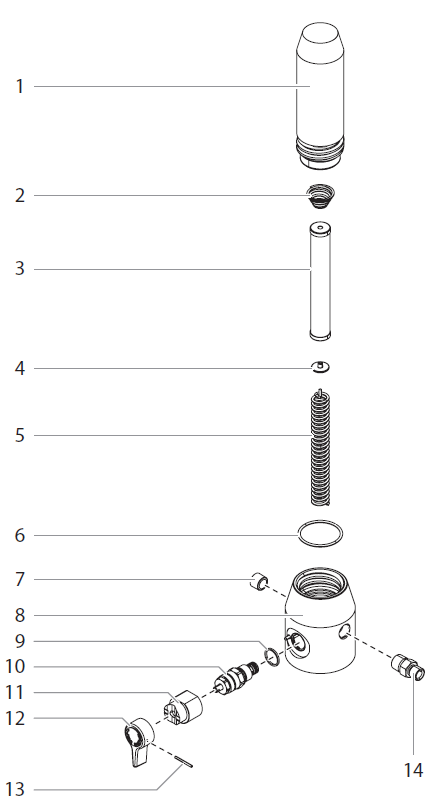

Use the 805-269A Filter Assembly diagram to identify the filter, housing, seals, fittings and associated components required for service.
SHOP IMPACT 840 FILTER PARTS →Confirm Your Impact 840 Configuration Before Ordering
The Impact 840 catalog includes separate upright-cart and low-rider component groups. Do not assume cart, siphon, wheel, frame, return-tube or mounting parts interchange between configurations. Confirm the machine configuration and use the applicable exploded drawing before ordering configuration-sensitive parts.
Match the Impact 840 Symptom to the Correct System
| Symptom | Inspection Starting Point | Parts Diagram |
|---|---|---|
| Will Not Prime | Material supply, siphon/intake path and fluid-section inlet | Siphon / Fluid Section |
| Low or Unstable Pressure | Filter, packings, piston, valves and seals | Fluid Section / Filter |
| Fluid Leakage | Packings, seals, fittings and fluid-section components | Fluid Section |
| Mechanical Noise | Housing, slider, gears, crankshaft and thrust components | Drive Assembly |
| Electrical / Control Problem | Power supply, fuse, controller, wiring, control panel and transducer | Main Assembly |
| Cart / Wheel Damage | Confirm upright or low-rider configuration first | Upright / Low Rider Cart |
Find the Correct Titan Impact 840 Part in Four Steps
Impact 840 vs. Impact 840I / 840IA Parts
The standard Impact 840, Impact 840I and Impact 840IA belong to the same broader Impact family but should not be treated as one identical parts catalog. Later configurations can use different control, electrical, connectivity, cart and configuration-specific components.
If your machine identification shows Impact 840I or Impact 840IA, use the dedicated parts information for that configuration instead of assuming that a standard Impact 840 component is correct.
Relieve Pressure Before Servicing the Impact 840
Airless spraying equipment operates at pressures capable of causing serious fluid-injection injury. Shut down the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure before inspecting or removing pressurized components. Never loosen a pressurized spray gun, hose, fitting, filter, valve or fluid-section component.
Need Parts for Another Titan Impact Sprayer?
Titan Impact models use model- and configuration-specific parts catalogs. If your machine is not the standard Impact 840, return to the main Impact Sprayer Parts directory and select the exact machine before ordering.
Browse All Titan Impact Sprayer Parts → Choose the exact Impact model and shop genuine Titan OEM replacement parts by factory diagram.Buy Titan Impact 840 Airless Sprayer Parts
Identify the correct Impact 840 configuration, choose the applicable factory assembly, locate the component on the exploded diagram and verify the complete Titan OEM part number before placing your order.
SHOP IMPACT 840 PARTS →Titan Impact 840 Parts FAQ
What is the maximum pressure of the Titan Impact 840?
What is the maximum flow rate of the Titan Impact 840?
What is the maximum tip size for the Titan Impact 840?
Where can I find Titan Impact 840 pump and packing parts?
Which repacking kit is listed for the Impact 840 fluid section?
What is the Impact 840 upright-cart assembly number?
Are Impact 840 and Impact 840I parts the same?
Are Impact 840 upright-cart and low-rider parts interchangeable?
How do I make sure I order the correct Impact 840 replacement part?
Not Sure Which Impact 840 Part You Need?
Have the machine model number, serial information, upright or low-rider configuration, assembly name, diagram callout and any OEM number visible on the original component available. These references provide the strongest basis for confirming the correct replacement part.
