Titan Impact 1640 Airless Sprayer Parts
Shop genuine OEM Titan Impact 1640 Airless Sprayer Parts using factory exploded diagrams. Find main-machine, drive, 0558358A fluid-section, 0558710 filter, upright-cart and accessory components for professional repair and maintenance. Choose the applicable assembly, locate the numbered diagram callout and verify the complete Titan OEM part number before purchasing.
Find the Correct Parts for Your Titan Impact 1640
The Titan Impact 1640 is a high-output professional electric airless sprayer built for demanding large-scale residential, commercial and industrial coating work. Its serviceable systems include the main machine and controls, mechanical drive, high-capacity fluid section, filtration system, upright cart and application accessories.
AllTitanParts organizes these components by factory assembly so contractors, technicians, maintenance departments and equipment owners can identify replacement parts from the correct exploded drawing instead of relying on appearance alone.
Key Titan Impact 1640 Parts & Assemblies
| System | Verified Reference | Use This Section For |
|---|---|---|
| Core Machine | Main Assembly | Controls, transducer, electrical, housing, shroud and machine-mounted components |
| Fluid Delivery | Fluid Section 0558358A | Cylinder, piston, packings, inlet/outlet valves, seals and pump components |
| Pump Rebuild | Repacking Kit 0558785 | Fluid-section packing and sealing service |
| Mechanical Powertrain | Drive Assembly | Gears, slider, housings and mechanical drive components |
| Filtration | Filter Assembly 0558710 | Filter, housing, plug, PrimeSpray valve, seals and associated fluid components |
| Mobility | Upright Cart Assembly | Cart, handle, wheels and structural mounting components |
| Application Equipment | Accessories | Hoses, gauges, gun components, filters, guards, fittings and related equipment |
Choose Your Titan Impact 1640 Parts Assembly
Select the machine system being repaired, open the corresponding factory diagram, locate the numbered callout and match it to the complete Titan OEM part number before ordering.
Which Impact 1640 Parts Diagram Should You Open?
| Repair Area | Start Here | Typical Components |
|---|---|---|
| Controls / Electrical | Main Assembly | Control panel, transducer, fuse, switch, wiring, shroud and related components |
| Pump / Material Delivery | Fluid Section 0558358A | Cylinder, piston rod, packings, valves, seals, cages and inlet components |
| Mechanical Drive | Drive Assembly | Gears, slider, bearings, housings and associated drive components |
| Fluid Filtration | Filter Assembly 0558710 | Filter, housing, plug, valve, seals and fittings |

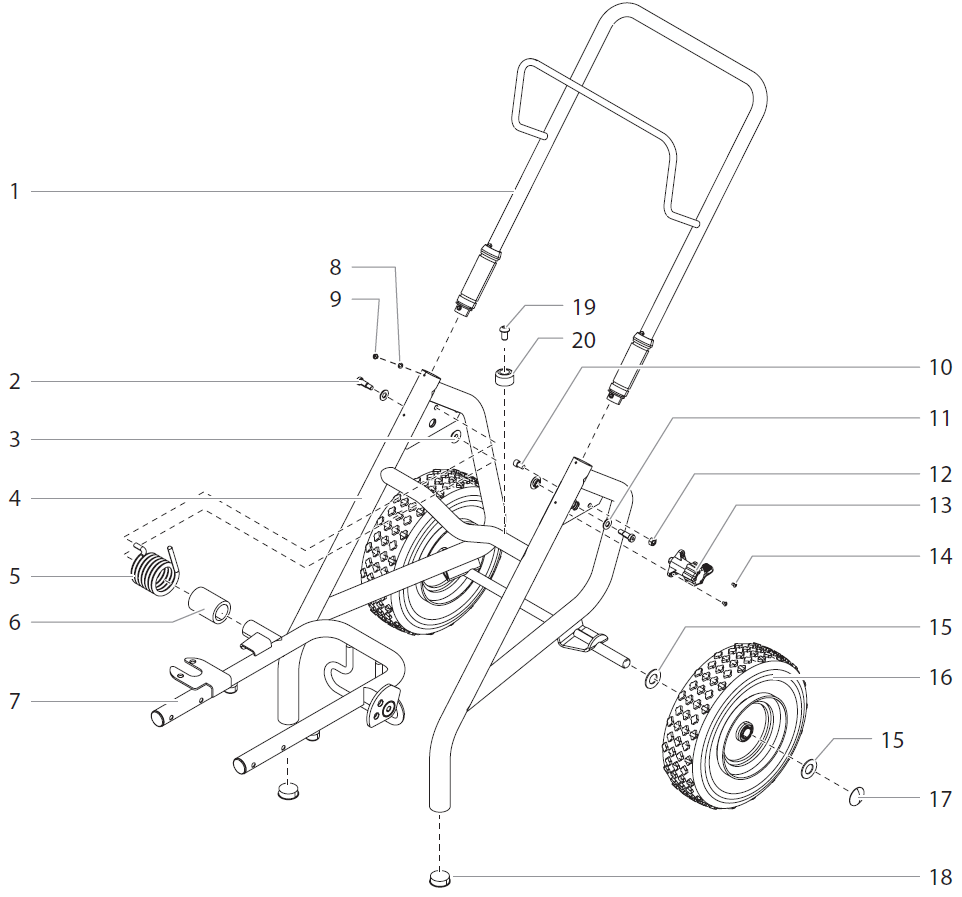

| Cart / Mobility | Upright Cart Assembly | Frame, handle, wheels and mounting components |
| Spray Setup | Accessories | Hoses, gun filters, gauges, fittings, guards and related equipment |
Impact 1640 Fluid Section 0558358A Parts

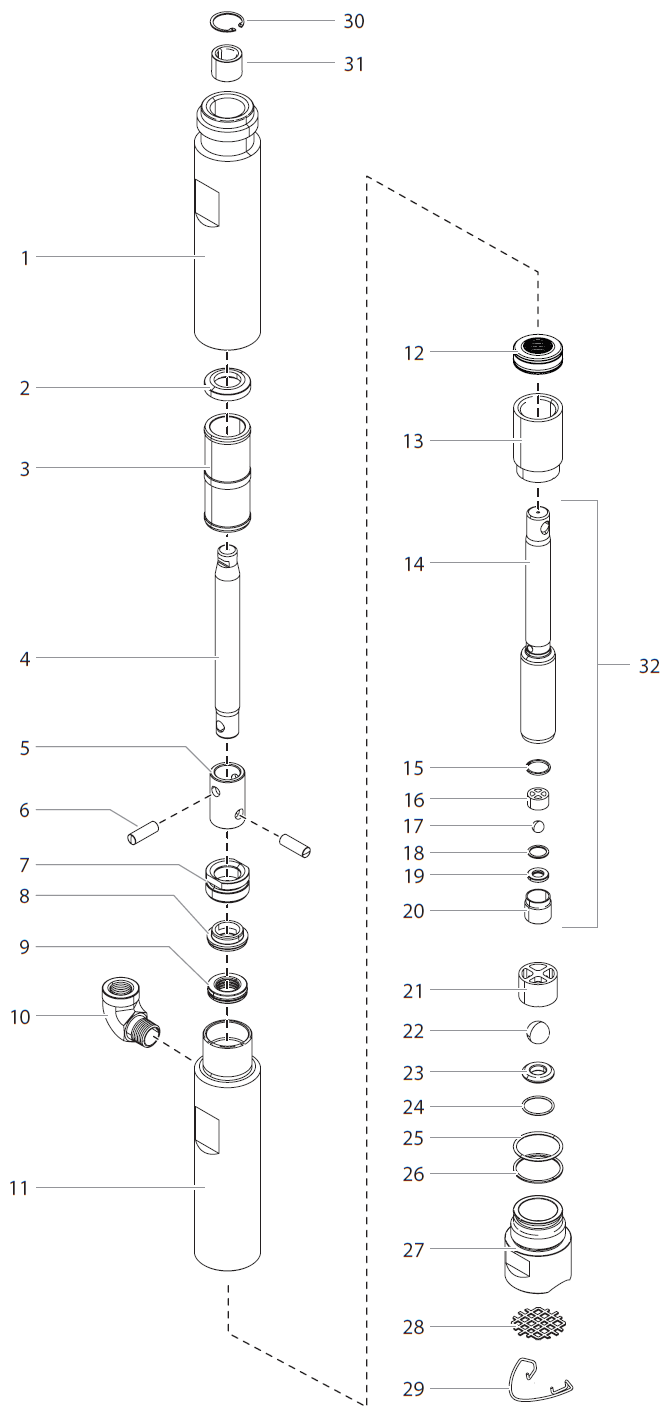

The 0558358A fluid section is the heart of the Impact 1640 material-delivery system. Its field-serviceable construction allows worn pump components to be identified and replaced individually or serviced with the appropriate repair kit.
Cataloged OEM components include the 0558419 Cylinder, 0558424A Packaged Piston Rod, 0558582A Lower Seal Assembly, 0558365A Piston Assembly, 0555595 Inlet Valve Ball and related inlet/outlet valve, packing, cage, seal and retaining components.
For packing service, the catalog includes Titan 0558785 Fluid Section Repacking Kit and 0558793 Fluid Section Packing Kit. Verify the required service level and diagram callouts before purchasing.
SHOP IMPACT 1640 FLUID SECTION PARTS →Impact 1640 Filter Assembly 0558710 Parts

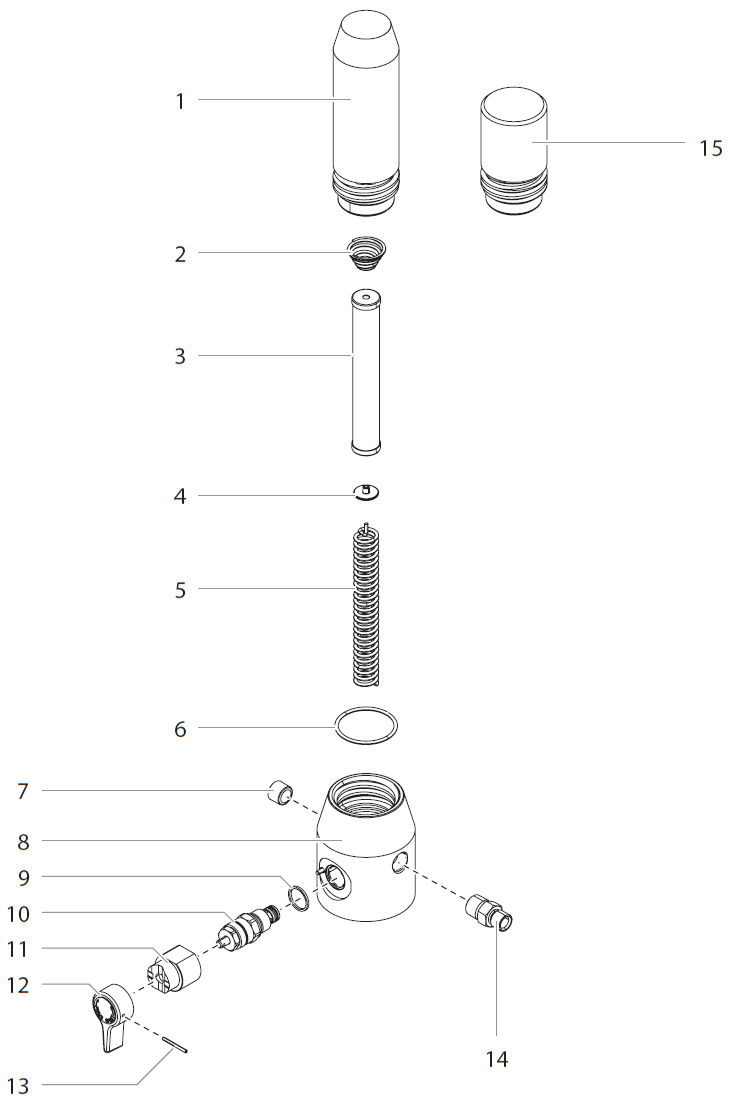

The 0558710 Filter Assembly helps remove unwanted material before coating travels downstream through the hose and spray gun. Maintaining the filter system is particularly important on a high-output sprayer where contamination or restriction can interfere with material flow.
Cataloged components include the 700-258 PrimeSpray Valve Assembly, 800-705 Filter Housing, which replaces 800-905, 0558668 Filter Plug, fittings and related filtration components. Use the exploded diagram to identify the individual component required.

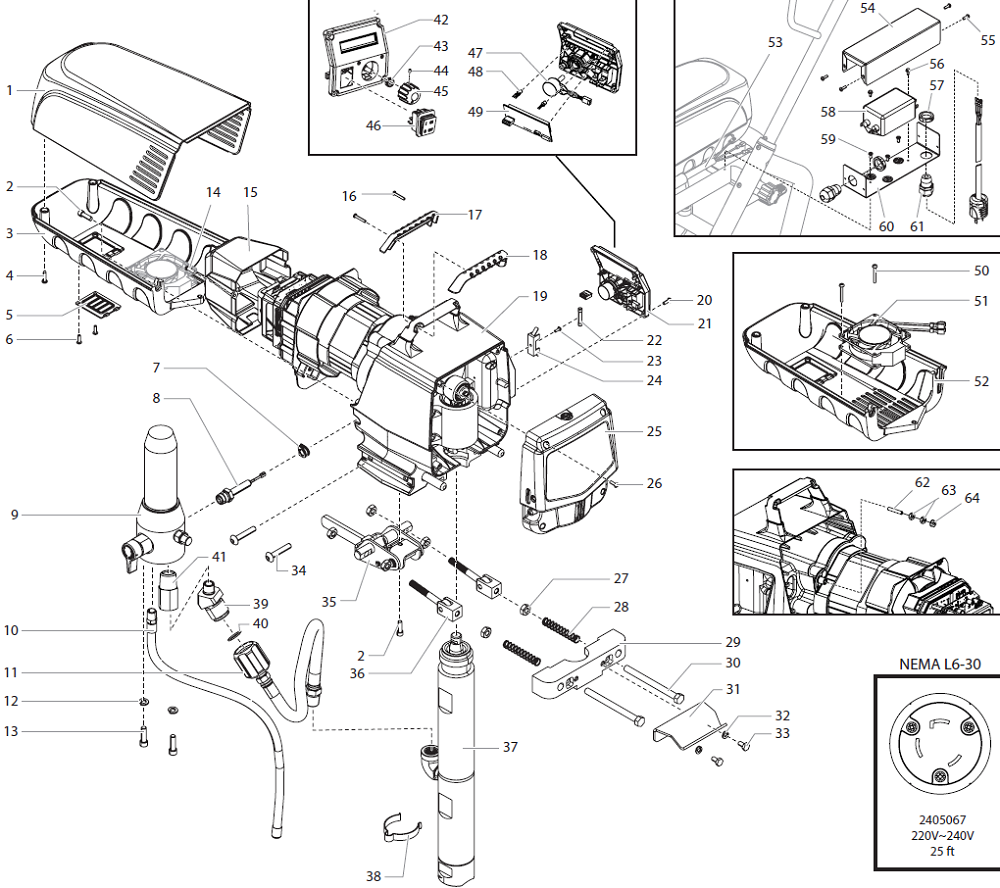

VIEW IMPACT 1640 FILTER PARTS →Titan Impact 1640 Main Assembly Parts
Use the Main Assembly diagram when servicing components installed around the machine structure, electrical system, pressure controls and protective housings.
Verified catalog examples include the 805-425 Motor Shroud, 0551666 Transducer, 0558321A Complete Control Panel Assembly, 800-929 15A Fuse, 0522210 Fuse Block and 0558710 Filter Assembly.
SHOP IMPACT 1640 MAIN ASSEMBLY PARTS →Titan Impact 1640 Accessories
The Impact 1640 accessories category extends beyond internal repair components to the equipment used in the complete spray system. Selecting OEM-compatible hoses, filters, fittings and pressure-monitoring components is important when configuring a high-output professional airless setup.
Current catalog examples include the 0508239 High-Pressure Fluid Gauge, 661-020 Tip Seat & Seal Kit, 0089957 and 0089959 High-Pressure Gun Filters, 0289013 M-4 Spray Gun, 0289228 Tip Guard and 0291006 50-foot x 3/8-inch high-pressure hose.
SHOP IMPACT 1640 ACCESSORIES →Match the Impact 1640 Symptom to the Correct Assembly
| Symptom | Inspection Starting Point | Diagram |
|---|---|---|
| Will Not Prime | Material supply, inlet screen, inlet valve, ball, seat and fluid-section condition | Fluid Section |
| Low / Unstable Pressure | Packings, piston, valves, seals, filter and pressure-control system | Fluid Section / Filter / Main |
| Fluid Leakage | Packing assemblies, piston rod, seals, fittings and pump components | Fluid Section |
| Mechanical Noise | Slider, gears, bearings, housings and mechanical drive components | Drive Assembly |
| Electrical / Control Problem | Power supply, switch, fuse, controller, transducer, wiring and related components | Main Assembly |
| Restricted Material Flow | Inlet screen, manifold filter, gun filter, hose and fluid passages | Fluid / Filter / Accessories |
Find the Correct Impact 1640 Part in Four Steps
Verify Impact 1640 Parts by Diagram and OEM Number
Some components used on the Impact 1640 may resemble or even be shared with parts from other Titan machines, but interchangeability should never be assumed from appearance or model-family similarity. Confirm the Impact 1640, applicable assembly, diagram callout and complete OEM part number before ordering.
Buy Titan Impact 1640 Parts by OEM Part Number
The Impact 1640 contains high-output pump, electrical, drive and fluid-system components where exact fitment matters. Ordering by appearance alone can lead to an incorrect part, especially when similar Titan components are used across multiple machine families.
Use the sequence Impact 1640 → assembly → exploded-view callout → Titan OEM part number. Where an OEM number has been superseded, verify the current replacement before checkout.
Relieve Pressure Before Servicing the Impact 1640
Airless spray equipment operates at pressures capable of causing serious fluid-injection injury. Shut down the sprayer, disconnect electrical power and follow the applicable Titan pressure-relief procedure before inspection or disassembly. Never loosen a pressurized gun, hose, filter, fitting, valve or fluid-section component.
Need Parts for Another Titan Impact Sprayer?
If your machine is not an Impact 1640, return to the main Titan Impact Sprayer Parts directory and choose the exact model before purchasing replacement components.
Browse All Titan Impact Sprayer Parts → Select your exact Titan Impact model and shop genuine OEM replacement parts using factory exploded diagrams.Buy Titan Impact 1640 Airless Sprayer Parts
Confirm your Impact 1640, select the correct factory assembly, locate the numbered component on the exploded drawing and verify the complete Titan OEM part number before placing your order.
SHOP IMPACT 1640 PARTS →Titan Impact 1640 Parts FAQ
Where can I buy genuine Titan Impact 1640 parts?
What fluid section is used on the Titan Impact 1640?
Which repacking kit is listed for the Impact 1640 fluid section?
What filter assembly is used on the Titan Impact 1640?
What parts are available for the Impact 1640 fluid section?
Where can I find Impact 1640 electrical and control parts?
Where can I find Titan Impact 1640 accessories?
Can I identify an Impact 1640 replacement part by appearance?
How should I identify the correct Impact 1640 replacement part?
Not Sure Which Impact 1640 Part You Need?
Have the machine model and serial information, assembly name, diagram callout and any OEM number visible on the original component available. These references provide the strongest basis for confirming the correct Impact 1640 replacement part.
