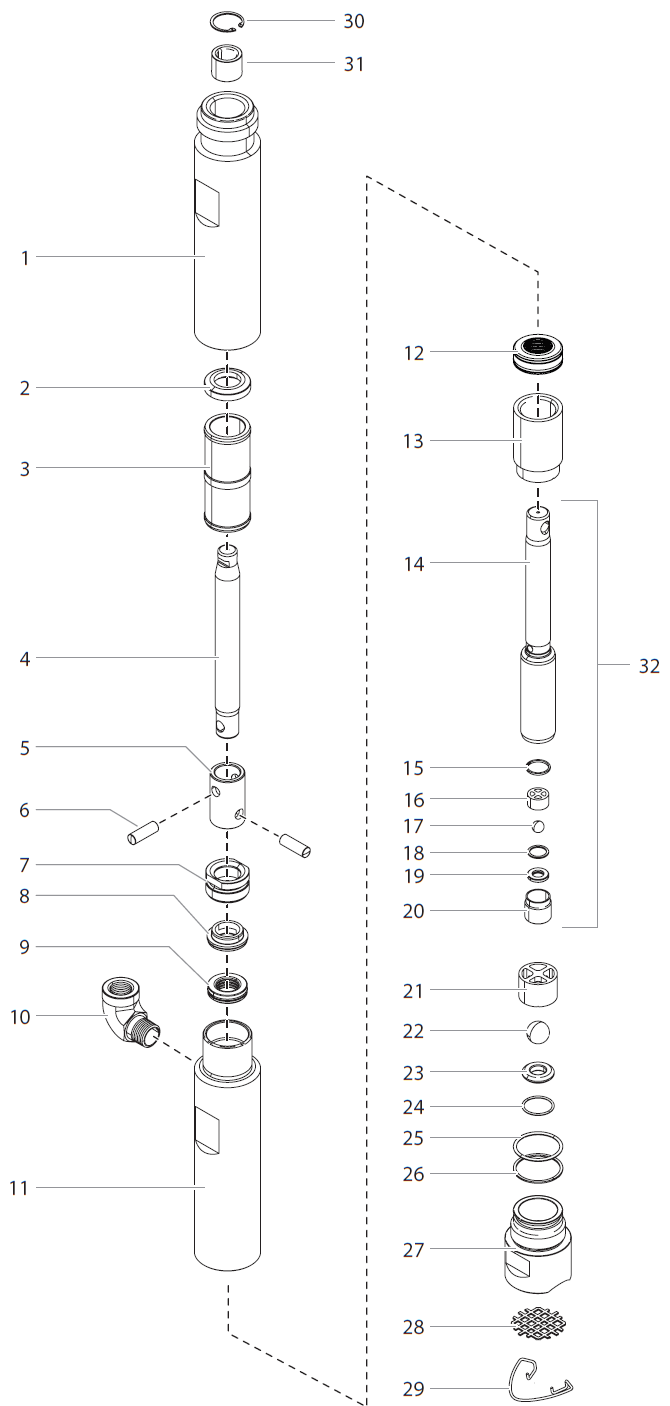

Fluid Section

Fluid Section
Titan 0509927 Seal Insertion Tool
Titan 0509927 Seal Insertion Tool

Item No: --

Part #: 0509927

  Part 0509927 is a seal insertion tool designed specifically for installing replacement...

Retail Price: $73.90
You save: $6.13 (8.29%)
Our Price: $67.77
QTY:
Titan 0558785 Fluid Section Repacking Kit
Titan 0558785 Fluid Section Repacking Kit

Item No: ---

Part #: 0558785

Titan 0558785 Fluid Section Repacking Kit Titan 0558785 Fluid Section Repacking Kit is a compre...

Retail Price: $310.70
You save: $45.36 (14.60%)
Our Price: $265.34
QTY:
Titan 0558793 Fluid Section Packing Kit
Titan 0558793 Fluid Section Packing Kit

Item No: -

Part #: 0558793

Titan 0558793 Fluid Section Packing Kit - Reliable Sealing for Optimal Performance Your Titan spr...

Retail Price: $190.70
You save: $23.84 (12.50%)
Our Price: $166.86
QTY:
Titan 0558419 Cylinder
Titan 0558419 Cylinder

Item No: 1

Part #: 0558419

Titan 0558419 Cylinder - Durable and Precise Fluid Section Component Titan 0558419 Cylinder is a r...

Retail Price: $398.00
You save: $58.11 (14.60%)
Our Price: $339.89
QTY:
Titan 800-643 Spacer Stopping
Titan 800-643 Spacer Stopping

Item No: 2

Part #: 800-643

  800-643 Spacer Stopping is a precision component used to control travel limits and mai...

Retail Price: $60.70
You save: $5.04 (8.30%)
Our Price: $55.66
QTY:
Titan 800-636A Piston Bushing Extension
Titan 800-636A Piston Bushing Extension

Item No: 3

Part #: 800-636A

Titan 800-636A Piston Bushing Extension *Replaces Part # 0524906*

Retail Price: $183.90
You save: $22.99 (12.50%)
Our Price: $160.91
QTY:
Titan 0558570A Piston Extention
Titan 0558570A Piston Extention

Item No: 4

Part #: 0558570A

Titan 0558570A Piston Extention Titan 0558570A Piston Extension is a precision-engineered co...

Retail Price: $191.40
You save: $23.92 (12.50%)
Our Price: $167.48
QTY:
Titan 0558422 Extension slider
Titan 0558422 Extension slider

Item No: 5

Part #: 0558422

Titan 0558422 Extension sliderFits: Impact 1640

Retail Price: $130.50
You save: $13.57 (10.40%)
Our Price: $116.93
QTY:
Titan 9832126 Dowel Pin
Titan 9832126 Dowel Pin

Item No: 6

Part #: 9832126

Titan 9832126 Dowel Pin .375 dia x 1.14 lg

$22.20
QTY:
Titan 0509123A Upper Packing Assembly
Titan 0509123A Upper Packing Assembly

Item No: 9

Part #: 0509123A

  Helix part 0509123A is an upper packing assembly designed to seal the piston or rod in...

Retail Price: $172.10
You save: $21.51 (12.50%)
Our Price: $150.59
QTY:

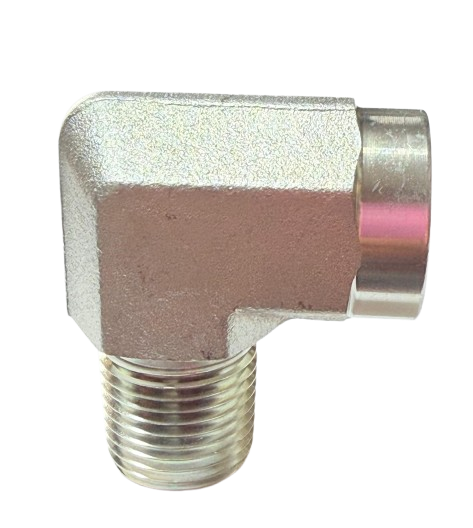

Titan 9885613 Fitting 90 elbow
Titan 9885613 Fitting 90 elbow

Item No: 10

Part #: 9885613

Titan 9885613 Fitting, 90 elbow, 1/2npt, stl

$26.10
QTY:
Titan 0558423 Upper housing
Titan 0558423 Upper housing

Item No: 11

Part #: 0558423

Titan 0558423 Upper housing

Retail Price: $179.50
You save: $22.44 (12.50%)
Our Price: $157.06
QTY:
Titan 0558582A Lower Seal Assembly
Titan 0558582A Lower Seal Assembly

Item No: 12 AND 13

Part #: 0558582A

  Part number 0558582A is a lower seal assembly designed to prevent fluid leakage and ma...

Retail Price: $179.60
You save: $22.45 (12.50%)
Our Price: $157.15
QTY:
Titan 0558424A Packaged Piston rod
Titan 0558424A Packaged Piston rod

Item No: 14

Part #: 0558424A

Titan 0558424A Piston rod, pkgd - Precision and Durability Titan 0558424A...

Retail Price: $282.10
You save: $39.21 (13.90%)
Our Price: $242.89
QTY:
Titan 800-348 Outlet Valve Seal
Titan 800-348 Outlet Valve Seal

Item No: 15

Part #: 800-348

  Part number 800-348 is an Outlet Valve Seal used in Airless Sprayer 1140 I and IX, 740...

$2.50
QTY:
Titan 0507452 Upper Cage
Titan 0507452 Upper Cage

Item No: 16

Part #: 0507452

  Part number 0507452 is an upper cage assembly that houses and protects critical intern...

$29.00
QTY:
Titan 9841502 Outlet Valve Ball
Titan 9841502 Outlet Valve Ball

Item No: 17

Part #: 9841502

Titan 9841502 Outlet Valve Ball is a 10mm Carbide ball used on various Titan spray guns. Titan 9841...

$25.10
QTY:
Titan 0507454 Washer
Titan 0507454 Washer

Item No: 18

Part #: 0507454

  Part number 0507454 is a replacement washer used in various airless sprayer models. It...

$2.50
QTY:
Titan 0294516 Outlet Valve Seat (replaces Titan 944-043)
Titan 0294516 Outlet Valve Seat (replaces Titan 944-043)

Item No: 19

Part #: 0294516

Titan 0294516 Outlet Valve replaces Titan 944-043, it is a circular seal which ensures proper sealin...

Retail Price: $84.30
You save: $7 (8.30%)
Our Price: $77.30
QTY:
Titan 800-336 Outlet Valve Retainer
Titan 800-336 Outlet Valve Retainer

Item No: 20

Part #: 800-336

  Part number 800-336 is an Outlet Valve Retainer used in Airless Sprayer 1140I and IA, ...

Retail Price: $57.80
You save: $4.8 (8.30%)
Our Price: $53.00
QTY:
Titan 0558676 Inlet ball Cage
Titan 0558676 Inlet ball Cage

Item No: 21

Part #: 0558676

Titan 0558676 Inlet ball Cage, 3/4"

Retail Price: $115.20
You save: $11.98 (10.40%)
Our Price: $103.22
QTY:
Titan 0555595 Inlet Valve Ball
Titan 0555595 Inlet Valve Ball

Item No: 22

Part #: 0555595

  Impact part 0555595 is an Inlet Valve Ball used in the pump section of Impact 1640 pre...

Retail Price: $72.40
You save: $6.01 (8.30%)
Our Price: $66.39
QTY:
Titan 00310 Inlet Seat
Titan 00310 Inlet Seat

Item No: 23

Part #: 00310

Titan 00310 Inlet Seat for several Titan sprayers like the Titan ProMark II Line Striper, Titan ED65...

Retail Price: $93.60
You save: $7.77 (8.30%)
Our Price: $85.83
QTY:
Titan 9871218 O-Ring
Titan 9871218 O-Ring

Item No: 24

Part #: 9871218

  Titan part 9871218 is an O-Ring used to create a leak‑tight seal between components ...

$3.80
QTY:
Titan 800-332 Viton O-Ring
Titan 800-332 Viton O-Ring

Item No: 25

Part #: 800-332

Part 800-332 is a replacement Viton o-ring used in fluid and hydraulic systems on a wide range o...

$3.80
QTY:
Titan 800-333 Back-Up Ring PTFE
Titan 800-333 Back-Up Ring PTFE

Item No: 26

Part #: 800-333

  Part number 800-333 is a Back-Up Ring PTFE used in Airless Sprayer 1140 I and IA, 840 ...

$5.00
QTY:

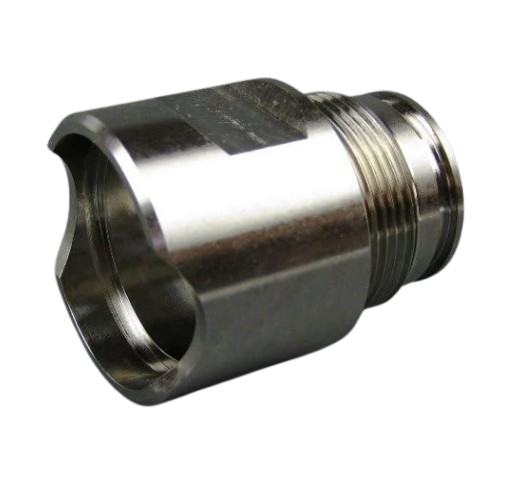

Titan 800-635A Foot Valve Housing
Titan 800-635A Foot Valve Housing

Item No: 27

Part #: 800-635A

Titan 800-635A Foot Valve HSG or Housing, foot valve, pkgd *Replaced Part #800-635 and 0524911*Fits:...

Retail Price: $163.90
You save: $20.49 (12.50%)
Our Price: $143.41
QTY:
Titan 451-018 Inlet screen
Titan 451-018 Inlet screen

Item No: 28

Part #: 451-018

Titan 451-018 Inlet screen replaces Titan 555217 is deigned for use on various Titan paint sprayers ...

$9.00
QTY:

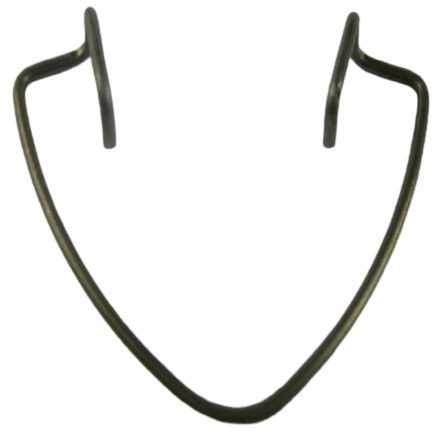

Titan 0524421 Spring clip
Titan 0524421 Spring clip

Item No: 29

Part #: 0524421

Part number 0524421 is a Spring Clip that secures and retains components such as hoses or cables on ...

Retail Price: $32.50
You save: $1.79 (5.51%)
Our Price: $30.71
QTY:
Titan 9822556 Snap Ring
Titan 9822556 Snap Ring

Item No: 30

Part #: 9822556

  Impact part 9822556 is a Snap Ring used in Impact 1640 pressure washer pumps and assem...

$3.90
QTY:
Titan 9860727 Bushing
Titan 9860727 Bushing

Item No: 31

Part #: 9860727

Titan 9860727 for Impact - Short Description body { background-color: #f8f9fa...

$24.20
QTY:
Titan 0558365A Piston Assembly
Titan 0558365A Piston Assembly

Item No: 32

Part #: 0558365A

Titan 0558365A Piston Assembly - Reliable Performance for Airless Sprayers Restore the heart of y...

Retail Price: $293.80
You save: $40.84 (13.90%)
Our Price: $252.96
QTY:

Breaking Down the Fluid Section Components

Maintain the heart of your Titan Impact 1640 with the genuine Fluid Section from AllTitanParts, a modular, field-serviceable assembly designed for both full replacements and quick packing swaps (P/N 0558358A). Featuring Titan’s one-piece T-slot piston design and efficient Quad+ self-adjusting packings, this fluid section delivers up to 50 % longer life and consistent sealing under heavy-duty, abrasive coatings.



Every component is engineered to OEM specifications for precise fit and long-lasting durability: upper and lower packing assemblies, spacer, upper housing, inlet and outlet valve balls, seals, and cages all available individually or in complete kits, ensuring full fluid dynamic integrity. Designed to be quickly removed with just a clamp and two nuts, this assembly enables fast field servicing so you can address maintenance needs without losing valuable job-site time.

Built for the heavy pumping demands of up to 1.5 GPM and spray pressures around 3,300 psi, this Fluid Section supports the robust motor, Digi‑Trac controls, and submerged foot valve of the Impact 1640, delivering reliable output on large-scale residential, commercial, or industrial projects.

At AllTitanParts, we don’t just provide high-quality parts, we offer detailed assembly diagrams, fast shipping, and expert support to ensure you quickly identify and install the right components. Don’t let worn fluid parts slow you down. Shop now for your Impact 1640 Fluid Section and spray with consistent, robust performance.
