Titan Impact 340 Airless Sprayer Parts
Shop genuine OEM Titan Impact 340 Airless Sprayer Parts using organized factory assembly sections and exploded parts diagrams. Identify main-assembly, skid, drive-system, suction-set, fluid-section and accessory components by diagram location and Titan OEM part number before ordering.
Maintain and Repair Your Titan Impact 340
The Titan Impact 340 is an electric airless sprayer built around the Impact Series pump and drive architecture. Its published performance includes up to 0.47 GPM maximum delivery, 3,000 PSI maximum operating pressure and a 0.021-inch maximum tip size.
Instead of searching through unrelated components, start with the assembly containing the failed part. Then use the exploded diagram callout and OEM part number to identify the required replacement.
Titan Impact 340 Technical Reference
| Manufacturer | Titan |
| Sprayer | Impact 340 Airless Sprayer |
| U.S. Model Number | 0532026 |
| Maximum Delivery | 0.47 GPM |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Tip Size | 0.021 in. |
| Equipment Type | Electric Airless Paint Sprayer |
| Parts Identification | Factory exploded diagrams and OEM part numbers |
Choose Your Titan Impact 340 Parts Diagram
Start with the section of the machine you are repairing, then match the numbered diagram callout to the Titan OEM part number.
Which Impact 340 Assembly Should You Open?
Use the symptom or component location as a starting point—not as a diagnosis.
| What You Need | Start Here | Typical Components to Identify |
|---|---|---|
| Frame / Machine Hardware | Main Assembly | Main structural, mounting and machine-level components |

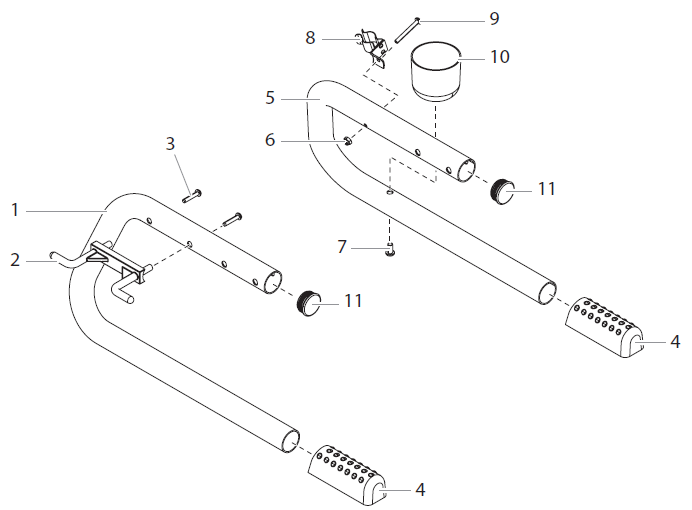

| Base / Skid Components | Skid Assembly | Skid, feet, support and mounting hardware |

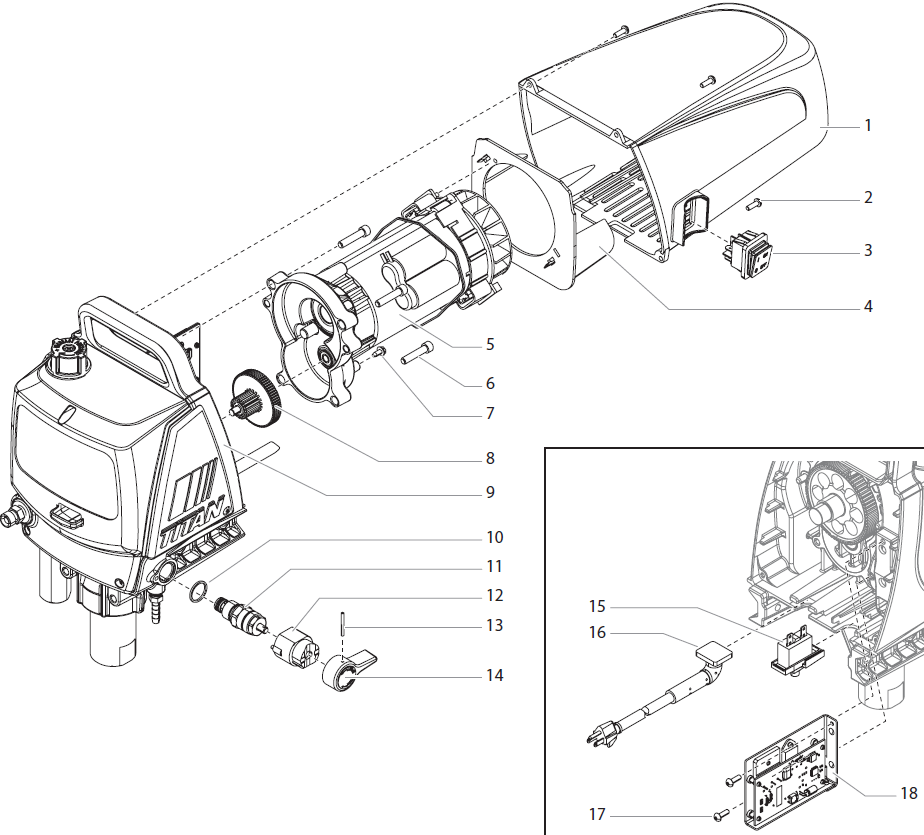

| Drive or Control Component | Drive Assembly I / II | Drive-system, pressure-control and associated components |

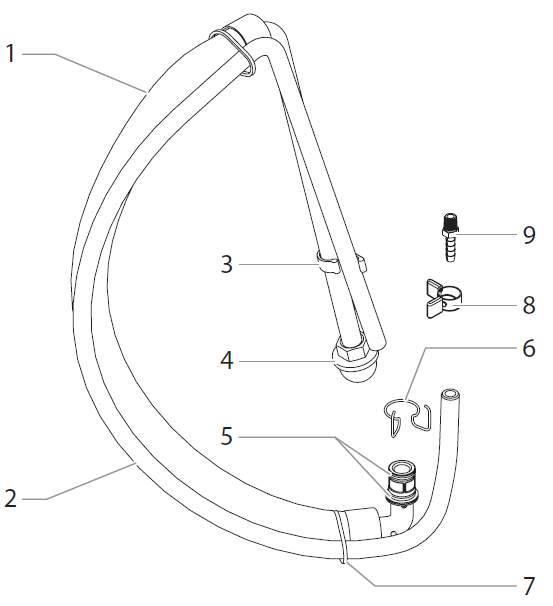

| Sprayer Will Not Draw Paint | Suction Set / Fluid Section | Suction components, inlet-side parts, valves and pump components |
| Leakage / Packing Service | Fluid Section | Piston, packings, seals, valve-related components and repair kits |
| Supporting Accessory / Service Item | Accessories | Compatible accessories, tools and supporting service items |
Key Impact 340 Systems to Know During Service
Confirm the Diagram Before Ordering an Impact 340 Repacking Kit
More than one repacking-kit number can appear in Impact 340 service listings. AllTitanParts currently identifies 0532911 and 0532921A in Impact 340 / Impact 400 applications. Do not choose between them by model name alone. Verify the applicable factory diagram, installed fluid-section configuration and OEM part number before ordering.
Match the Symptom to the System Before Buying Parts
| Symptom | Inspect First | Relevant Diagram |
|---|---|---|
| Will Not Prime | Material supply, suction path, inlet-side components and fluid section | Suction Set / Fluid Section |
| Pressure Will Not Build Correctly | Fluid section, valve components and pressure-control system | Fluid Section / Drive Assembly |
| Fluid Leakage Around Pump | Packing and sealing areas | Fluid Section |
| Drive Noise / Mechanical Problem | Drive-system components | Drive Assembly I / II |
| Damaged Base or Support | Skid, mounting hardware and structural components | Skid / Main Assembly |
Order the Correct Impact 340 Part in Four Steps
Why the OEM Part Number Matters
Parts that look similar are not necessarily interchangeable. Dimensions, revisions, electrical characteristics, sealing surfaces and assembly applications can differ even when two components have a similar appearance.
For the strongest fitment match, use the exact Impact 340 assembly diagram and Titan part number rather than purchasing solely by component appearance or a generic description.
Relieve Pressure Before Servicing the Impact 340
Airless equipment operates at pressures capable of causing serious injection injury. Before inspecting, removing or replacing fluid-system components, shut down the sprayer, disconnect electrical power and follow the pressure-relief procedure in the applicable Titan Impact 340 manual. Never loosen a pressurized hose, gun, fitting or pump component.
Need Parts for a Different Titan Impact Sprayer?
Return to the Impact Series hub if the model plate identifies a different Impact sprayer.
Titan Impact Sprayer Parts Browse Impact 340, 400, 410, 440, 540, 640, 740, 840, 1040, 1140, 1640 and other listed Impact-series parts categories.Find the Correct Titan Impact 340 Replacement Part
Select the appropriate factory assembly, locate the numbered component on the exploded diagram and match the Titan OEM part number before checkout.
RETURN TO IMPACT 340 PARTS ↑Titan Impact 340 Airless Sprayer Parts FAQ
01. Where can I find genuine Titan Impact 340 replacement parts?
02. What is the maximum pressure of the Titan Impact 340?
03. What is the maximum flow rate of the Titan Impact 340?
04. What is the maximum tip size for the Titan Impact 340?
05. Where do I find Impact 340 piston, packing and valve parts?
06. Which repacking kit fits the Titan Impact 340?
07. Where do I find Impact 340 suction-system parts?
08. How do I make sure I order the correct Impact 340 part?
Not Sure Which Impact 340 Part You Need?
Have the sprayer model, serial information, assembly name, diagram callout and any part number visible on the original component available. These details provide the strongest basis for identifying the correct Titan OEM replacement part.
