Titan Impact 1040 Airless Sprayer Parts
Shop genuine OEM Titan Impact 1040 Airless Sprayer Parts using organized factory exploded diagrams. Find main-machine, drive, fluid-section, filter, upright-cart and accessory components for professional maintenance and repair. Choose the applicable assembly, locate the numbered diagram callout and verify the complete Titan OEM part number before purchasing.
Find the Correct Parts for Your Titan Impact 1040
The Titan Impact 1040 is a professional electric airless sprayer platform built for demanding, high-volume coating applications. Its service architecture includes the motor and control system, multi-stage mechanical drive, removable fluid section, high-pressure filtration system and jobsite cart components.
This category is organized around those repair systems so contractors, technicians and maintenance departments can move directly from a machine symptom or damaged component to the appropriate factory diagram. For accurate ordering, identify the assembly first, locate the component on the exploded drawing and match its callout to the complete Titan OEM part number.
Key Titan Impact 1040 Parts Assemblies
| System | Assembly / Reference | Use This Section For |
|---|---|---|
| Core Machine | Main Assembly | Motor-area, control, electrical, protective and machine-housing components |
| Mechanical Powertrain | Drive Assembly | Slider, housings, gears and associated drive-system components |

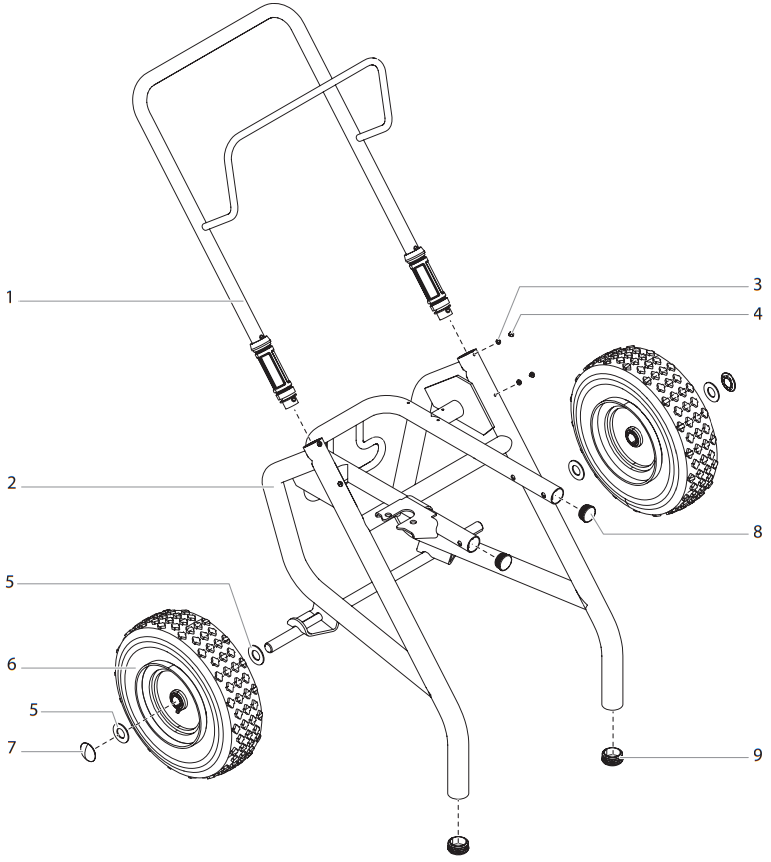

| Cart / Mobility | Upright Cart 0552591A | Cart frame, wheels, handle and related mounting hardware |
| Pump / Fluid System | Fluid Section 0552603A | Packings, piston-system, valves, seals and fluid-section service parts |
| Filtration | Filter Assembly 805-269A | Filter body, element, spring, seals, fittings and associated components |
| Additional Equipment | Impact 1040 Accessories | OEM service items and related Impact 1040 components |
Choose Your Titan Impact 1040 Parts Assembly
Start with the system being repaired. Open the corresponding factory diagram, identify the numbered component and verify the complete Titan OEM part number before adding the replacement part to your order.
Which Impact 1040 Parts Diagram Should You Open?
| Repair Area | Start Here | Typical Parts |
|---|---|---|
| Electrical / Core Machine | Main Assembly | Motor-area components, covers, controls, electrical parts and hardware |
| Mechanical Drive | Drive Assembly | Slider, slider housing, gears, drive housings and associated components |
| Pump / Fluid Delivery | Fluid Section 0552603A | Packings, piston-system parts, valves, seals and pump-service components |
| Fluid Filtration | Filter Assembly 805-269A | Filter, housing, spring, seals, fittings and valve components |
| Cart / Mobility | Upright Cart 0552591A | Frame, wheels, handle and mounting hardware |
| Additional Service Parts | Accessories | OEM service items and additional cataloged components |
Titan Impact 1040 Main Assembly Parts
Use the main assembly diagram when repairing components installed around the primary machine structure, motor, controls and protective housing. This section provides a direct route to individually replaceable OEM components rather than requiring replacement of unrelated systems.
Examples from the Impact 1040 main assembly include the Titan 805-425 Motor Shroud, 700-681 Motor Mount Screw and 0552404A Belly Pan Assembly. Always match the numbered factory callout to the full OEM part number before purchase.
SHOP IMPACT 1040 MAIN ASSEMBLY PARTS →Titan Impact 1040 Drive Assembly Parts
The drive assembly transfers motor output to the reciprocating pump mechanism. Mechanical wear, abnormal noise or damaged power-transmission components should be investigated using the drive-system diagram and applicable Titan service procedures.

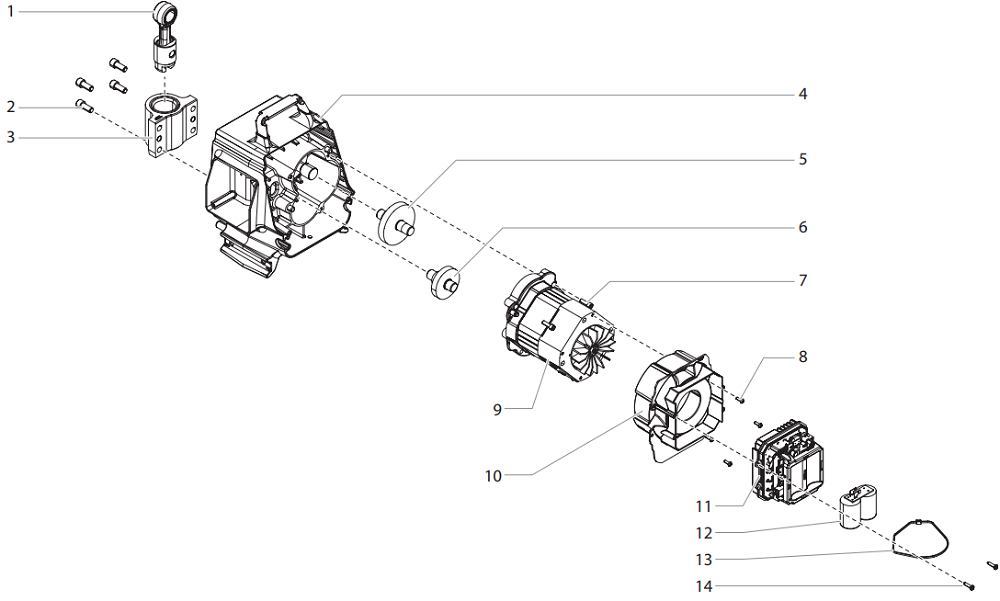

Cataloged Impact 1040 drive components include the 805-241A Slider Assembly, 805-248A Slider Housing, 805-244A Housing Assembly and 0558362A 3rd Stage Gear Assembly, along with associated hardware and electrical drive components.
VIEW IMPACT 1040 DRIVE PARTS →Impact 1040 Fluid Section 0552603A Parts
The fluid section is the primary pumping assembly that develops coating flow and spray pressure. Worn packings, contaminated valves, damaged sealing surfaces or other pump conditions can contribute to leakage, poor priming, pressure loss or irregular pump operation.
The standard Impact 1040 category identifies the fluid section as 0552603A. The catalog lists the genuine OEM Titan 0558740 Repacking Kit for service of applicable Impact 1040 fluid-section components. Confirm the fluid-section assembly and factory diagram before beginning a rebuild.
SHOP IMPACT 1040 FLUID SECTION PARTS →Impact 1040 Filter Assembly 805-269A Parts
The high-pressure filter system helps remove debris from coating before material travels through the hose and spray gun. Restriction, contamination, damaged seals or worn filter components can affect material flow and should be inspected during fluid-system troubleshooting.

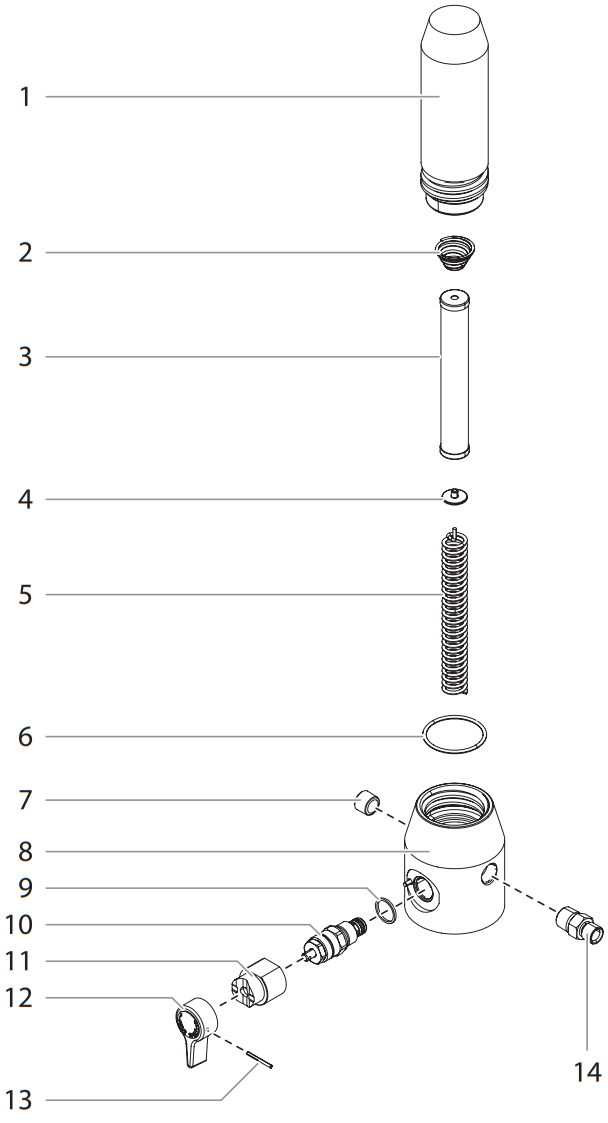

The 805-269A Filter Assembly includes cataloged filter-body, spring, element, adapter, O-ring, plug, housing, gasket, bypass-valve, handle, fitting and related components. Use the exploded diagram to determine which individual part is required.
VIEW IMPACT 1040 FILTER PARTS →Impact 1040 and Impact 1040T Are Separate Parts Catalogs
Do not select a replacement component simply because it is labeled for an Impact 1040-family machine. The standard Impact 1040 and Impact 1040T have separate parts diagrams and can use different fluid-section, drive and configuration-specific components. Confirm the exact model shown on the sprayer before ordering.
Match the Impact 1040 Symptom to the Correct Assembly
| Symptom | Inspection Starting Point | Diagram |
|---|---|---|
| Will Not Prime | Material supply, intake path, inlet valve and fluid-section condition | Fluid Section |
| Low / Unstable Pressure | Filter condition, packings, piston-system, valves and seals | Fluid Section / Filter |
| Fluid Leakage | Packings, seals, fittings and pump components | Fluid Section |
| Mechanical Noise | Slider, housings, gears and drive components | Drive Assembly |
| Electrical / Control Problem | Power supply, controller, wiring and core electrical components | Main / Drive Assembly |
| Cart / Wheel Damage | Frame, handle, wheels and mounting hardware | Upright Cart |
Find the Correct Impact 1040 Part in Four Steps
Buy Titan Impact 1040 Parts by OEM Part Number
Selecting a part by appearance alone can result in an incorrect order. Components that look similar may differ by machine generation, dimensions, mounting arrangement, electrical specification, pump design or intended assembly.
For the most reliable identification, use the sequence: machine model → factory assembly → exploded-view callout → OEM part number. This approach is especially important for fluid-section, drive, electrical and configuration-sensitive components.
Relieve Pressure Before Servicing the Impact 1040
Airless spraying equipment operates at pressures capable of causing serious fluid-injection injury. Shut down the machine, disconnect electrical power and follow the applicable Titan pressure-relief procedure before inspecting or removing pressurized components. Never loosen a pressurized spray gun, hose, filter, fitting, valve or fluid-section component.
Need Parts for Another Titan Impact Sprayer?
If your machine is an Impact 1040T or another Titan Impact model, return to the main Impact Sprayer Parts directory and choose the exact machine before purchasing replacement components.
Browse All Titan Impact Sprayer Parts → Select your exact Titan Impact model and shop genuine OEM replacement parts using factory exploded diagrams.Buy Titan Impact 1040 Airless Sprayer Parts
Confirm your standard Impact 1040, select the applicable factory assembly, locate the component on the exploded drawing and verify the complete Titan OEM part number before checkout.
SHOP IMPACT 1040 PARTS →Titan Impact 1040 Parts FAQ
Where can I buy genuine Titan Impact 1040 parts?
What fluid section is listed for the Titan Impact 1040?
Which repacking kit is used with the Impact 1040 fluid section?
What filter assembly is used on the Impact 1040?
What upright cart assembly is listed for the Impact 1040?
Where can I find Impact 1040 drive-system parts?
Are Titan Impact 1040 and Impact 1040T parts the same?
How should I identify the correct Impact 1040 replacement part?
Should I replace a part based only on the sprayer symptom?
Not Sure Which Impact 1040 Part You Need?
Have the machine model, serial information, assembly name, diagram callout and any OEM number visible on the original component available. These references provide the strongest basis for identifying the correct replacement component.
