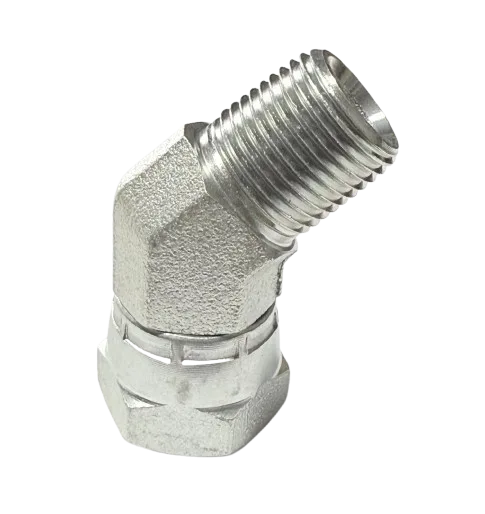

Titan 9885640 Elbow Fitting
The 9885640 Elbow Fitting is an OEM fluid connection component used on select Titan Impact airless sprayers. This elbow fitting allows fluid or pressure lines to change direction within tight spaces while maintaining a secure, high-pressure seal.
| Part Number | 9885640 |
|---|---|
| Product Type | Elbow Fluid Fitting |
| Condition | New OEM |
| Includes Components | Elbow fitting (single piece) |
| Fits | Impact 740; Impact 840; Impact 840I; Impact 840IA |
OEM Elbow Fitting for Titan Impact Airless Sprayers
The 9885640 Elbow Fitting is a factory-specified fluid connector used on Titan Impact 740, 840, and 840 I/IA airless sprayers. It provides a right-angle fluid path to properly route hoses or tubes within the sprayer frame and fluid system.
Elbow fittings are commonly used where straight fittings cannot be installed due to space limitations. Using the correct OEM elbow fitting helps prevent hose kinking, thread stress, and fluid leaks.
What it does and when to replace it
| Directional routing | Changes fluid line direction at a right angle |
|---|---|
| Space management | Allows hose routing in confined areas |
| Pressure sealing | Maintains leak-free operation under pressure |
| Fluid leaks | Seepage at threaded or elbow junctions |
|---|---|
| Thread damage | Stripped, cracked, or cross-threaded fitting |
| Corrosion | Material degradation from coatings or cleaners |
| Hose replacement | Often replaced during hose or tube service |
Compatibility
Part 9885640 is compatible with the following Titan Impact airless sprayers. Always confirm fitting size and location using the correct parts diagram.
| Sprayer Model | Component |
|---|---|
| Impact 740 | Elbow Fitting (9885640) |
| Impact 840 | Elbow Fitting (9885640) |
| Impact 840I | Elbow Fitting (9885640) |
| Impact 840IA | Elbow Fitting (9885640) |
Related parts commonly serviced together
Inspect hose ends and fittings during replacement.
Used to adapt hose routing and orientation.
Required for proper sealing on NPT connections.
