Titan EPX2255 Advantage Fluid Section Assembly Parts
Shop genuine OEM Titan EPX2255 Advantage Fluid Section Assembly Parts for servicing the pumping section of the SprayTech Advantage EPX2255 airless sprayer. Use the model-specific exploded diagram to identify fluid-section components, packings, valves, seals, piston-related parts and associated hardware before ordering replacements.
Find the Correct EPX2255 Fluid Section Replacement Parts
The fluid section is the pumping portion of the EPX2255 system. During operation, its internal components work together to draw coating material into the pump and move it toward the high-pressure outlet. Wear, contamination, damaged sealing components or valve problems can affect priming, pressure, output and overall spray performance.

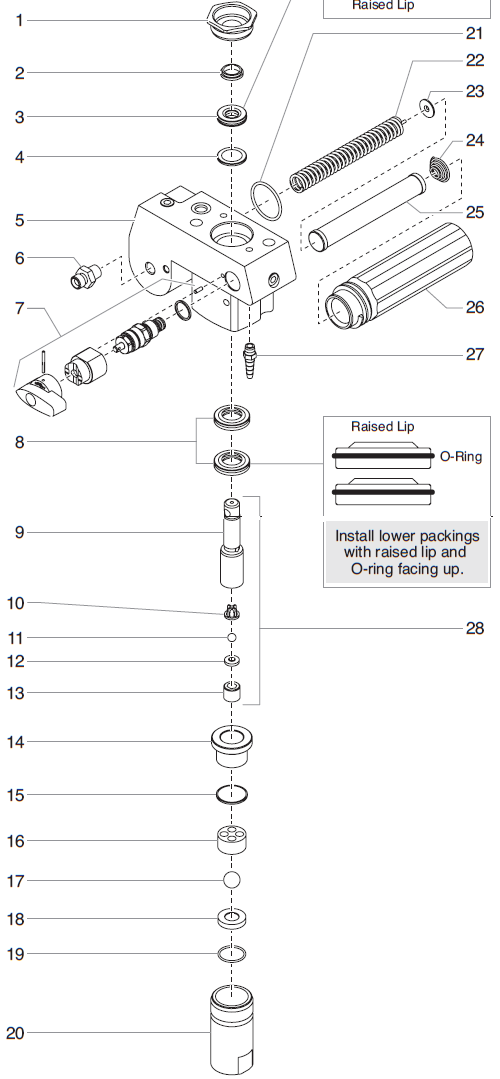

Use the EPX2255 fluid section exploded diagram to identify the component being serviced. Locate its numbered callout, match the reference to the corresponding parts list and verify the documented OEM part number before ordering. Diagnose the complete material path before replacing parts because suction-system, fluid-section, filter, hose and spray-tip problems can produce overlapping symptoms.
Find Your EPX2255 Fluid Section Part in Four Steps
Confirm EPX2255
Verify the exact Advantage model before selecting fluid-section or piston-pump replacement components.
Locate the Component
Find the required component on the EPX2255 fluid section exploded assembly diagram.
Match the Callout
Match the numbered diagram reference to the corresponding entry in the fluid-section parts list.
Verify the OEM Number
Confirm the documented part number and EPX2255 application before purchasing the replacement.
EPX2255 Fluid Section Components to Inspect
A fluid-section problem should be diagnosed as a system. Inspect the applicable inlet, outlet, piston and sealing components together when troubleshooting poor priming, pressure loss, leakage or reduced output.
Inspect documented piston-related components for wear, damage or conditions that can interfere with normal pumping action.
Inspect applicable packing components when the pump shows leakage, pressure loss or reduced pumping efficiency.
Check the documented inlet-valve components when the EPX2255 has difficulty drawing material into the fluid section.
Inspect the applicable outlet-side components when pressure generation or consistent material delivery is affected.
Use the exploded diagram to identify documented seals and O-rings associated with the fluid-section assembly.
Inspect applicable pump-body components and sealing surfaces for physical damage or conditions affecting assembly integrity.
Identify the correct documented retaining hardware, fasteners and associated components from the model-specific parts diagram.
Inspect the mechanical connection between the drive system and fluid section when pump movement is irregular or interrupted.
EPX2255 Pump Symptoms & Inspection Areas
| Symptom | Inspect First | Also Check | Before Ordering |
|---|---|---|---|
| Sprayer Will Not Prime | Suction path and inlet area | Fluid-section inlet components | Separate suction problems from pump problems |
| Low or Unstable Pressure | Fluid section and valve areas | Filters, hose and spray tip | Locate the pressure-loss source first |
| Reduced Material Output | Inlet path and fluid section | Strainer, filters and tip | Check for restrictions before replacing pump parts |
| Fluid Leakage | Exact leak location | Packings, seals and mating surfaces | Identify the affected diagram components |
| Irregular Pump Cycling | Fluid section | Gear box and drive connection | Determine whether the cause is hydraulic or mechanical |
| Pump Movement but Poor Spray Output | Fluid path and pressure | Filter, hose, gun and tip | Do not assume the fluid section is the only cause |
Follow the EPX2255 Fluid Path Before Replacing Parts
Poor priming, reduced output and pressure problems can originate before, inside or after the fluid section. Following the material path in sequence helps narrow the problem to the correct service area.
Confirm adequate coating supply and correct suction placement.
Check the strainer, suction path and intake connections.
Inspect applicable fluid-section inlet components.
Inspect piston, packing and related pump components.
Check the documented outlet-side fluid components.
Continue downstream through filters, hose, gun and spray tip.
Diagnose Before Replacing EPX2255 Fluid Section Parts
A blocked strainer, restricted suction path or intake-side air leak can resemble an internal pump problem.
Identify exactly where material is escaping before selecting packings, seals or other replacement components.
Filters, hose, gun and spray-tip restrictions can affect spray performance even when the fluid section is operating.
When replacing a worn internal component, inspect related mating surfaces and adjoining parts for associated wear.
Irregular mechanical movement can originate in the gear box or drive connection rather than inside the fluid section.
Identify components by their diagram callout and documented OEM number rather than ordering by appearance alone.
Related Titan EPX2255 Parts & Assembly Diagrams
If diagnosis indicates that the problem is outside the fluid section, continue with the EPX2255 assembly page for the affected system.
Verify EPX2255 Fluid Section Parts Before Ordering
Do not assume that pistons, packings, valves, seals, O-rings, pump-body components or related hardware from the EPX2155, EPX2355, EPX2455, EPX2555 or another SprayTech Advantage model are interchangeable with the EPX2255. Similar appearance does not establish compatibility. Use the EPX2255 fluid section assembly diagram and verify the documented OEM part number before purchase.
Before Ordering EPX2255 Fluid Section Parts
Verify the exact Advantage sprayer model before selecting pump parts.
Make sure the required component belongs to the fluid section rather than the suction set, gear box or another assembly.
Locate the required component on the exploded diagram and match its numbered reference to the parts list.
Confirm the documented OEM part number and EPX2255 application before ordering.
EPX2255 Fluid Section Maintenance Checks
Follow the appropriate flushing procedure after use to reduce dried coating and contamination within the fluid system.
Investigate visible fluid leakage promptly and identify its exact source before continued operation.
Keep the suction path and applicable intake strainer clean so the fluid section receives an unrestricted material supply.
Diagnose unexplained pressure or output changes before they develop into more extensive fluid-system problems.
EPX2255 Fluid Section Service Safety
Shut the sprayer down, disconnect electrical power and follow the applicable pressure-relief procedure before servicing any fluid-section component. Airless spray equipment can retain hazardous high-pressure fluid after the machine is switched off. Never loosen a pressurized fitting or attempt to stop a high-pressure leak with your hand. Follow the applicable Titan/SprayTech operating and service instructions during diagnosis, disassembly, cleaning and reassembly.
Shop Titan EPX2255 Fluid Section Assembly Parts
Use the EPX2255 fluid section exploded diagram to identify the required pump component. Match the diagram callout to the documented OEM part number and verify the application before ordering.
Shop EPX2255 Fluid Section PartsTitan EPX2255 Advantage Fluid Section Assembly FAQ
Where can I find Titan EPX2255 fluid section parts?
Use this EPX2255 Advantage Fluid Section Assembly page to locate documented pump components shown on the model-specific exploded parts diagram.
How do I identify the correct EPX2255 fluid section part?
Confirm the EPX2255 model, locate the component on the fluid-section diagram, match its numbered callout to the parts list and verify the documented OEM part number.
What should I check if my EPX2255 will not prime?
Start with the coating supply, suction strainer, suction path and intake connections. If those areas are clear and properly sealed, continue diagnosis at the fluid-section inlet components.
Can worn fluid-section components cause pressure loss?
Fluid-section wear can contribute to pressure or output problems, but downstream restrictions and other system conditions can produce similar symptoms. Diagnose the complete fluid path first.
What should I inspect if the EPX2255 fluid section is leaking?
Identify the exact leak location and inspect the applicable packing, sealing and mating components shown in the EPX2255 fluid-section diagram.
Can a suction problem look like an EPX2255 fluid-section failure?
Yes. A blocked intake, restricted suction path or air entering the suction side can interfere with priming and material delivery. Check the intake system before replacing internal pump parts.
Are EPX2155 and EPX2255 fluid-section parts interchangeable?
Do not assume interchangeability. A component should be shared between models only when its documented OEM part number and application confirm compatibility with the EPX2255.
Why should I use the EPX2255 fluid section exploded diagram?
The exploded diagram shows component locations and numbered callouts that can be matched to the corresponding parts list, helping identify the correct OEM replacement before ordering.
Need Help Finding an EPX2255 Fluid Section Part?
Have your EPX2255 model information, serial information when available, existing component number and fluid-section diagram reference ready. These details help identify the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006
