Titan EPX2255 Advantage Motor Assembly Parts
Shop genuine OEM Titan EPX2255 Advantage Motor Assembly Parts for maintenance and repair of the SprayTech Advantage EPX2255 piston pump. Use the model-specific motor assembly exploded diagram to identify electrical, drive, mounting and related motor components, then match the diagram callout to the correct OEM part number before ordering.
Find the Correct EPX2255 Motor Assembly Replacement Parts
The motor assembly provides the mechanical drive required to operate the EPX2255 pumping system. Its components work with the gear box and fluid section to convert electrical input into the movement required for pumping and pressurizing coating material.

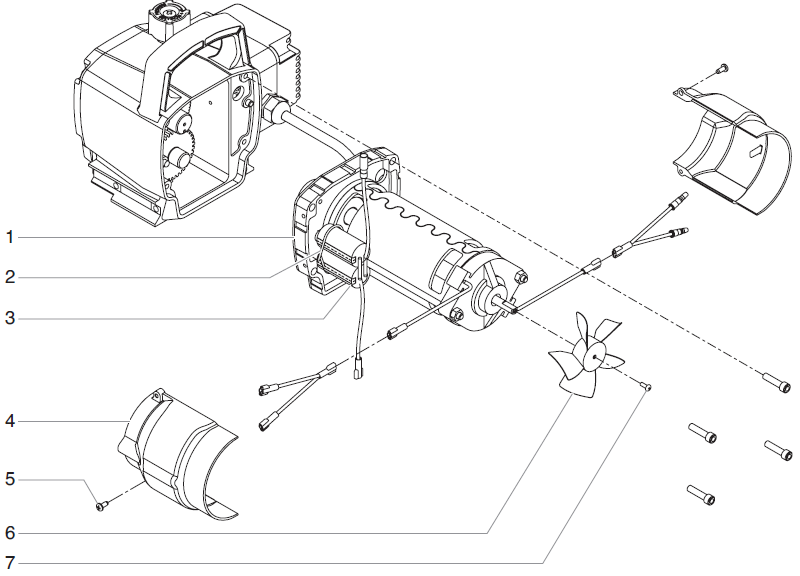

Use the EPX2255 motor assembly exploded diagram to locate the component being serviced. Match its numbered callout to the corresponding parts-list entry and verify the OEM part number before purchase. When the symptom may involve the gear box, fluid section or machine controls, inspect those systems before concluding that the motor assembly is the source.
Find Your EPX2255 Motor Part in Four Steps
Confirm EPX2255
Verify the sprayer model before selecting electrical or motor-related replacement components.
Locate the Motor Component
Find the required component on the EPX2255 motor assembly exploded diagram.
Match the Diagram Callout
Match the numbered diagram reference to its corresponding entry in the EPX2255 motor parts list.
Verify the OEM Number
Confirm the documented part number and EPX2255 application before purchasing the replacement.
EPX2255 Motor Assembly Components to Inspect
Use the motor assembly diagram to verify exactly which components are used on the EPX2255. Inspect related electrical, mechanical and mounting parts when diagnosing a motor or drive problem.
Identify documented motor components from the EPX2255 exploded view before disassembly or replacement.
Inspect documented wiring and connection points for physical damage, looseness or other visible service issues with power disconnected.
Check documented fasteners and mounting points that secure the motor to the adjoining sprayer structure.
Inspect the connection between the motor and mechanical drive whenever motor operation does not translate into normal pump movement.
Inspect documented covers, guards and related protective components for damage or missing hardware.
Use the exploded diagram to identify the correct screws, washers, retainers and other documented motor hardware.
When a motor does not operate normally, check the applicable controls and power path before replacing motor components.
Inspect the gear box when abnormal noise, movement or mechanical resistance appears to originate beyond the motor itself.
EPX2255 Motor Symptoms & Inspection Areas
| Symptom | Inspect First | Also Check | Before Ordering |
|---|---|---|---|
| Motor Does Not Operate | Power supply and controls | Motor connections and documented components | Determine whether the fault is upstream of the motor |
| Motor Runs but Pump Does Not Cycle Normally | Drive interface and gear box | Fluid section for mechanical resistance | Separate motor, drive and pump causes |
| Abnormal Noise | Motor mounting and drive connection | Gear box and adjacent components | Locate the noise source before replacing parts |
| Excessive Vibration | Motor mounting hardware | Gear box, frame and pump movement | Inspect connected assemblies |
| Intermittent Operation | Power and electrical connections | Controls and motor assembly | Diagnose the electrical path first |
| Reduced Sprayer Performance | Complete drive and pumping system | Fluid section, suction set and spray system | Do not assume the motor is the cause |
How the EPX2255 Motor Works With Other Assemblies
Motor-related symptoms can originate elsewhere in the machine. Use the complete drive path to determine which assembly should be inspected before ordering replacement components.
| Assembly | Role | Why Inspect It |
|---|---|---|
| Main Assembly | Contains related machine-level components and connections | Control or connection problems can affect motor operation |
| Motor Assembly | Provides mechanical drive power | Inspect when a motor-specific fault is confirmed |
| Gear Box | Transfers motor movement to the pump | Mechanical drive problems can resemble motor faults |
| Fluid Section | Converts drive movement into pumping action | Binding or pump wear can affect the load on the drive system |
| Suction System | Supplies coating to the pump | Poor material delivery can be mistaken for a drive problem |
Diagnose the EPX2255 Before Replacing Motor Parts
Confirm the available power and inspect applicable machine controls and connections before determining that a motor component requires replacement.
Inspect the drive connection and gear box to determine whether motor movement is being transferred correctly to the pumping section.
Determine whether the sound originates in the motor, mounting system, gear box or fluid section before replacing components.
Inspect mounting hardware and adjoining drive components for looseness, wear or damage.
Check the electrical supply, connections and applicable control system before disassembling the motor.
Inspect the gear box and fluid section for excessive mechanical load or binding that may contribute to recurring drive problems.
Related Titan EPX2255 Parts & Assemblies
If diagnosis indicates that the problem is outside the motor assembly, continue with the EPX2255 diagram for the affected system.
Verify EPX2255 Motor Parts Before Ordering
Do not assume that a motor, electrical component, mounting part, fastener or drive component from the EPX2155, EPX2355, EPX2455, EPX2555 or another SprayTech Advantage model is interchangeable with the EPX2255. Similar appearance does not establish fitment. Use the EPX2255 motor assembly diagram and verify the documented OEM part number before purchase.
Before Ordering EPX2255 Motor Assembly Parts
Verify the exact sprayer model before selecting motor components.
Make sure the required component belongs to the motor rather than the main assembly, gear box or another system.
Locate the component on the exploded view and match its numbered reference to the motor parts list.
Confirm the documented part number before purchasing the replacement.
EPX2255 Motor Assembly Maintenance Checks
Avoid excessive coating buildup and debris around the motor, protective components and ventilation areas.
Inspect accessible motor mounting components for looseness, damage or missing hardware.
Determine the source of unusual motor or drive noise before continued operation contributes to additional component damage.
When servicing the motor, inspect connected gear-box and pump components for conditions that could place abnormal load on the drive system.
EPX2255 Motor Assembly Service Safety
Disconnect the sprayer from electrical power and follow the applicable pressure-relief procedure before servicing the motor or drive system. Airless spray equipment can retain hazardous fluid pressure after operation stops. Do not service energized electrical components or remove protective parts while the machine is connected to power. Follow the applicable Titan/SprayTech operating and service instructions during diagnosis, disassembly and reassembly.
Shop Titan EPX2255 Motor Assembly Parts
Use the EPX2255 motor assembly exploded diagram to identify the required motor, electrical, mounting or drive-related component. Match the diagram callout to the documented OEM part number before ordering.
Shop EPX2255 Motor PartsTitan EPX2255 Advantage Motor Assembly FAQ
Where can I find Titan EPX2255 motor assembly parts?
Use this EPX2255 Advantage Motor Assembly page to identify documented motor, electrical, mounting and related components shown on the model-specific exploded diagram.
How do I identify the correct EPX2255 motor part?
Confirm the EPX2255 model, locate the component on the motor assembly diagram and match its numbered callout to the documented OEM part number.
What should I check if my EPX2255 motor does not run?
Begin with the power source and applicable controls and connections. Diagnose the electrical path before determining that an internal motor component requires replacement.
What if the EPX2255 motor runs but the pump does not move correctly?
Inspect the motor-to-drive interface, gear box and fluid section. The problem may be mechanical rather than an electrical motor fault.
Are EPX2155 and EPX2255 motor parts interchangeable?
Do not assume interchangeability. A component should be used across models only when the documented OEM part number and application confirm compatibility with the EPX2255.
Can EPX2355 or EPX2455 motor parts fit an EPX2255?
Similar appearance does not establish fitment. Verify the exact OEM part number and documented EPX2255 application before using a component from another Advantage model.
Can a gear-box problem look like an EPX2255 motor problem?
Yes. Abnormal drive movement, noise or mechanical resistance can originate in the gear box or fluid section. Inspect the complete drive path before replacing motor components.
What information helps identify an EPX2255 motor replacement part?
Have the EPX2255 model identification, serial information when available, existing component number and motor assembly diagram callout ready when confirming the correct replacement part.
Need Help Finding an EPX2255 Motor Part?
Have your EPX2255 model information, serial information when available, existing component number and motor assembly diagram reference ready. These details help identify the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006
