Titan EPX2255 Advantage Stand Assembly Parts
Shop genuine OEM Titan EPX2255 Advantage Stand Assembly Parts for maintaining and repairing the stand-mounted configuration of the SprayTech Advantage EPX2255 piston pump. Use the model-specific exploded diagram to identify the stand, mounting hardware, feet, fasteners, supports and related structural components before ordering replacement parts.
Find the Correct EPX2255 Stand Assembly Replacement Parts
The stand assembly provides the supporting structure for the stand-mounted EPX2255 configuration. Its components help position and support the sprayer during transport, storage and operation. Damaged, loose, bent or missing stand hardware should be identified correctly before the machine is returned to service.

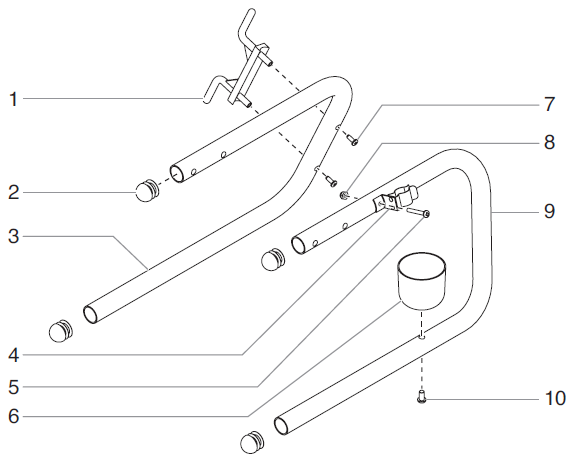

Use the EPX2255 stand assembly exploded diagram to locate the component being serviced. Match the numbered callout to the corresponding parts-list entry, then verify the documented OEM part number before purchase. This approach helps distinguish stand-specific components from parts used on EPX2255 upright-cart or low-boy configurations.
Find Your EPX2255 Stand Part in Four Steps
Confirm EPX2255
Verify that the sprayer is an EPX2255 before selecting structural or mounting components.
Confirm Stand Configuration
Make sure you are working from the stand assembly diagram rather than an upright-cart or low-boy assembly.
Match the Diagram Callout
Locate the component on the exploded view and match its numbered reference to the stand parts list.
Verify the OEM Number
Confirm the documented part number and EPX2255 application before ordering the replacement.
EPX2255 Stand Assembly Components to Inspect
Inspect the complete support structure when servicing a damaged or unstable stand. A problem at one mounting point can affect adjoining hardware and the way the sprayer sits on the stand.
Inspect documented structural members for bending, cracking, deformation or other physical damage.
Check the locations where the sprayer assembly attaches to the stand for looseness, damage or missing hardware.
Inspect documented feet, pads or contact components that help support the machine on the work surface.
Use the exploded diagram to identify the correct documented bolts, screws, nuts and washers used in the stand assembly.
Inspect applicable brackets and supports for deformation, looseness or damage that can affect structural alignment.
Confirm that documented retaining components and hardware are present and correctly positioned.
Inspect components attached to the stand when impact or structural damage may have affected more than the support assembly.
Confirm that the suction components are correctly positioned and are not being pinched, bent or obstructed by damaged stand parts.
EPX2255 Stand Symptoms & Inspection Areas
| Condition | Inspect First | Also Check | Before Ordering |
|---|---|---|---|
| Sprayer Does Not Sit Level | Stand structure and contact points | Mounting hardware and supports | Locate the bent, damaged or missing component |
| Excessive Movement | Machine mounting points | Fasteners and stand structure | Identify loose or damaged hardware |
| Visible Stand Damage | Affected structural component | Adjacent brackets and mounting points | Check for related impact damage |
| Loose Sprayer Mounting | Mounting fasteners | Stand mounting surfaces | Verify exact diagram hardware |
| Missing Hardware | Exploded stand diagram | Mating brackets and retainers | Match the callout to the OEM parts list |
| Abnormal Vibration | Stand and mounting hardware | Motor, gear box and pump operation | Determine whether vibration originates in the stand or drive system |
Stand vs. Upright Cart vs. Low Boy EPX2255 Parts
EPX2255 support and mobility components should be selected from the diagram for the machine's actual configuration. Do not select a structural component solely because it appears similar to a part used on another EPX2255 setup.
| Configuration | Parts Diagram to Use | Typical Search Area |
|---|---|---|
| Stand | EPX2255 Stand Assembly | Stand, supports, mounting points and related hardware |
| Upright Cart | EPX2255 Upright Cart Assembly | Cart structure, handle, wheels and mounting components |
| Low Boy Cart | EPX2255 Low Boy Cart Assembly | Low-profile frame, wheels and related cart hardware |
Inspect Before Replacing EPX2255 Stand Parts
Inspect the stand for bending, cracking or deformation before replacing individual mounting components.
Verify that the sprayer is correctly secured and that documented fasteners are present and in serviceable condition.
When a bracket or mounting point is damaged, inspect the adjoining component for related deformation or wear.
Confirm that the assembled sprayer sits securely and does not rock or shift because of damaged support components.
Make sure damaged or displaced stand components are not interfering with suction, hose or other machine connections.
Identify replacement hardware by diagram callout and OEM part number, not by appearance or approximate dimensions alone.
Related Titan EPX2255 Parts & Assembly Diagrams
Browse the appropriate EPX2255 assembly when the required replacement is outside the stand or when you are servicing another section of the sprayer.
Verify EPX2255 Stand Parts Before Ordering
Do not assume that stand frames, brackets, feet, fasteners, supports or mounting hardware from the EPX2155, EPX2355, EPX2455, EPX2555 or another SprayTech Advantage model are interchangeable with the EPX2255. Also do not substitute EPX2255 upright-cart or low-boy components for stand components unless the documented OEM part number confirms compatibility. Always verify the exact assembly diagram and part number before purchase.
Before Ordering EPX2255 Stand Assembly Parts
Verify the exact Advantage sprayer model before selecting structural parts.
Determine that the machine uses the stand assembly rather than the upright-cart or low-boy configuration.
Locate the required component on the stand exploded view and match its reference number to the parts list.
Confirm the documented OEM part number and EPX2255 application before ordering.
EPX2255 Stand Assembly Maintenance Checks
Periodically check structural components for impact damage, bending or other conditions that could affect support.
Inspect accessible fasteners and mounting points for looseness, damage or missing components.
Remove excessive coating buildup that can conceal fasteners, damage or developing structural problems.
If the sprayer is dropped or struck, inspect the stand, mounting points and adjoining machine components before returning it to service.
EPX2255 Stand Assembly Service Safety
Shut the sprayer down, disconnect electrical power and follow the applicable pressure-relief procedure before servicing the stand or removing mounted sprayer components. Support the machine securely during disassembly so it cannot shift or fall when mounting hardware is removed. Airless equipment can retain hazardous fluid pressure after operation stops. Follow the applicable Titan/SprayTech operating and service instructions during inspection, repair and reassembly.
Shop Titan EPX2255 Stand Assembly Parts
Use the EPX2255 stand assembly exploded diagram to identify the required structural or mounting component. Match the diagram callout to the documented OEM part number and verify fitment before ordering.
Shop EPX2255 Stand PartsTitan EPX2255 Advantage Stand Assembly FAQ
Where can I find Titan EPX2255 stand assembly parts?
Use this EPX2255 Advantage Stand Assembly page to locate documented structural, mounting and hardware components shown on the stand exploded diagram.
How do I identify the correct EPX2255 stand part?
Confirm the EPX2255 stand configuration, locate the component on the exploded diagram, match its numbered callout to the parts list and verify the documented OEM part number.
Are the EPX2255 stand and upright cart the same assembly?
No. The stand and upright cart are different machine configurations. Select structural and mounting components from the diagram for the actual configuration being serviced.
Is the EPX2255 low-boy cart the same as the stand assembly?
No. Low-boy cart components should be identified from the EPX2255 low-boy assembly diagram rather than the stand assembly diagram.
What should I check if my EPX2255 stand feels unstable?
Inspect the stand structure, contact points, mounting hardware, brackets and machine attachment points for looseness, bending, damage or missing parts.
Are EPX2155 and EPX2255 stand parts interchangeable?
Do not assume interchangeability. Use a component across models only when its documented OEM part number and application confirm compatibility.
Can I identify EPX2255 stand hardware by size or appearance?
The preferred method is to use the exploded diagram and parts list. Similar-looking fasteners or brackets may have different specifications or applications.
Why should I use the EPX2255 stand exploded diagram?
The diagram shows component locations and numbered callouts that can be matched to the parts list, helping identify the correct OEM stand component before ordering.
Need Help Finding an EPX2255 Stand Part?
Have your EPX2255 model information, machine configuration, serial information when available, existing component number and stand diagram reference ready. These details help identify the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006
