Titan EPX2255 Advantage Upright Cart Assembly Parts
Shop genuine OEM Titan EPX2255 Advantage Upright Cart Assembly Parts for maintaining and repairing the upright-cart configuration of the SprayTech Advantage EPX2255 piston pump. Use the model-specific exploded diagram to identify cart-frame components, handles, wheels, mounting hardware, fasteners, supports and related mobility parts before ordering replacements.
Find the Correct EPX2255 Upright Cart Replacement Parts
The upright cart provides the structural support and mobility platform for the applicable EPX2255 configuration. Its frame, wheels, handle, mounting points and related hardware support the sprayer and help make the machine easier to position and transport around a jobsite.

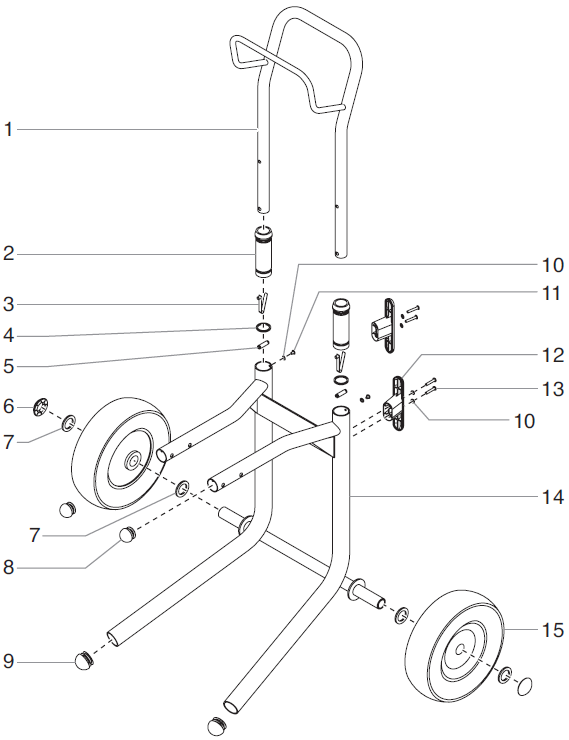

Use the EPX2255 upright cart assembly exploded diagram to identify the component being serviced. Match the numbered diagram callout to the corresponding parts-list entry and verify the documented OEM part number before ordering. This is particularly important because stand, upright-cart and low-boy configurations can use different structural components.
Find Your EPX2255 Upright Cart Part in Four Steps
Confirm EPX2255
Verify the exact Advantage model before selecting cart, frame or mounting components.
Confirm Upright Cart
Make sure the machine uses the upright-cart configuration rather than the stand or low-boy arrangement.
Match the Diagram Callout
Locate the required component on the exploded view and match its numbered callout to the cart parts list.
Verify the OEM Number
Confirm the documented OEM part number and EPX2255 application before purchasing the replacement.
EPX2255 Upright Cart Components to Inspect
Inspect the complete cart when servicing structural or mobility problems. Damage to a wheel, axle, frame member or mounting point can place additional stress on adjoining components.
Inspect documented frame components for bending, cracking, deformation or other physical damage that can affect structural support.
Inspect the applicable wheels for damage, excessive wear or conditions that interfere with smooth cart movement.
Check documented wheel supports, retainers and related mounting components whenever a wheel is loose or misaligned.
Inspect the documented handle and its attachment points for looseness, bending, cracking or other damage.
Check the areas where the EPX2255 pump assembly attaches to the cart for damaged brackets, loose hardware or deformation.
Use the exploded diagram to identify the correct documented bolts, screws, nuts, washers and retaining components.
Inspect applicable structural supports and brackets for damage that could affect cart alignment or machine stability.
After impact or transport damage, inspect attached sprayer components, suction parts and hose-routing areas for related damage.
EPX2255 Upright Cart Symptoms & Inspection Areas
| Condition | Inspect First | Also Check | Before Ordering |
|---|---|---|---|
| Cart Does Not Roll Smoothly | Wheels and mounting points | Retainers and frame alignment | Identify the damaged or binding component |
| Loose Wheel | Wheel mounting hardware | Wheel and supporting structure | Match the exact hardware to the diagram |
| Cart Sits Unevenly | Frame and wheels | Machine mounting points | Check for bent structural components |
| Loose Handle | Handle mounting hardware | Handle and frame attachment points | Identify damaged hardware or mounting surfaces |
| Excessive Movement During Operation | Sprayer mounting points | Frame, wheels and fasteners | Determine whether the movement is structural or mechanical |
| Visible Impact Damage | Affected frame area | Wheels, brackets and mounted sprayer | Inspect surrounding components before replacement |
Identify the Correct EPX2255 Support Configuration
The EPX2255 family may be represented by different support configurations. Always use the assembly diagram corresponding to the actual machine setup before selecting structural, wheel or mounting components.
| Configuration | Correct Diagram | Primary Parts Area |
|---|---|---|
| Upright Cart | EPX2255 Upright Cart Assembly | Frame, handle, wheels and mounting components |
| Stand | EPX2255 Stand Assembly | Stand structure, supports and mounting hardware |
| Low Boy Cart | EPX2255 Low Boy Cart Assembly | Low-profile cart frame, wheels and related hardware |
Inspect Before Replacing EPX2255 Upright Cart Parts
Inspect the cart structure for bending or deformation when the sprayer sits unevenly or the wheels do not track normally.
Compare the wheel assemblies and inspect their mounting points when movement becomes difficult or unstable.
Inspect the handle and attachment hardware before replacing an individual fastener or structural component.
Confirm that the pump assembly remains properly positioned and secured to the cart structure.
After a drop or collision, inspect the frame, wheels, handle, mounting hardware and attached sprayer components.
Match replacement components to the EPX2255 upright cart callout and OEM part number instead of relying on appearance alone.
Related Titan EPX2255 Parts & Assembly Diagrams
Use these EPX2255 assembly pages to continue your parts search when the component is outside the upright cart or when additional sprayer systems require service.
Verify EPX2255 Upright Cart Parts Before Ordering
Do not assume that frames, handles, wheels, brackets, fasteners or mounting components from the EPX2155, EPX2355, EPX2455, EPX2555 or another SprayTech Advantage model are interchangeable with the EPX2255. Stand and low-boy components should also not be substituted for upright-cart parts unless the documented OEM part number confirms compatibility. Verify the EPX2255 upright cart diagram and exact part number before purchase.
Before Ordering EPX2255 Upright Cart Parts
Verify the exact Advantage model before selecting cart components.
Make sure the machine is the upright-cart configuration and not the stand or low-boy version.
Locate the required component on the exploded diagram and match its numbered reference to the parts list.
Confirm the documented OEM part number and EPX2255 application before ordering.
EPX2255 Upright Cart Maintenance Checks
Check wheels and their mounting components for wear, looseness or damage that can interfere with safe movement.
Inspect the upright cart for bending, cracks or other structural damage, especially after rough transport or impact.
Check accessible cart and sprayer mounting hardware for looseness, damage or missing components.
Remove excessive coating buildup that can conceal damaged hardware, wheel components or developing structural problems.
EPX2255 Upright Cart Service Safety
Shut the sprayer down, disconnect electrical power and follow the applicable pressure-relief procedure before servicing the cart or removing mounted machine components. Stabilize and support the sprayer before removing wheels, structural hardware or mounting components. Airless spray equipment can retain hazardous fluid pressure after operation stops. Follow the applicable Titan/SprayTech operating and service instructions during inspection, disassembly and reassembly.
Shop Titan EPX2255 Upright Cart Assembly Parts
Use the EPX2255 upright cart exploded diagram to identify the required frame, wheel, handle, mounting or hardware component. Match the diagram callout to the documented OEM part number and verify fitment before ordering.
Shop EPX2255 Upright Cart PartsTitan EPX2255 Advantage Upright Cart Assembly FAQ
Where can I find Titan EPX2255 upright cart parts?
Use this EPX2255 Advantage Upright Cart Assembly page to locate documented frame, wheel, handle, mounting and hardware components shown on the model-specific exploded diagram.
How do I identify the correct EPX2255 upright cart part?
Confirm the EPX2255 upright-cart configuration, locate the component on the exploded diagram, match its numbered callout to the parts list and verify the documented OEM part number.
Are the EPX2255 upright cart and stand assemblies the same?
No. The stand and upright cart are different configurations. Use the assembly diagram corresponding to the actual EPX2255 setup being serviced.
Is the EPX2255 low-boy cart the same as the upright cart?
No. Low-boy and upright-cart configurations use different structural arrangements. Verify the exact diagram and OEM part number before ordering.
What should I inspect if an EPX2255 wheel is loose?
Inspect the wheel, its documented mounting and retaining components, and the supporting cart structure for looseness, wear or physical damage.
What should I check if the EPX2255 cart does not roll straight?
Inspect both wheel assemblies, their mounting points and the cart frame for damage, misalignment or deformation.
Are EPX2155 and EPX2255 upright cart parts interchangeable?
Do not assume interchangeability. A component should be shared between models only when its documented OEM part number and application confirm compatibility.
Why should I use the EPX2255 upright cart exploded diagram?
The diagram shows component locations and numbered callouts that can be matched to the corresponding parts list, helping identify the correct OEM replacement before purchase.
Need Help Finding an EPX2255 Upright Cart Part?
Have your EPX2255 model information, cart configuration, serial information when available, existing component number and upright-cart diagram reference ready. These details help identify the correct OEM replacement component before ordering.
Parts & Fitment Help: 713-931-0006
