Shop Titan Epic 447EX Filter Block Replacement Parts
Find Epic 447EX Filter Block replacement components for your Titan electric airless paint sprayer at AllTitanParts. Explore the filter block assembly diagram to identify filtration components, fluid-control parts, seals, gaskets, and associated mounting hardware specified for your equipment. Whether you are addressing fluid restrictions, investigating leaks, replacing a damaged filter housing, or servicing the spray system, use the manufacturer parts diagram to identify the correct replacement part before ordering.
Filter Block Overview
Buy Titan Epic 447EX Filter Block Parts Online
The Titan Epic 447EX Filter Block category focuses on components associated with the fluid filtration and control assembly of the Titan Epic 447EX electric airless paint sprayer. The filter block provides a designated location for components that manage fluid flow and, where fitted, remove contaminants before coating material reaches downstream spray equipment.
During operation, coating material is drawn into the sprayer and pressurized by the fluid section. The pressurized material then moves through the equipment's designated fluid passages. A properly maintained filtration system helps reduce the movement of unwanted debris into downstream components, including the spray hose, gun, and tip.
Filter block problems can contribute to restricted fluid flow, inconsistent spray output, external leakage, and other operating difficulties. Worn sealing components, clogged filters, damaged housings, or faults in associated fluid-control components may require inspection and replacement.

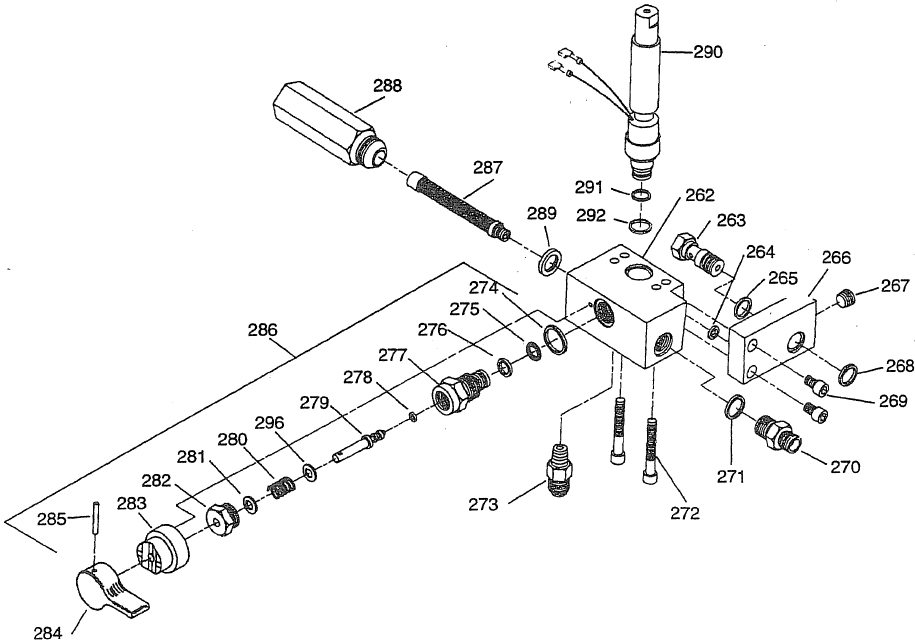

The Titan Epic 447EX Filter Block diagram helps identify the location of serviceable components and their corresponding manufacturer part numbers. It also helps distinguish individual replacement parts from complete assemblies or components that may have similar appearances.
At AllTitanParts, customers can use the applicable assembly diagram to research replacement parts for their Titan Epic 447EX. Always verify the original manufacturer part number, component specifications, and equipment configuration before placing an order.
Fluid System Operation
How the Titan Epic 447EX Filter Block Supports Fluid Delivery
The filter block is part of the sprayer's pressurized fluid system. Its exact internal passages and associated control components depend on the manufacturer's equipment configuration.
Pressurized Fluid Entry
Coating material enters the designated fluid passages after being pressurized by the pump.
Filtration
Where a filter element is fitted, it helps capture debris before material continues through the spray system.
Fluid Control
Associated valves and control components, where specified, help direct fluid through the intended operating passages.
Fluid Delivery
The coating material continues through the designated outlet connection toward the hose and spray gun.
Replacement Component Guide
Titan Epic 447EX Filter Block Assembly Components
The following component groups describe common service areas associated with airless sprayer filter blocks. Confirm the exact parts included in the Titan Epic 447EX Filter Block diagram before ordering.
Filter Block Housing
The filter block housing provides the supporting structure for designated fluid passages and associated service components.
Inspect for cracks, damaged threads, corrosion, or other defects. A damaged pressure-containing housing should be replaced according to the manufacturer's instructions.
Fluid Filter Elements
Where fitted, filter elements capture contaminants carried by coating material.
Choose the manufacturer-specified filter type and mesh rating. Incorrect filtration may affect material flow or downstream component protection.

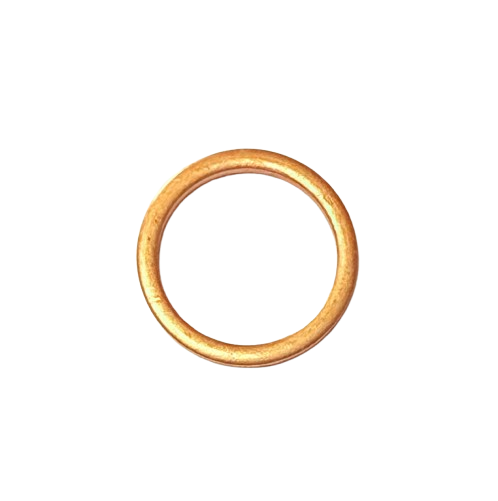

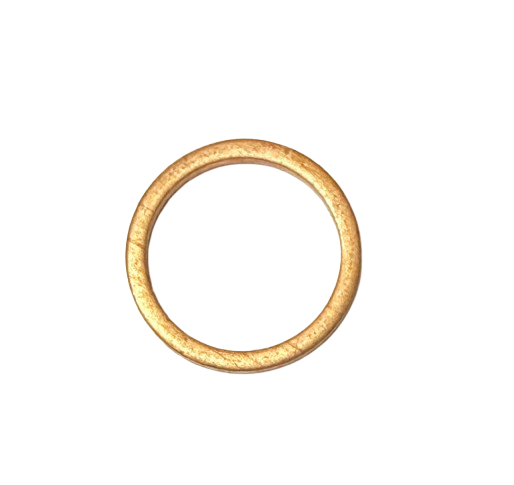

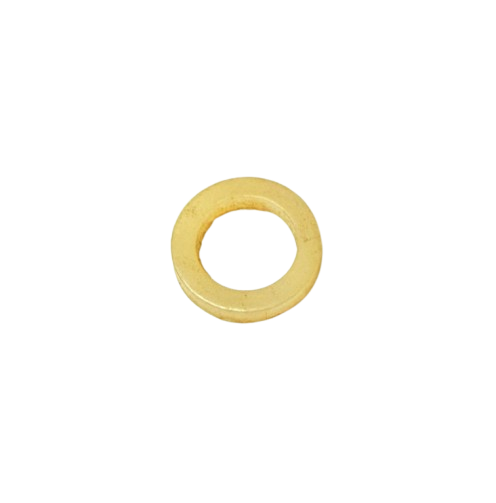

Filter Seals and Gaskets
Sealing components help prevent leakage at specified fluid connections and assembly interfaces.
Inspect for cuts, deformation, swelling, or wear. Confirm the exact material and dimensions required for replacement.
O-Rings
Where specified, O-rings seal designated passages and connections within the fluid-control assembly.
Use the correct manufacturer part number and material specification. Similar-looking O-rings may not provide the required chemical compatibility or sealing performance.
PRIME/SPRAY Valve Components
Where incorporated into the filter block, PRIME/SPRAY valve components help direct fluid during priming, pressure relief, and spraying.
Inspect the specified valve components if the sprayer does not transition correctly between operating modes or exhibits fluid leakage.
Valve Springs and Retainers
Where fitted, springs and retaining components support the operation and positioning of designated fluid-control parts.
Use only the specified replacements. Incorrect spring characteristics or retaining hardware can affect valve operation.
Pressure-Sensing Components
Where the equipment design incorporates a pressure-sensing component at the filter block, it provides information used by the sprayer's pressure-control system.
Electrical and pressure-sensing components must be matched to the correct model and manufacturer specifications.
Filter Block Mounting Hardware
Specified screws, washers, pins, and mounting components secure the filter block and associated service parts.
Confirm the correct dimensions, installation positions, and required quantities before replacing hardware.
Troubleshooting Guide
Common Titan Epic 447EX Filter Block Problems
Fluid system symptoms may involve the filter block, pump, spray hose, gun, or tip. Diagnose the complete fluid path before replacing components.
| Observed Symptom | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Reduced fluid flow | Filter element, fluid passages, downstream restrictions | Relieve pressure and inspect specified filters and fluid passages for restrictions. |
| Inconsistent spray pattern | Filter condition, spray tip, pump pressure | Inspect the fluid path and verify the condition of the applicable filter and spray tip. |
| External fluid leakage | Gaskets, O-rings, housing, threaded connections | Complete the pressure-relief procedure and inspect the affected sealing surfaces. |
| Difficulty switching PRIME/SPRAY modes | Valve components, seals, control hardware | Inspect the applicable control valve if included in the equipment configuration. |
| Fluid continues through return path during spraying | PRIME/SPRAY valve sealing surfaces, related components | Follow the manufacturer's valve troubleshooting procedure. |
| Repeated filter blockage | Coating contamination, inadequate material preparation, filter specification | Check coating preparation and verify the recommended filtration configuration. |
| Damaged filter block threads | Housing threads, fittings, incorrect installation | Stop using damaged pressure-containing components and follow manufacturer repair instructions. |
Repair Planning
When to Replace Titan Epic 447EX Filter Block Components
The appropriate repair depends on the affected component, the manufacturer's service recommendations, and the condition of the complete fluid-control assembly.
Clogged or Damaged Filters
Clean reusable filter elements according to manufacturer instructions or replace damaged and non-serviceable filters.
Worn Sealing Components
Replace damaged gaskets or O-rings with the correct manufacturer-specified components.
Faulty Fluid-Control Parts
Service or replace specified valve components when inspection confirms a fault.
Damaged Pressure Housing
A cracked or otherwise compromised filter block housing requires qualified evaluation and manufacturer-approved replacement.
Parts Identification Guide
How to Find the Correct Titan Epic 447EX Filter Block Parts
Verify the Model
Confirm Titan Epic 447EX identification and record available serial information.
Review the Filter Block Diagram
Find the component reference in the applicable filter block assembly illustration.
Match the Part Number
Compare the manufacturer part number with the replacement product listing.
Confirm Specifications
Verify filter mesh, sealing material, pressure rating, quantity, and documented replacements where applicable.
Preventive Maintenance
Titan Epic 447EX Filter Block Maintenance Tips
Inspect Filter Elements
Check specified filters for accumulated debris, deformation, and damage during scheduled maintenance.
Clean the Fluid System
Flush the sprayer according to the manufacturer's instructions using cleaning materials compatible with the coating and equipment.
Check Gaskets and O-Rings
Inspect accessible sealing components during approved service procedures and replace damaged parts.
Monitor Fluid Leakage
Investigate leaks promptly. Never attempt to locate pressurized leaks with your hands.
Use Correct Filter Specifications
Match replacement filter elements to the manufacturer-recommended mesh and material requirements.
Protect Fluid Connections
Avoid damaging threads and sealing surfaces during service and reassembly.
Compatibility and Ordering
Choosing Compatible Titan Epic 447EX Filter Block Replacement Parts
Filter block components must match the sprayer's pressure requirements, fluid compatibility specifications, and mechanical configuration. Similar-looking seals, filters, valves, and fittings may not be interchangeable.
- Confirm the sprayer model: Verify Titan Epic 447EX identification.
- Review the correct diagram: Locate the filter block assembly illustration.
- Match the original part number: Use manufacturer documentation.
- Check filter specifications: Confirm the required mesh rating and element dimensions.
- Verify sealing materials: Match gaskets and O-rings to the specified material and dimensions.
- Check pressure requirements: Use components rated for the intended fluid system.
- Confirm valve compatibility: Verify the correct control valve configuration where applicable.
- Review documented supersessions: Use only manufacturer-confirmed replacement numbers.
- Check availability: Review individual product listings before ordering.
Do not assume that Titan Epic 447EX filter block parts are interchangeable with components from the Epic 440E or other Titan models unless the manufacturer documents compatibility.
Related Titan Epic Parts
Explore Titan Epic 447EX Filter Block and Related Assemblies
Epic 447EX Filter Block
Browse filter block components and related fluid-control replacement parts.
Epic 447EX Gear Box
Find gearbox and mechanical drive components for the Epic 447EX.
Epic 447EX UNITEC Motor Complete
Explore motor assembly replacement components.
Titan Epic 447EX Parts
Explore the complete model category for additional repair assemblies.
Titan Epic 447EX Filter Block Repair Safety
The filter block is associated with a high-pressure fluid system. Before removing filters, loosening fittings, or servicing any fluid-control component, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Never place your hand over a suspected fluid leak. High-pressure fluid injection can cause serious injury and requires immediate emergency medical treatment. Use only components meeting the manufacturer's pressure and material specifications, and follow the applicable Titan service manual.
Titan Epic 447EX Fluid Filtration Parts
Order Titan Epic 447EX Filter Block Parts Online
Browse the Titan Epic 447EX Filter Block category at AllTitanParts. Identify the correct filtration, sealing, and fluid-control components using the manufacturer assembly diagram, then review available replacement products for your repair.
Shop Epic 447EX Filter Block PartsFrequently Asked Questions
Titan Epic 447EX Filter Block FAQ
What is the Titan Epic 447EX Filter Block?
The filter block is an assembly associated with the sprayer's pressurized fluid system. It provides locations for specified filtration and fluid-control components.
Where can I buy Titan Epic 447EX Filter Block parts?
Visit the Titan Epic 447EX Filter Block category at AllTitanParts to review available replacement products.
How do I identify the correct filter block replacement part?
Confirm the Titan Epic 447EX model, locate the filter block diagram, and match the component reference to the original manufacturer part number.
Can a clogged filter reduce spray pressure?
Yes. A restricted filter may reduce fluid flow and affect spray performance. Other pump and pressure-control problems can produce similar symptoms.
What causes leaks around the filter block?
Possible causes include damaged gaskets, worn O-rings, loose or damaged connections, and defects in the pressure-containing housing.
Can I replace individual Titan Epic 447EX filter block seals?
Individual replacement may be possible when the manufacturer identifies the seals as serviceable. Use the specified part number and material.
Does the Epic 447EX Filter Block include a PRIME/SPRAY valve?
The presence and location of PRIME/SPRAY valve components must be confirmed using the applicable Titan Epic 447EX parts diagram.
What filter mesh should I use for the Titan Epic 447EX?
Use the mesh rating specified by the manufacturer for the equipment and coating application. Verify the applicable filter part number before ordering.
Can a damaged filter block housing be repaired?
A cracked or damaged pressure-containing housing should not be modified or repaired without manufacturer authorization. Follow the approved replacement procedure.
Are Titan Epic 447EX filter block parts compatible with Epic 440E parts?
Do not assume interchangeability. Confirm compatibility using manufacturer part numbers and model-specific documentation.
How often should I clean the filter block?
Follow the manufacturer's cleaning and maintenance instructions. Inspection frequency depends on coating materials, usage, and operating conditions.
Can incorrect O-rings cause fluid leakage?
Yes. Incorrect dimensions or sealing materials can prevent proper sealing. Always match the specified manufacturer part number.
What should I check before ordering Epic 447EX Filter Block parts?
Verify the sprayer model, filter block diagram reference, manufacturer part number, component specifications, and documented replacement information.
How can I get help finding Titan Epic 447EX Filter Block parts?
Contact AllTitanParts at 713-931-0006 with your Titan Epic 447EX model information, filter block diagram reference, and original component part number.
Titan Epic 447EX Filter Block Parts Assistance
Need Help Finding Epic 447EX Filter Block Replacement Parts?
Have your Titan Epic 447EX model information, filter block diagram reference, and original manufacturer part number ready when requesting assistance.
713-931-0006
