Titan Epic 447EX | Syphon Assembly Parts
Shop Titan Epic 447EX Syphon Assembly Replacement Parts
Find Epic 447EX Syphon Assembly replacement parts for your Titan electric airless paint sprayer at AllTitanParts. Explore the syphon assembly diagram to identify suction tubes, inlet strainers, fittings, seals, clamps, and other specified material-intake components. Whether you are troubleshooting priming problems, replacing a damaged suction line, investigating air leaks, or restoring reliable coating material intake, use the manufacturer's parts illustration to identify the correct components for your Titan Epic 447EX.
Syphon Assembly Overview
Buy Titan Epic 447EX Syphon Assembly Parts Online
The Titan Epic 447EX Syphon Assembly category focuses on components associated with the material intake system of the Titan Epic 447EX electric airless paint sprayer. The syphon assembly, also referred to as the suction assembly, provides a path for coating material to travel from the supply container into the sprayer's fluid section.
During operation, the fluid pump draws coating material through the designated suction components. The condition of the suction tube, inlet connections, sealing components, and any specified strainer affects the pump's ability to receive material consistently.
Damage or restrictions in the syphon assembly may contribute to difficult priming, inconsistent material delivery, air entering the intake line, and interruptions in spray performance. Clogged inlet strainers, damaged tubing, loose fittings, and worn seals are common inspection areas when diagnosing suction-related problems.
However, similar symptoms can originate from worn fluid section components, contaminated inlet valves, low material levels, or incorrect priming procedures. Proper diagnosis helps prevent unnecessary replacement of otherwise serviceable suction parts.

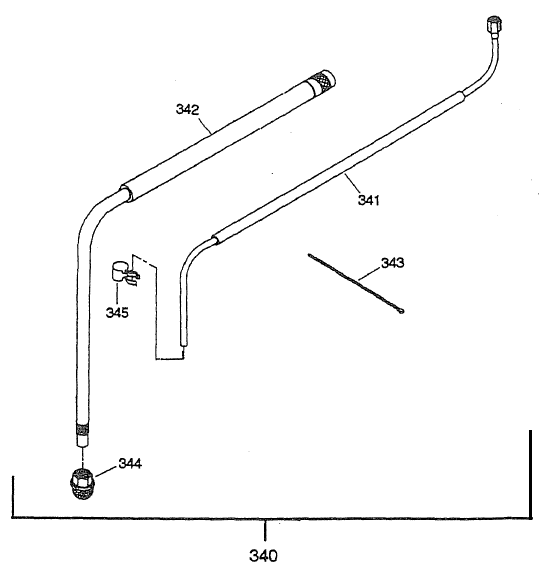

The Titan Epic 447EX Syphon Assembly diagram provides a reference for identifying the manufacturer's listed suction components and associated replacement part numbers. Before purchasing, verify the equipment configuration, original part number, component dimensions, and any manufacturer-documented replacements.
Material Intake Operation
How the Titan Epic 447EX Syphon Assembly Supplies the Fluid Pump
The syphon assembly forms the material intake path between the coating container and the sprayer's pumping mechanism. Its correct installation helps maintain a consistent supply of coating material.
Material Pickup
The designated suction inlet is positioned in the coating material according to the sprayer's operating instructions.
Inlet Screening
Where fitted, an inlet strainer helps prevent larger debris from entering the suction system.
Suction Transfer
Coating material moves through the specified suction tube or hose and its associated connections.
Pump Intake
The material reaches the fluid section, where the pumping mechanism draws it into the pressurization cycle.
Replacement Component Guide
Titan Epic 447EX Syphon Assembly Components
The following groups describe common suction-system service components. Confirm the exact items and separately available parts using the applicable Titan Epic 447EX Syphon Assembly diagram.
Syphon Tube or Suction Hose
The suction tube or hose provides the material intake path from the supply container toward the fluid pump.
Inspect for cracks, splits, deformation, blockage, and damaged connection points. Use the manufacturer-specified replacement configuration.

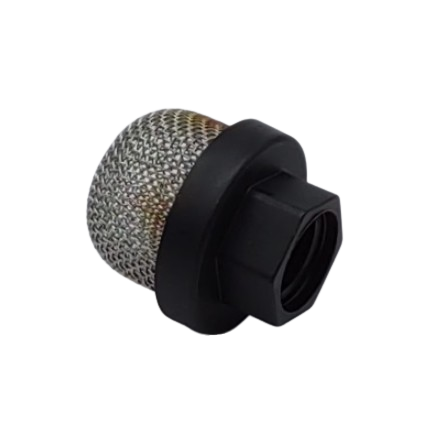

Inlet Strainer or Suction Screen
Where fitted, the inlet strainer helps screen larger contaminants before they enter the pump.
A blocked or damaged strainer can restrict material intake. Confirm the specified screen dimensions and filtration characteristics.
Suction Tube Fittings
Fittings connect the suction components to designated pump inlet locations.
Inspect for damaged threads, incorrect seating, corrosion, or loose connections that may allow air to enter the system.
Suction Seals and O-Rings
Where specified, sealing components help maintain airtight connections along the suction path.
Worn or damaged seals may allow air infiltration and interfere with priming. Match the exact manufacturer specifications.
Hose Clamps and Retainers
Specified clamps and retaining components secure the suction hose and related fittings.
Check for damage, corrosion, incorrect installation, or loss of retention. Use only the appropriate replacement hardware.
Return Tube Components
Where included in the syphon assembly diagram, return tube components provide a designated path for material during priming or pressure relief.
Inspect for damage, blockage, and incorrect positioning. Confirm the exact return tube configuration before ordering.
Suction Assembly Brackets and Supports
Where specified, brackets and supports help position or secure suction components.
Replace damaged supports using the correct manufacturer part number and installation procedure.
Complete Syphon Assembly
A complete syphon assembly may combine several material-intake components into one replacement unit.
Where offered, confirm the included parts, inlet connection requirements, and documented Titan Epic 447EX compatibility.
Troubleshooting Guide
Common Titan Epic 447EX Syphon Assembly Problems
Problems in the suction system may prevent the fluid pump from receiving a consistent material supply. Use the manufacturer's troubleshooting procedure to distinguish suction restrictions from internal pump faults.
| Observed Symptom | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Sprayer will not prime | Suction tube, inlet strainer, fittings, inlet valve | Check material supply, suction connections, and inlet restrictions before inspecting the pump. |
| Air entering suction line | Loose fittings, damaged tubing, worn seals | Inspect the intake connections and replace damaged components as specified. |
| Reduced material intake | Blocked strainer, restricted suction hose, material condition | Relieve pressure and inspect the designated suction components for blockage. |
| Intermittent material delivery | Air leaks, low material level, suction restrictions | Check the material pickup position and inspect the complete intake path. |
| Visible damage to suction hose | Cracks, cuts, collapsed tubing, damaged ends | Replace damaged suction components with manufacturer-specified parts. |
| Repeated inlet strainer blockage | Coating contamination, debris, material preparation | Inspect material preparation and clean or replace the specified strainer. |
| Fluid leakage at suction connection | Fittings, seals, hose clamps, damaged connection surfaces | Complete pressure relief and inspect the affected connection before repair. |
Repair Planning
When to Replace Titan Epic 447EX Syphon Assembly Parts
The appropriate repair depends on the condition of the suction components, the source of the intake problem, and the manufacturer's service recommendations.
Damaged Suction Tubing
Replace cracked, split, or deformed suction tubing that can no longer provide the required material intake path.
Clogged or Damaged Strainer
Clean reusable inlet screens according to manufacturer instructions or replace damaged and non-serviceable strainers.
Worn Suction Seals
Replace manufacturer-specified seals or O-rings when inspection identifies damage or air infiltration.
Complete Assembly Replacement
Where offered, a complete syphon assembly may be appropriate when multiple components require replacement.
Parts Identification Guide
How to Find the Correct Titan Epic 447EX Syphon Assembly Parts
Confirm the Sprayer Model
Verify Titan Epic 447EX identification and record available equipment details.
Review the Syphon Diagram
Locate the suction component in the applicable assembly illustration.
Match the Part Number
Compare the original manufacturer part number with the replacement listing.
Verify Fitment
Confirm tubing dimensions, fittings, seal specifications, quantities, and documented replacements.
Preventive Maintenance
Titan Epic 447EX Syphon Assembly Maintenance Tips
Clean the Inlet Strainer
Inspect and clean the specified suction screen according to manufacturer recommendations.
Inspect Suction Tubing
Check for cracks, cuts, deformation, and other damage that could affect material intake.
Check Connection Seals
Inspect accessible seals and fittings during approved service procedures to help prevent air leaks.
Maintain Proper Material Level
Keep the suction inlet positioned as specified and avoid drawing air into the intake system.
Flush After Use
Clean the suction path using the manufacturer's recommended flushing procedure and compatible cleaning materials.
Avoid Improper Modifications
Use the specified suction tube length, fittings, clamps, and related components rather than unverified substitutes.
Compatibility and Ordering
Choosing Compatible Titan Epic 447EX Syphon Assembly Replacement Parts
Suction system components must match the equipment's intended intake configuration. Similar-looking tubes, hoses, strainers, and fittings may differ in dimensions, materials, and connection requirements.
- Confirm the equipment model: Verify Titan Epic 447EX identification.
- Review the correct assembly diagram: Locate the syphon assembly reference.
- Match manufacturer part numbers: Identify the original specified replacement.
- Check suction tube dimensions: Verify length, diameter, and connection requirements.
- Confirm strainer specifications: Match the manufacturer-specified screen configuration.
- Verify fitting compatibility: Confirm the correct thread and connection arrangement.
- Check sealing materials: Use the specified O-rings and other seals.
- Review assembly contents: Determine whether the listing includes individual parts or a complete suction assembly.
- Confirm documented replacements: Use manufacturer-supported supersession information.
- Review current availability: Check the individual product listing before purchasing.
Do not assume that Epic 447EX Syphon Assembly components are interchangeable with Titan Epic 440E or other Titan sprayer suction assemblies without manufacturer confirmation.
Related Titan Epic Parts
Explore Titan Epic 447EX Syphon Assembly and Related Parts
Epic 447EX Syphon Assembly
Browse suction components and material-intake replacement parts.
Epic 447EX Fluid Section
Find pump components, packings, valves, and other fluid section parts.
Epic 447EX Filter Block
Explore filtration and fluid-control replacement components.
Epic 447EX Frame Assembly
Find frame-related components and mounting hardware.
Titan Epic 447EX Parts
Explore the complete Epic 447EX model category and its repair assemblies.
Titan Epic 447EX Syphon Assembly Repair Safety
Before removing suction components, loosening fittings, or performing maintenance, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Use cleaning materials compatible with the coating and equipment. Never operate the sprayer with damaged hoses or unsecured connections. High-pressure fluid injection can cause serious injury and requires immediate emergency medical treatment. Follow the applicable Titan service manual for inspection, replacement, and testing.
Titan Epic 447EX Suction System Parts
Order Titan Epic 447EX Syphon Assembly Parts Online
Browse the Titan Epic 447EX Syphon Assembly category at AllTitanParts. Identify the correct suction tubes, strainers, fittings, seals, and other specified components using the manufacturer parts diagram, then review available replacement products for your repair.
Shop Epic 447EX Syphon Assembly PartsFrequently Asked Questions
Titan Epic 447EX Syphon Assembly FAQ
What is the Titan Epic 447EX Syphon Assembly?
The syphon assembly is part of the material intake system that transfers coating material from the supply container to the sprayer's fluid pump.
Where can I buy Titan Epic 447EX Syphon Assembly parts?
Visit the Titan Epic 447EX Syphon Assembly category at AllTitanParts to review available replacement components.
How do I identify the correct Epic 447EX suction part?
Confirm the equipment model, review the syphon assembly diagram, and match the component reference to the manufacturer's part number.
Why is my Titan Epic 447EX not priming?
Possible causes include suction restrictions, loose fittings, damaged tubing, air leaks, or inlet valve problems. Follow the manufacturer's troubleshooting procedure.
Can a clogged inlet strainer prevent material intake?
Yes. A blocked strainer may restrict coating material flow into the suction system and interfere with priming.
What causes air leaks in the syphon assembly?
Air may enter through cracked tubing, loose connections, damaged seals, or other defects along the suction path.
Can I replace the suction tube separately?
Separate replacement may be possible if the manufacturer lists the suction tube as an individual service component.
Does the Epic 447EX Syphon Assembly include a return tube?
The exact components included in the syphon assembly must be confirmed using the applicable Titan Epic 447EX parts diagram.
How often should I clean the suction strainer?
Follow the manufacturer's maintenance recommendations. Cleaning frequency depends on coating materials, operating conditions, and contamination levels.
Can a damaged suction hose reduce spray performance?
Yes. Damage or air infiltration in the suction line can interfere with consistent material intake and affect pump performance.
Are Epic 447EX Syphon Assembly parts compatible with Epic 440E parts?
Do not assume interchangeability. Confirm compatibility using manufacturer part numbers and model-specific documentation.
When should I replace the complete syphon assembly?
Complete replacement may be appropriate when multiple suction components are damaged or when the manufacturer specifies assembly replacement.
What should I check before ordering suction replacement parts?
Verify the Titan Epic 447EX model, manufacturer part number, tubing dimensions, fitting requirements, and documented replacement information.
How can I get help finding Titan Epic 447EX Syphon Assembly parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model information, syphon assembly diagram reference, and original manufacturer part number.
