Titan Epic 447EX | Fluid Section Assembly Parts
Shop Titan Epic 447EX Fluid Section Replacement Parts
Find Epic 447EX Fluid Section replacement parts for your Titan electric airless paint sprayer at AllTitanParts. Explore the fluid section assembly diagram to identify pump pistons, packings, inlet and outlet valve components, seals, and other specified replacement parts. Whether you are investigating pressure loss, repairing fluid leakage, addressing priming problems, or restoring pump performance, use the manufacturer's parts illustration to identify the correct components for your Titan Epic 447EX.
Fluid Section Overview
Buy Titan Epic 447EX Fluid Section Parts Online
The Titan Epic 447EX Fluid Section category focuses on the pumping components responsible for moving and pressurizing coating material in the Titan Epic 447EX electric airless paint sprayer. The fluid section is a critical part of the sprayer's hydraulic performance because it converts mechanical pump movement into controlled fluid delivery.
During operation, the electric motor powers the mechanical drive system, which operates the pump's reciprocating mechanism. The fluid section uses its designated piston, packing, and valve components to draw coating material from the supply and deliver it into the pressurized spray system.
Normal operation subjects fluid section components to repeated movement, pressure changes, and contact with coating materials. Over time, seals and packings may wear, valve components may become contaminated, and mechanical surfaces may deteriorate.
Common symptoms of fluid section wear include reduced spraying pressure, difficulty priming, irregular fluid delivery, external leakage, and excessive pump cycling. However, these symptoms can also result from suction restrictions, damaged hoses, incorrect pressure settings, or problems elsewhere in the sprayer.

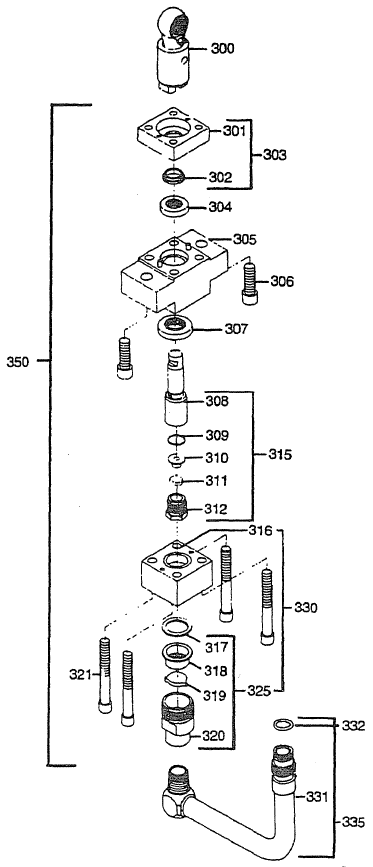

The Titan Epic 447EX Fluid Section diagram helps identify the location and manufacturer part number of each listed service component. Use the correct diagram to determine whether your repair requires an individual replacement part, a packing kit, a valve component, or a complete fluid section assembly.
Pump Operation
How the Titan Epic 447EX Fluid Section Pressurizes Coating Material
The fluid section operates through a repeating pumping cycle. Its piston, packings, and check valves work together to draw material into the pump and deliver it toward the spray hose.
Material Intake
Coating material enters the fluid section through the designated inlet as the pumping mechanism creates the required intake conditions.
Piston Movement
The drive system moves the pump piston through its operating cycle, changing the volume and pressure within the pumping chamber.
Valve Operation
Inlet and outlet check valves help control the direction of material movement during the pumping cycle.
Pressurized Delivery
The pump delivers pressurized coating material into the downstream fluid system for spraying.
Replacement Component Guide
Titan Epic 447EX Fluid Section Assembly Components
The following groups describe common fluid section service components. Confirm the exact parts, quantities, and assembly arrangement using the Titan Epic 447EX manufacturer's fluid section diagram.
Pump Piston
The pump piston moves within the fluid section to support the intake and pressurization cycle.
Inspect for scoring, wear, corrosion, and other damage. A worn piston can affect packing performance and fluid sealing.
Upper and Lower Packings
Packings provide sealing around designated moving pump components and help control internal and external fluid leakage.
Worn packings may contribute to pressure loss, excessive cycling, or material leakage. Use the correct manufacturer-specified packing arrangement.
Inlet Valve Components
The inlet valve helps control material entry into the pumping chamber.
Contamination, wear, or damaged sealing surfaces may cause priming problems or inconsistent fluid intake.
Outlet Valve Components
The outlet valve helps direct pressurized material toward the downstream fluid system.
Damaged valve seats, worn check components, or trapped debris may affect pressure retention and pump performance.
Valve Balls and Seats
Where specified, valve balls and seats form sealing surfaces within the pump's check valve assemblies.
Inspect for pitting, scoring, contamination, and wear. Replace damaged components using the specified manufacturer part numbers.
Pump Cylinder and Fluid Housing
The fluid housing provides the pressure-containing structure for the pumping components.
Inspect accessible surfaces for scoring, cracks, damaged threads, or corrosion. Pressure-containing components must meet the manufacturer's specifications.

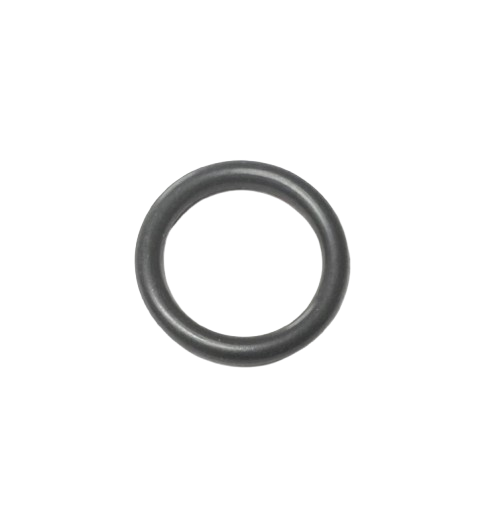

O-Rings, Seals, and Gaskets
Sealing components help prevent leakage at designated pump connections and assembly interfaces.
Use the correct sealing material, dimensions, and installation procedure for the coating materials being handled.

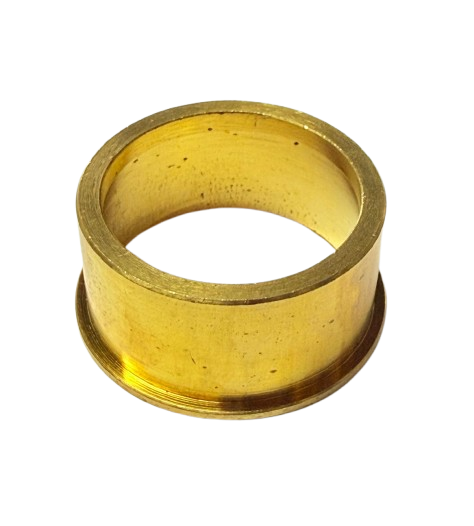

Packing Nuts and Retainers
Where included, packing adjustment and retaining components help secure specified sealing assemblies.
Follow the manufacturer's adjustment procedure. Excessive tightening or incorrect installation can damage pump components.
Springs, Washers, and Spacers
Specified springs and spacing components help maintain the intended positioning and operation of pump assemblies.
Confirm the correct component dimensions and diagram positions before replacement.
Fluid Section Repair Kits
Where available, repair kits may group specified packings, seals, or other service components.
Review the exact kit contents and compatibility before ordering. Not every repair requires the same components.
Troubleshooting Guide
Common Titan Epic 447EX Fluid Section Problems
Pump performance symptoms may originate in the fluid section or elsewhere in the sprayer. Inspect the material supply, suction system, fluid controls, and spray equipment before selecting replacement parts.
| Observed Symptom | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Sprayer will not prime | Inlet valve, suction system, material supply, air leaks | Inspect the suction path and inlet valve according to the manufacturer's troubleshooting procedure. |
| Low or inconsistent spray pressure | Packings, valve seats, filters, pressure controls | Check the complete fluid system and inspect pump sealing components where indicated. |
| Fluid leaks around packing area | Upper packings, piston surface, packing adjustment | Relieve pressure and inspect the packing components using the approved service procedure. |
| Pump cycles excessively | Internal valve leakage, worn packings, downstream leaks | Investigate fluid pressure loss and inspect the relevant sealing components. |
| Pump operates but delivers little material | Suction restrictions, inlet valve, internal leakage | Check material intake and pump valve condition. |
| Difficulty maintaining pressure | Inlet or outlet valve, packings, fluid connections | Inspect check valve sealing surfaces and the rest of the pressure system. |
| Unusual mechanical resistance | Piston, cylinder, drive mechanism, internal damage | Stop operation and arrange qualified inspection before further use. |
Repair Planning
When to Repair or Replace the Titan Epic 447EX Fluid Section
The correct repair depends on the condition of the pump components and the manufacturer's service recommendations.
Replace Worn Packings
Packing replacement may be appropriate when inspection confirms wear or leakage and the remaining sealing surfaces are serviceable.
Service Pump Valves
Clean or replace manufacturer-specified inlet and outlet valve components when contamination or wear affects operation.
Inspect Piston and Cylinder
Scored or damaged surfaces may require replacement to restore proper sealing and pumping performance.
Consider Assembly Replacement
Extensive damage or non-serviceable components may require a complete manufacturer-specified fluid section replacement.
Parts Identification Guide
How to Find the Correct Titan Epic 447EX Fluid Section Parts
Confirm Your Sprayer
Verify the Titan Epic 447EX model and record available serial or equipment identification information.
Review the Fluid Section Diagram
Locate the component reference in the applicable exploded fluid section illustration.
Match the Manufacturer Part Number
Compare the original part number with the replacement listing or documented supersession.
Verify Repair Requirements
Confirm dimensions, sealing materials, kit contents, quantities, and current availability.
Preventive Maintenance
Titan Epic 447EX Fluid Section Maintenance Tips
Flush After Spraying
Flush the sprayer according to the manufacturer's instructions using cleaning materials compatible with the coating and equipment.
Inspect Pump Packings
Monitor the packing area for leakage and follow the manufacturer's inspection and adjustment requirements.
Maintain Clean Material Intake
Use the specified inlet filtration and follow coating preparation recommendations to reduce contamination.
Investigate Pressure Loss
Check pump valves, packings, and connected fluid components when pressure performance changes.
Use Specified Lubricants
Where required, use only the packing lubricants or protective fluids recommended in the applicable Titan manual.
Avoid Running the Pump Dry
Follow the manufacturer's priming and operating instructions to avoid unnecessary wear and damage.
Compatibility and Ordering
Choosing Compatible Titan Epic 447EX Fluid Section Replacement Parts
Fluid section components must meet the manufacturer's dimensional, pressure, and material compatibility requirements. Similar-looking pistons, valve balls, seats, packings, and seals may not be interchangeable.
- Confirm the sprayer model: Verify Titan Epic 447EX identification.
- Review the correct diagram: Use the applicable fluid section assembly illustration.
- Match the original part number: Identify the specified manufacturer replacement.
- Verify packing compatibility: Confirm dimensions and material requirements.
- Check valve specifications: Match valve balls, seats, and related components to the correct assembly.
- Review repair kit contents: Confirm the included parts before ordering a kit.
- Check pressure requirements: Use components approved for the intended high-pressure system.
- Confirm documented supersessions: Use manufacturer-supported replacement information.
- Review current availability: Check the individual product listing before purchasing.
Do not assume that Titan Epic 447EX fluid section parts are interchangeable with Epic 440E components or parts from other Titan sprayer models without manufacturer confirmation.
Related Titan Epic Parts
Explore Titan Epic 447EX Fluid Section and Related Assemblies
Epic 447EX Fluid Section
Browse pump components, sealing parts, and fluid section replacement products.
Epic 447EX Filter Block
Find fluid filtration and control components associated with the Epic 447EX.
Epic 447EX Gear Box
Explore gearbox and mechanical drive components.
Epic 447EX UNITEC Motor Complete
Browse electric motor assembly replacement components.
Titan Epic 447EX Parts
Explore the complete Epic 447EX model category and its repair assemblies.
Titan Epic 447EX Fluid Section Repair Safety
The fluid section operates within a high-pressure spray system. Before removing pump components, loosening fluid connections, or performing maintenance, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Never inspect suspected leaks with your hands. High-pressure fluid injection can cause serious injury and requires immediate emergency medical treatment. Follow the applicable Titan service manual and use only correctly rated replacement components.
Titan Epic 447EX Pump Repair Components
Order Titan Epic 447EX Fluid Section Parts Online
Browse the Titan Epic 447EX Fluid Section category at AllTitanParts. Identify the correct pump components, packing replacements, valve parts, and seals using the manufacturer assembly diagram, then review available products for your repair.
Shop Epic 447EX Fluid Section PartsFrequently Asked Questions
Titan Epic 447EX Fluid Section FAQ
What is the Titan Epic 447EX Fluid Section?
The fluid section is the pumping assembly that draws coating material into the sprayer and pressurizes it for delivery through the spray system.
Where can I buy Titan Epic 447EX Fluid Section parts?
Visit the Titan Epic 447EX Fluid Section category at AllTitanParts to review available replacement components.
How do I identify the correct Epic 447EX pump part?
Confirm the sprayer model, review the fluid section diagram, and match the component reference to the manufacturer's part number.
Why will my Titan Epic 447EX not prime?
Possible causes include inlet valve contamination, suction restrictions, air leaks, or other fluid system problems. Follow the manufacturer's troubleshooting instructions.
Can worn pump packings cause pressure loss?
Yes. Worn packings may allow internal fluid leakage and reduce the pump's ability to maintain pressure.
What causes fluid leakage around the piston packing area?
Possible causes include worn packings, damaged piston surfaces, or incorrect packing adjustment where applicable.
Can I replace individual Epic 447EX inlet valve parts?
Individual replacement may be possible where the manufacturer lists the components separately. Confirm the parts diagram and service instructions.
What is the purpose of the outlet valve?
The outlet valve helps control the direction of pressurized material as it leaves the pumping chamber.
How do I know whether the pump piston is worn?
Visible scoring, corrosion, damaged sealing surfaces, and abnormal wear may indicate that the piston requires replacement.
Are Epic 447EX Fluid Section parts compatible with Epic 440E parts?
Do not assume compatibility. Verify interchangeability through manufacturer part numbers and model-specific documentation.
When should I replace the complete fluid section?
Complete replacement may be appropriate when major components are damaged or the manufacturer specifies assembly replacement.
How often should I service the Titan Epic 447EX Fluid Section?
Follow the manufacturer's maintenance schedule. Service frequency depends on usage, coating materials, and operating conditions.
What should I check before ordering a fluid section repair kit?
Verify the Titan Epic 447EX model, kit part number, included components, sealing materials, and manufacturer-documented compatibility.
How can I get help finding Titan Epic 447EX Fluid Section parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model information, fluid section diagram reference, and original manufacturer part number.
