Titan Epic 447EX | Frame Assembly Replacement Parts
Shop Titan Epic 447EX Frame Assembly Parts
Find Epic 447EX Frame Assembly replacement components for your Titan electric airless paint sprayer at AllTitanParts. Browse the frame assembly diagram to identify structural supports, mounting components, fasteners, and related hardware specified for your equipment. Whether you are replacing damaged frame components, correcting loose equipment mounting, or maintaining sprayer stability, use the applicable parts illustration to identify the correct manufacturer part number before ordering.
Assembly Overview
Buy Titan Epic 447EX Frame Assembly Replacement Parts
The Titan Epic 447EX Frame Assembly category is dedicated to components associated with the supporting structure of the Titan Epic 447EX electric airless paint sprayer. The frame provides the foundation for equipment mounting, handling, and positioning during normal operation.
The frame assembly is an important part of the sprayer's mechanical arrangement. It helps support the installed motor, pump, and other assemblies while maintaining their intended mounting positions. A damaged or incorrectly assembled frame can affect equipment stability, alignment, and handling.
Over time, frequent transportation, accidental impacts, vibration, corrosion, or general wear may affect frame components and mounting hardware. Loose fasteners, bent supports, worn protective feet, or damaged brackets should be inspected and addressed according to the manufacturer's service recommendations.

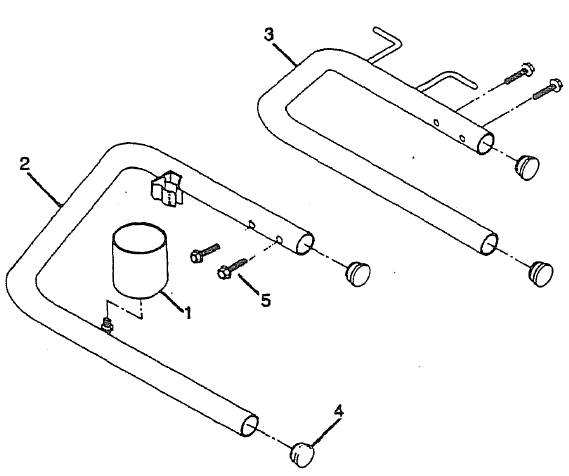

The Titan Epic 447EX frame assembly diagram helps identify component locations and corresponding manufacturer part numbers. This is particularly useful when several similar fasteners, supports, or mounting components are used within the same equipment configuration.
At AllTitanParts, customers can use the applicable assembly diagram to identify and order replacement components. Confirm the exact part number, required quantity, and equipment configuration before completing a purchase.
Frame Function
How the Titan Epic 447EX Frame Assembly Supports Sprayer Operation
Although the frame does not pressurize coating material, it provides important structural support for the assemblies that perform the spraying process.
Equipment Support
The frame provides the supporting structure for installed sprayer components and helps maintain the intended operating arrangement.
Mounting Alignment
Specified mounting points help secure equipment assemblies in their designated positions.
Operating Stability
A correctly assembled frame helps limit unwanted movement and provides stable equipment support during use.
Handling and Storage
The frame supports designated handling and positioning methods, subject to the manufacturer's equipment instructions.
Replacement Component Guide
Titan Epic 447EX Frame Assembly Components
The following component groups describe common service areas associated with airless sprayer frame assemblies. Confirm the exact components, diagram references, and part numbers listed for the Titan Epic 447EX before ordering.
Main Frame Structure
The main frame forms the primary support structure for the Titan Epic 447EX.
Inspect for cracks, bending, corrosion, damaged welds, or distorted mounting locations. Structural damage should be evaluated before the sprayer is returned to service.
Mounting Screws and Bolts
Mounting fasteners secure the frame and designated equipment components.
Use the specified thread size, length, material, and strength classification. Do not substitute hardware solely because it appears to fit.
Support Feet and Protective Pads
Where included in the frame configuration, support feet or pads provide contact points between the sprayer and its supporting surface.
Check for wear, cracking, missing components, or deterioration that may affect equipment stability.
Frame Mounting Brackets
Where specified, mounting brackets provide attachment locations for designated equipment assemblies.
Inspect brackets for deformation, cracks, damaged mounting holes, and incorrect alignment.
Washers, Nuts, and Retainers
Specified washers, nuts, and retaining hardware complete mechanical connections throughout the assembly.
Verify the exact component type and diagram position. Different hardware may have different mechanical requirements.
Handles and Frame Accessories
Depending on the equipment configuration, the frame may incorporate designated handling features or accessory mounting points.
Confirm that any replacement component is specified for the Titan Epic 447EX frame assembly before purchase.
Troubleshooting Guide
Common Titan Epic 447EX Frame Assembly Problems
Frame damage and mounting problems can affect the safe operation and handling of the sprayer. Inspect the relevant components before purchasing replacements.
| Observed Problem | Possible Causes | Recommended Inspection |
|---|---|---|
| Sprayer rocks or sits unevenly | Bent frame, worn support feet, uneven mounting | Inspect frame alignment and all designated support points. |
| Excessive vibration | Loose hardware, damaged supports, motor or pump issues | Check frame fasteners and investigate mechanical vibration sources. |
| Loose equipment mounting | Missing bolts, damaged brackets, worn mounting holes | Inspect mounting points and replace damaged components with specified parts. |
| Visible frame deformation | Impact damage, improper handling, structural stress | Stop using unsafe equipment and arrange qualified inspection. |
| Corroded frame hardware | Moisture exposure, coating contamination, deterioration | Inspect hardware condition and replace components that no longer meet service requirements. |
| Damaged protective feet | Wear, impact, age-related deterioration | Confirm the correct support-foot part number where applicable. |
Parts Identification Guide
How to Find the Correct Titan Epic 447EX Frame Assembly Parts
Verify Your Model
Confirm that the sprayer is a Titan Epic 447EX and record available model or serial information.
Review the Frame Diagram
Locate the applicable frame assembly illustration and identify the component's reference position.
Match the Part Number
Compare the manufacturer part number with the available replacement listing.
Confirm Before Ordering
Verify the component description, specifications, quantity, and current availability.
Preventive Maintenance
Titan Epic 447EX Frame Assembly Maintenance Tips
Inspect Structural Components
Check the frame for cracks, bending, corrosion, and damage around mounting locations.
Check Mounting Hardware
Inspect bolts, screws, washers, and retaining hardware using the manufacturer's maintenance instructions.
Monitor Support Points
Where fitted, inspect protective feet and other support components for wear or deterioration.
Remove Coating Buildup
Clean accumulated coating material from accessible frame surfaces using approved methods.
Use Stable Surfaces
Operate and store the sprayer on a suitable stable surface according to the equipment manual.
Avoid Unauthorized Modifications
Do not alter structural components or mounting points without manufacturer authorization.
Compatibility and Ordering
Choosing the Right Epic 447EX Frame Assembly Replacement Components
Frame components may differ between Titan sprayer models and equipment configurations. Mounting geometry, structural dimensions, hardware specifications, and installation positions must match the intended equipment.
- Confirm the exact model: Verify Titan Epic 447EX identification.
- Review the correct diagram: Identify the relevant frame assembly illustration.
- Match the original part number: Compare it with the product listing.
- Verify dimensions and hardware: Check the required specifications.
- Confirm replacement information: Review documented manufacturer supersessions.
- Check quantities: Determine the number of components needed for the repair.
- Review availability: Check current product information before ordering.
Do not assume that frame parts from the Titan Epic 440E or other Epic-series sprayers will fit the Epic 447EX unless compatibility is specifically documented.
Related Titan Epic Parts
Explore Titan Epic 447EX and Related Replacement Parts
Titan Epic 447EX Frame Assembly
Browse frame assembly components and related structural replacement parts.
Titan Epic 447EX Parts
Explore the complete Epic 447EX model category for additional assembly diagrams.
AllTitanParts Store
Search Titan replacement components by equipment model or manufacturer part number.
Titan Epic 447EX Frame Assembly Repair Safety
Before removing frame fasteners or servicing mounted components, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Support the equipment securely before disassembly. Do not operate a sprayer with a cracked, unstable, or severely damaged frame. Use manufacturer-specified replacement hardware and follow the applicable service instructions.
Titan Epic 447EX Frame Replacement Components
Order Titan Epic 447EX Frame Assembly Parts Online
Browse the Titan Epic 447EX Frame Assembly category at AllTitanParts. Use the diagram to identify structural components and mounting hardware, verify the manufacturer part number, and review available replacement products for your repair.
Shop Epic 447EX Frame Assembly PartsFrequently Asked Questions
Titan Epic 447EX Frame Assembly FAQ
What is the Titan Epic 447EX Frame Assembly?
The frame assembly is the supporting structure that helps position and secure designated components of the Titan Epic 447EX airless sprayer.
Where can I buy Titan Epic 447EX Frame Assembly Parts?
Visit the Titan Epic 447EX Frame Assembly category at AllTitanParts to review available replacement products.
How do I identify the correct Epic 447EX frame part?
Confirm the sprayer model, locate the frame assembly diagram, and match the component reference to the manufacturer's part number.
Can a damaged frame affect sprayer operation?
Yes. Frame damage may affect equipment stability, mounting alignment, or handling. A structurally compromised frame should be inspected before further use.
Can loose frame mounting bolts cause vibration?
Yes. Loose fasteners may contribute to unwanted movement. Vibration may also originate from the motor or pump, so the complete system should be evaluated.
Can I replace individual frame screws and washers?
Individual hardware may be replaceable where specified. Match the original manufacturer part number and required fastener specifications.
What should I do if the Epic 447EX frame is bent?
Stop operating the sprayer if frame damage affects structural integrity or stability. Arrange qualified inspection and follow the manufacturer's repair recommendations.
Are Epic 447EX frame parts compatible with Epic 440E parts?
Do not assume interchangeability. Compatibility must be confirmed through manufacturer part numbers and model-specific documentation.
Can worn support feet make the sprayer unstable?
Yes. Where fitted, worn or missing support feet can affect contact with the supporting surface and contribute to instability.
Should I replace damaged frame mounting brackets?
Damaged brackets should be evaluated against the manufacturer's service requirements. Replace components that no longer provide the specified support or alignment.
Can I use generic hardware to repair the frame?
Do not use unverified substitutes. Fasteners must meet the manufacturer's specifications for dimensions, strength, and installation.
How often should I inspect the Titan Epic 447EX frame?
Follow the applicable Titan maintenance schedule and inspect the frame whenever you notice damage, looseness, unusual vibration, or instability.
What information should I check before ordering a frame part?
Verify the model, frame diagram reference, original part number, component specifications, required quantity, and documented replacements.
How can I get help finding Epic 447EX Frame Assembly Parts?
Contact AllTitanParts at 713-931-0006 with your Titan Epic 447EX model information, frame diagram reference, and original component part number.
Titan Epic 447EX Frame Parts Assistance
Need Help Finding Epic 447EX Frame Assembly Parts?
Have your Titan Epic 447EX model information, frame assembly diagram reference, and original part number ready when requesting assistance.
713-931-0006
